Eaw - kf600 sb600 - luidspreker

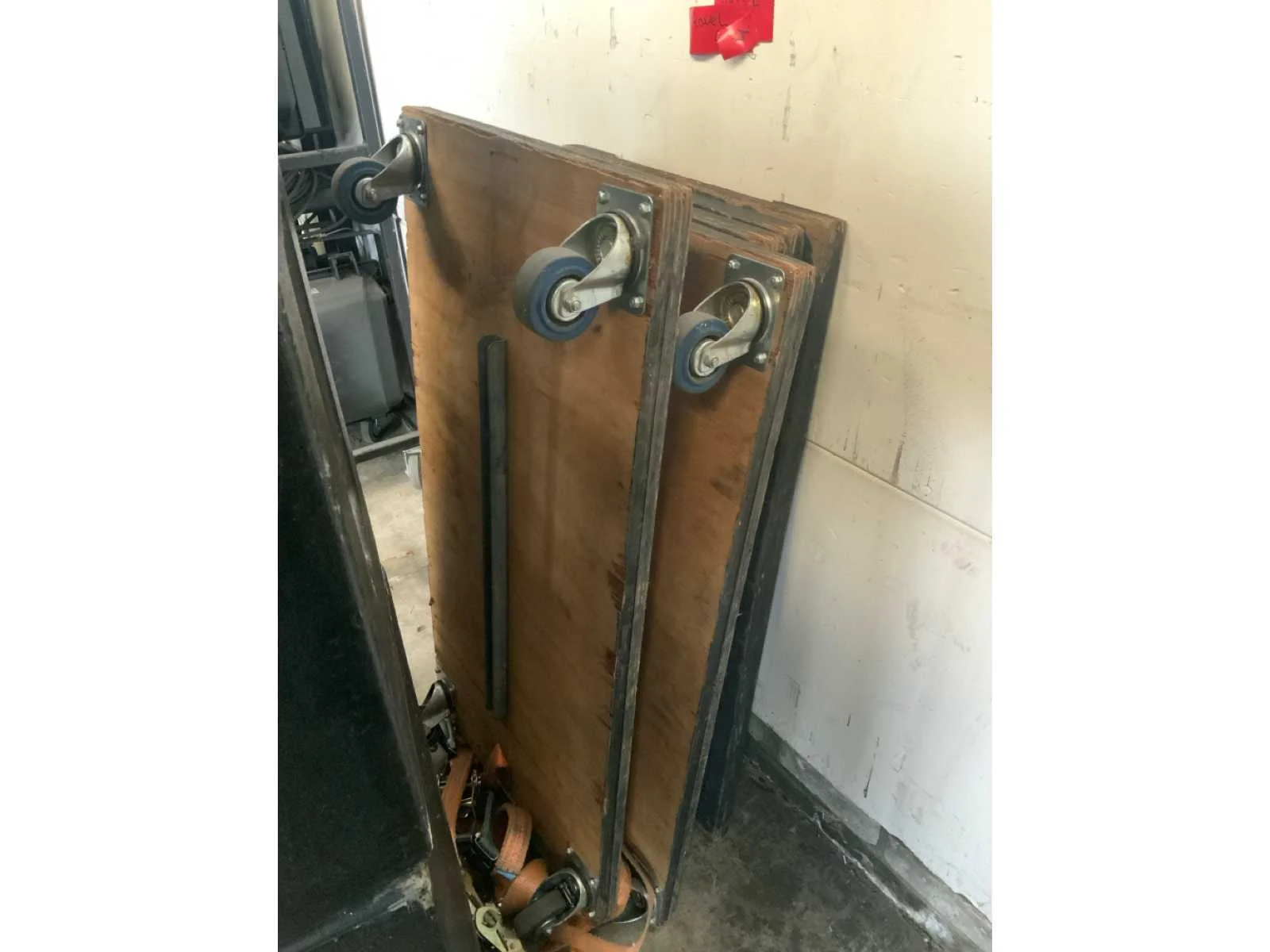

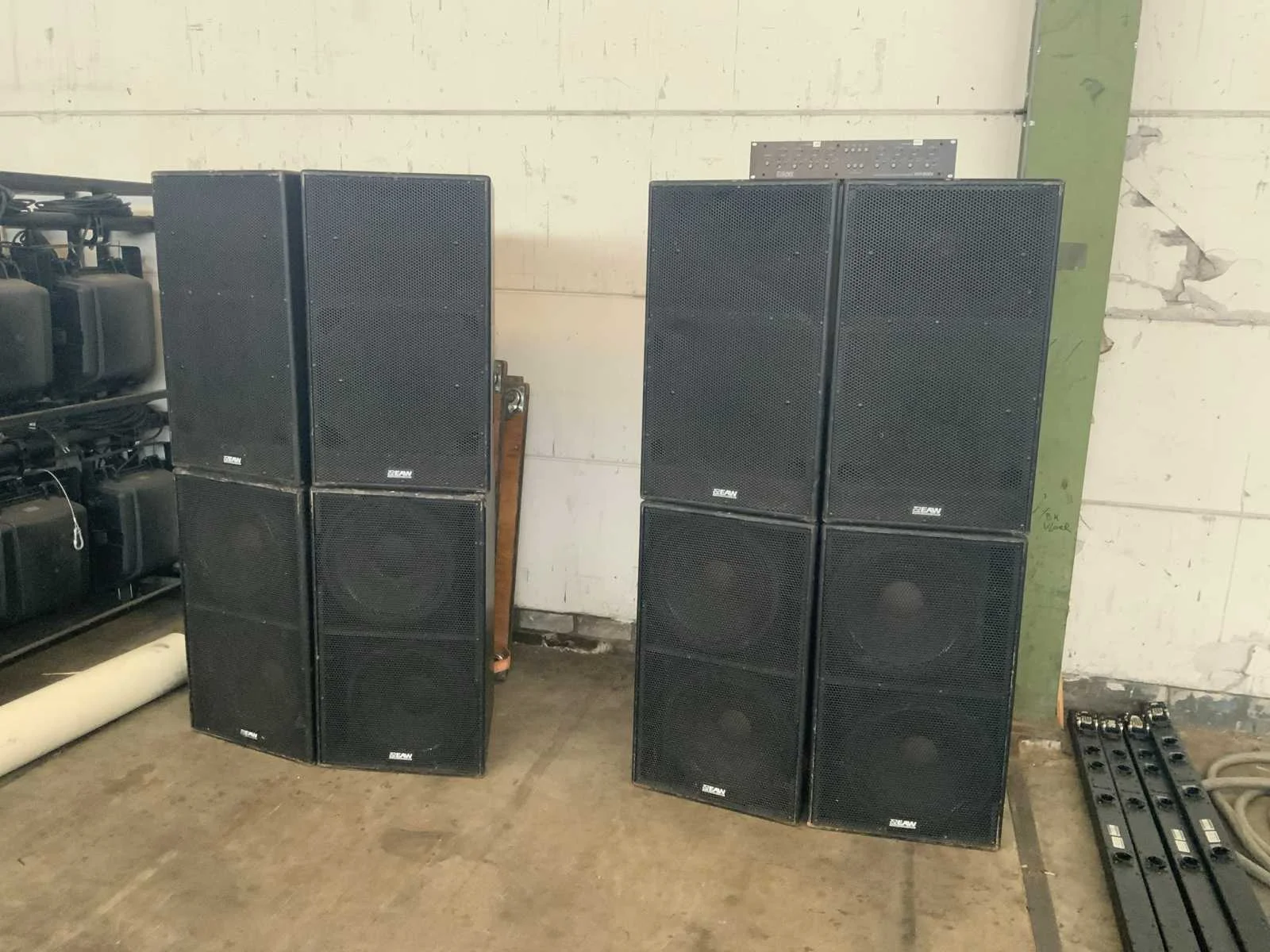

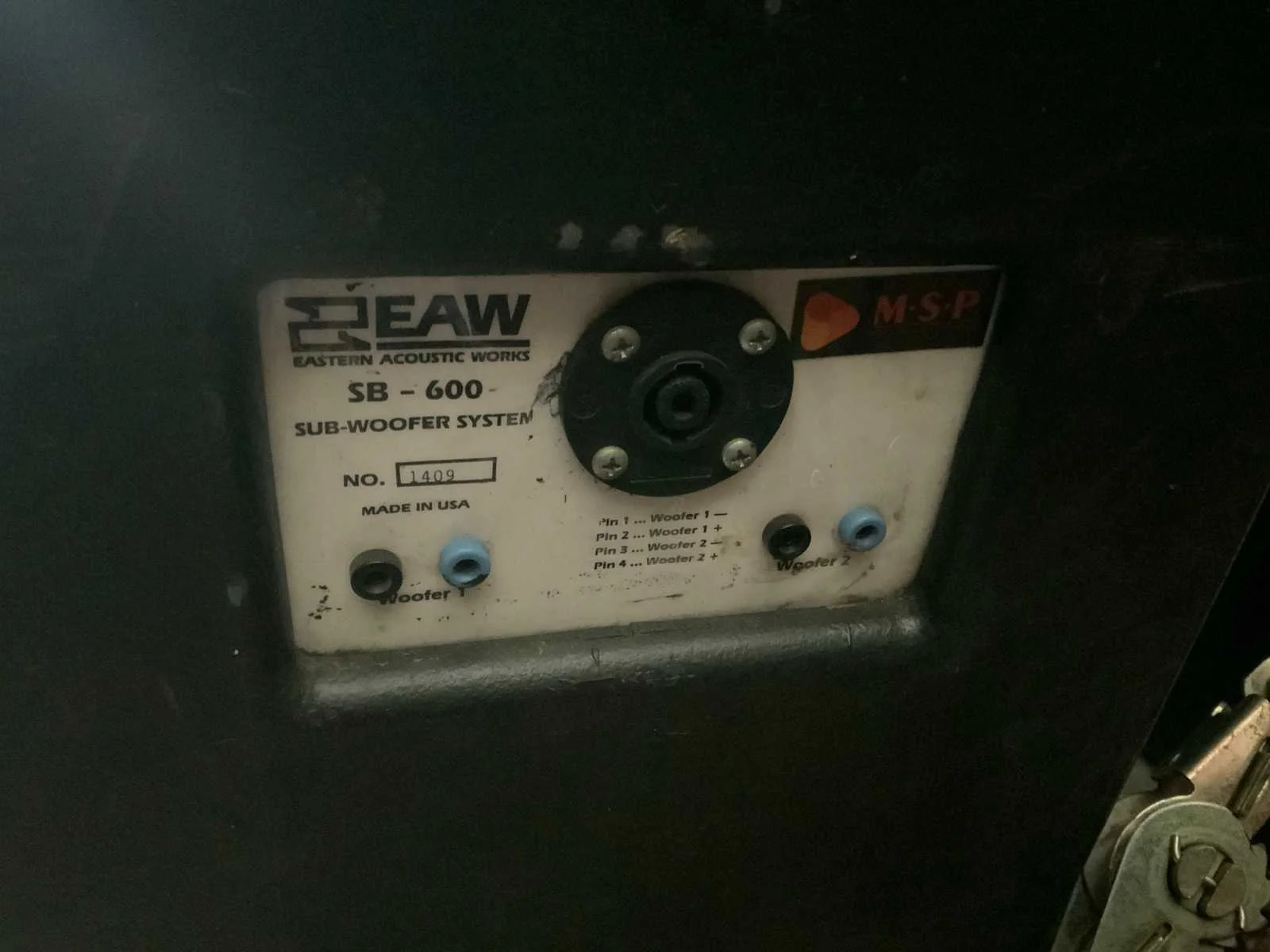

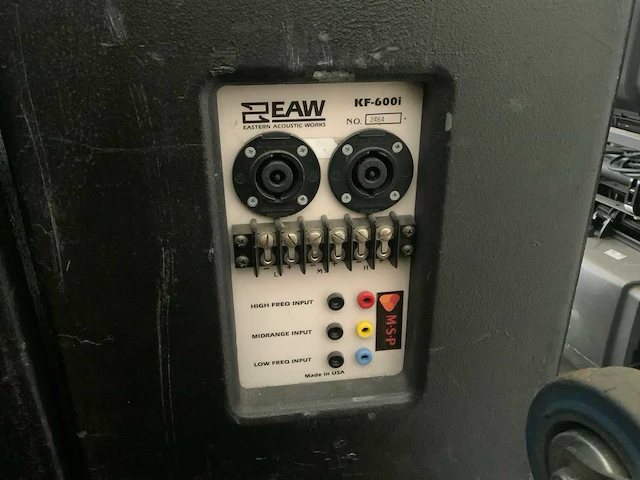

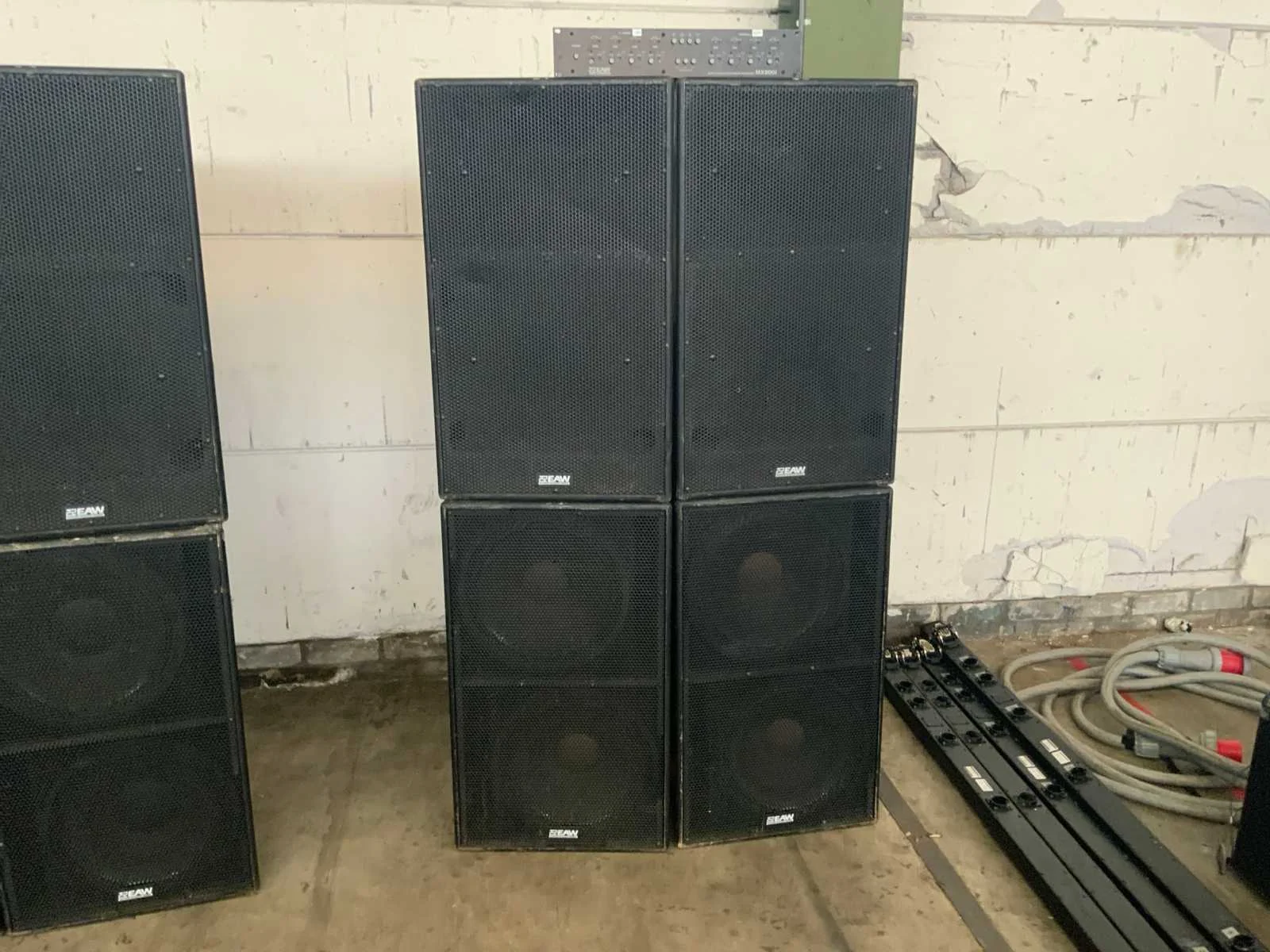

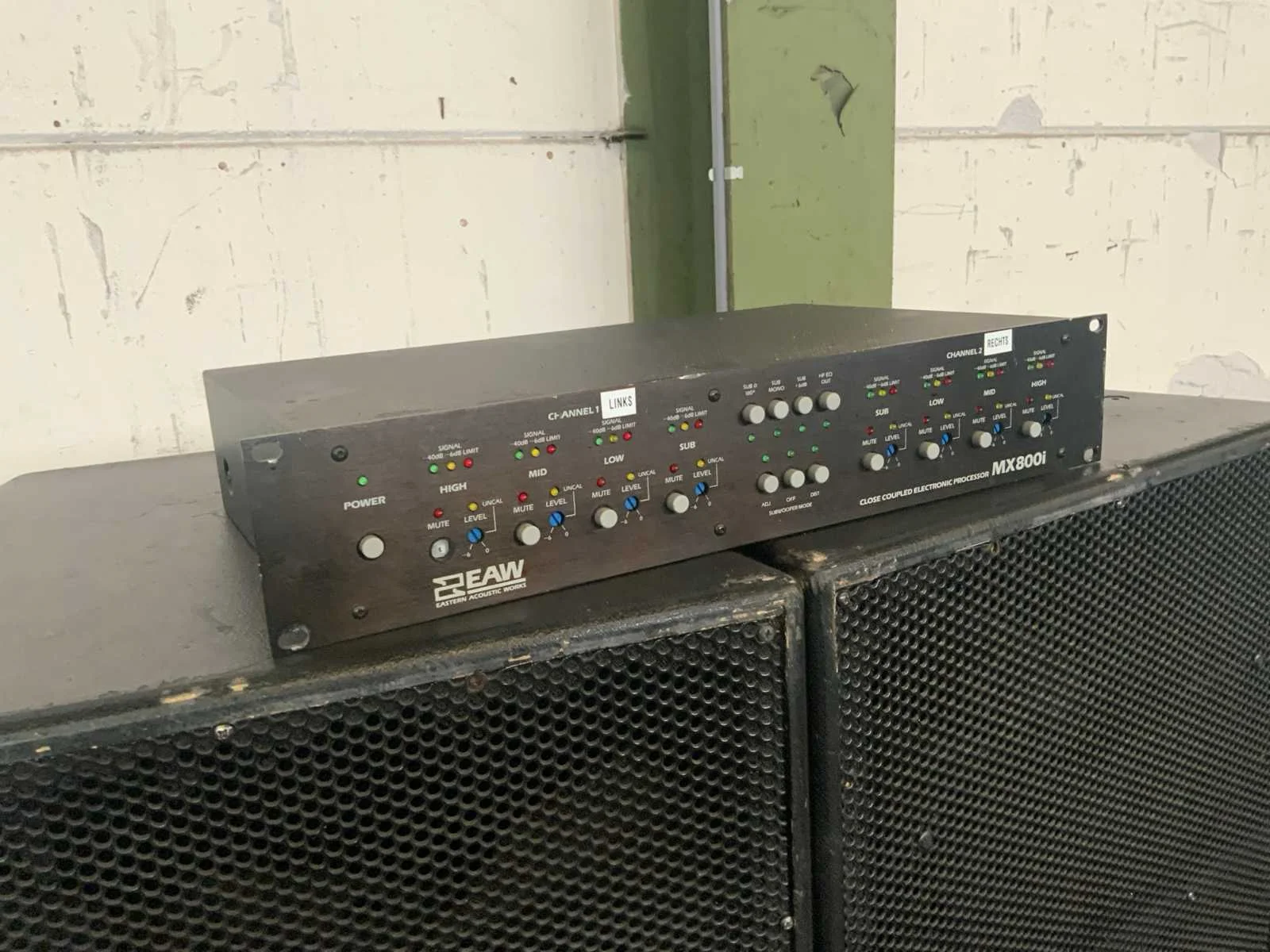

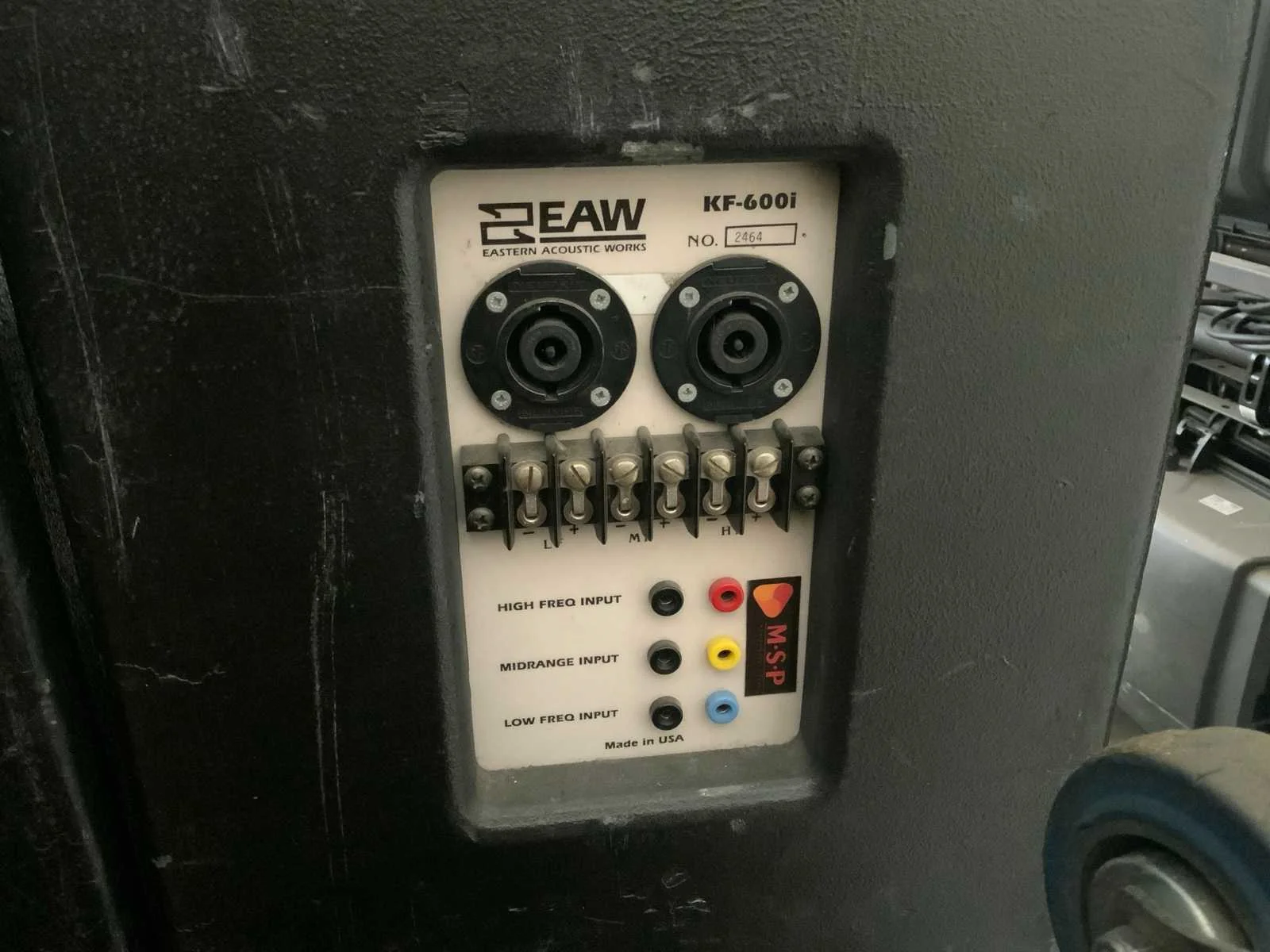

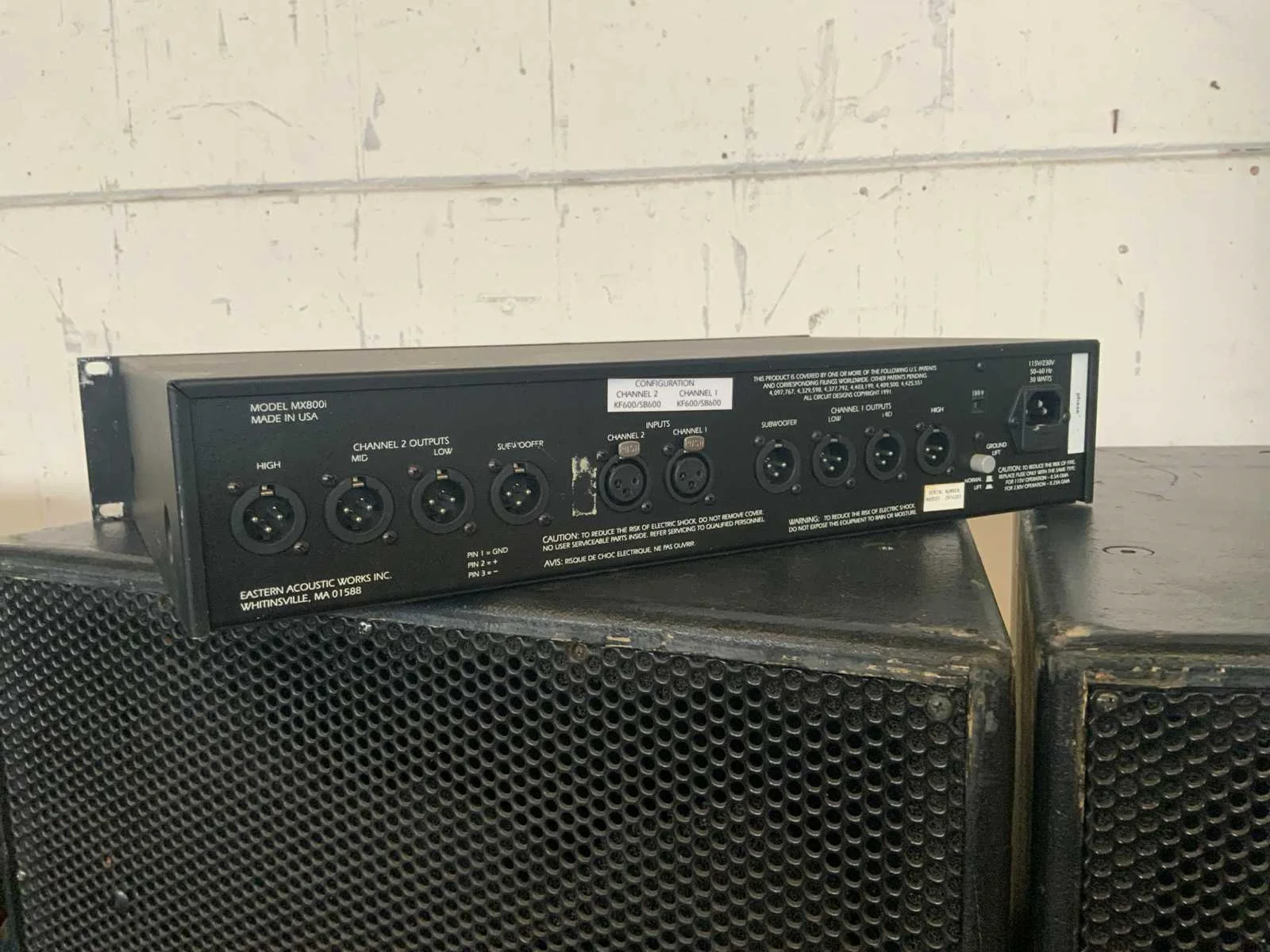

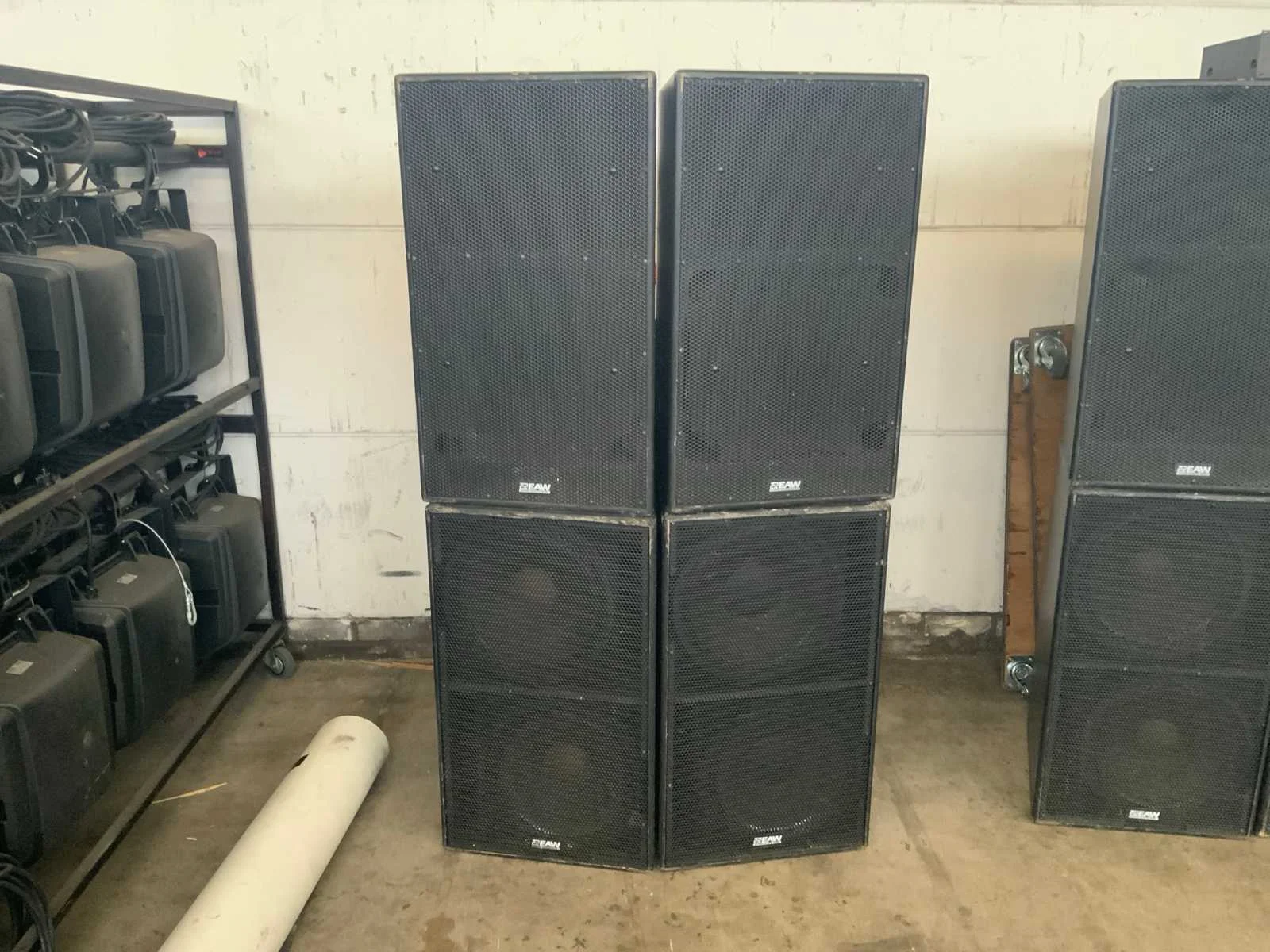

Geluid set EAW 4x KF600 top met 4x SB600 SUB inclusief MX800 systeem controller inclusief 8x transportkar The EAW KF600 is a three-way, full-range loudspeaker, typically used as a side-fill or main PA in various applications. It features a 15-inch low-frequency driver, a 10-inch mid-frequency driver, and a high-frequency compression driver with a horn. The KF600 can be operated in passive or bi-amped mode, and its enclosure is made of birch plywood with a black catalyzed polyurethane finish. Key Specifications: Drivers: 15-inch LF, 10-inch MF, 1.4-inch exit HF compression driver Frequency Response: 58 Hz to 18 kHz, ±3 dB Sensitivity (1W/1m): 103 dB SPL (LF), 108 dB SPL (MF), 109 dB SPL (HF) Power Handling: 250W (LF), 150W (MF), 80W (HF) (100-hour sine wave) Impedance: 8 ohms (nominal) Horizontal Coverage: 60 degrees between -6 dB points Vertical Coverage: 40 degrees between -6 dB points Enclosure: Trapezoidal, made of birch plywood with internal bracing Finish: Black catalyzed polyurethane coating The EAW SB600 is a compact, high-output subwoofer designed for use with Virtual Array loudspeakers like the KF650 or KF695. It features a vented enclosure and unique driver mounting to maximize cone area and minimize turbulence. The SB600 is suitable for both portable and permanent installations, including concert touring, arenas, and large venues. Key Specifications: System Frequency Response: 39 Hz to 200 Hz, ±3 dB (with appropriate signal processing) Axial Sensitivity: 98 dB SPL at 1 meter with 1 Watt input Peak Output: 137 dB SPL at 1 meter Power Handling: 2000 Watts (AES Standard) Nominal Impedance: 4 Ohms (2x 8 Ohms) Enclosure: Trapezoidal, constructed of 15mm Baltic birch plywood with internal bracing Finish: Black catalyzed polyurethane Connectors: One male and one female AP4 input Nee Merk: EAW Type: KF600 SB600
