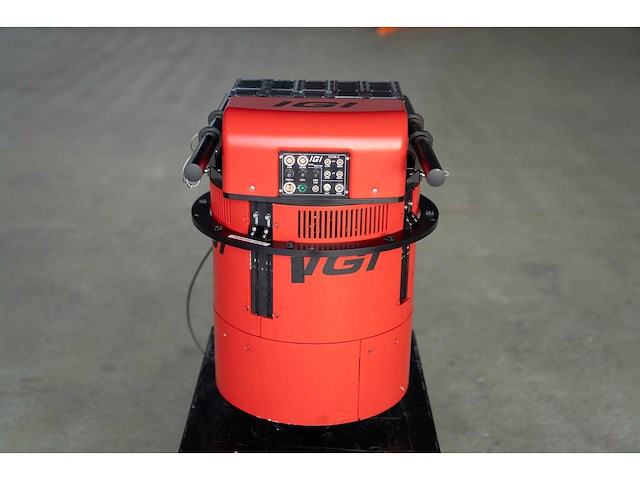

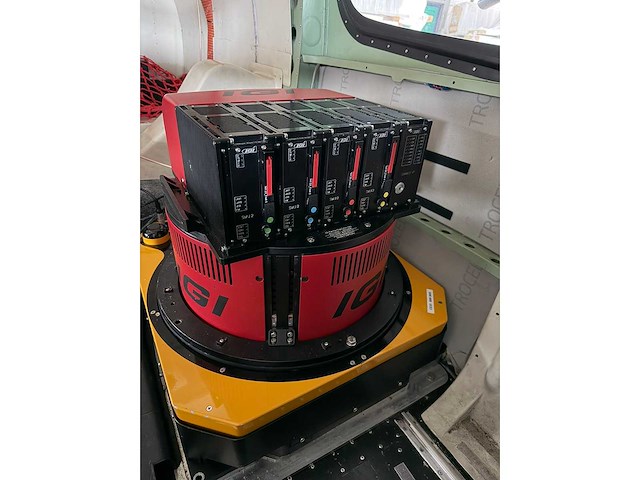

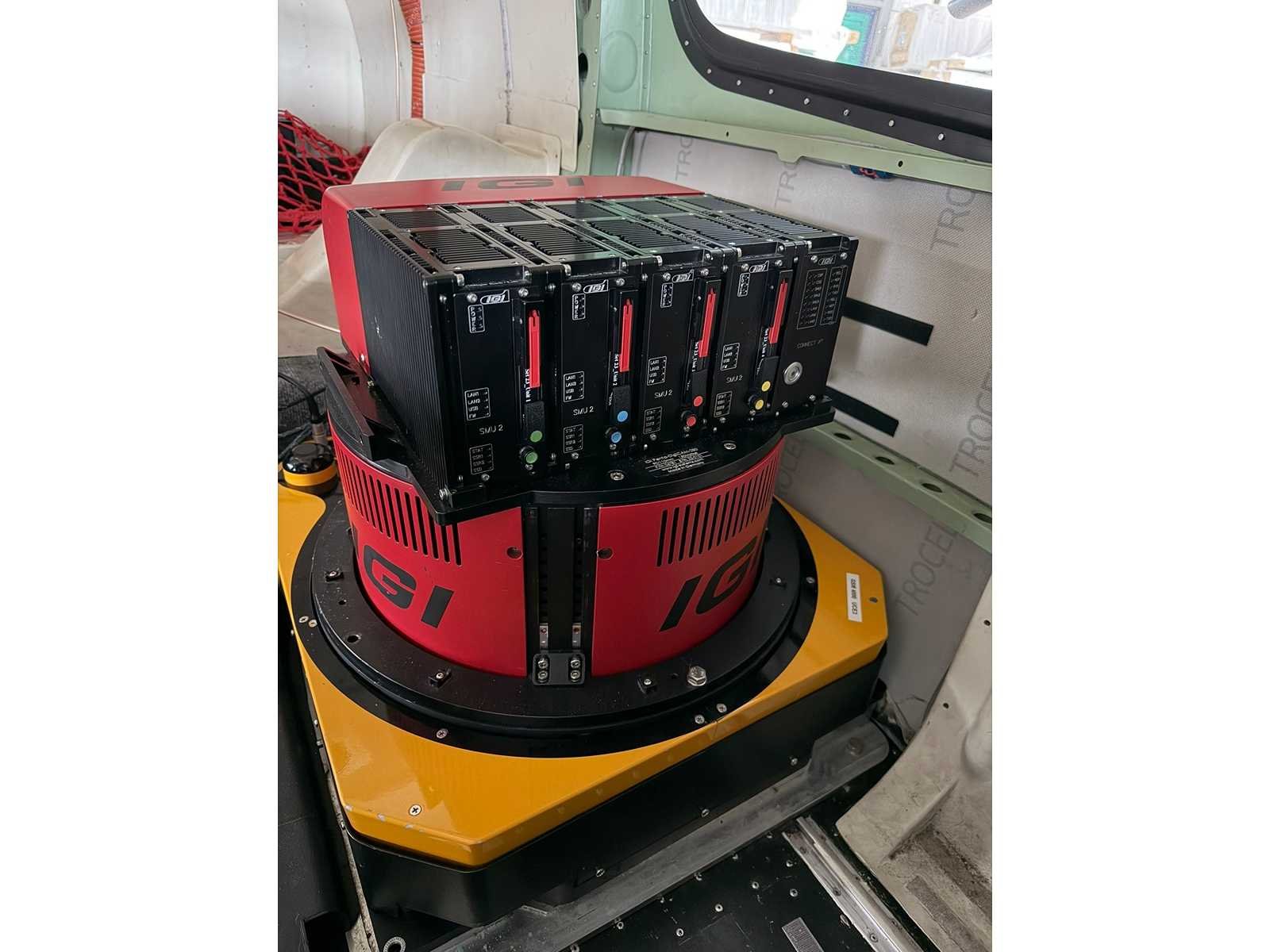

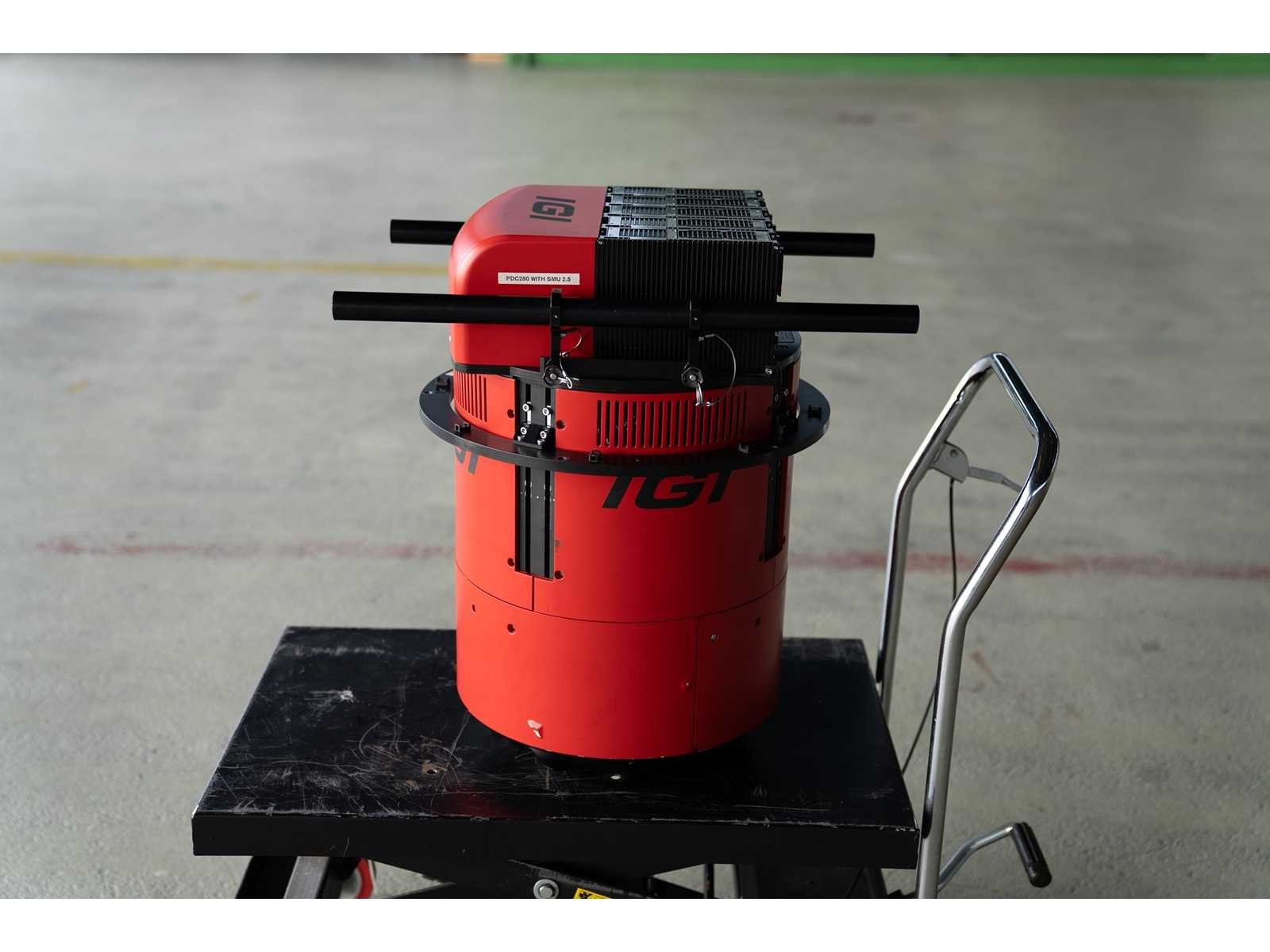

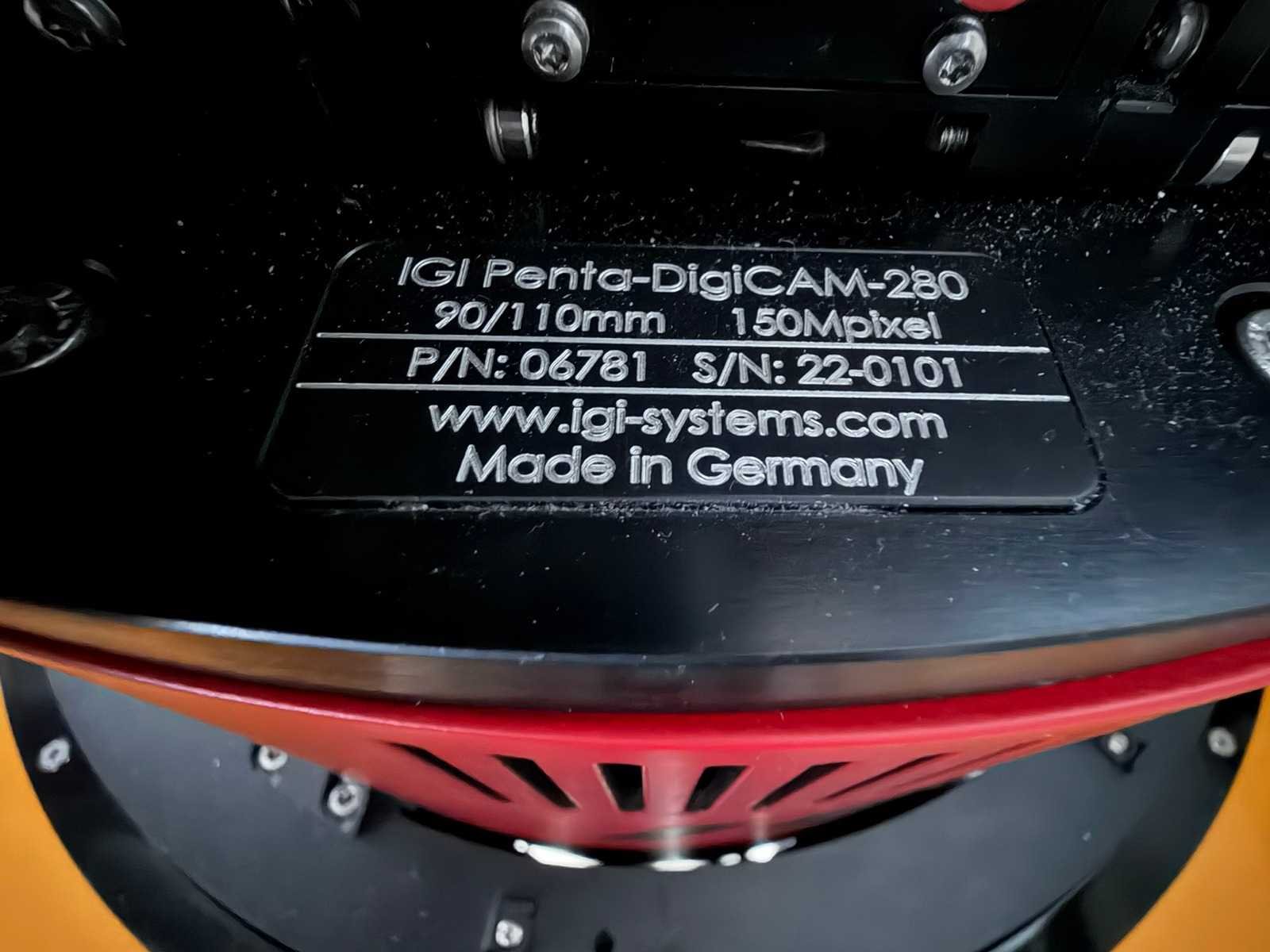

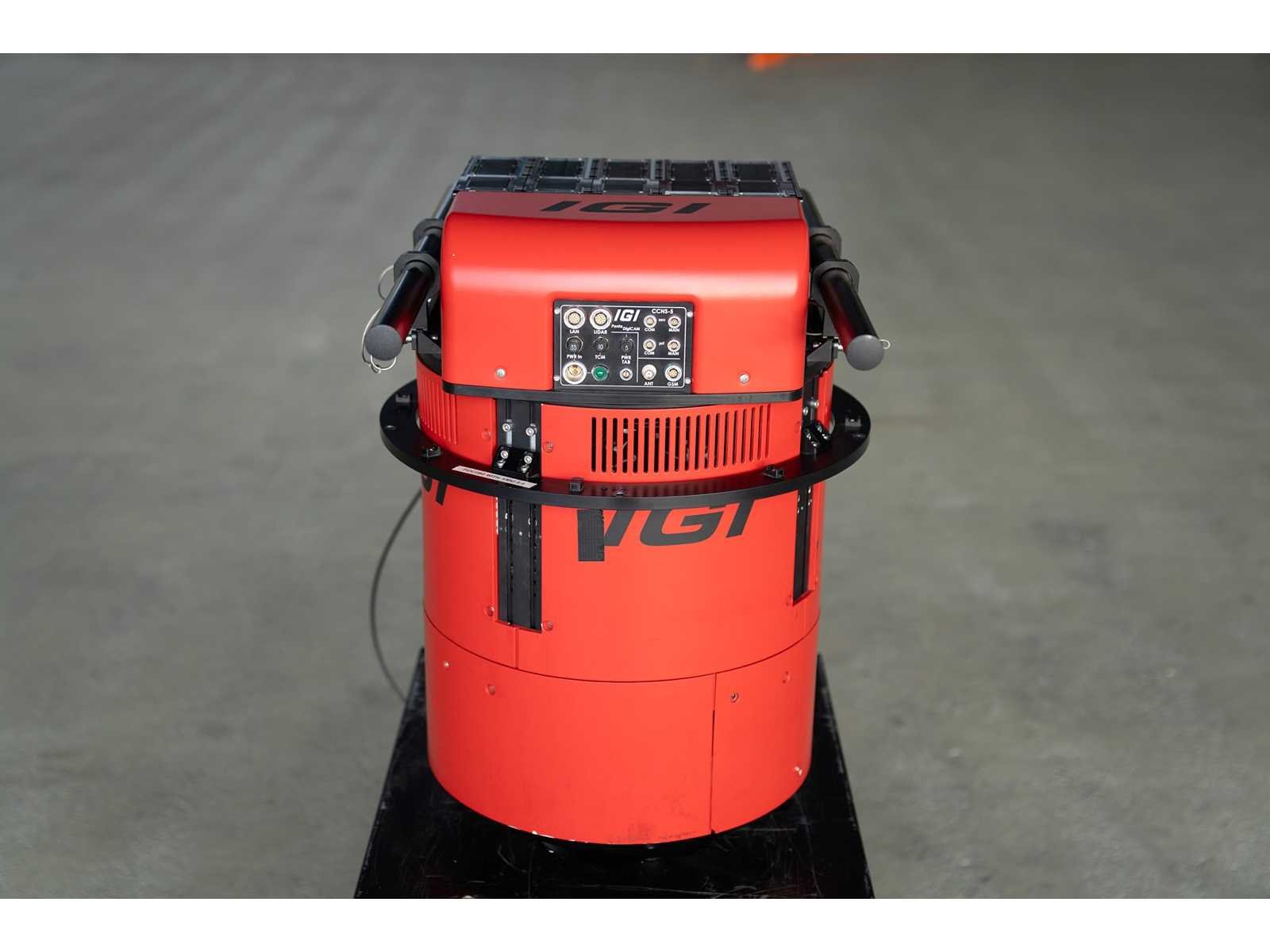

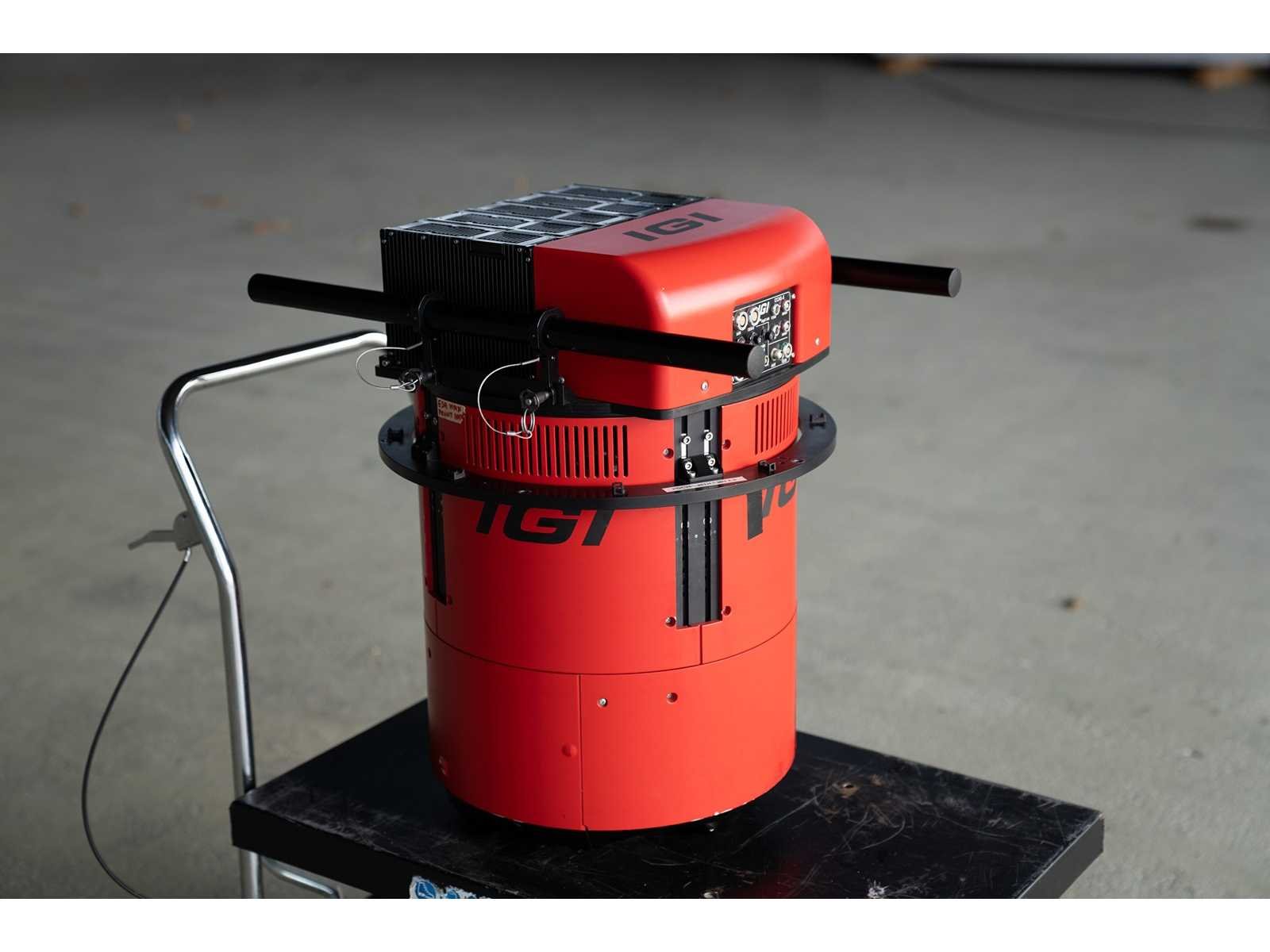

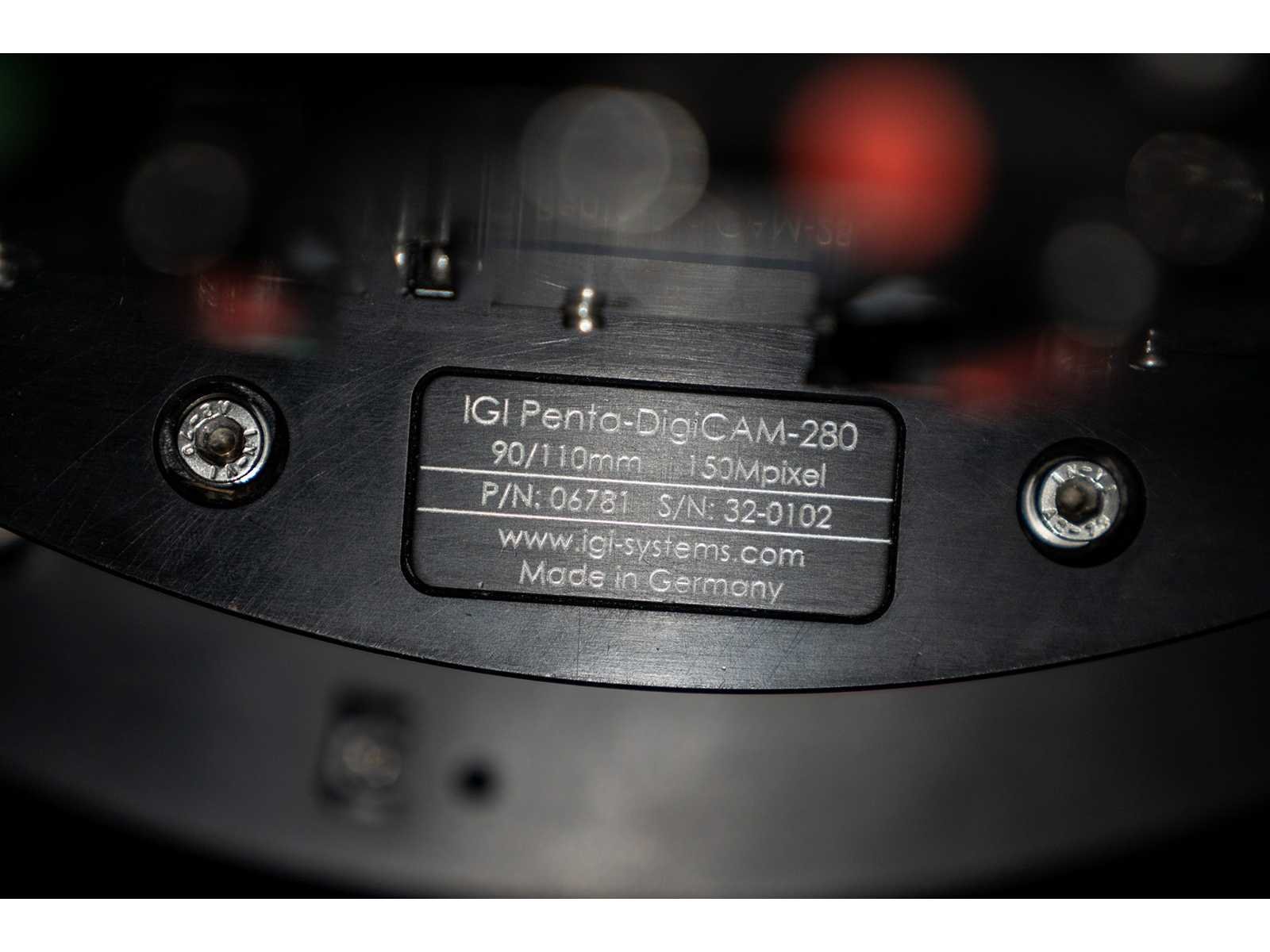

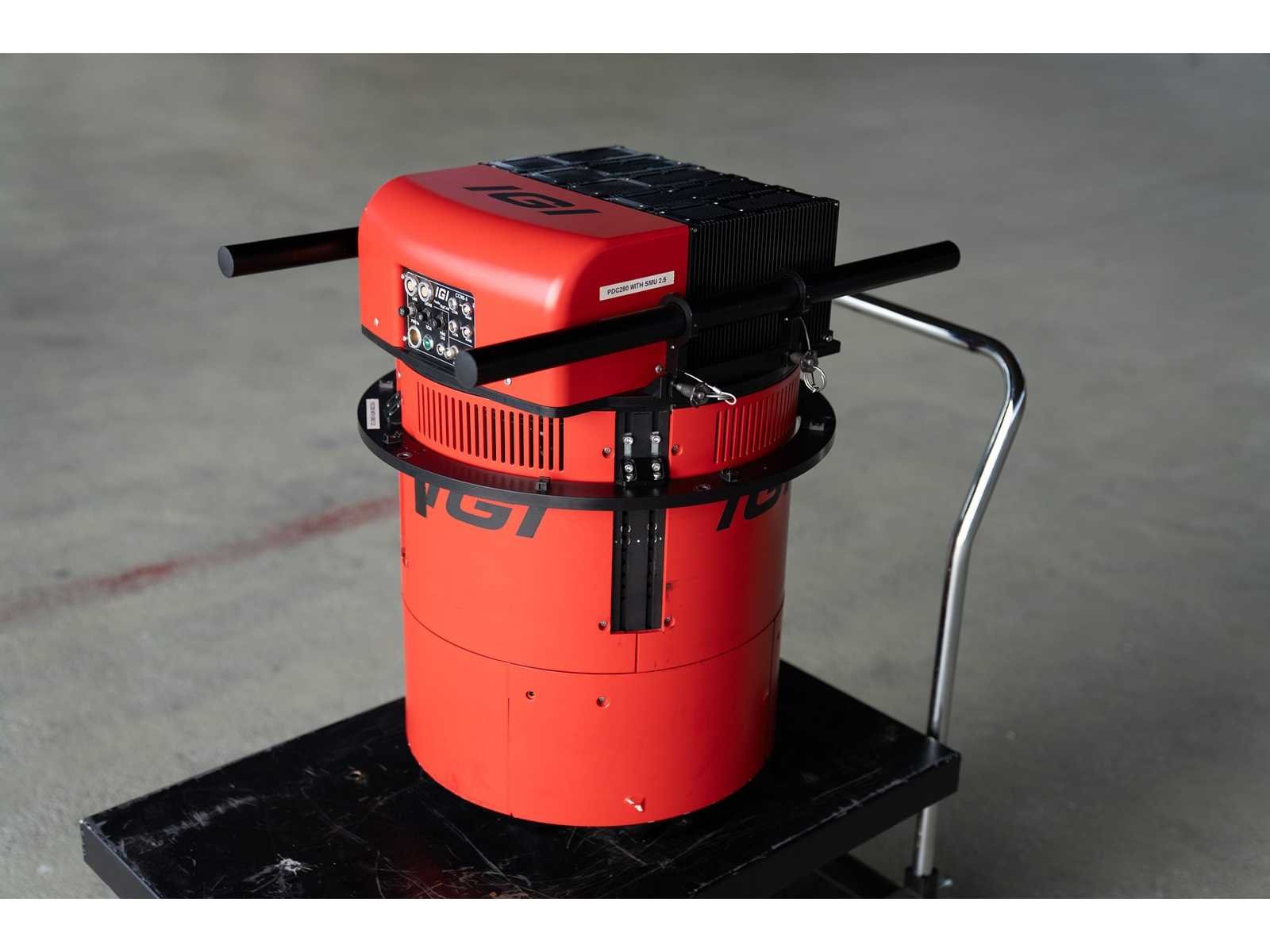

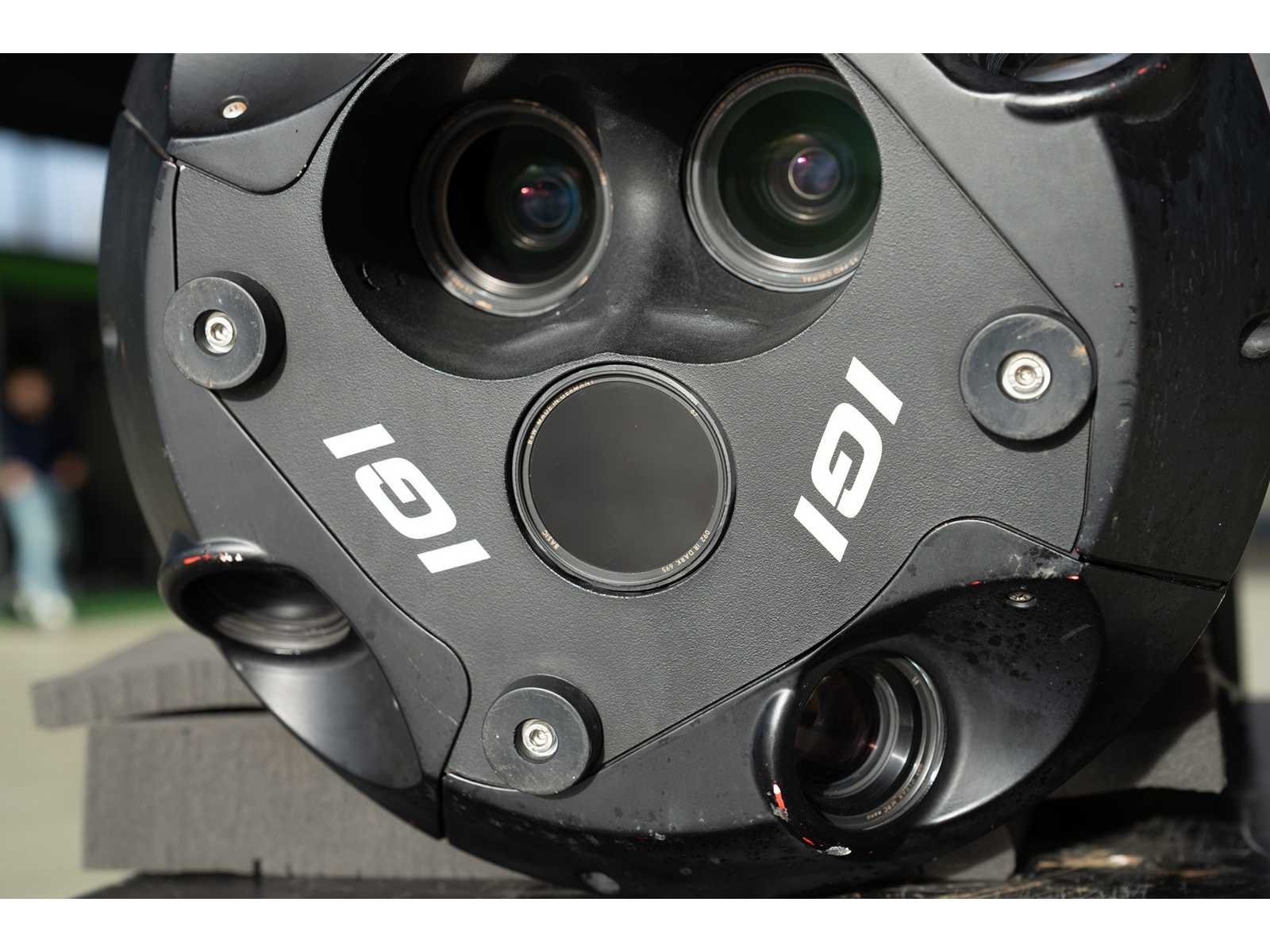

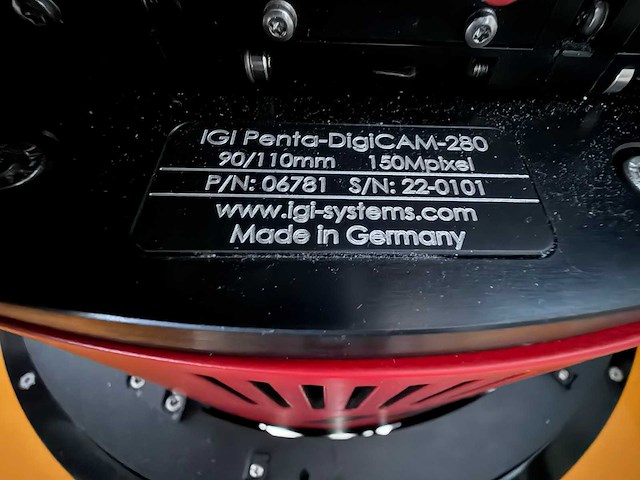

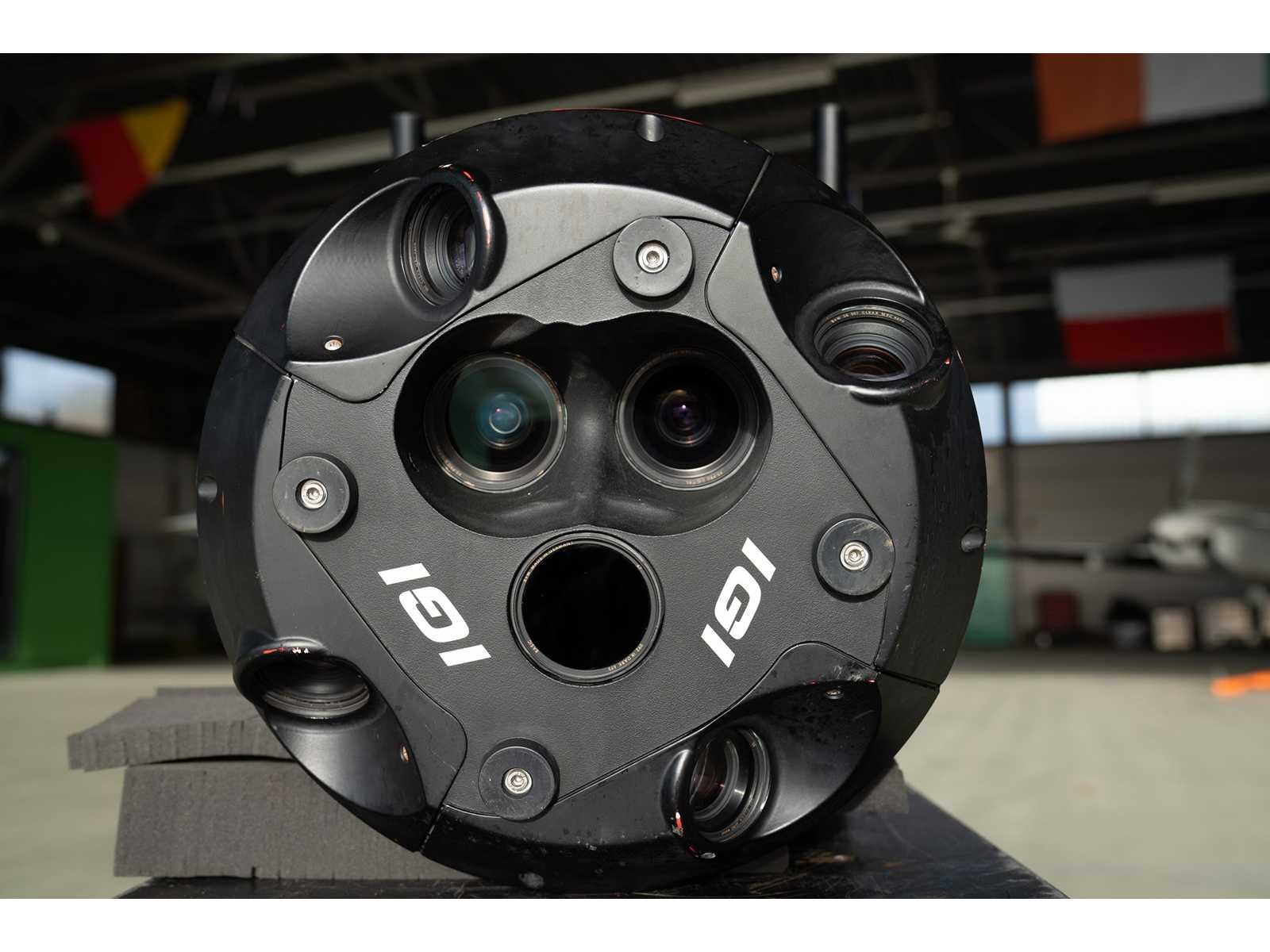

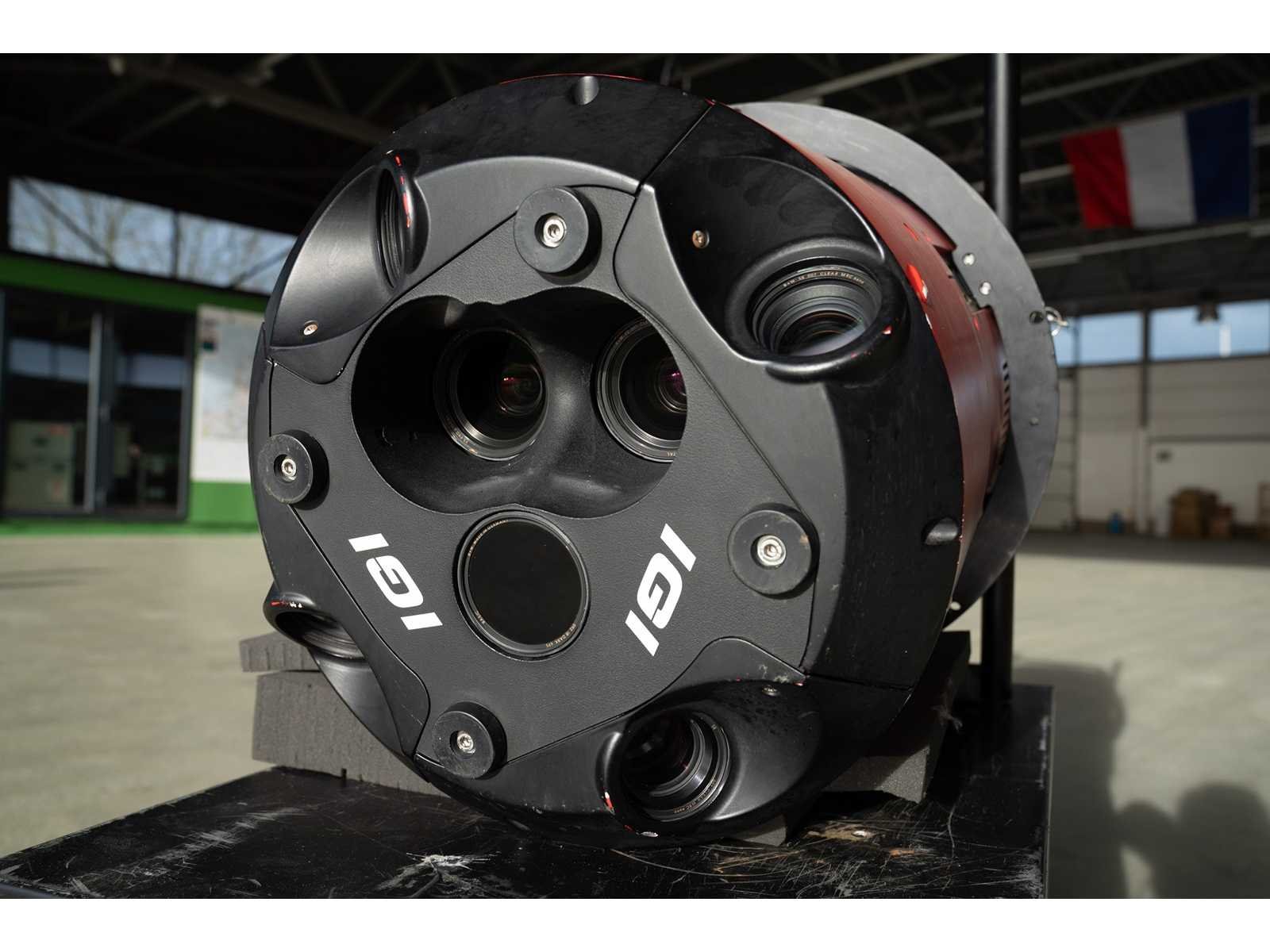

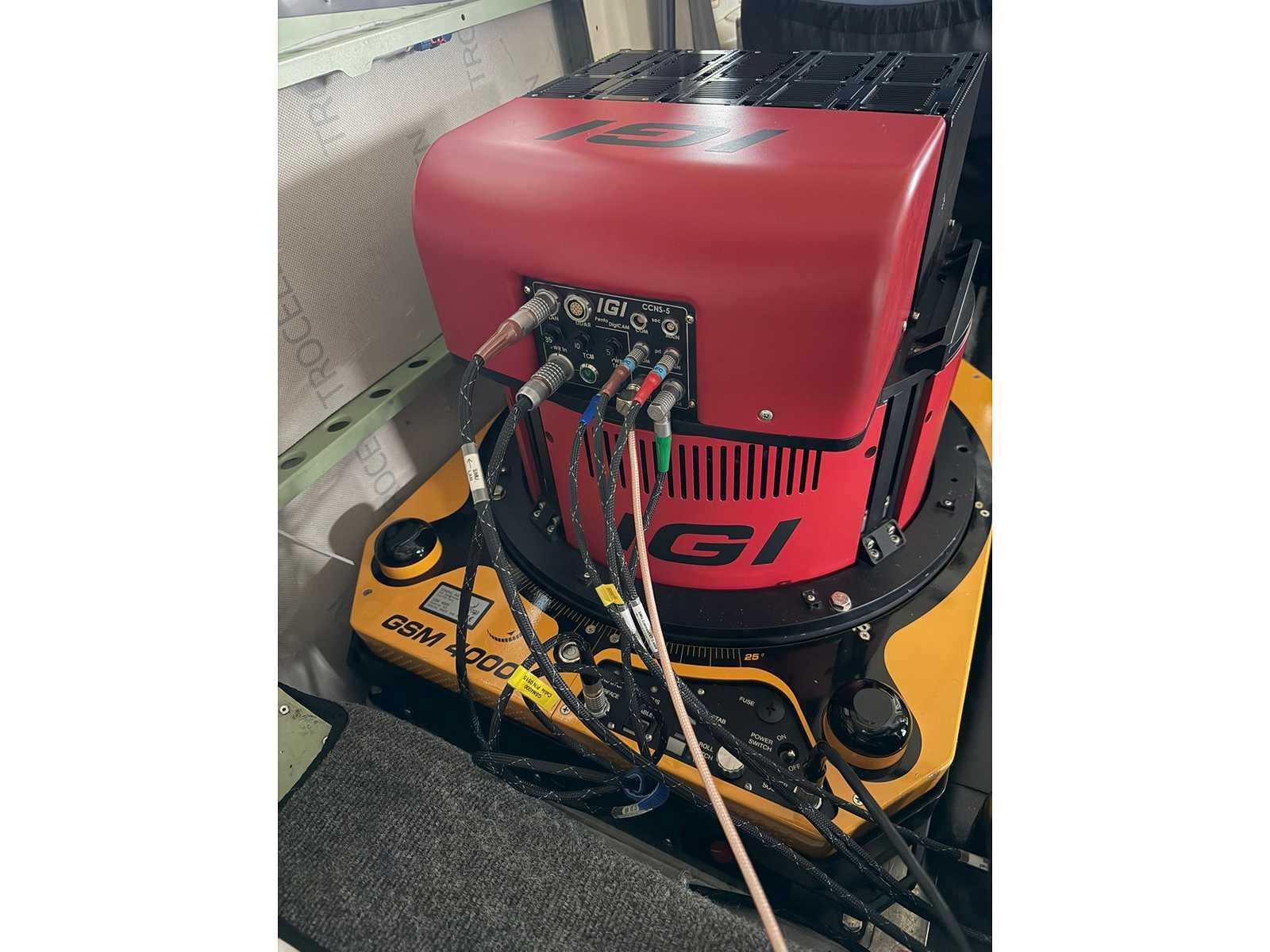

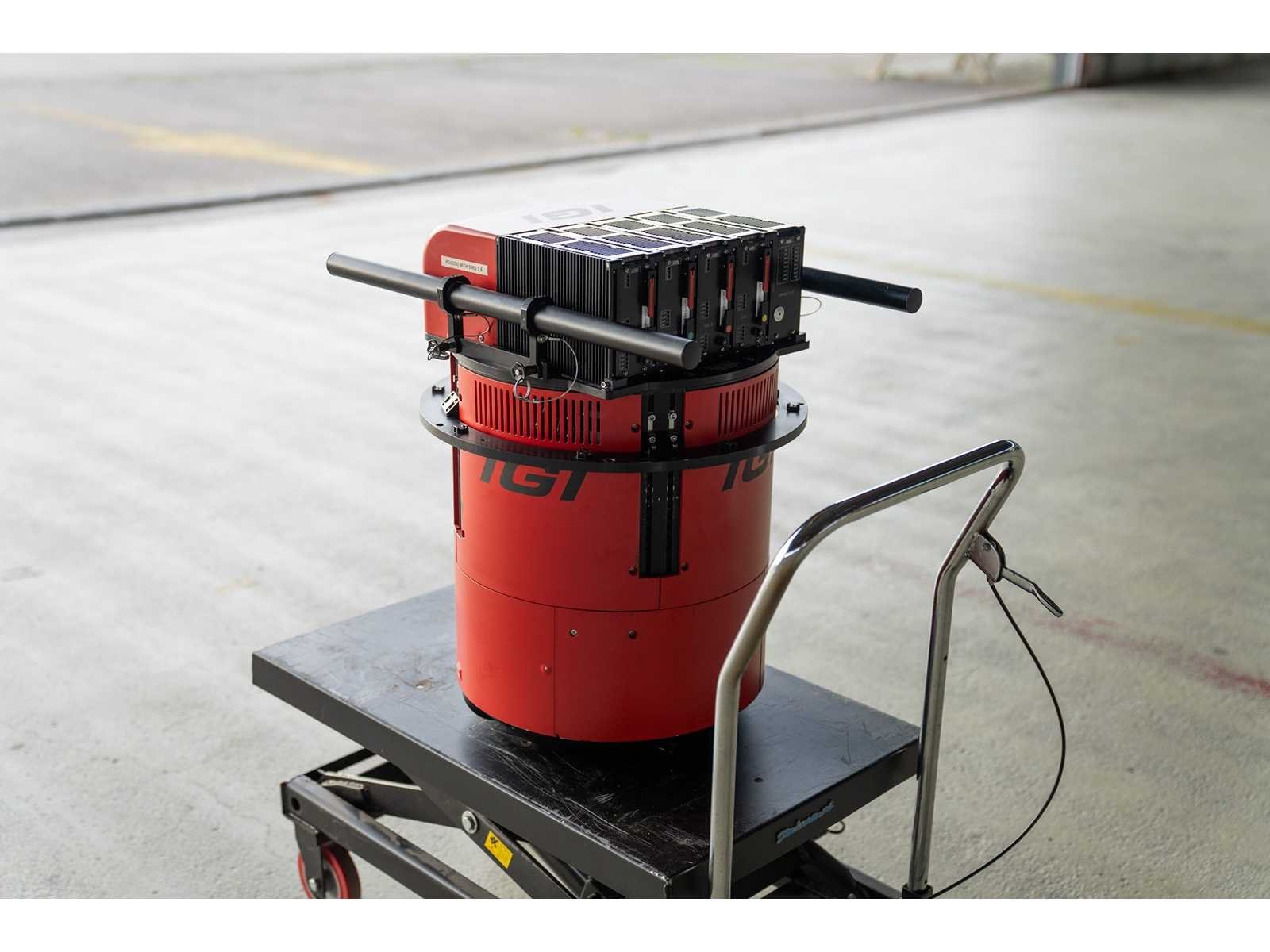

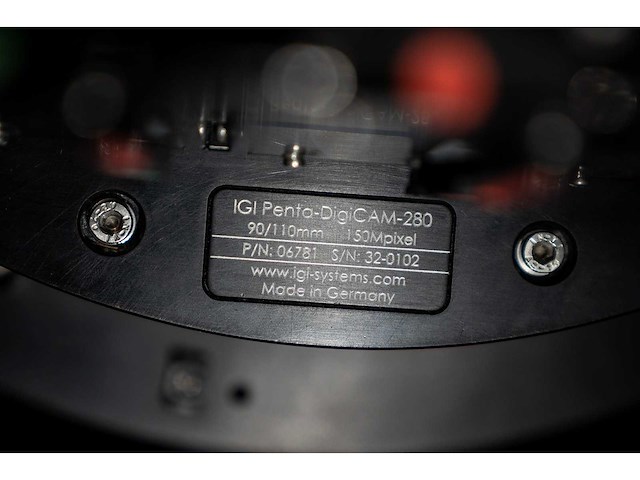

Igi penta digicam-280 nadir and oblique aerial camera system

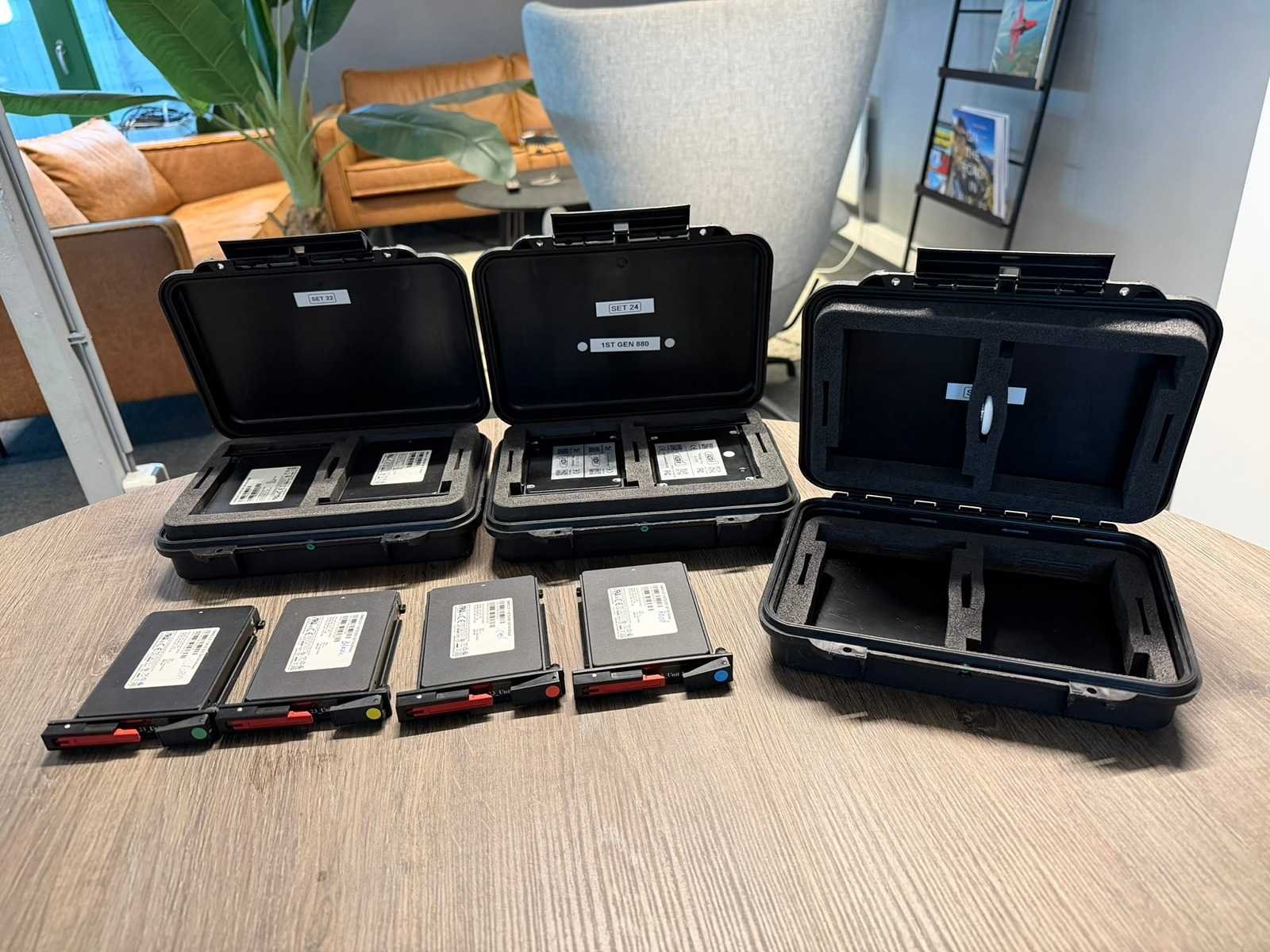

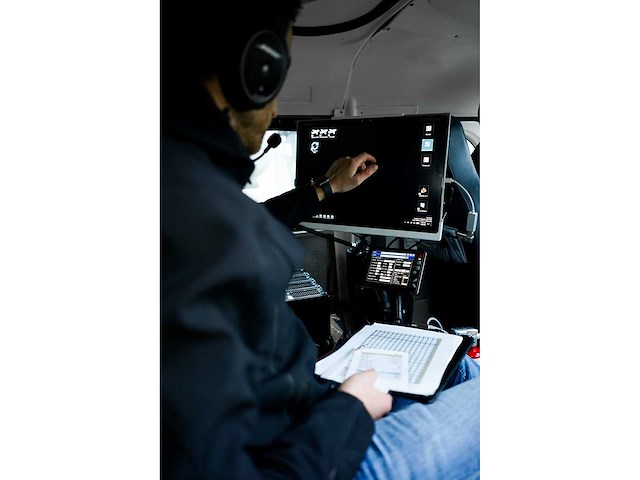

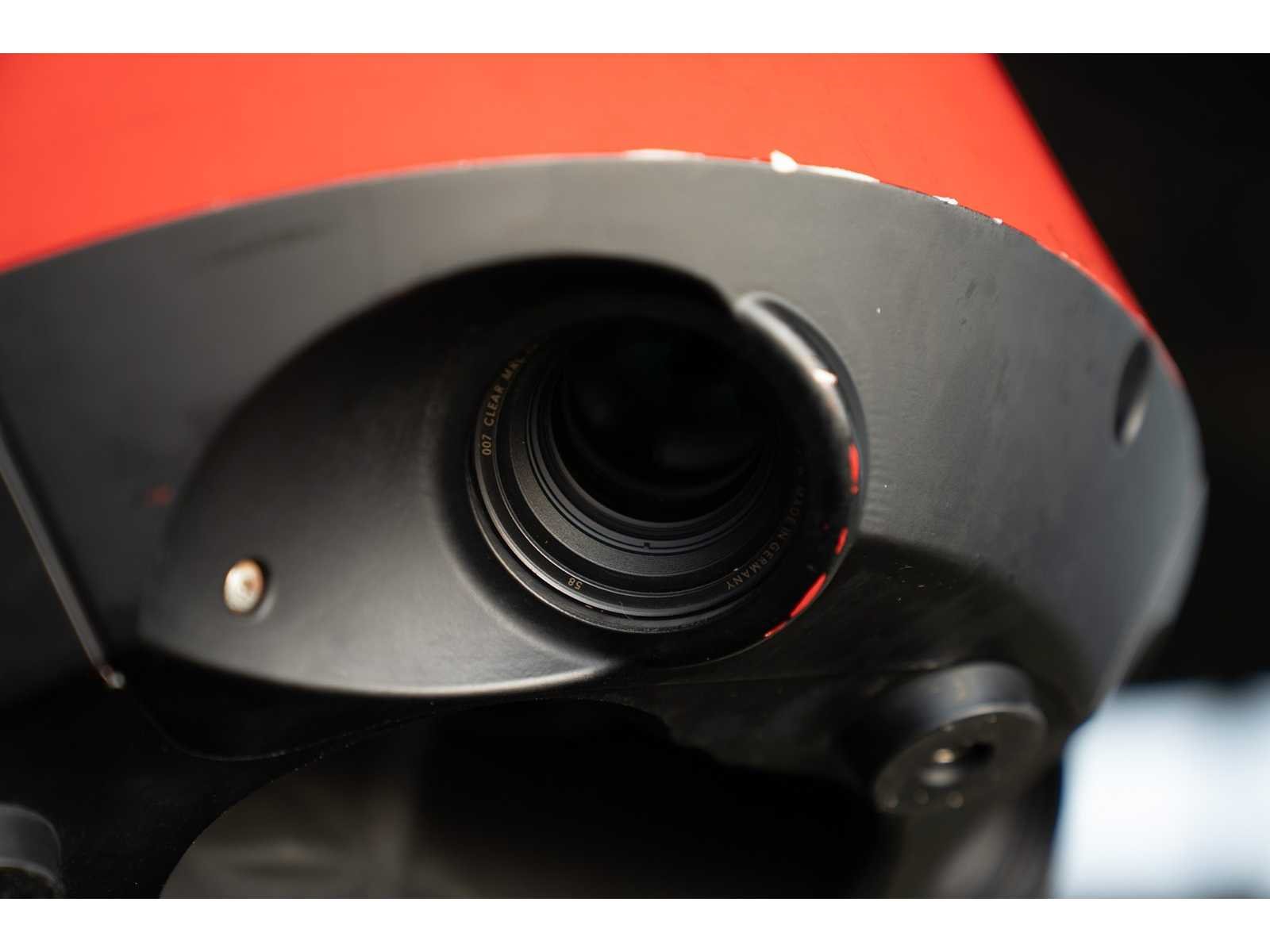

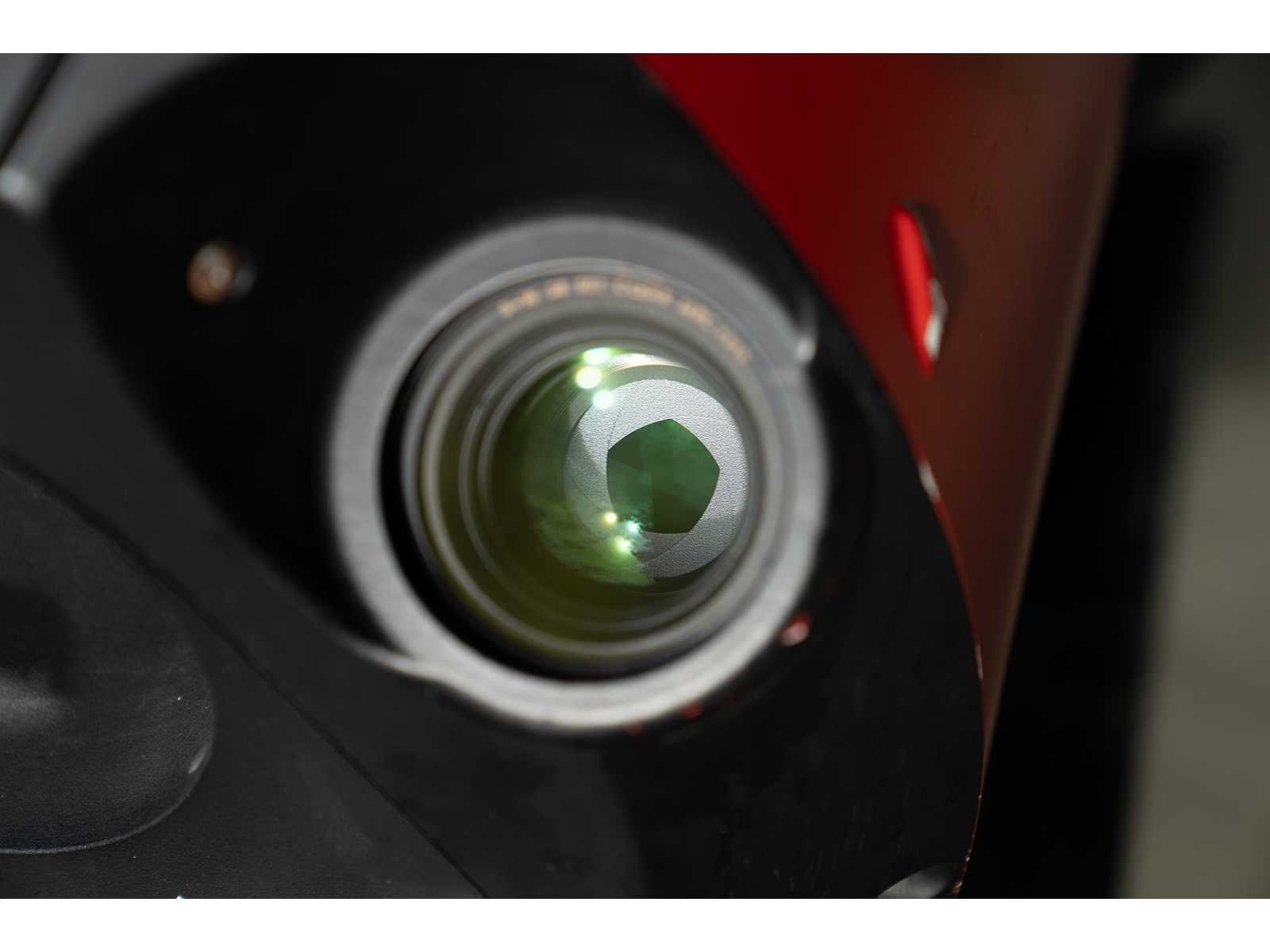

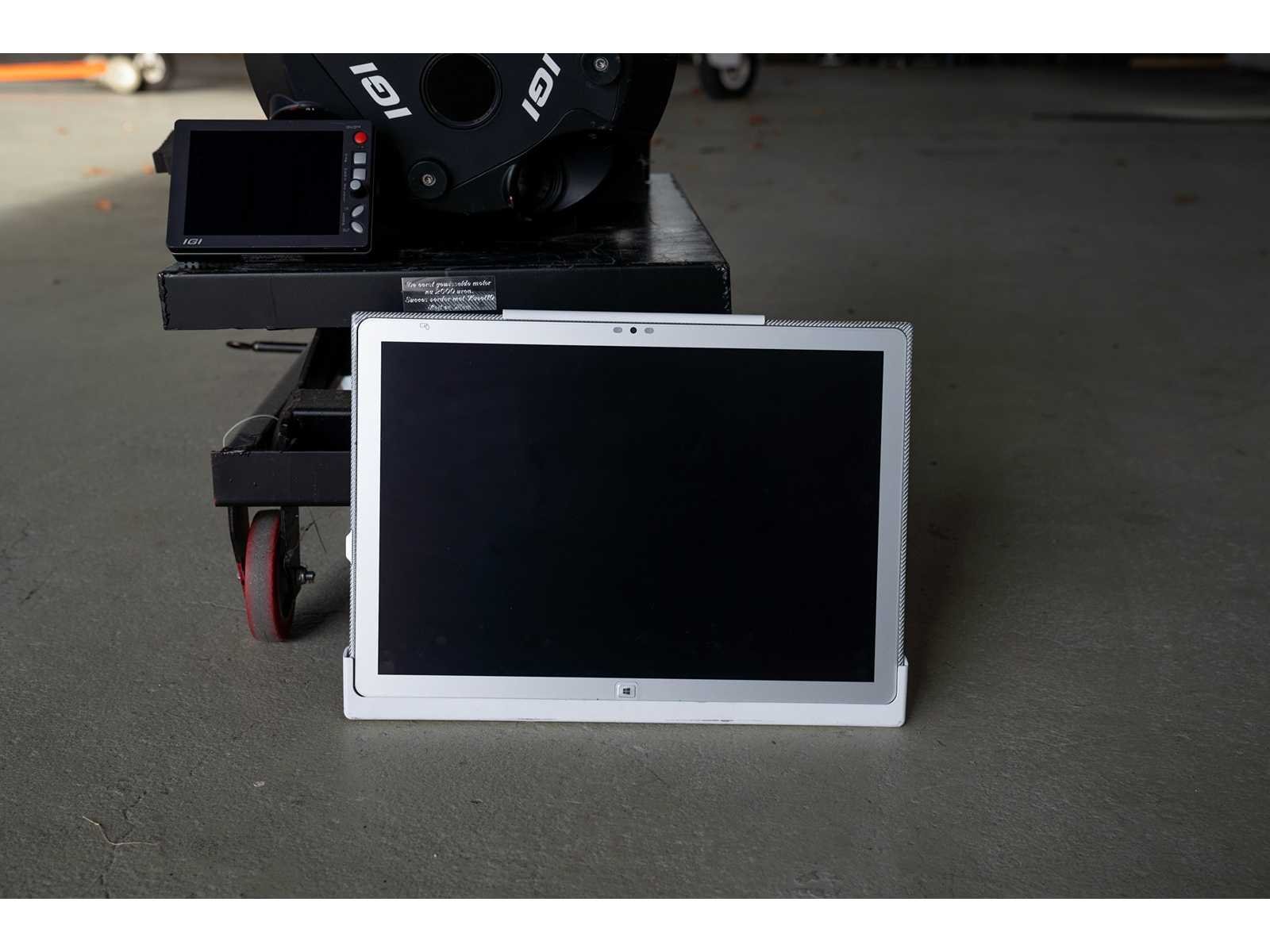

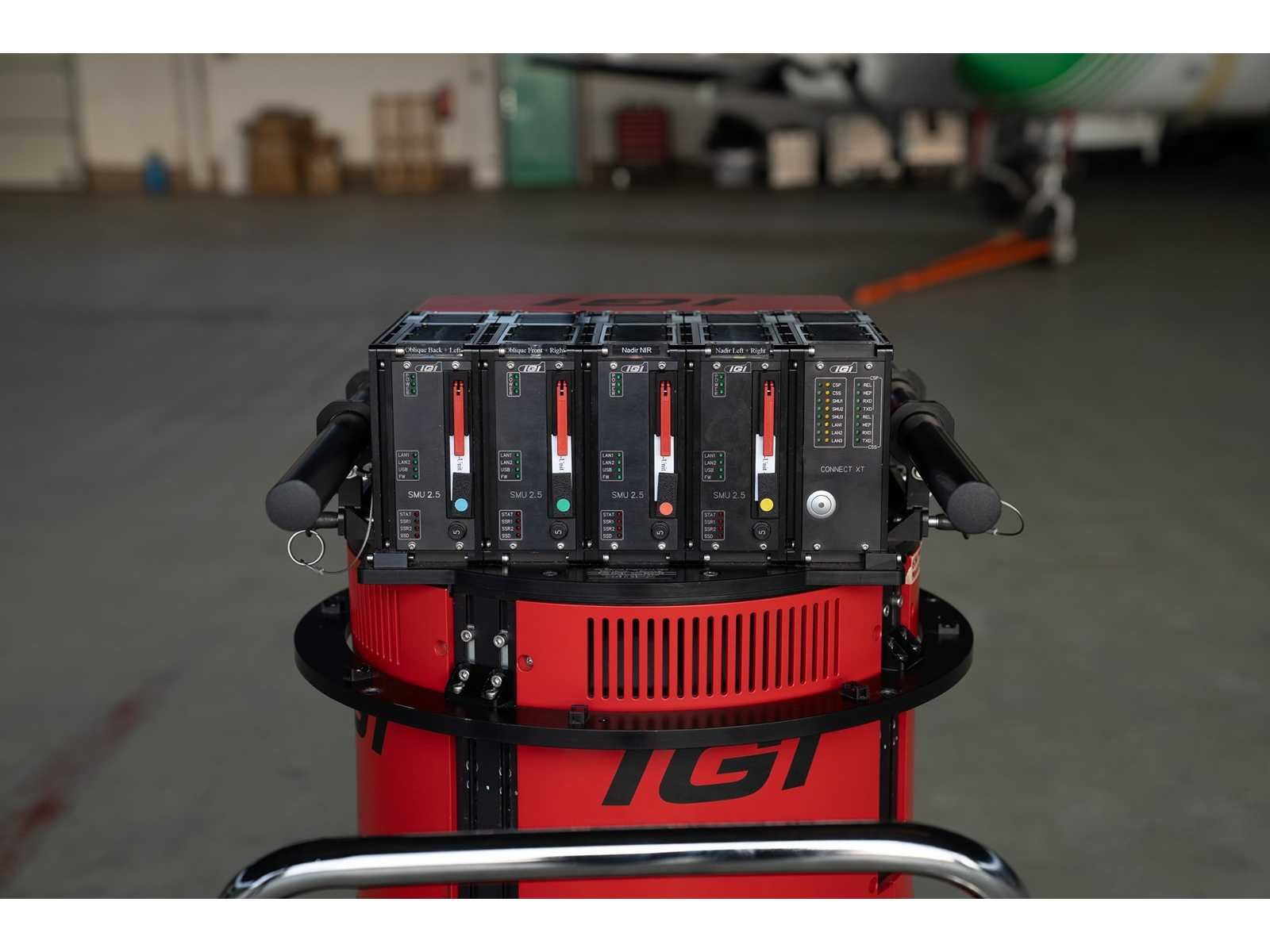

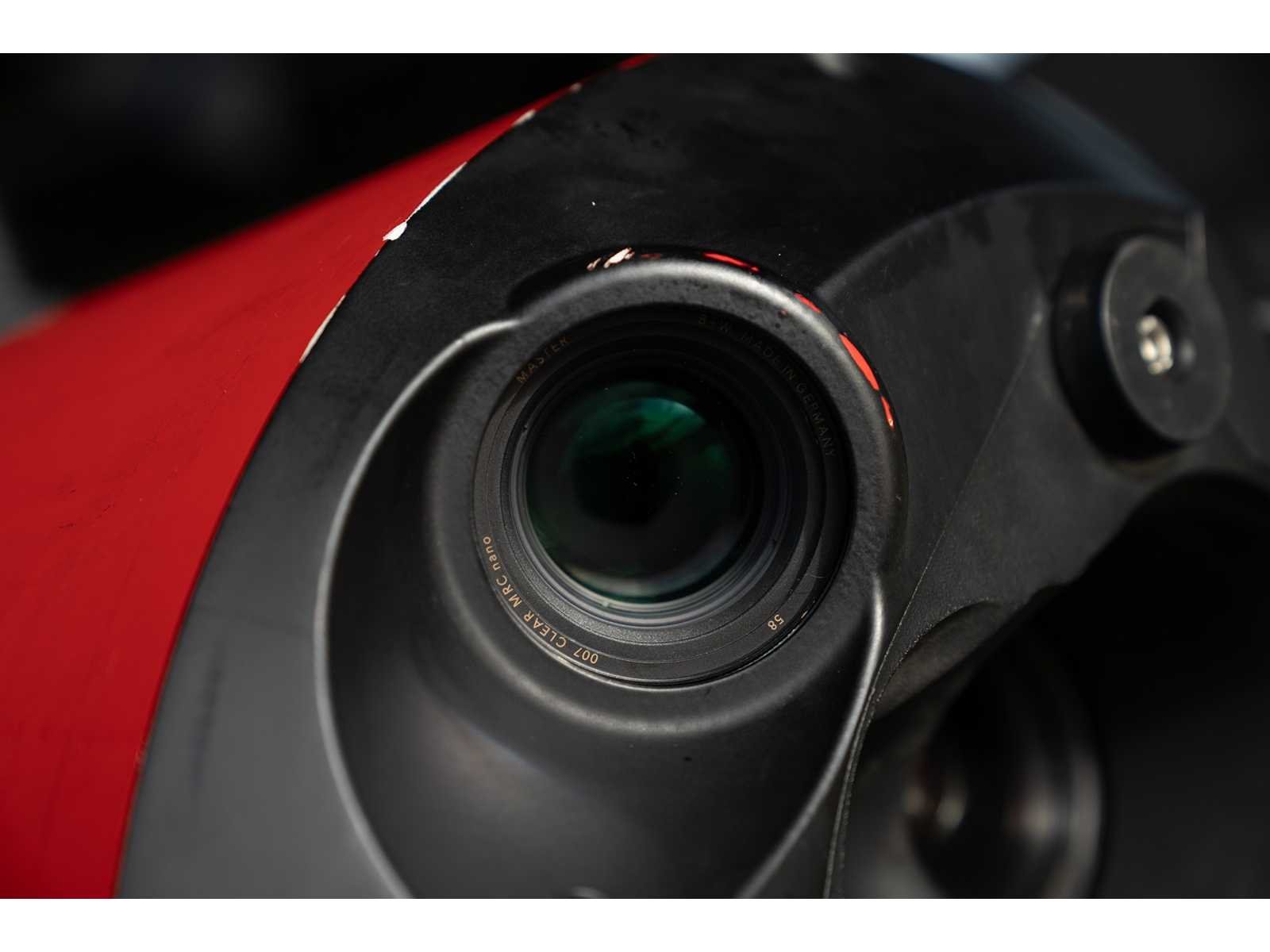

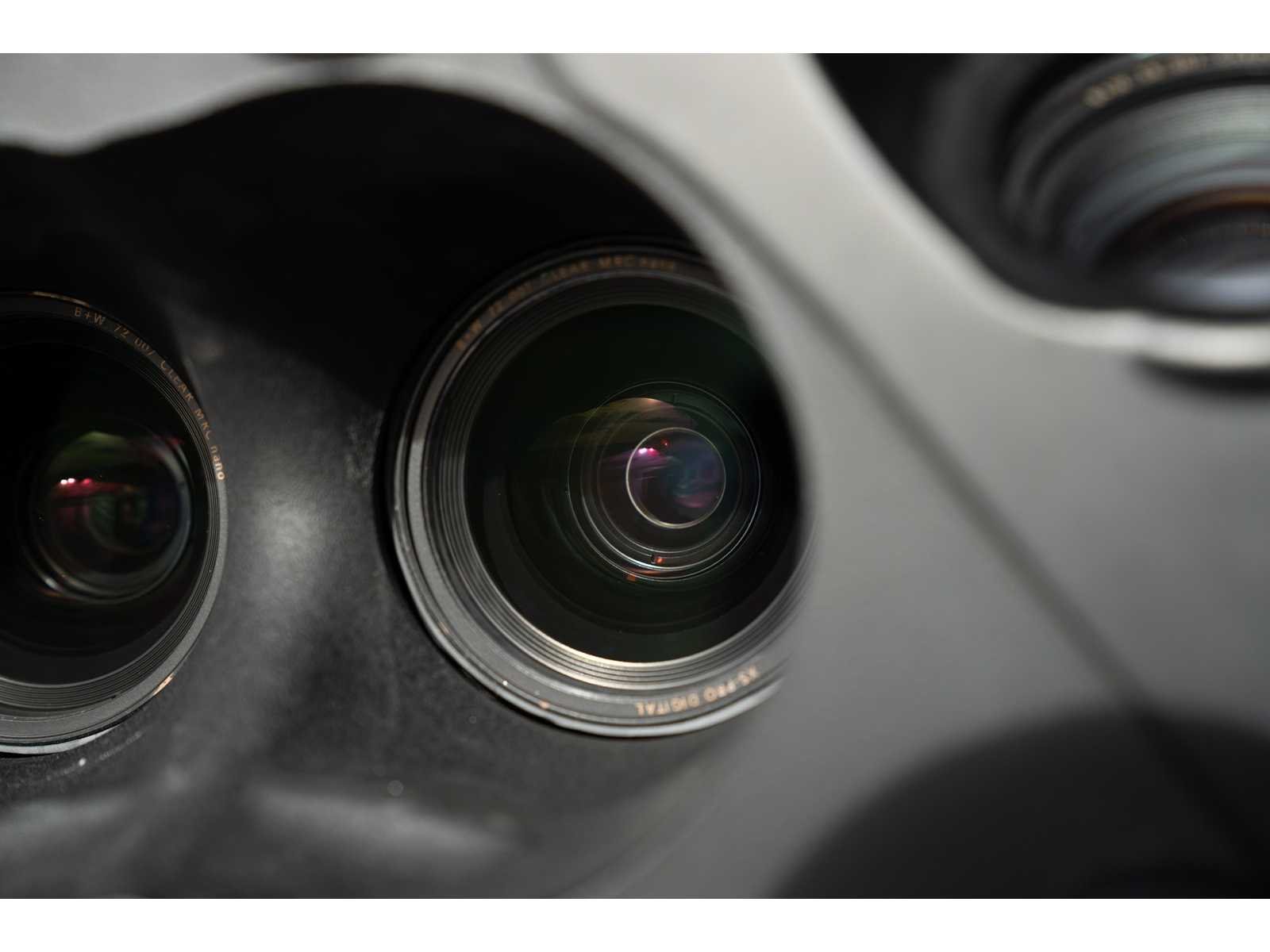

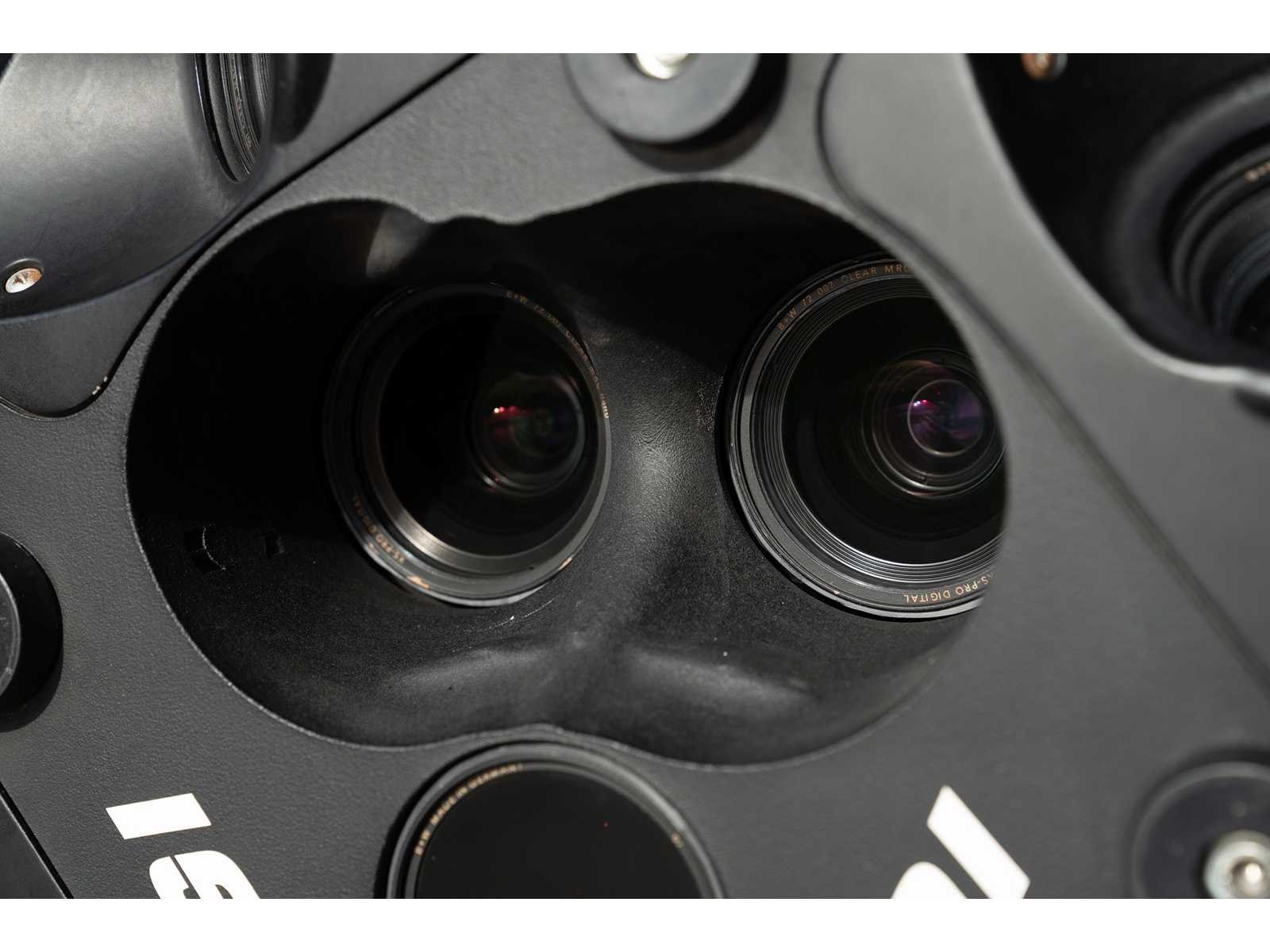

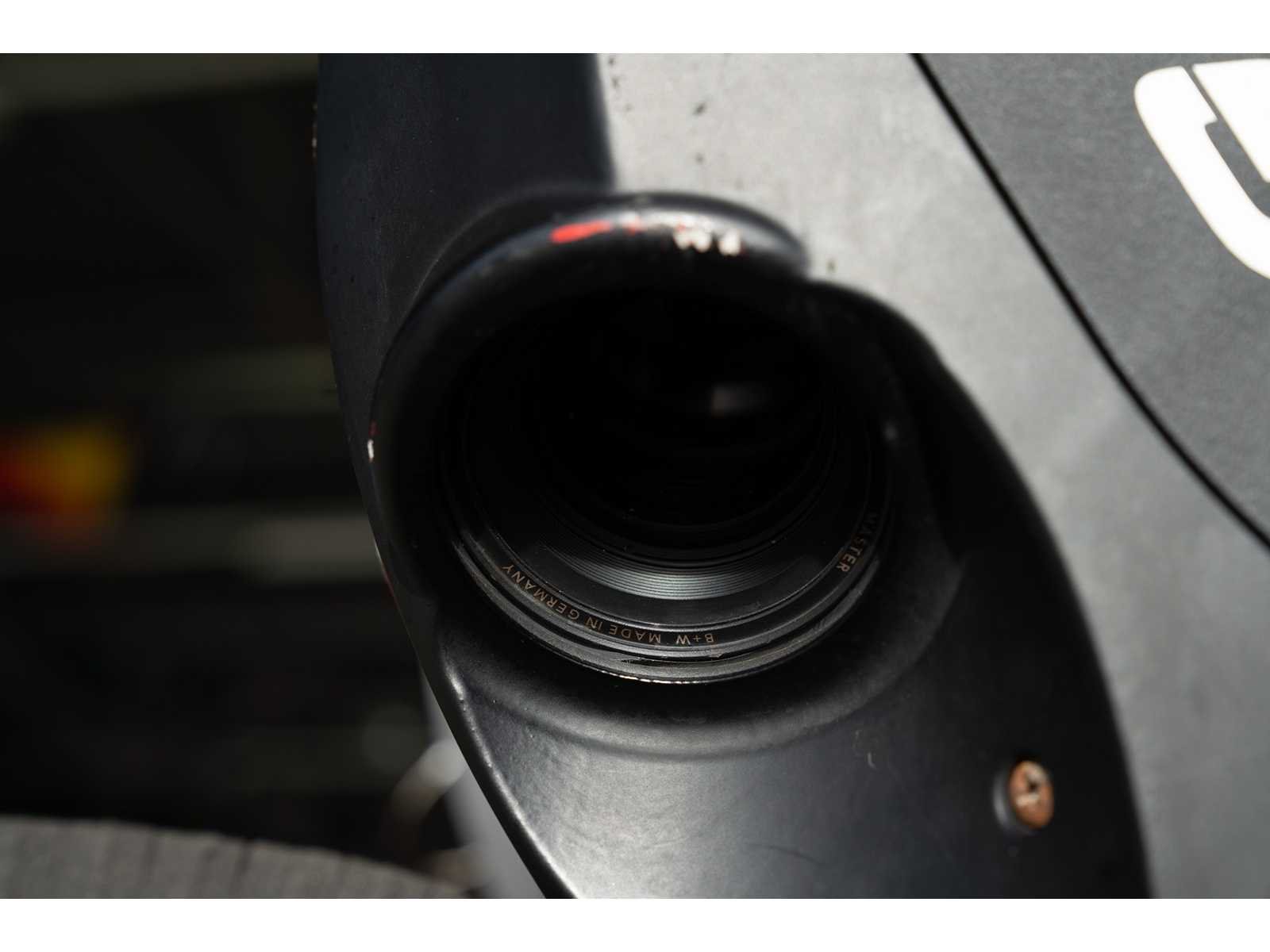

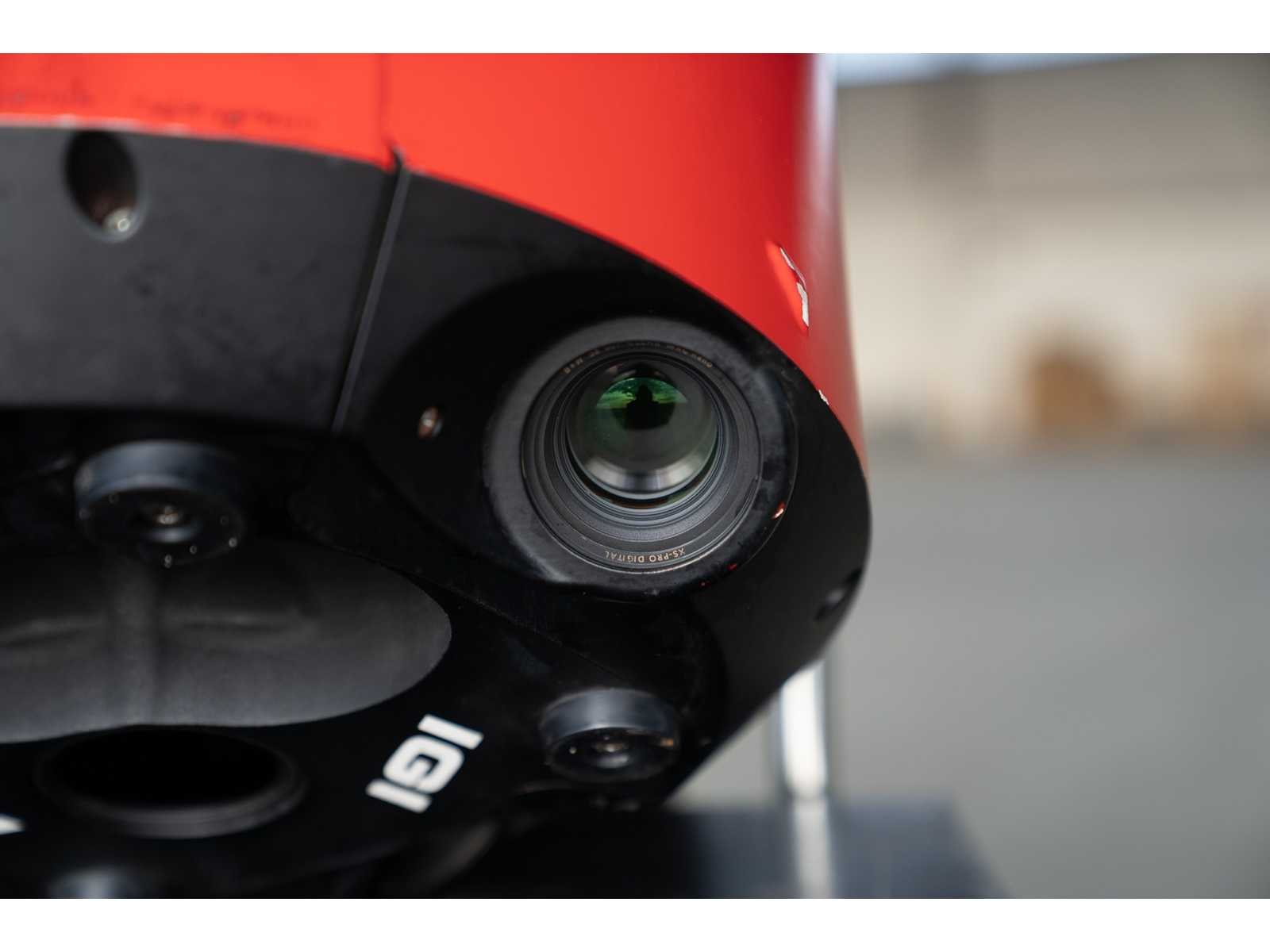

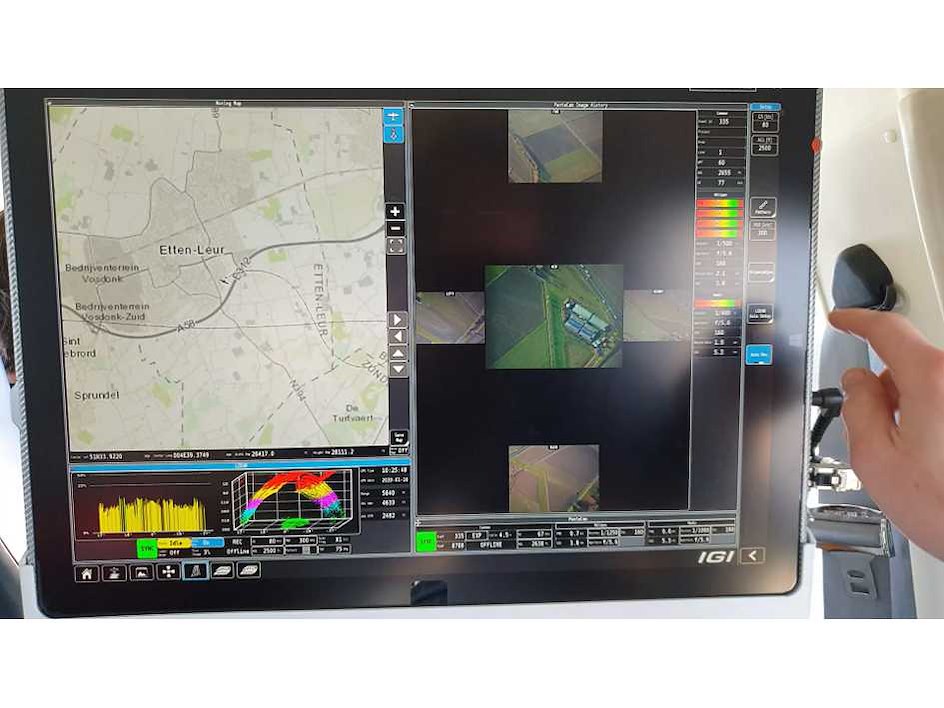

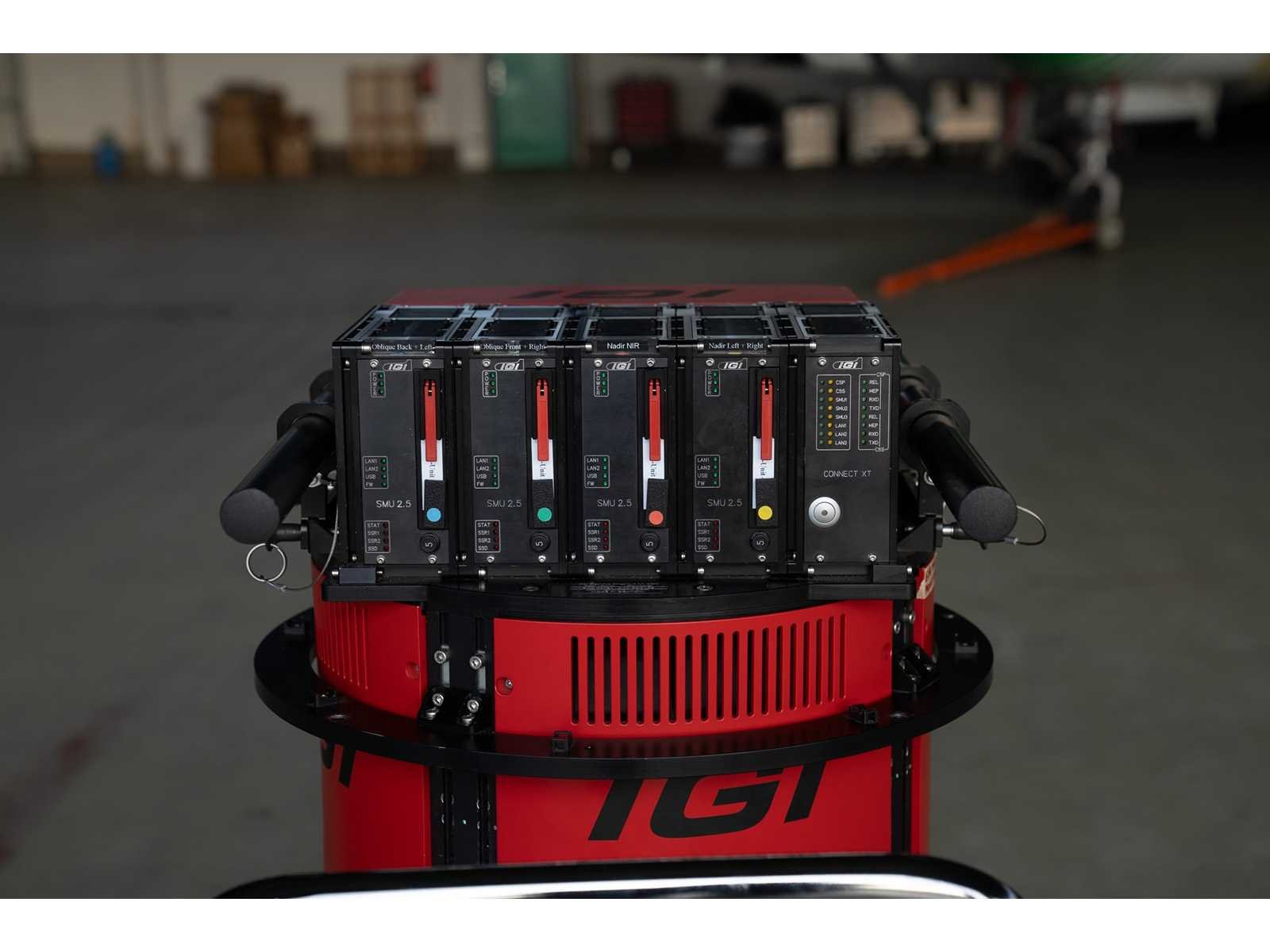

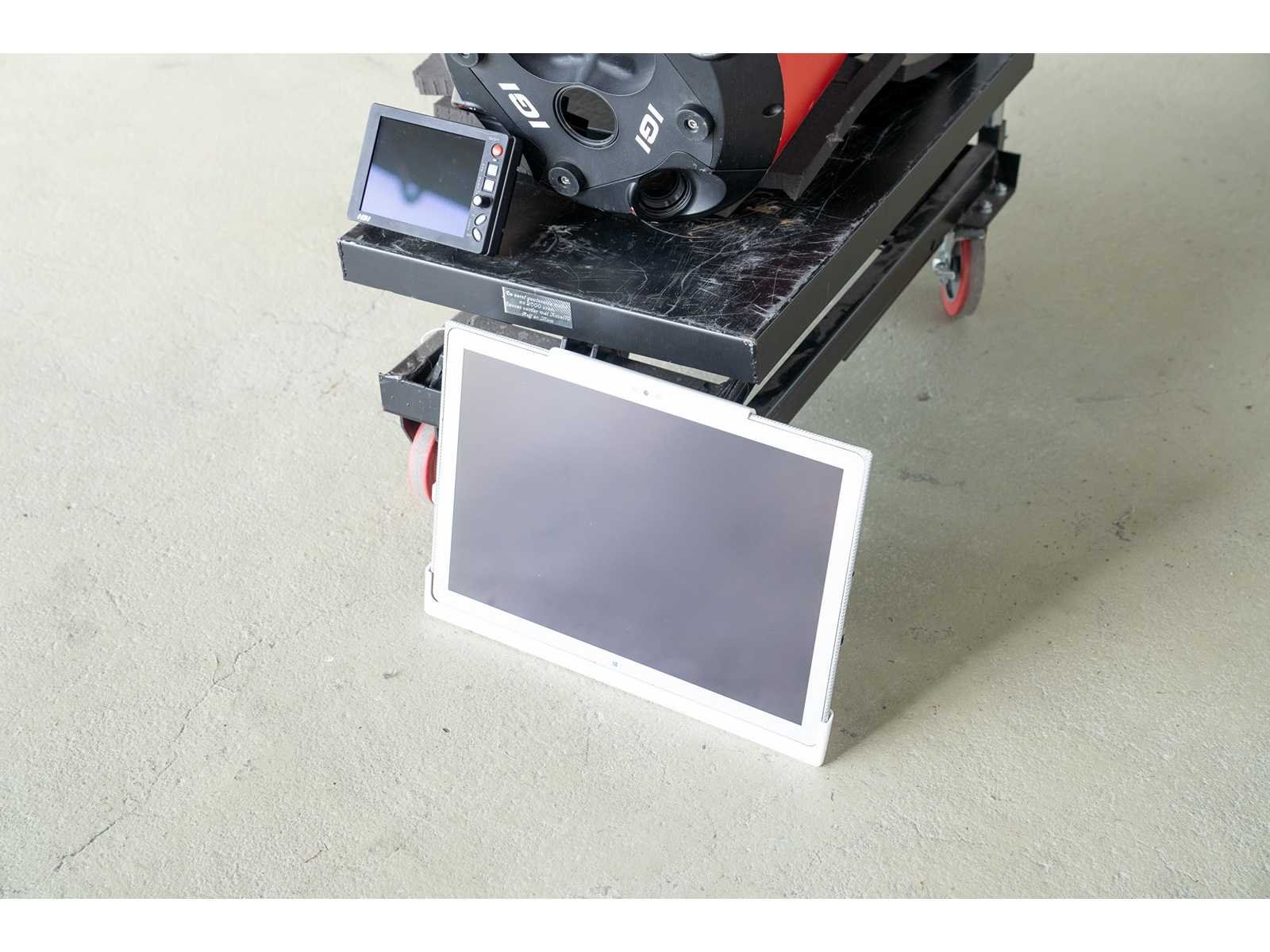

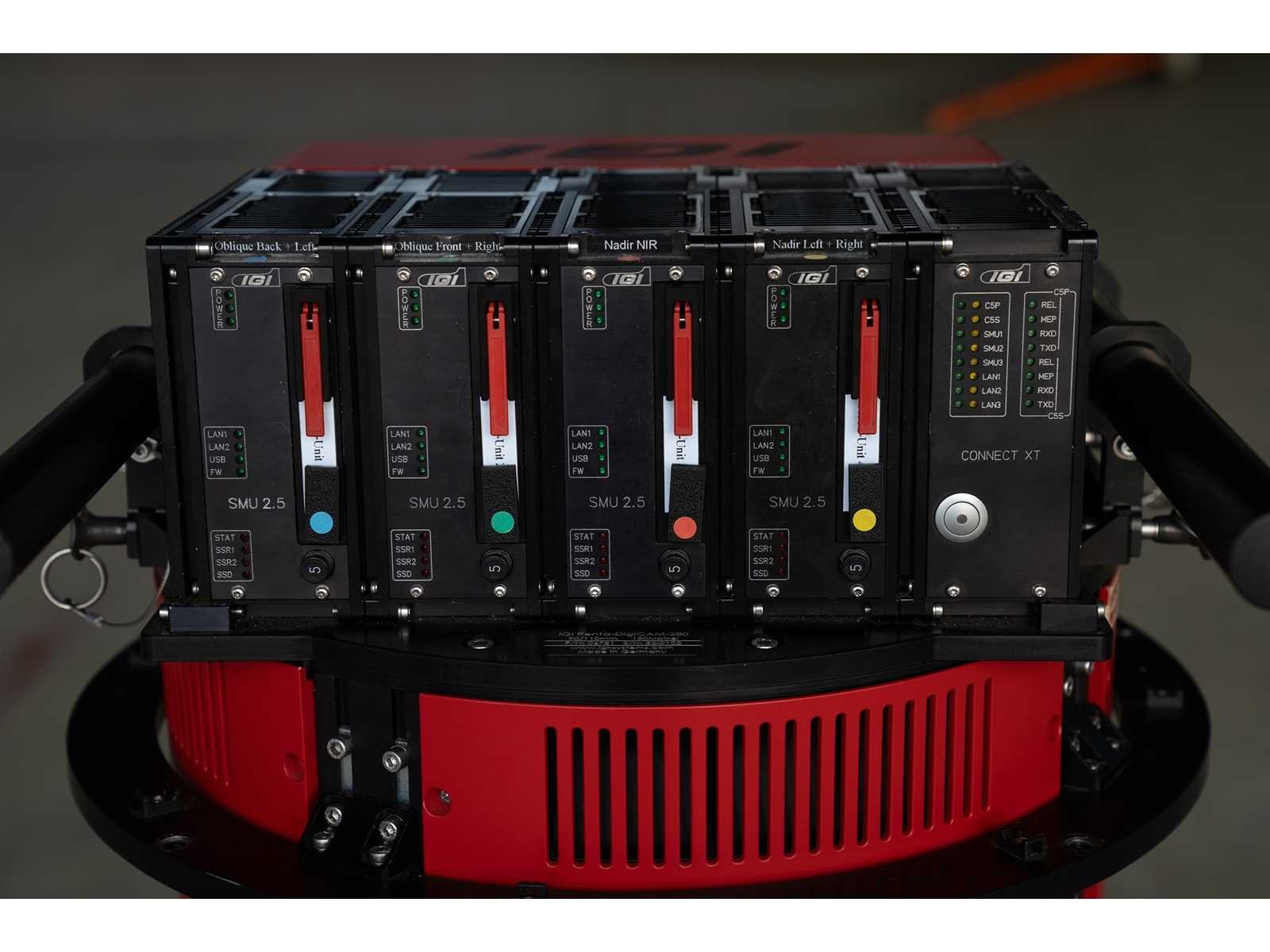

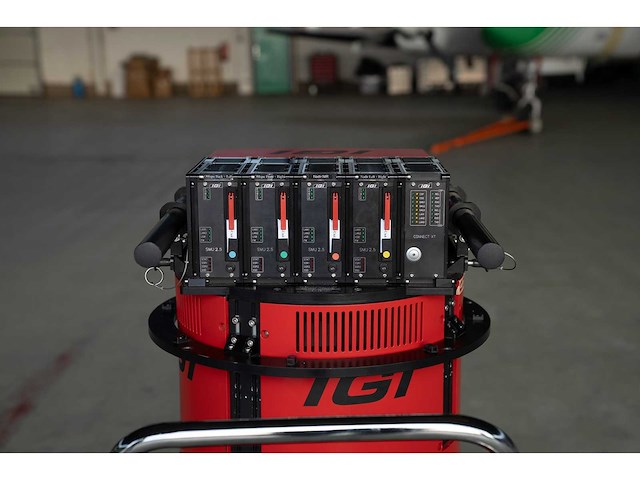

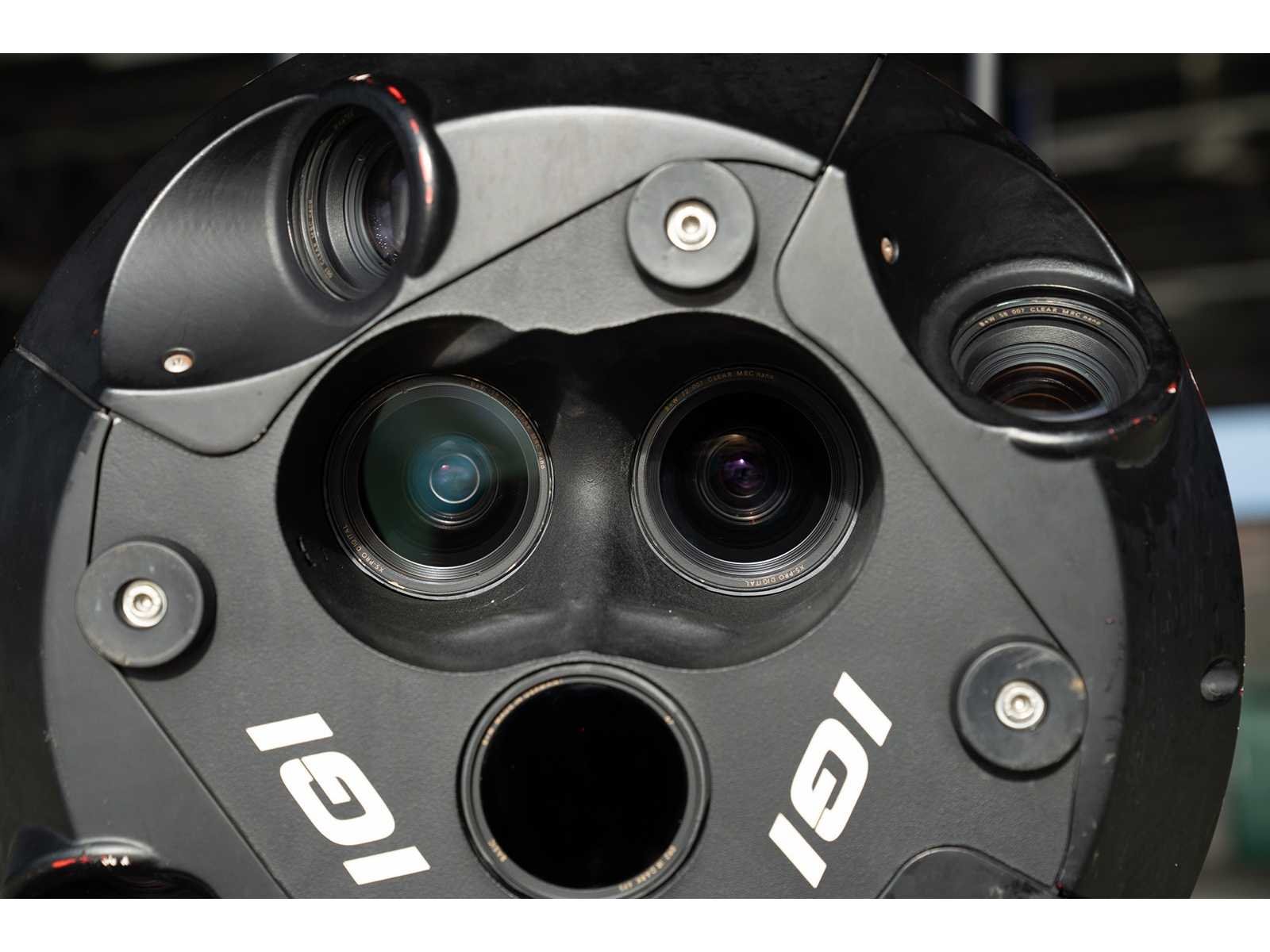

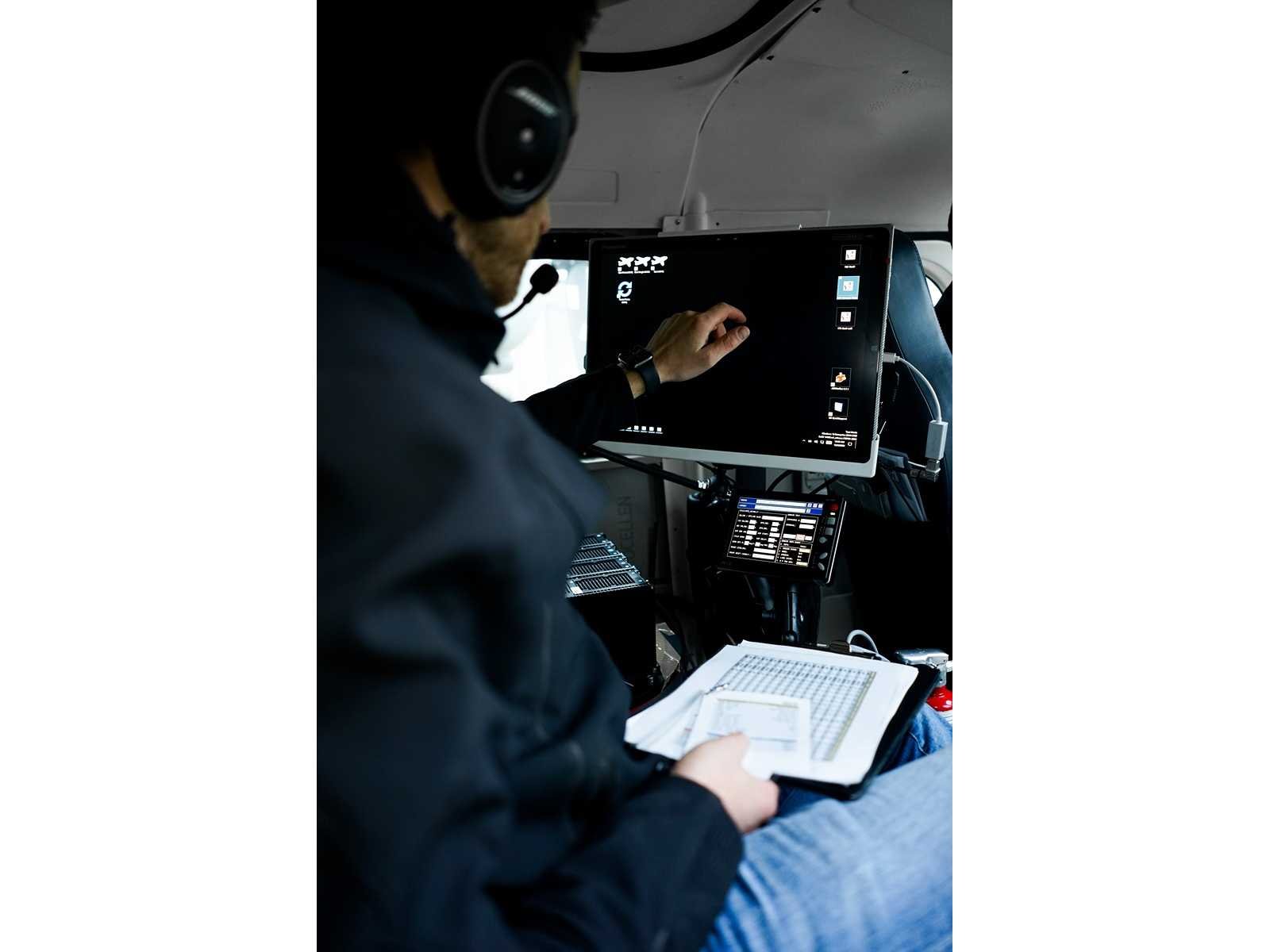

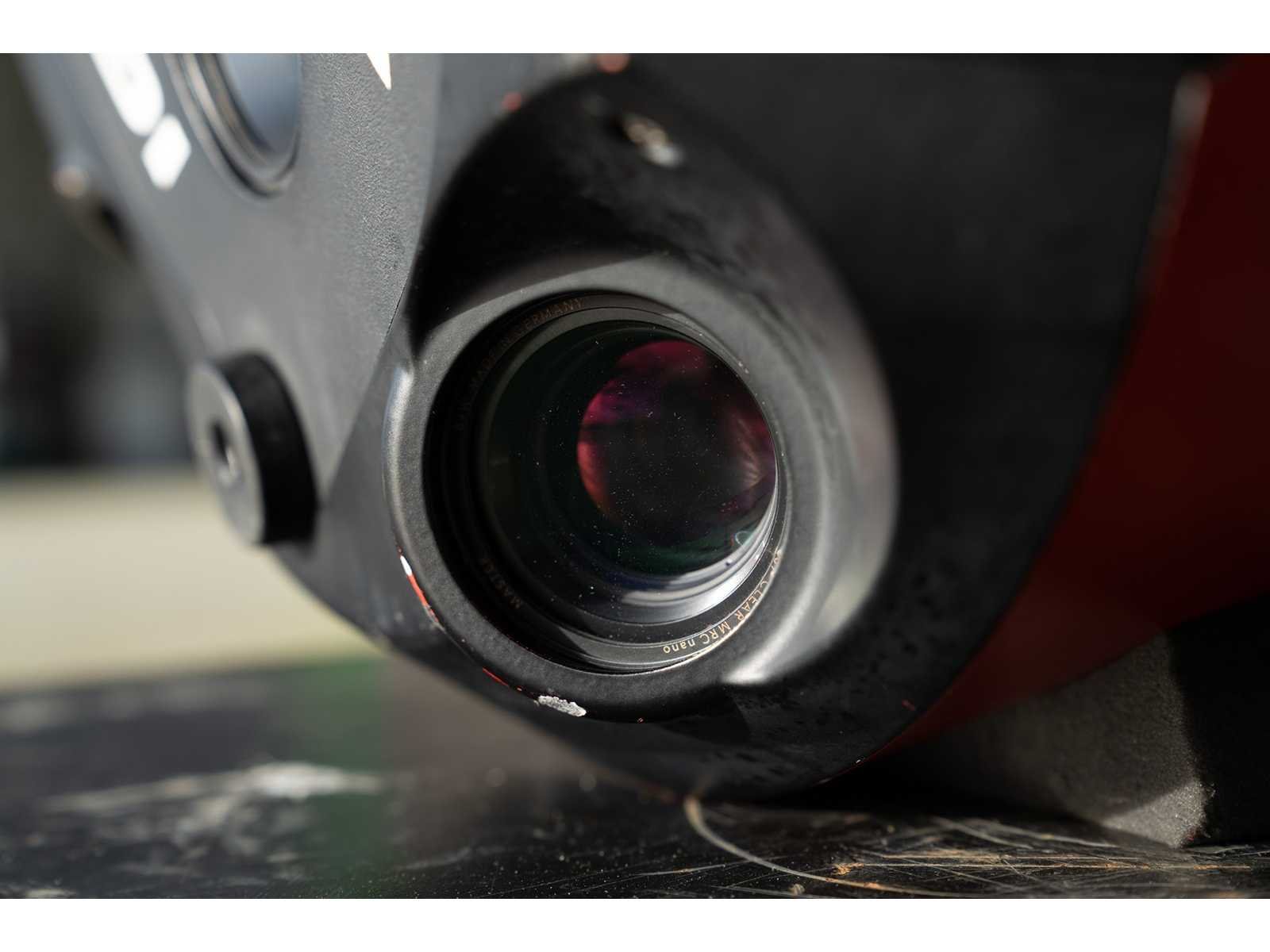

Key specs: -Nadir Image Size: 20,200 × 14,110 px (285 MP, RGBI) -Oblique Image Size: 14,204 × 10,652 px (150 MP × 4, RGB) -Sensor Technology: BSI-CMOS -Pixel Size: 3.76 µm -Maximum Frame Rate: 0.6 sec -Dynamic Range: 83 dB -Lenses: Nadir 90 mm / Oblique 110 mm -Channels: RGBI, RGB, CIR, NIR (nadir), 4× RGB (oblique) -Integrated Systems: o IGI SMU-2 - Sensor Management Unit; o IGIvisu - Sensor Management Software for live view of images and changing camera parameters. Storage: -3 complete sets of storagesets of 16 TB. Possibility to configure in RAID setup for redundancy. 1 storageset allows for 1 day of flying. -Operator Screen: 20" -Software: IGI Image Processing Software (IPS) which includes 8 simultaneous executions. Calibration and maintenance state: -Nadir shutters replaced in July 2025 -Valid calibration certificate for whole system, dating August 2025 -Oblique shutters replaced in January 2025 Highlights: -System will be delivered without GNSS/IMU and CCNS5 Flight Management System -Combines large-format and oblique capture in one system -Normal operating performances 1.5cm GSD at 1200ft and 5cm GSD at 4000ft -Total system consists of 1x 280MP camera and 5x 150MP cameras from PhaseOne Merk: IGI Penta Model: DigiCAM-280 Product type: Oblique aerial camera system Beelddiagonaal: 20''
