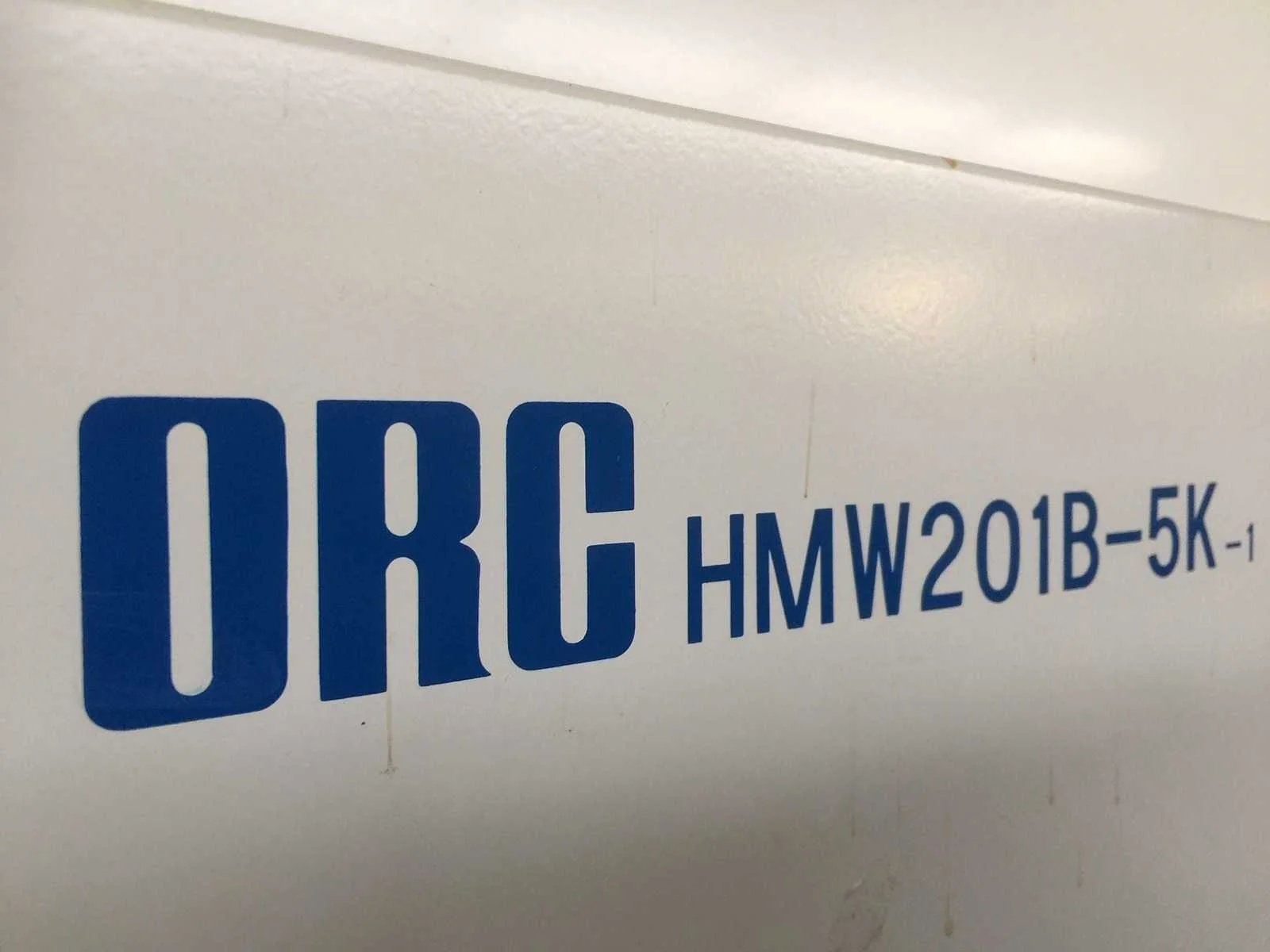

Orc - 1999 - hmw 201 b (5k-1ec) - exposure machine

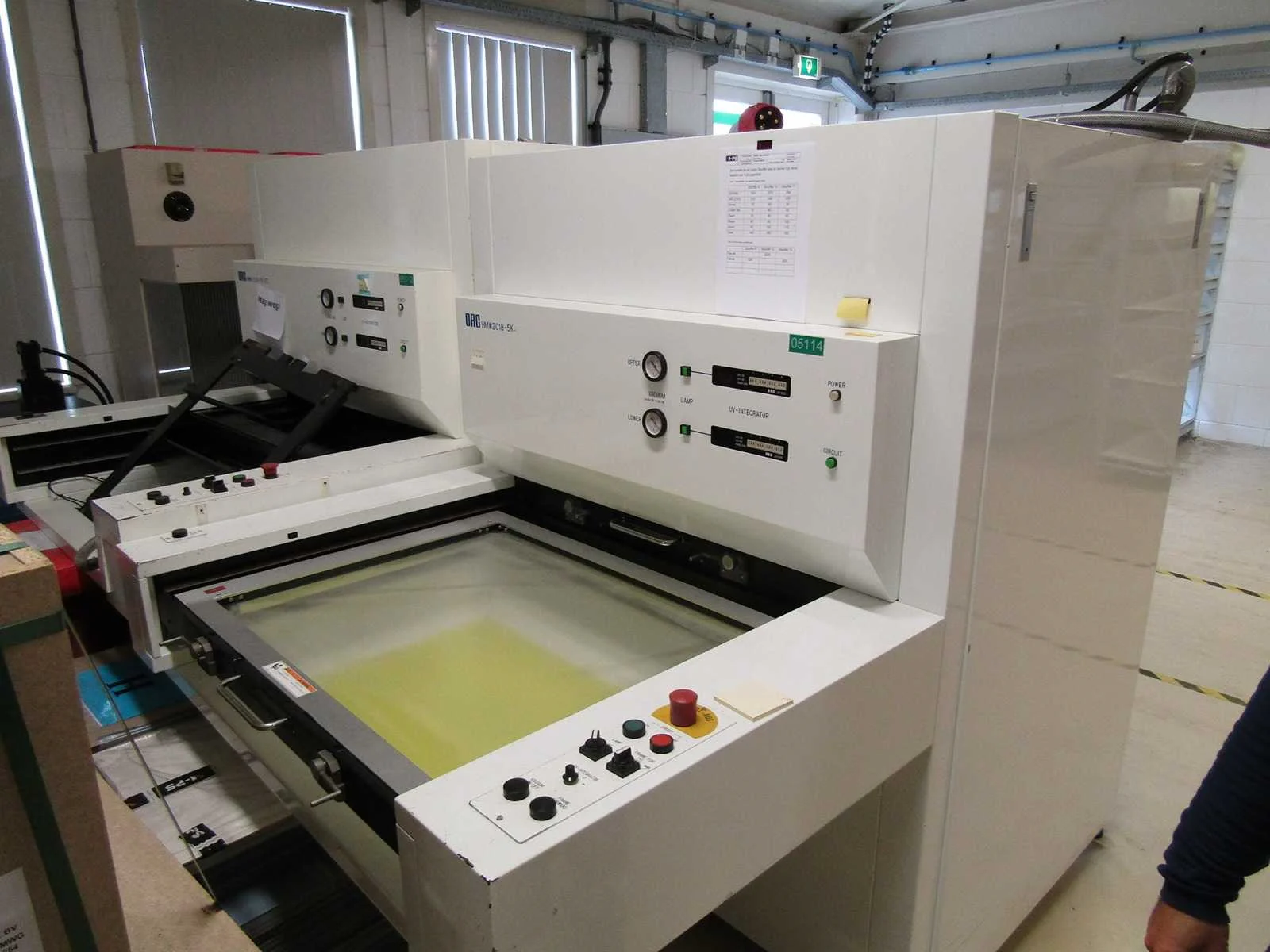

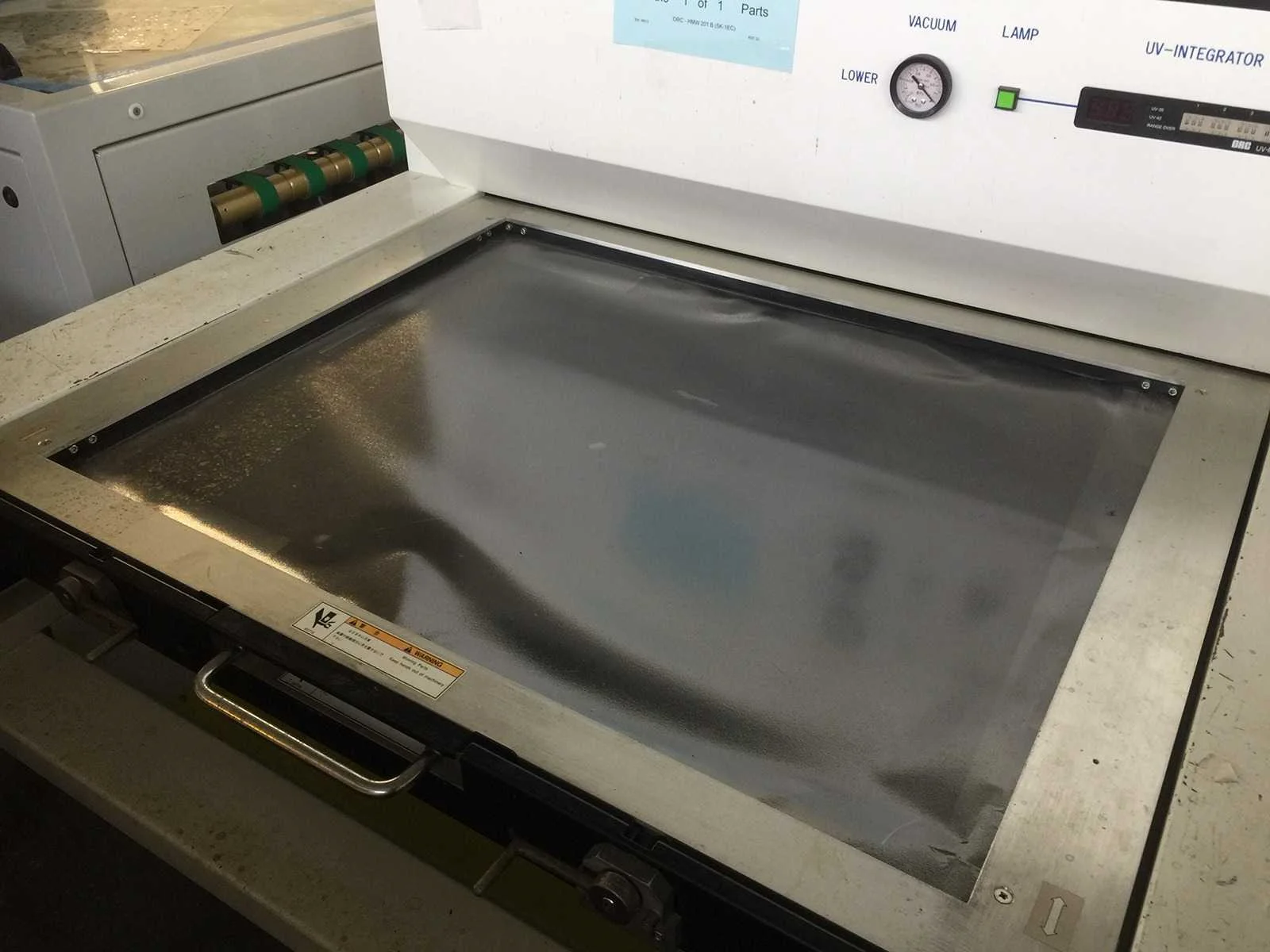

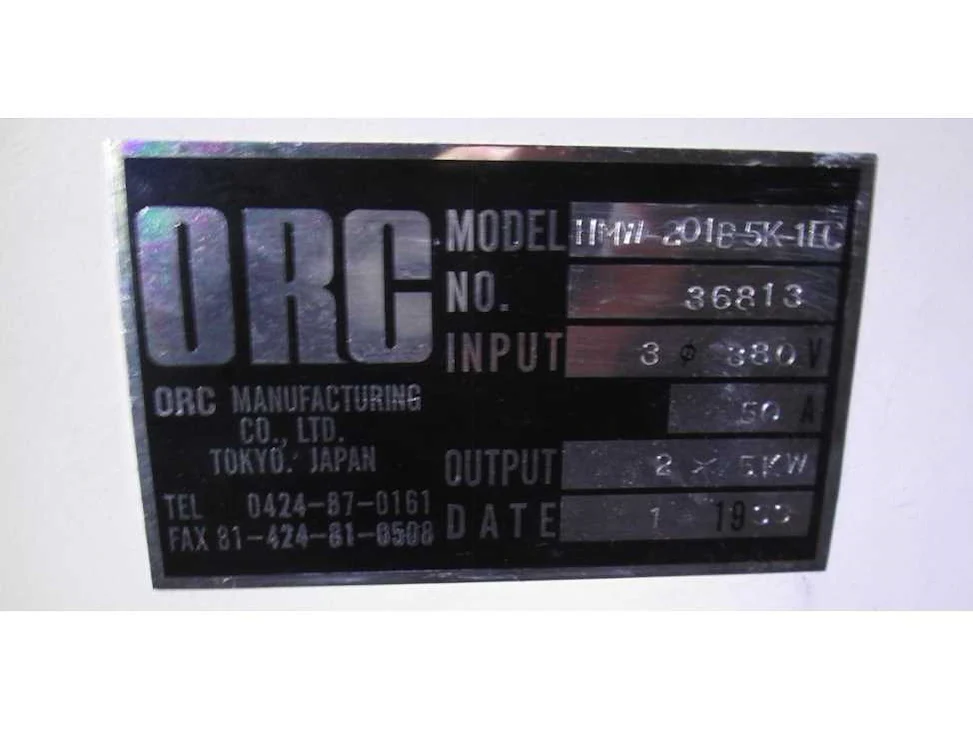

Automated exposure unit with two Glas/Mylar frames, 2x 5 Kw lamps: one top & one bottom. each draw has an effective exposure area of: 610 x 812 mm, overall machine dimensions (L x D x H): 1350 x 2000 x 1740 mm, electrical connections: 380 V / 3 Phase / 50 Hz / 50 A. S/N: 36813. Year: 1999 Merk: ORC Type: HMW 201 B (5K-1EC) Bouwjaar: 1999 Serienummer: 36813 Max. product breedte: 610mm Max. product lengte: 812mm UV-lampvermogen: 5W Aansluiting: 380V Totale afmeting L: 1350mm Totale afmeting Breedte: 2000mm Totale afmeting Hoogte: 1740mm
