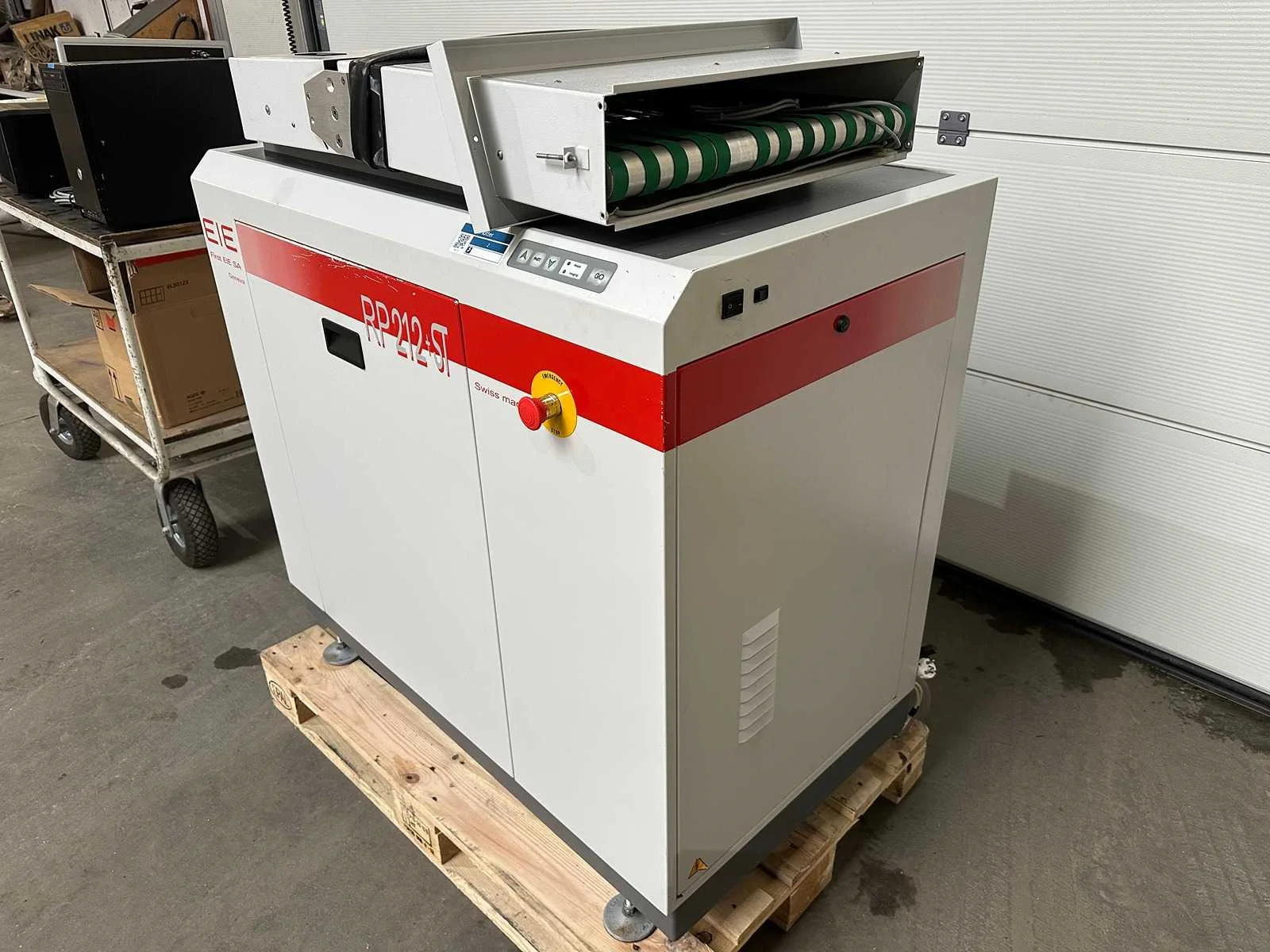

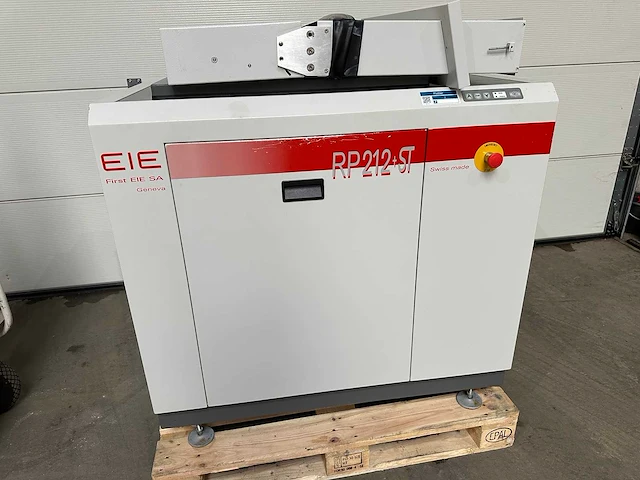

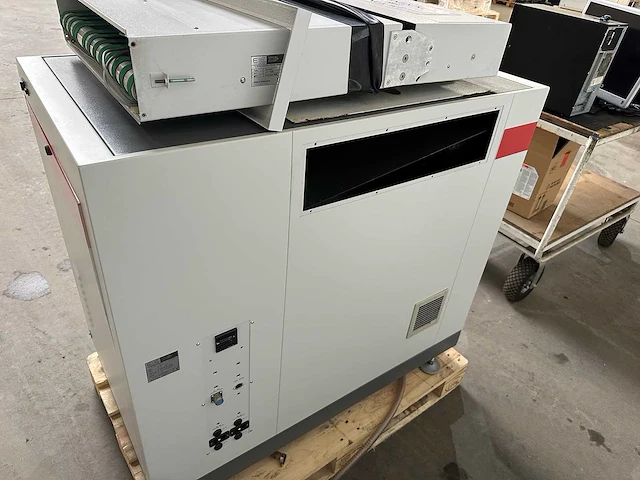

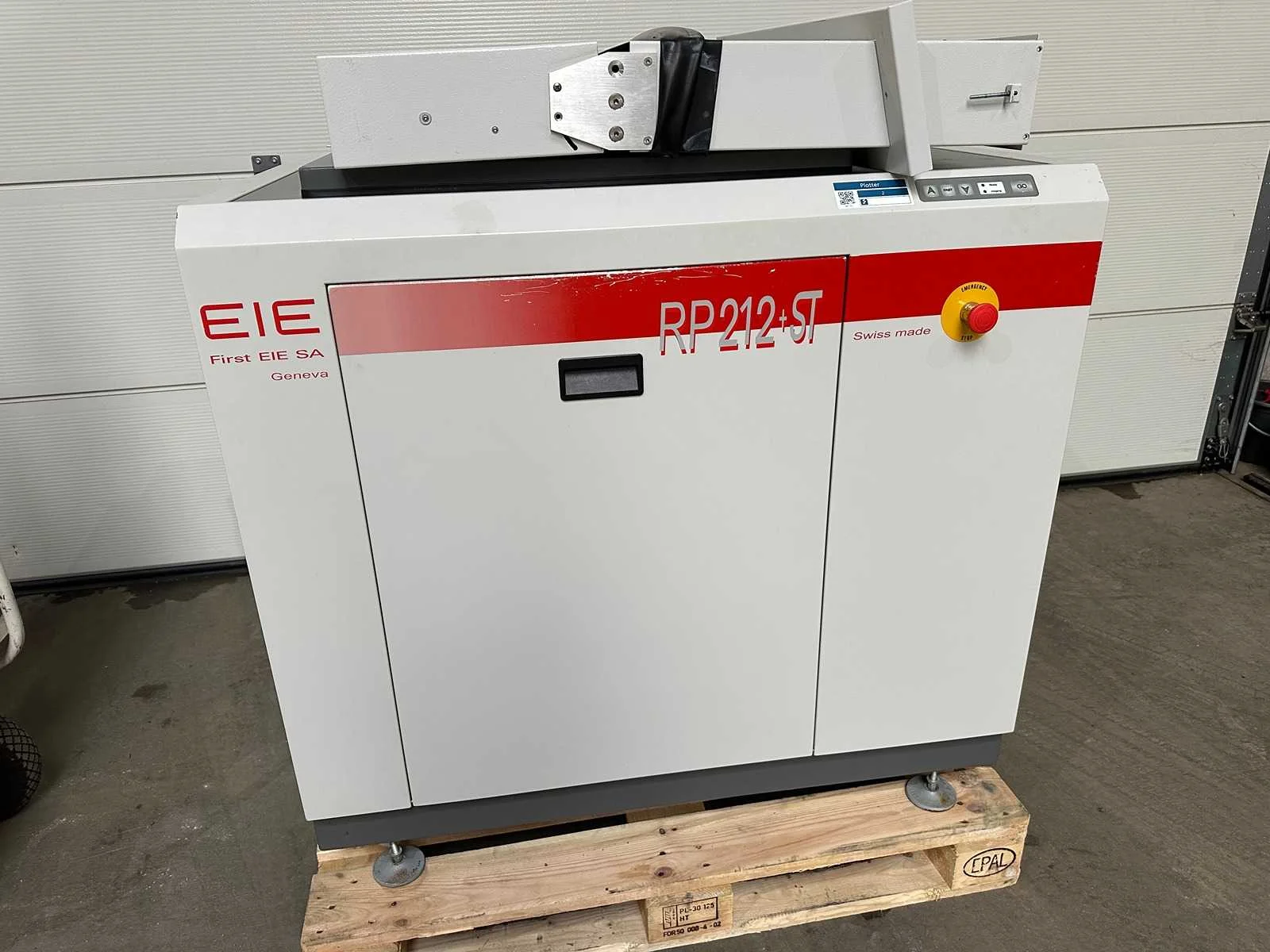

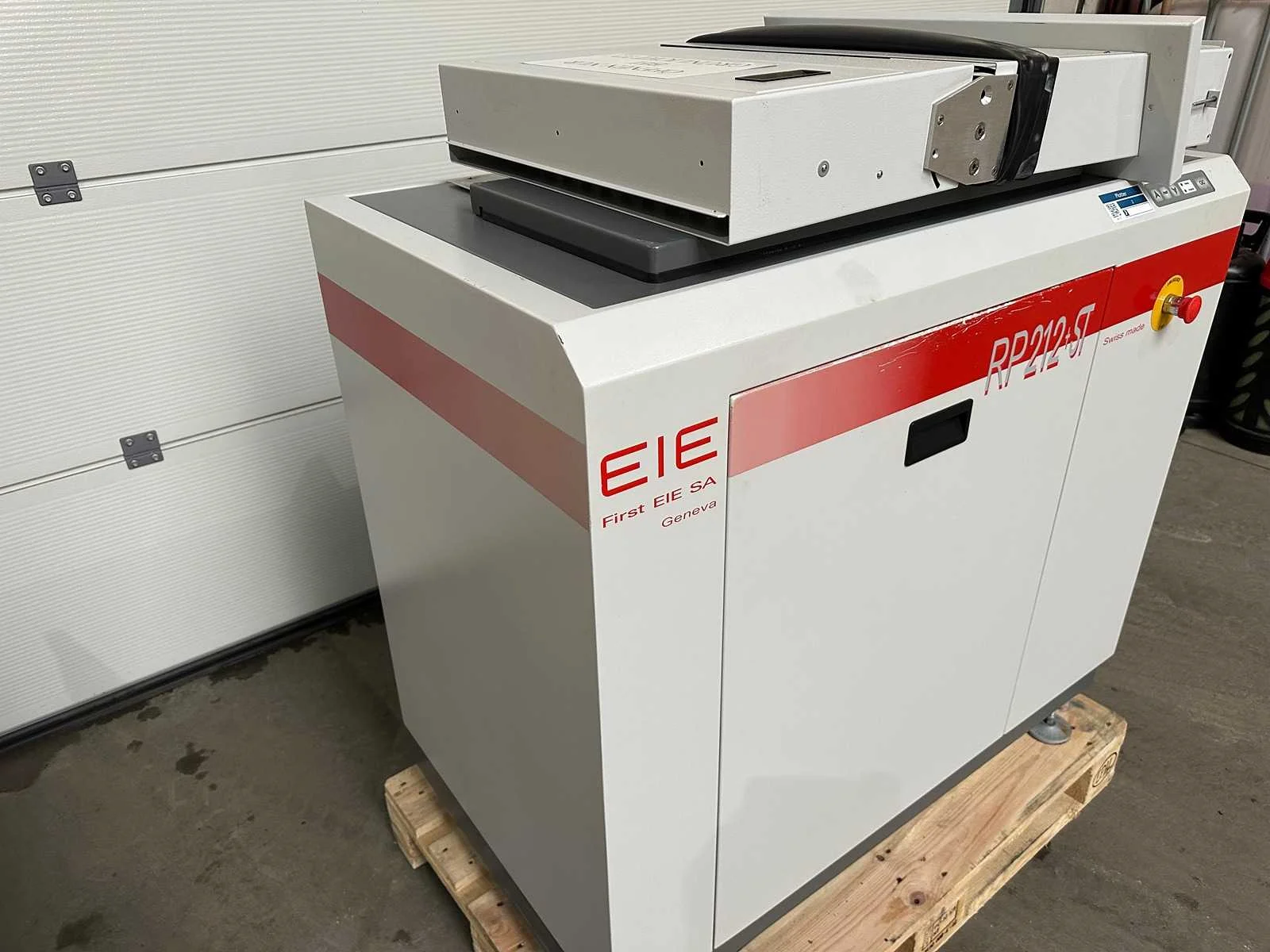

Eie - 2006 - rp 212 st - film plotter

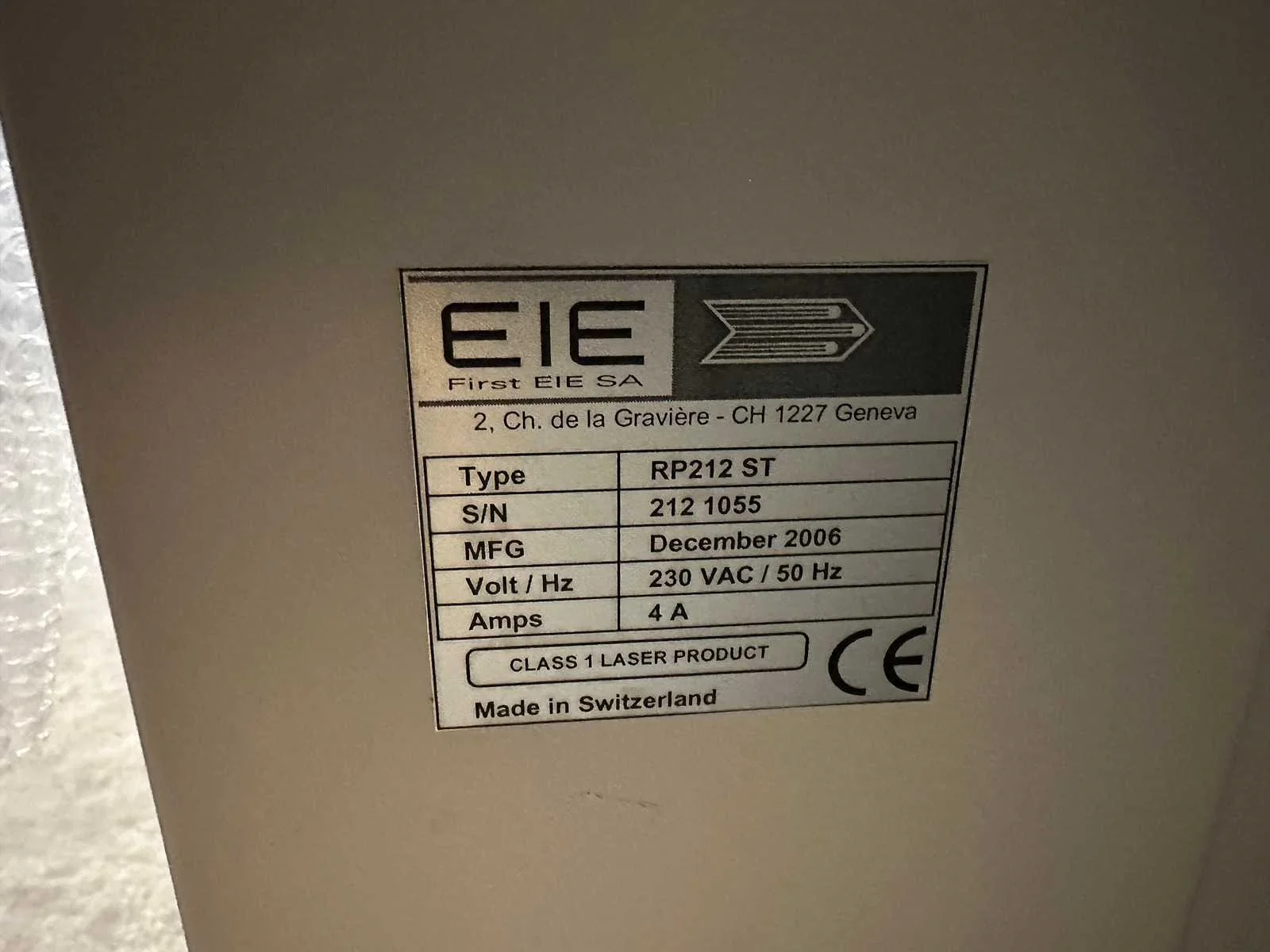

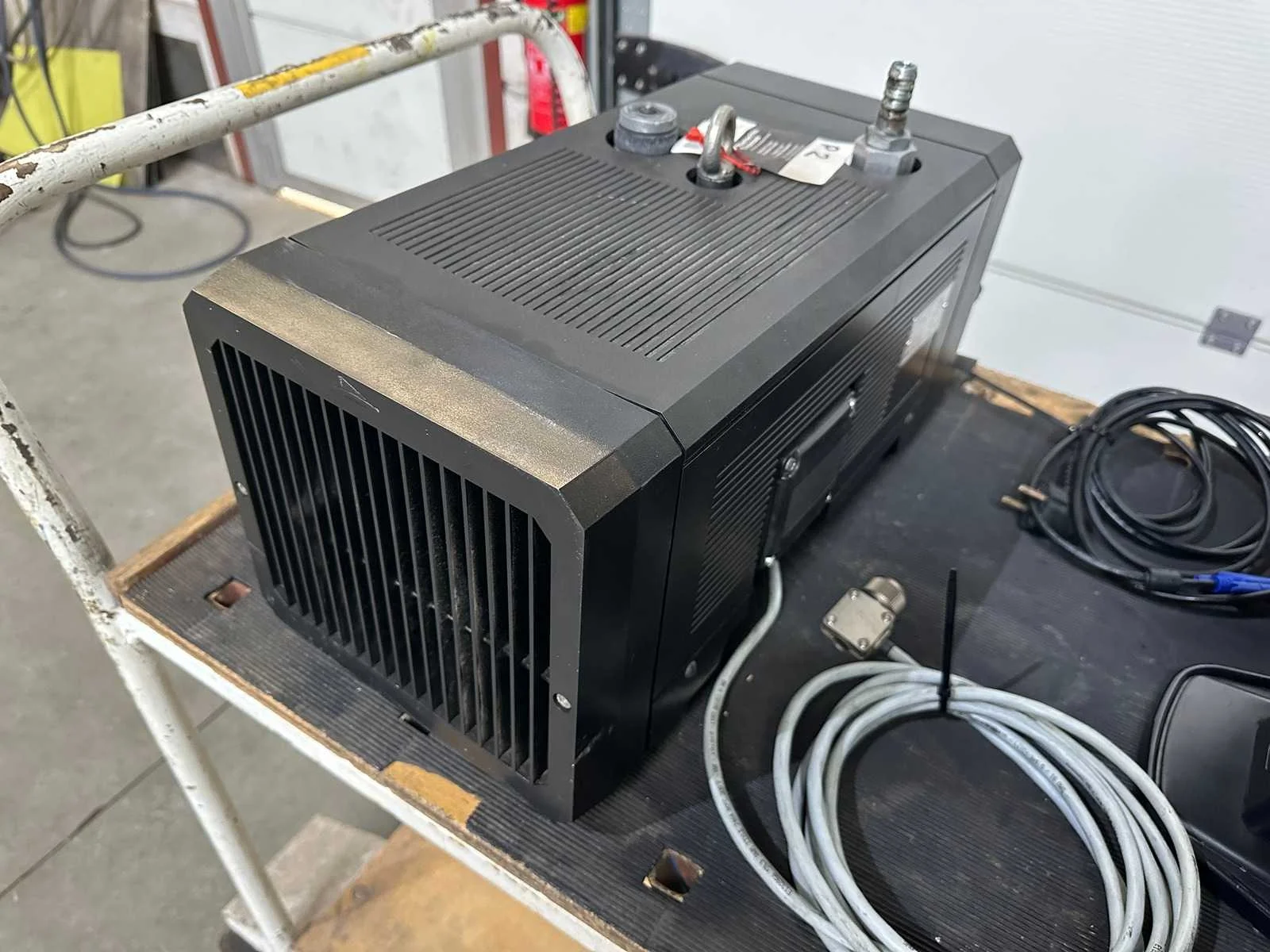

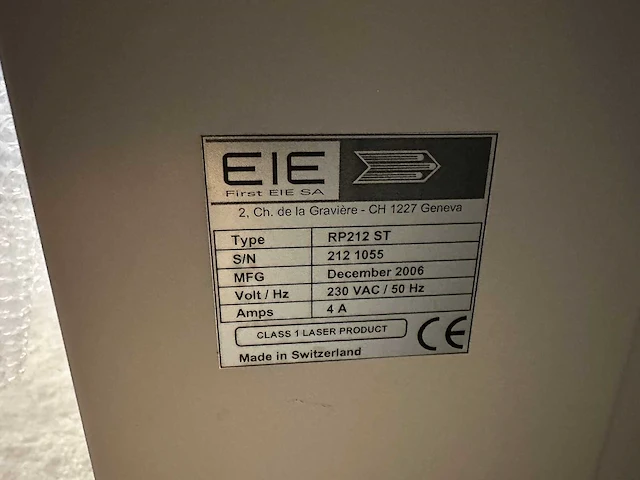

Film plotter w/ film conveyor bridge, max. resolution of 12.000 dpi, max. exposure area: 660mm x 520mm, large range of compatible film lengths from 12'' up to 26'', compatible film widths: everywhere between: 300 mm (12'') & 520 mm (20.5"), film thickness 0.18 mm, film holding by vacuum, variable drum spreed: up to 130 rpm. overall accuracy: approx. 10 µm, repeatability: 3 µm. Overall machine dimensions (L x W x H): 1150 x 650 x 1050 mm. Electrical connections: 230 VAC - 50 Hz - 4A. Year: 2006 Merk: EIE Type: RP 212 ST Bouwjaar: 2006 Serienummer: 212 1055 Max. product breedte: 520mm Max. product lengte: 660mm Aansluiting: 230V Totale afmeting L: 1150mm Totale afmeting Breedte: 650mm Totale afmeting Hoogte: 1050mm
