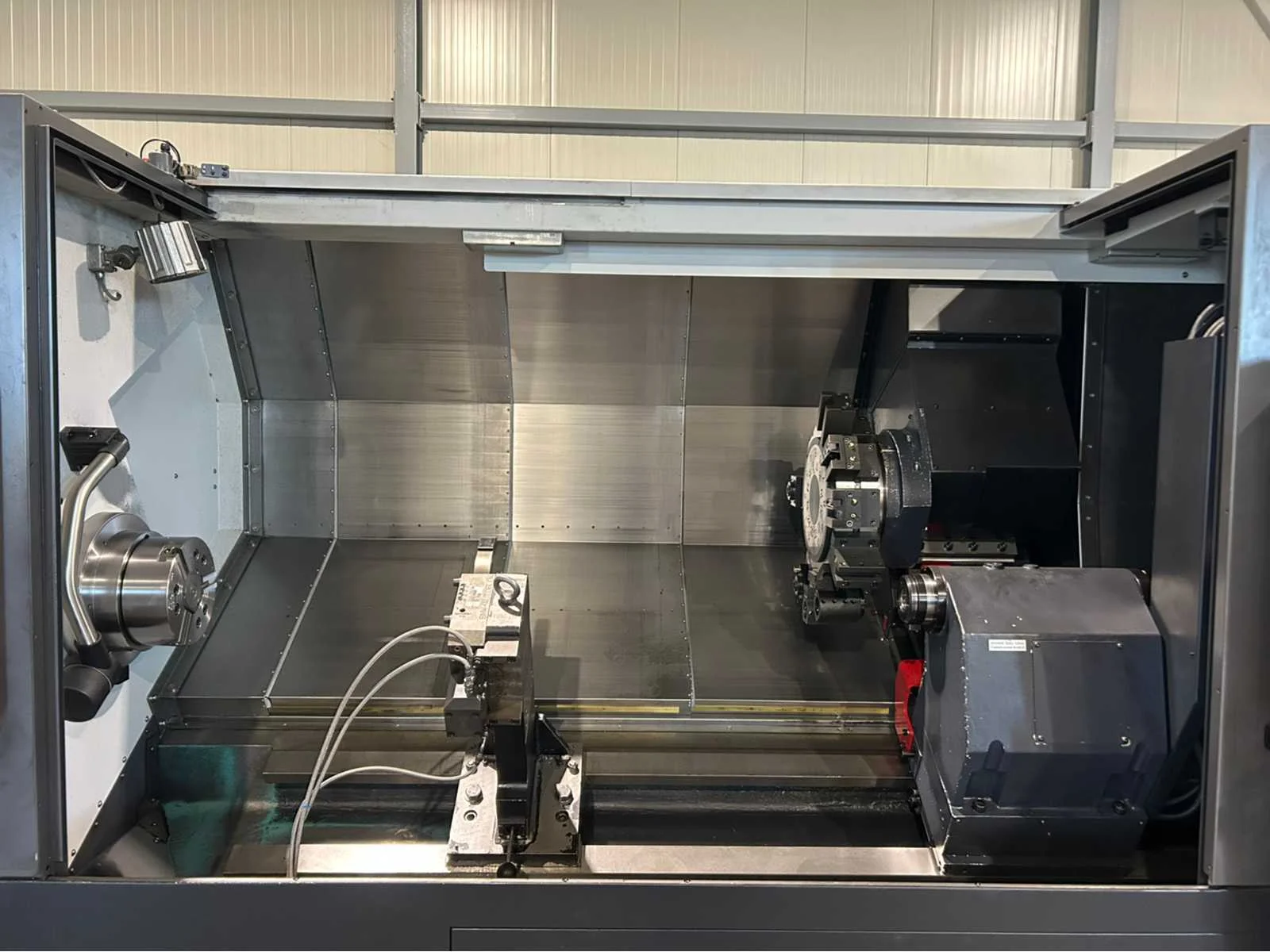

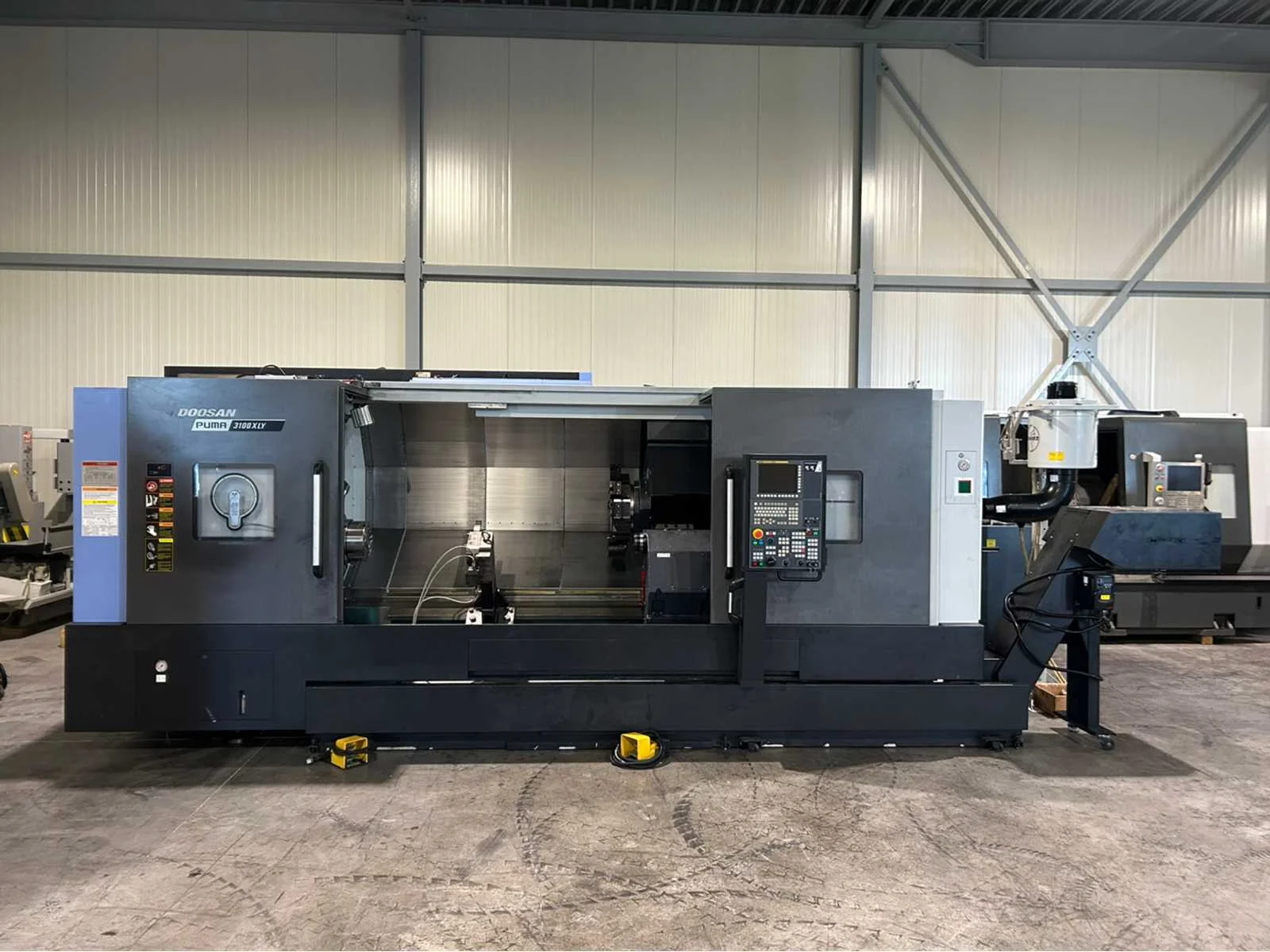

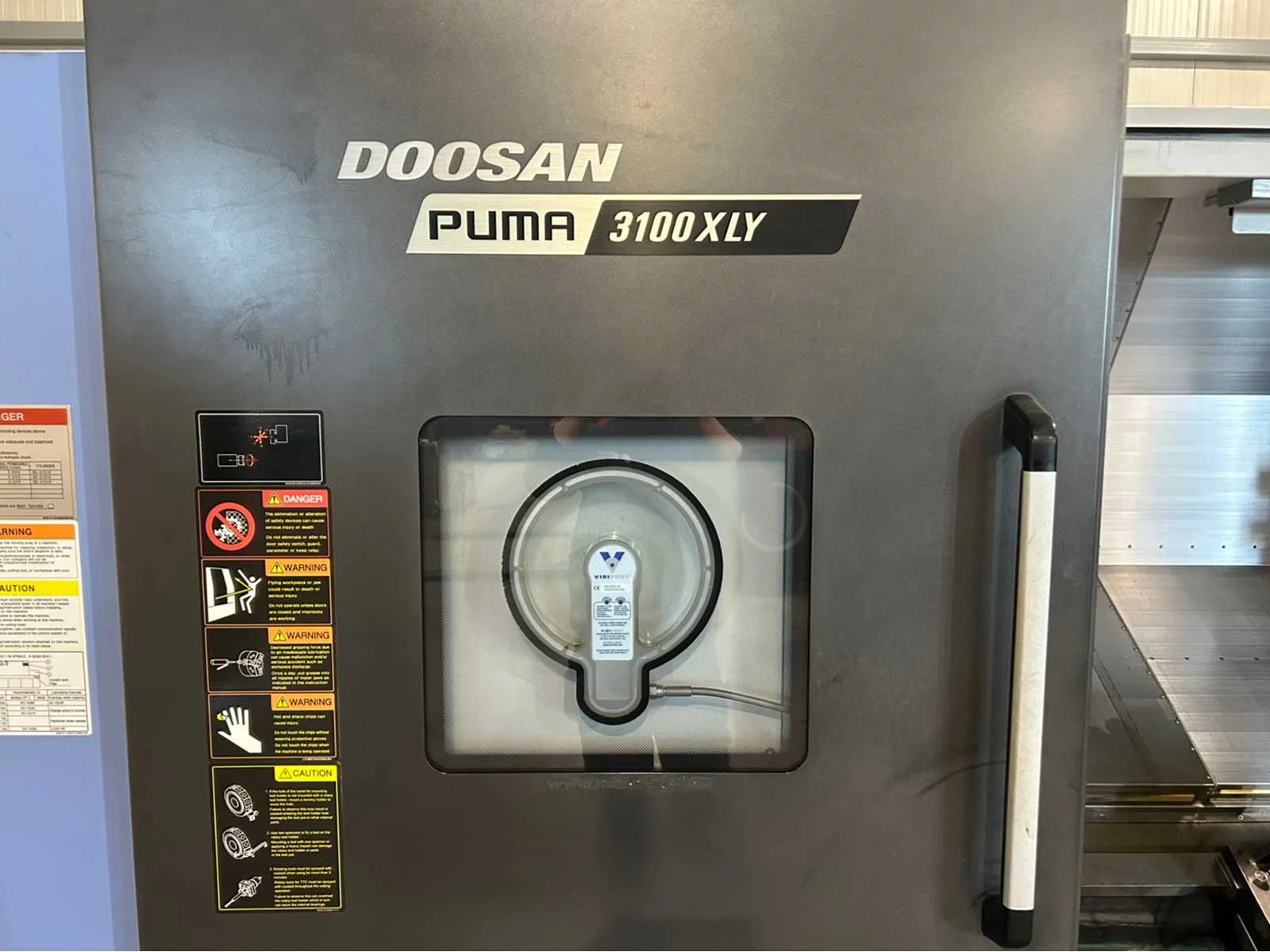

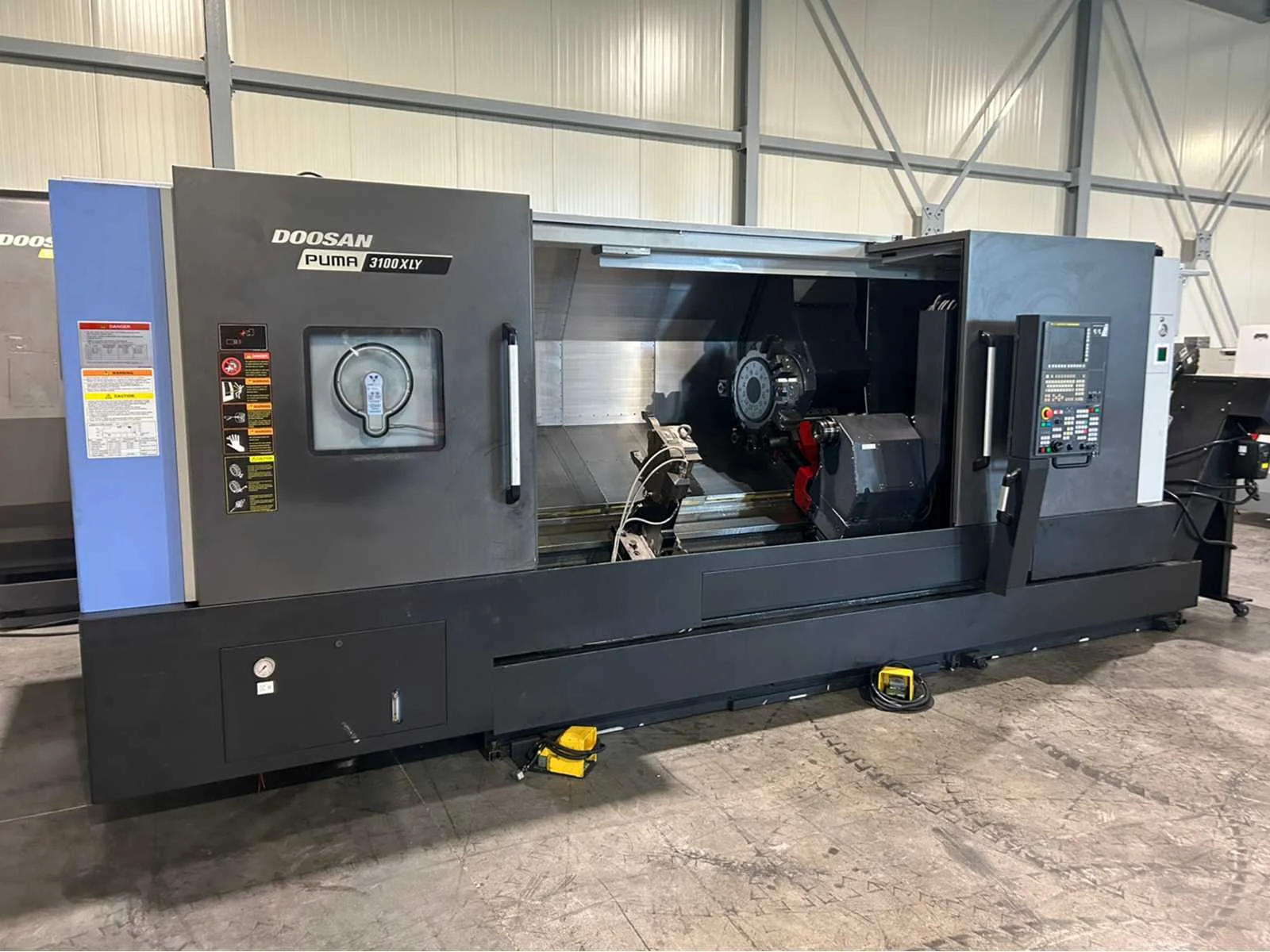

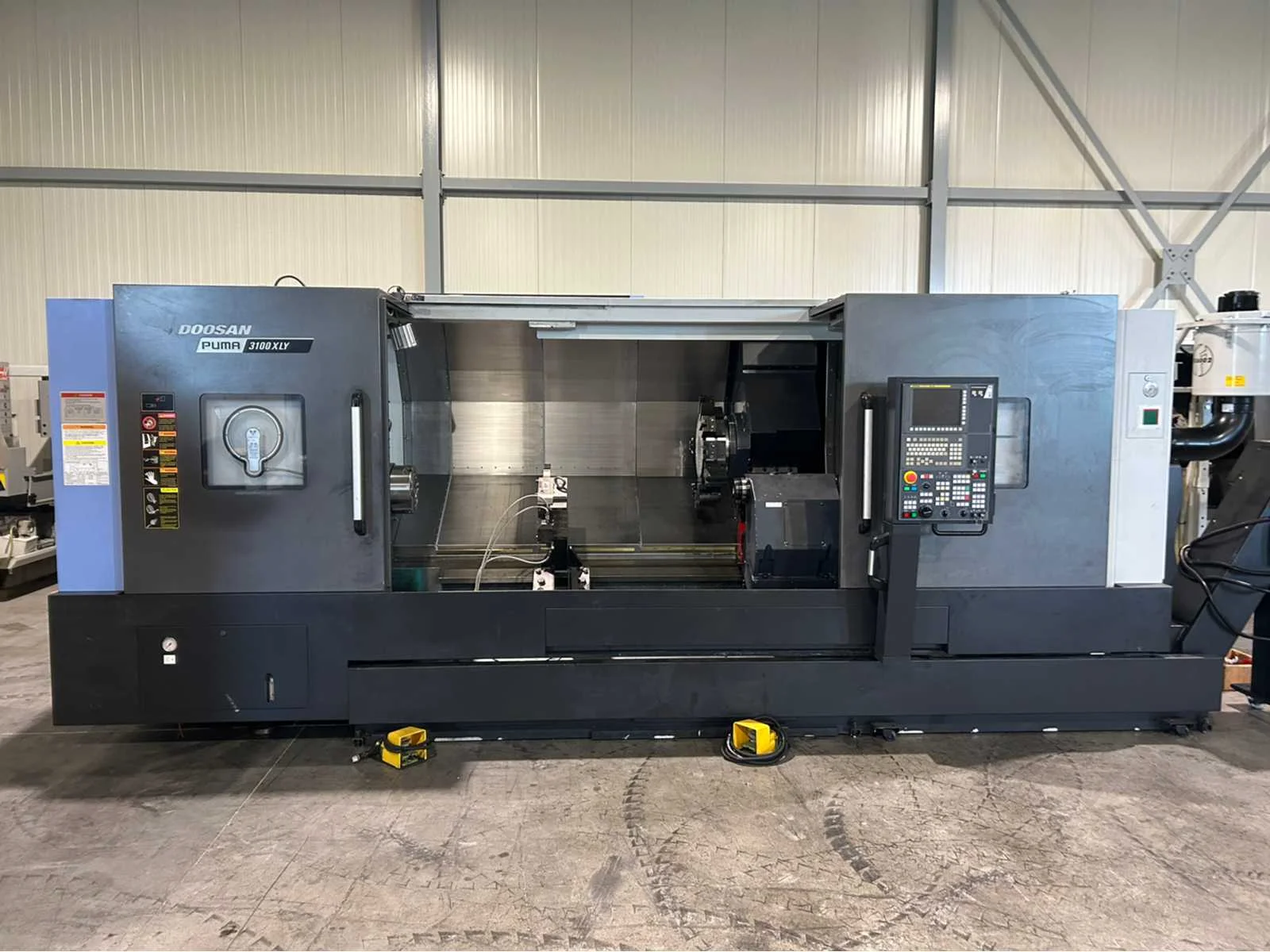

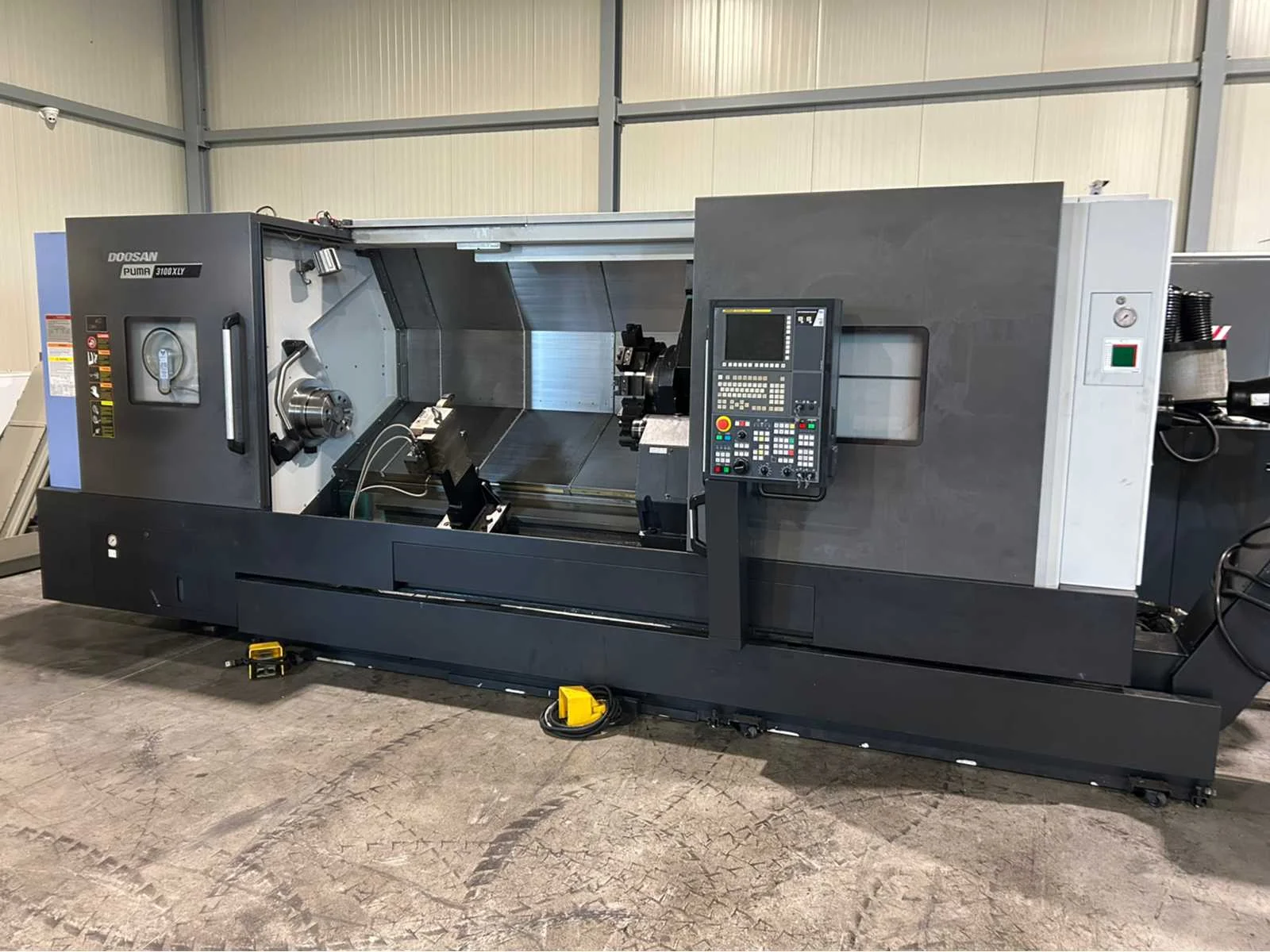

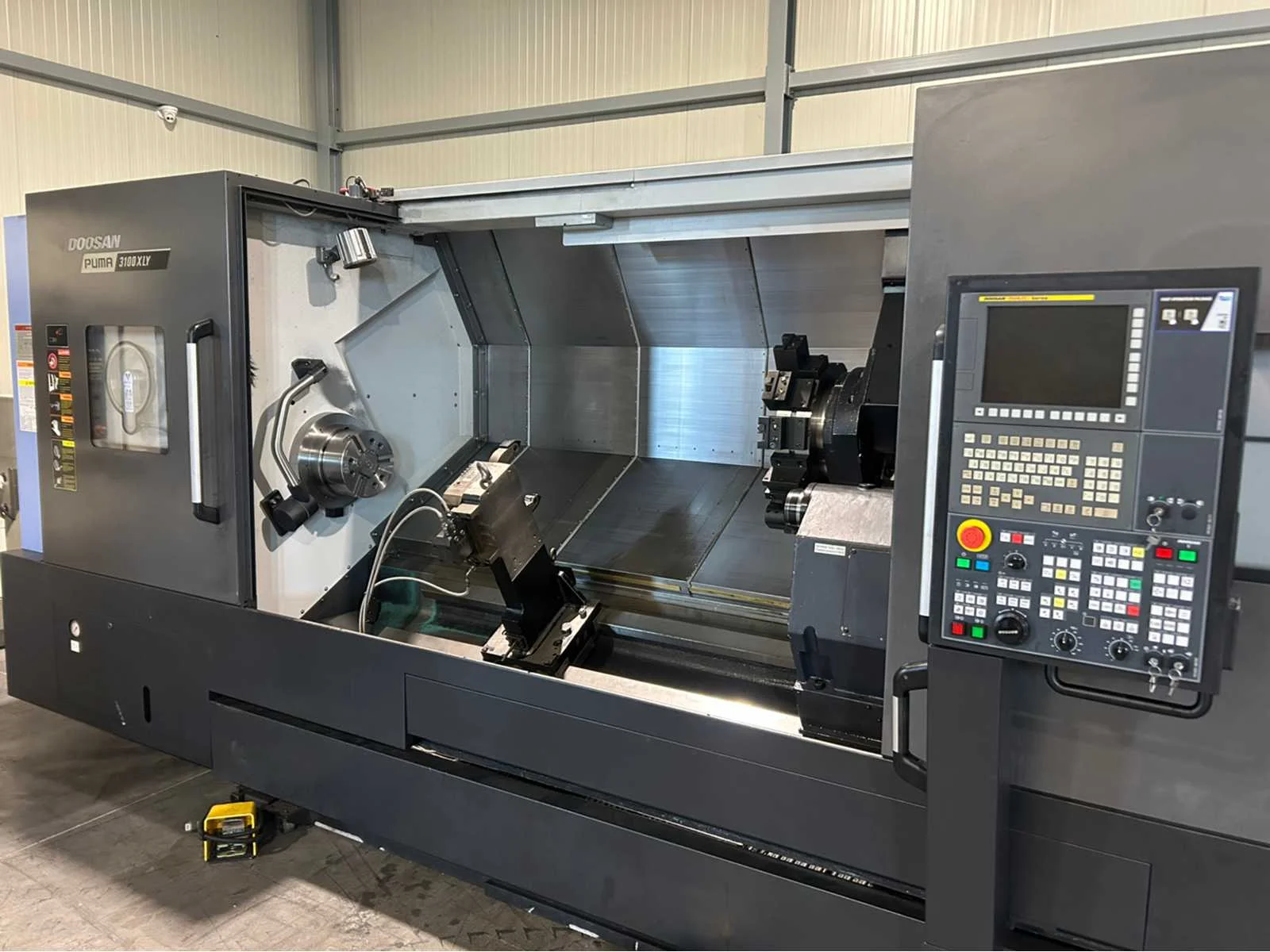

2018 doosan puma 3100 xly cnc draaibank

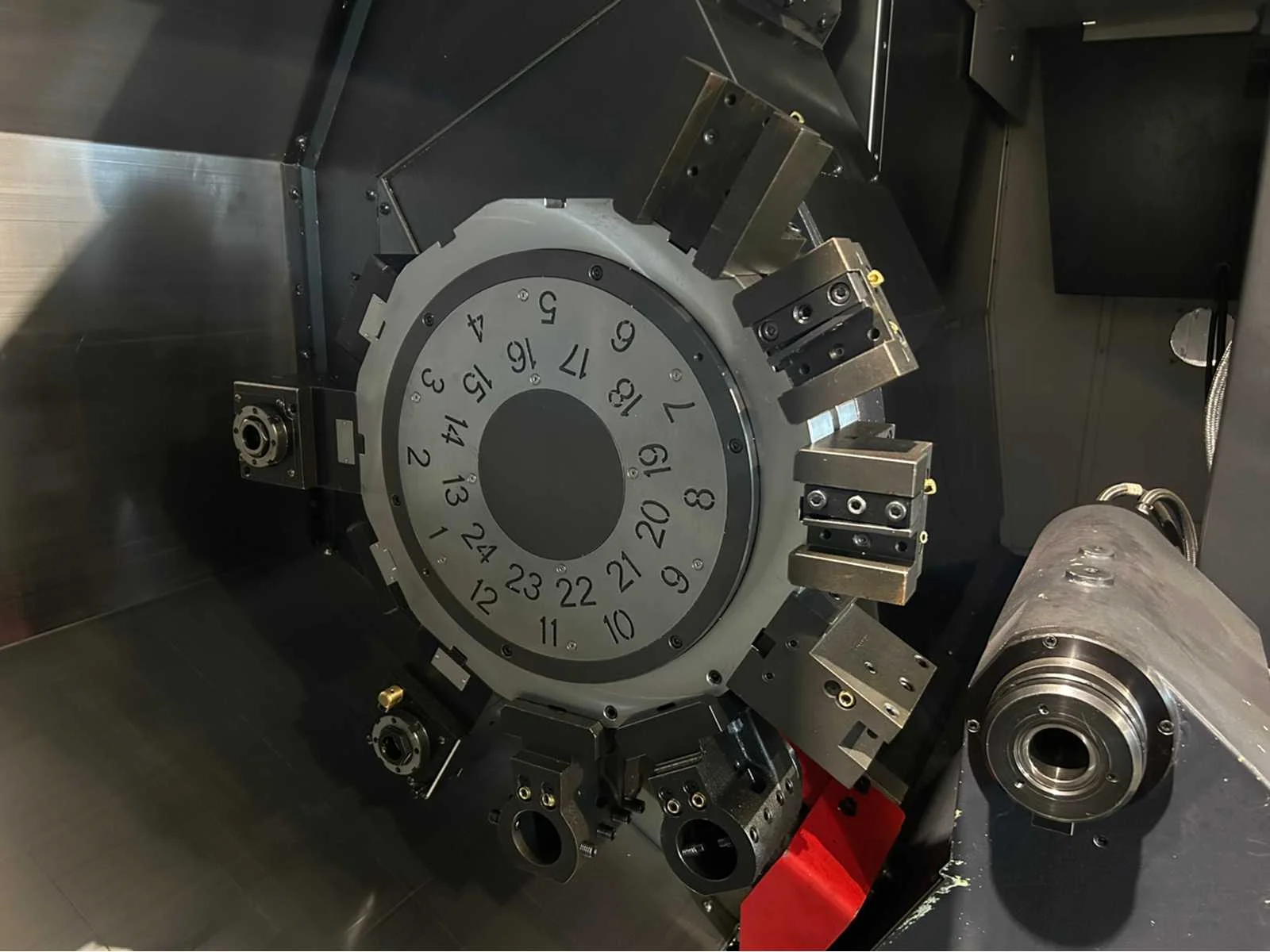

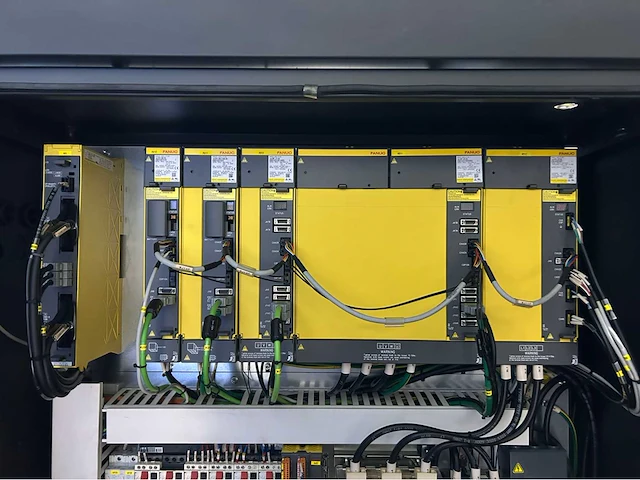

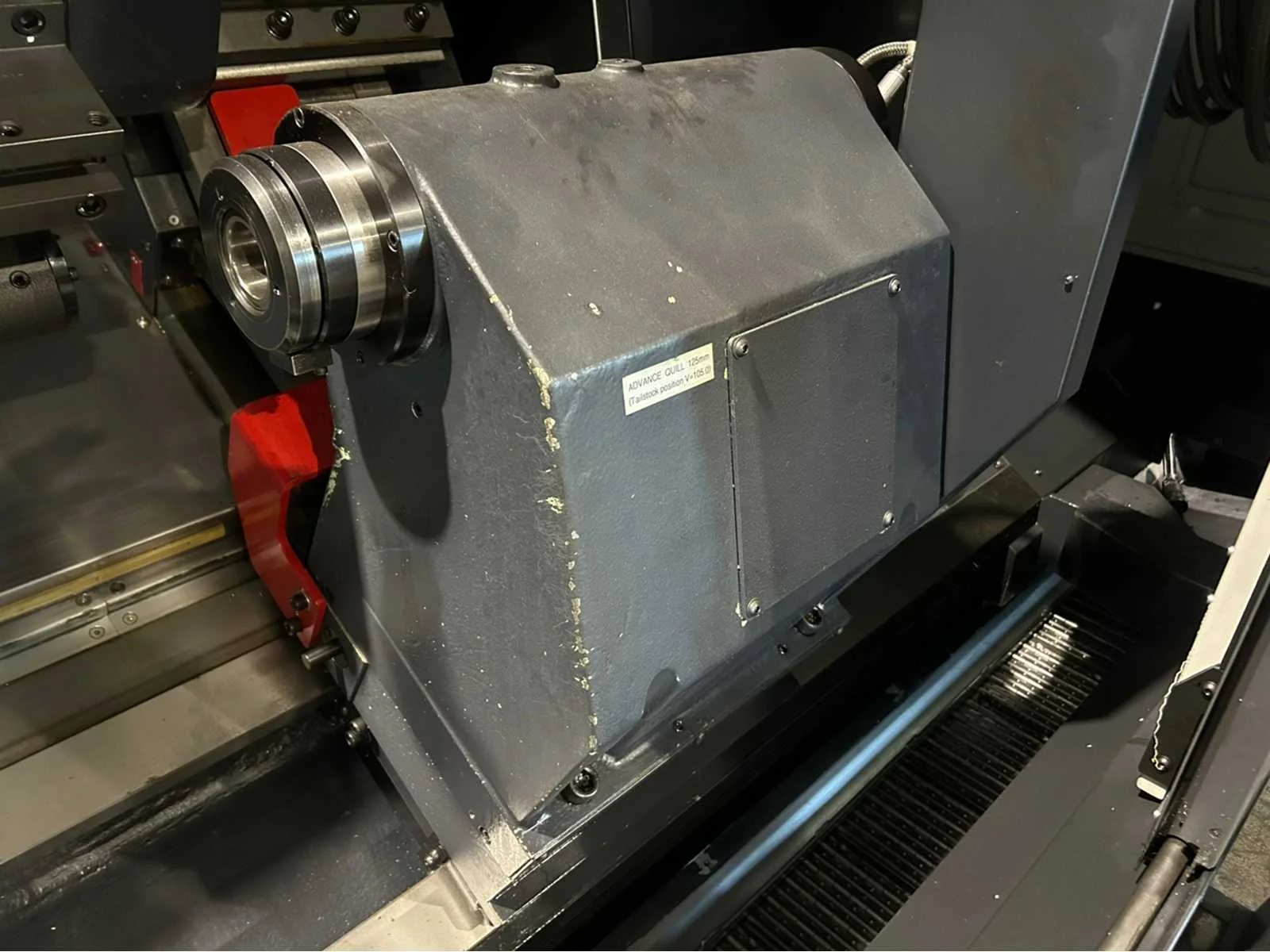

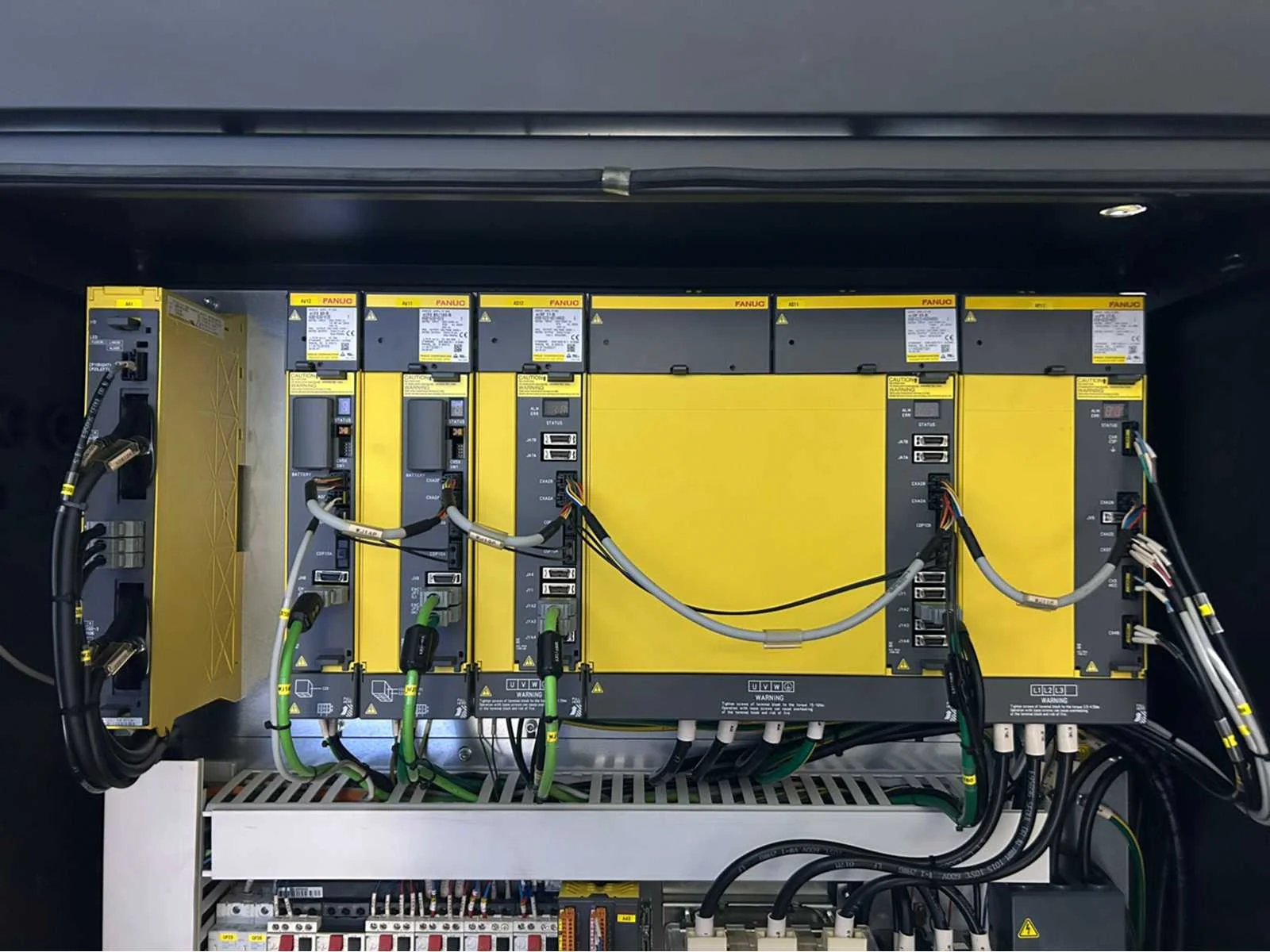

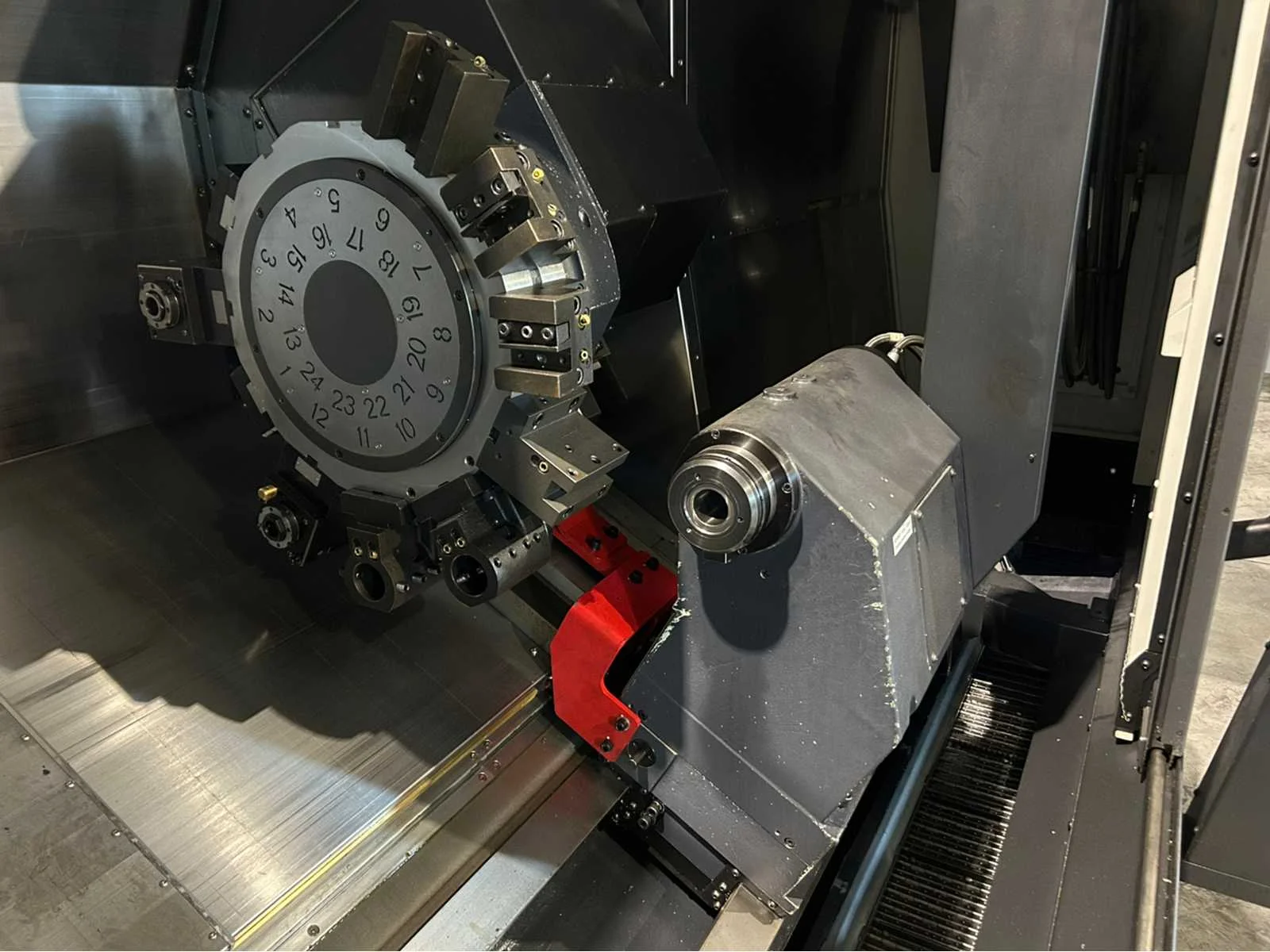

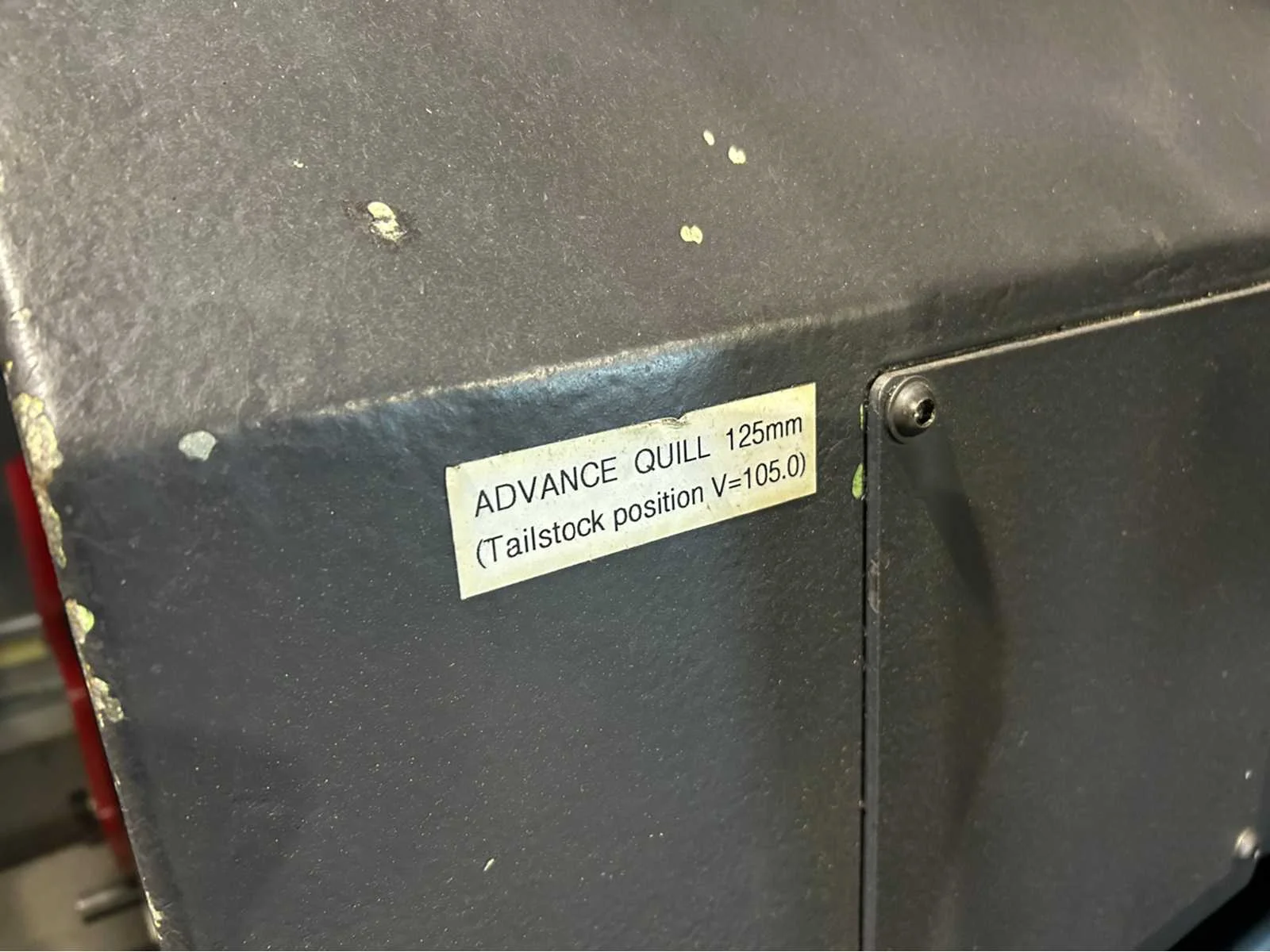

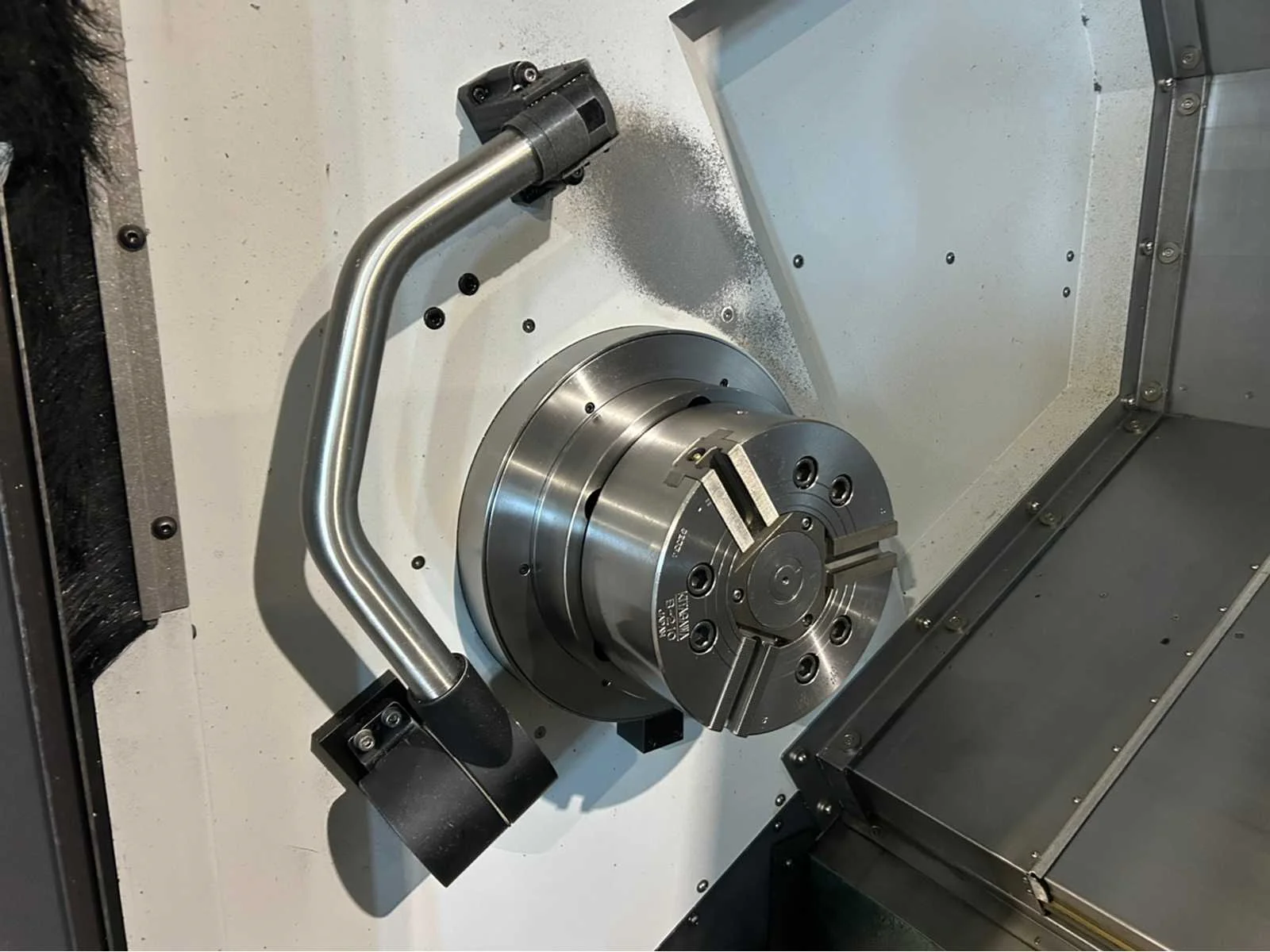

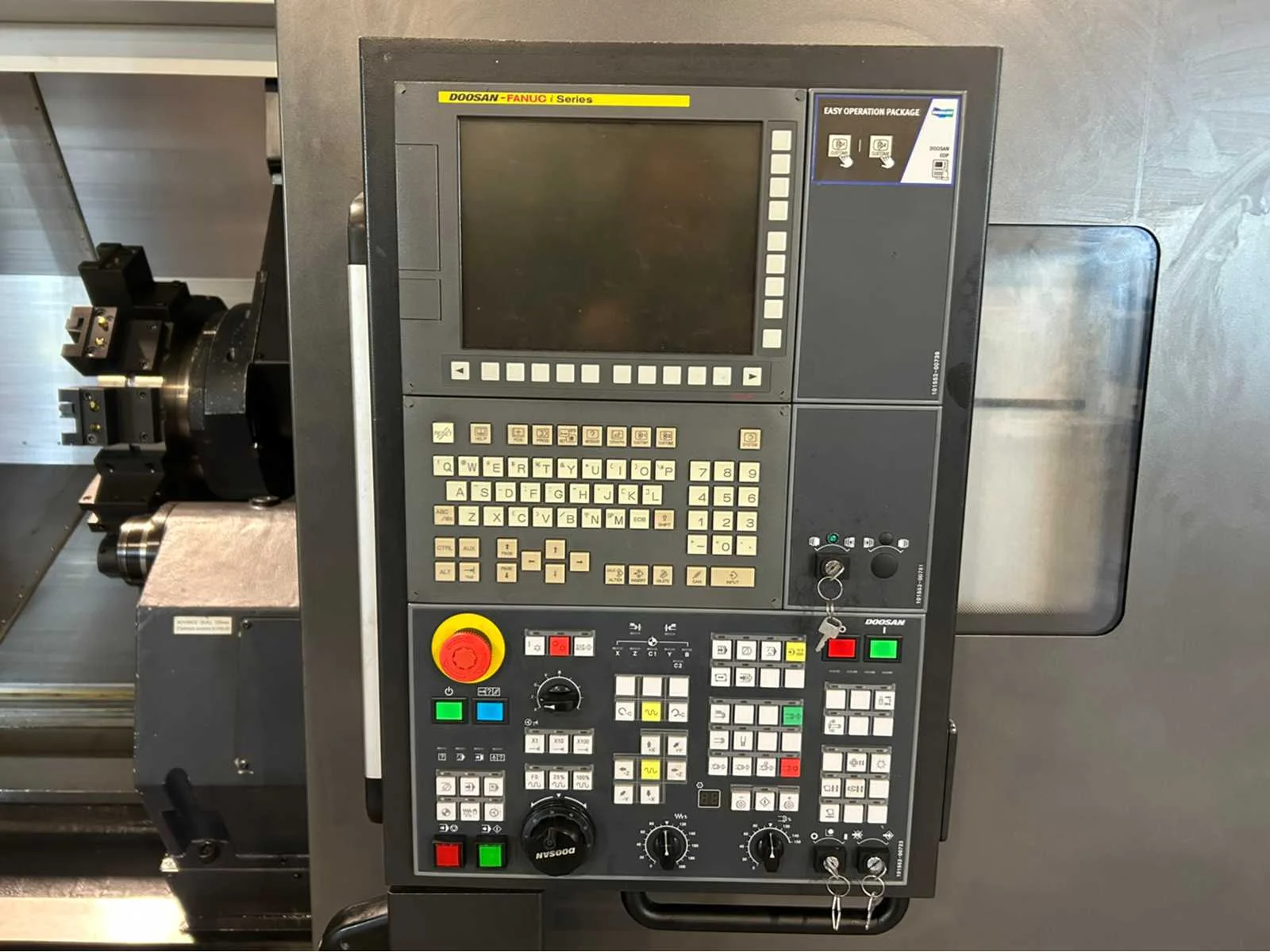

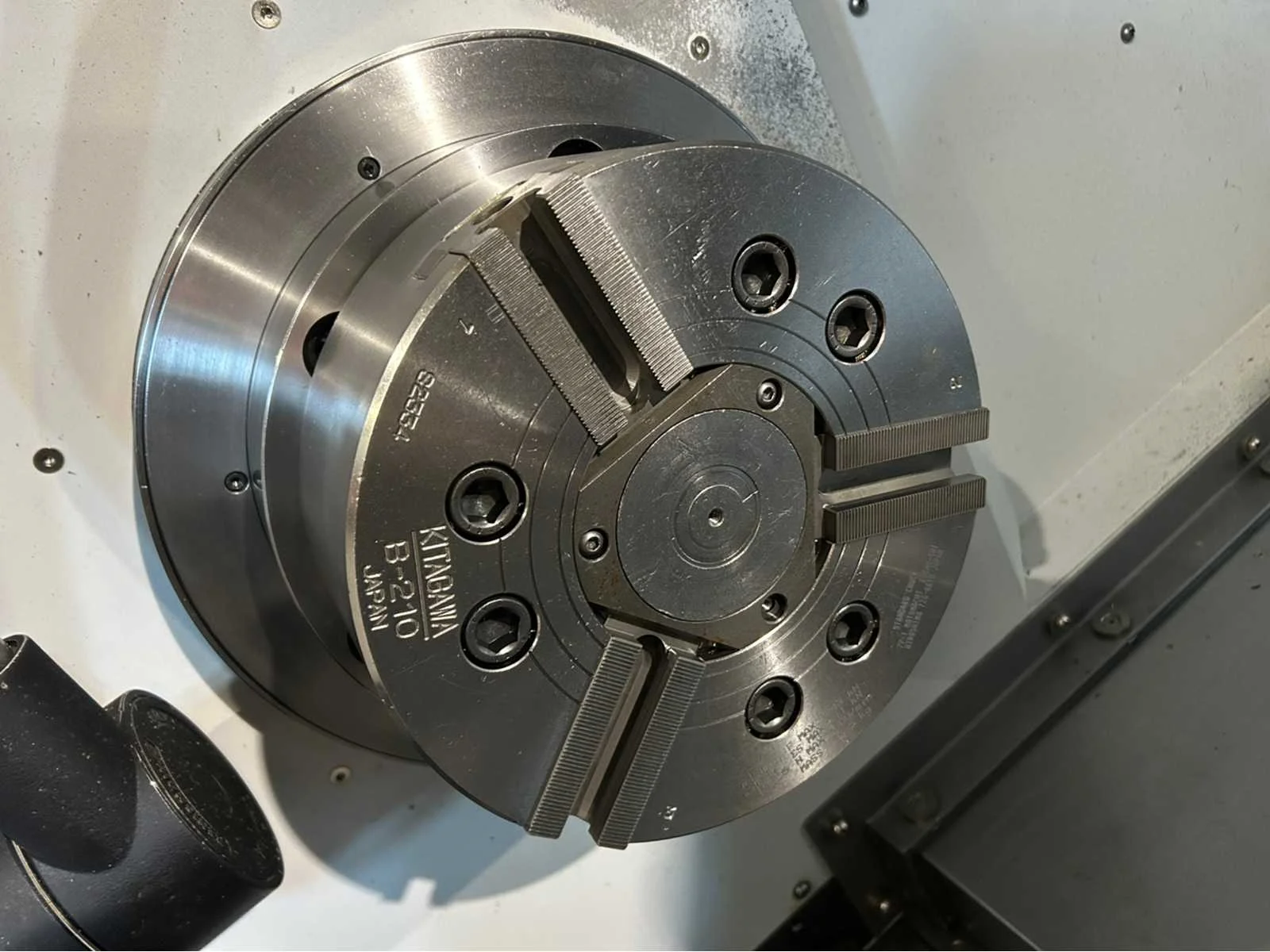

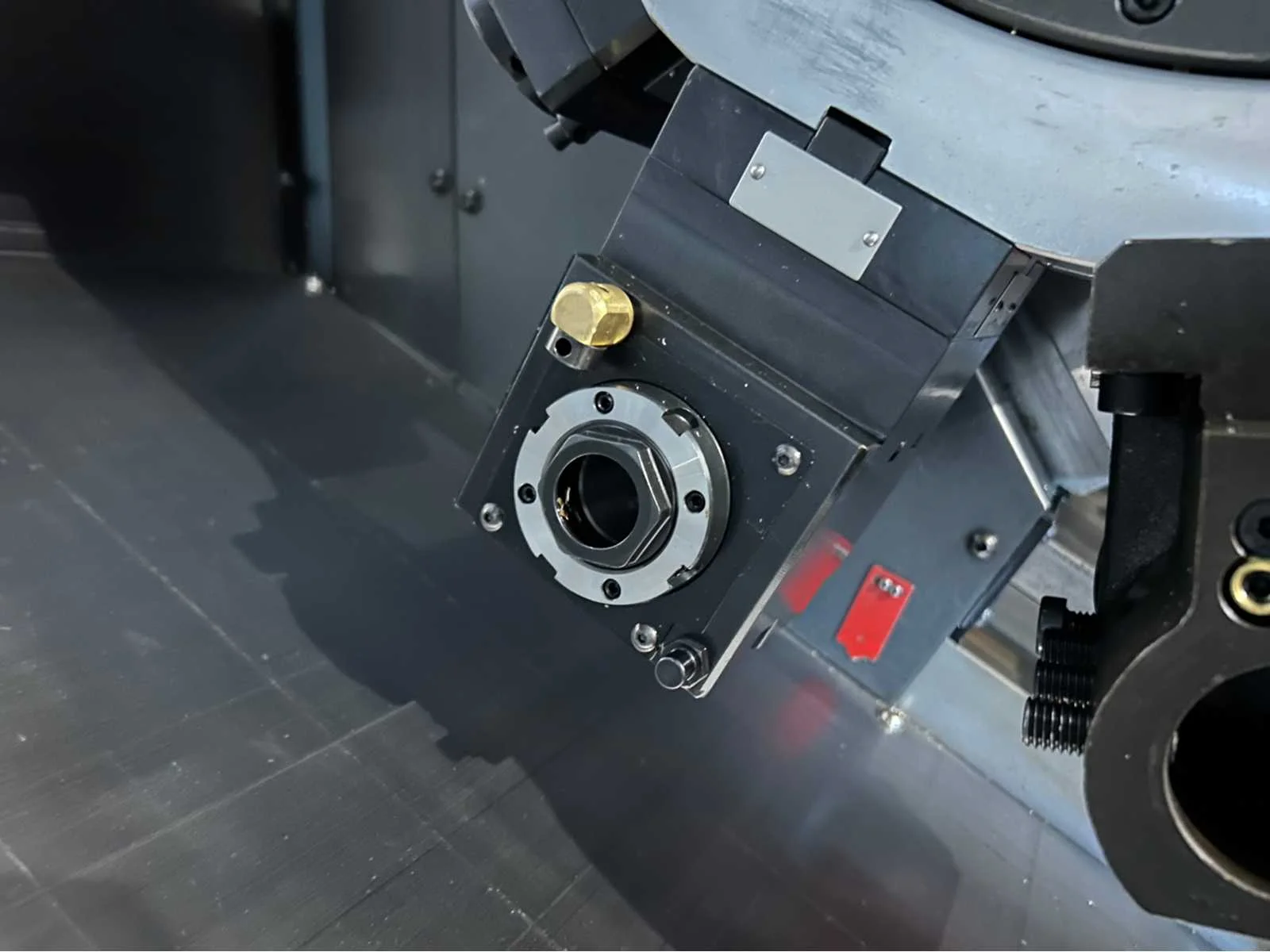

LOADING COST: €1000,00 Capacity: Swing over bed: 850mm Swing over saddle: 670mm Max. turning diameter: 525mm Max. turning length: 2125mm Bar working diameter: 102mm Spindle: Chuck: Kitagawa B-210 (305mm) Spindle speed: 3000rpm (build-in type) Spindle nose: ASA A2#11 Spindle bearing diameter: 160mm Spindle through hole diameter: 115mm C-axis: 0.001° indexable Turret: No. of tool stations: 12 OD tool size: 25mm Boring bar diameter: 50mm Indexing time: 0.15 sec Rotary tool spindle speed: 5000 rpm Carriage: X-axis: 293mm Z-axis: 2190mm Y-axis: 130mm (+65mm ~ -65mm) Rapid traverse X-axis: 30m/min Rapid traverse Z-axis: 30m/min Rapid traverse Y-axis: 10m/min Tailstock: Quill diameter: 120mm Quill bore taper: MT#5 Quill travel: 120mm Motors: Main spindle motor: 30/25 kW Rotary tool spindle motor: 7,5 kW Feed motor (X, Y, Z-axis): 3, 4, 3 kW Coolant pump motor: 0,4 kW Power source: Rated capacity: 47,59 kVa Machine size: Machine length: 5595mm Machine width: 2280mm Machine height: 2315mm Machine mass: 10800kg Equipped with: - Doosan-Fanuc i Series TC - 10.4” color display - Easy operation package - Doosan tool load monitoring - 128 pairs of tool offsets - 8 pairs work coordinate system - SMW-AUTOBLOK K2-MSW steady rest - Automatic tool pre-setter - Chip conveyor - Oil skimmer - Hydra jet high pressure coolant system DIMENSIONS APPOINTED IN THE SPECIFICATIONS IS JUST THE MACHINE! MAKE SURE THERE IS ENOUGH LOADING SPACE FOR ALL THE ACCESSORIES! Merk: Doosan Type: Puma 3100 XLY Bouwjaar: 2018 Serienummer: ML0121-000284 Draai: 525mm Draailengte: 2125mm Holle spil Ø: 115mm Snelheid tot n =: 3000rpm Aantal gereedschapwisselstations: 24 Koelmiddelpomp: true Spanentransporteur: true Motorvermogen (kW): 30kW Aansluiting: 400V Handboek aanwezig: true Machinegewicht: 10800kg Afmeting l: 5595mm Afmeting b: 2280mm Afmeting h: 2315mm
