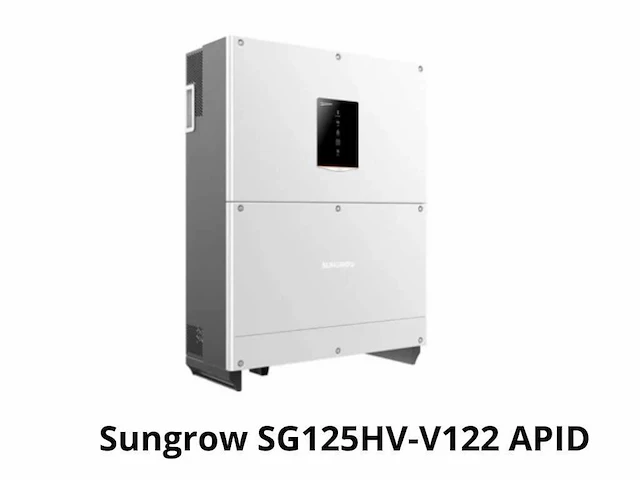

Sungrow - sg125hv-v122 apid - sungrow sg125hv-v122 apid omvormer t.b.v. zonnepanelen (3-fase)

Sungrow SG125HV-V122 APID 125k omvormer t.b.v. zonnepanelen (3-fase) String Inverter for 1500 VDC System High Yield Patented five-level topology, with max. efficiency 98.9 %, European efficiency 98.7 %, CEC efficiency 98.5 % Full power operation without derating at 50 ℃ Anti PID Q@Night Easy O&M Virtual central solution, easy for O&M Compact design and light weight for easy installation Saved Investment DC 1500V,AC 600V, low system initial investment 1 to 5MW power block design for lower AC transformer and labor cost Max.DC/AC ratio up to 1.5 Grid Support Compliance with both IEC and UL safety, EMC and grid support regulations Low/High voltage ride through(L/HVRT) Active & reactive power control and power ramp rate control Max. PV input voltage - 1500 V Max. PV input current - 148 A AC output power - 125000 VA @ 50 °C Max. AC output current - 120 A Nominal AC voltage - 3 / PE, 600 V AC voltage range - 480 - 690 V Degree of protection - IP 65 NEMA 4X Dimensions (W x H x D) - 670 x 902 x 296 mm Weigh - 76 kg Display / Communication - LED, Bluetooth+APP / RS485 Merk: Sungrow Type: SG125HV-V122 APID Wifi: true WLAN/LAN: true 3-fase: true
