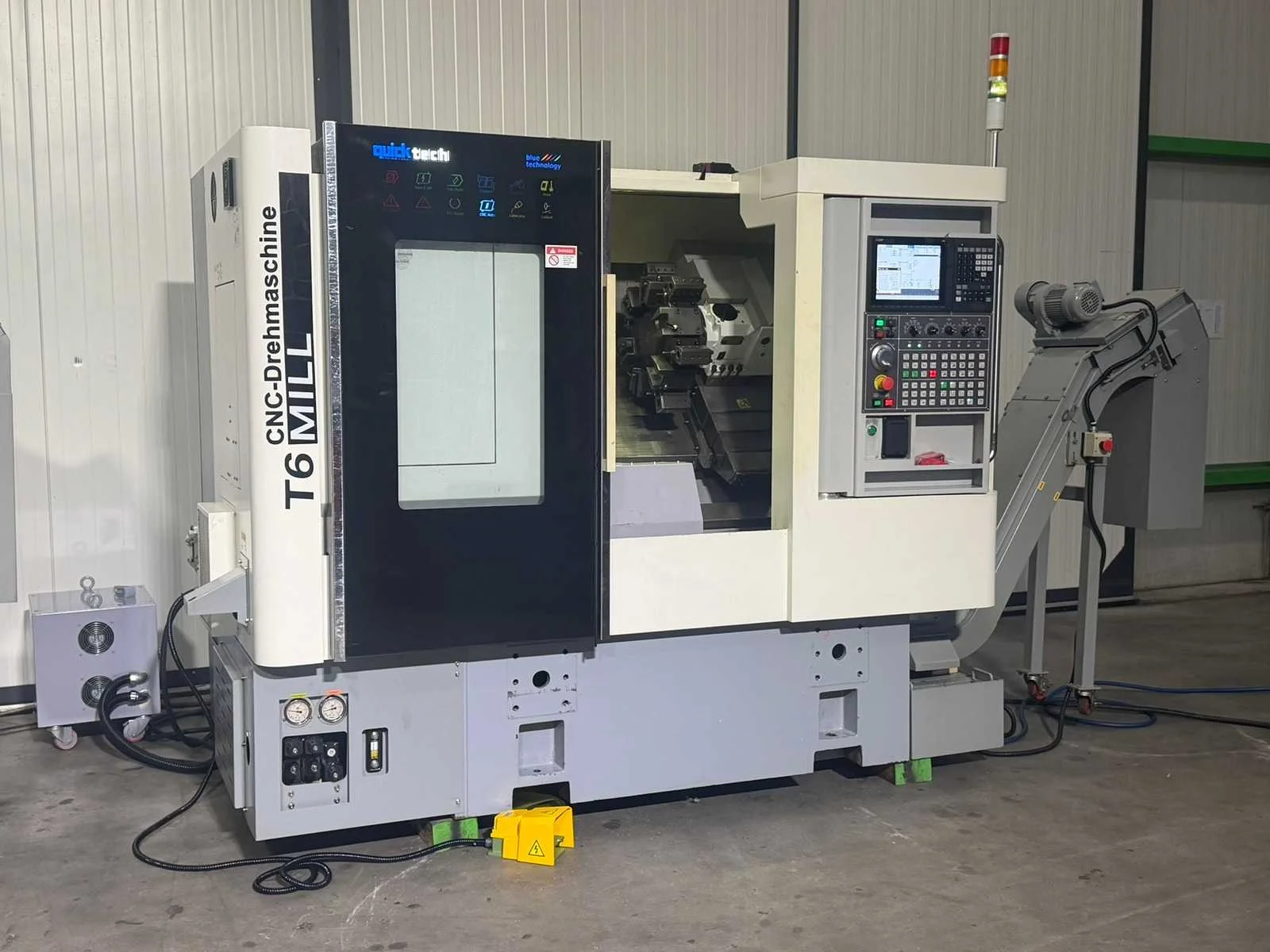

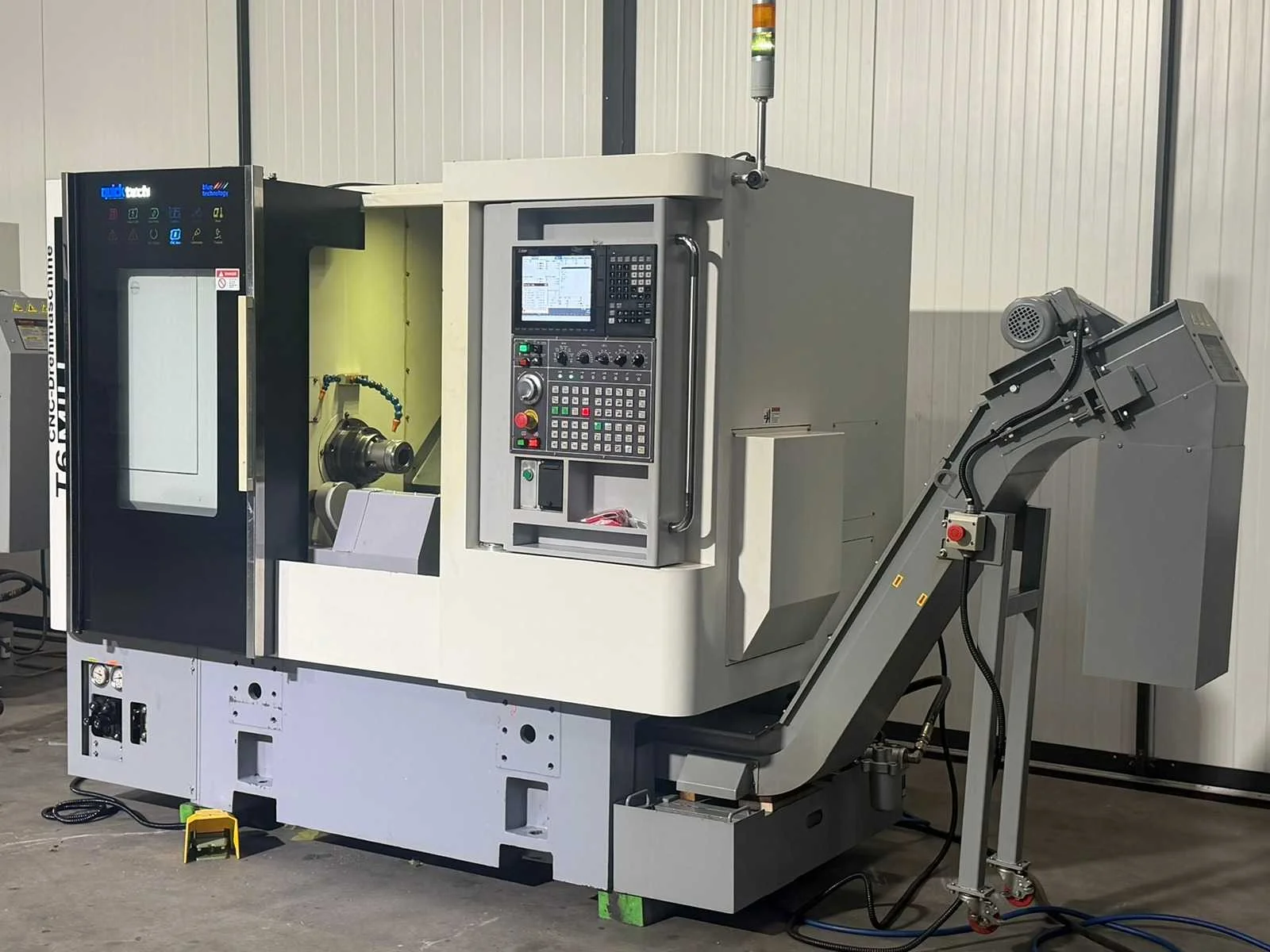

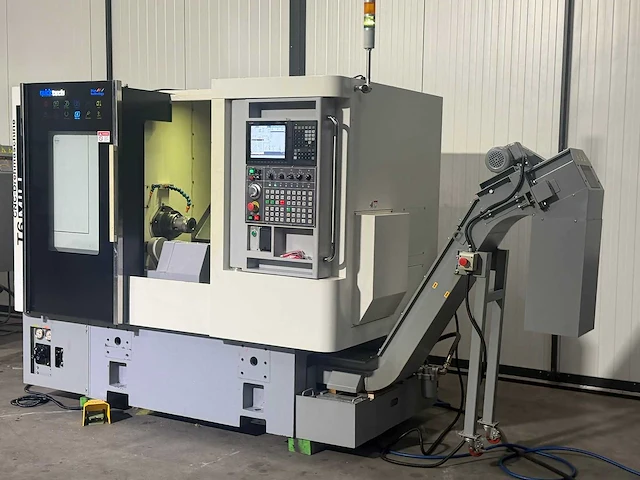

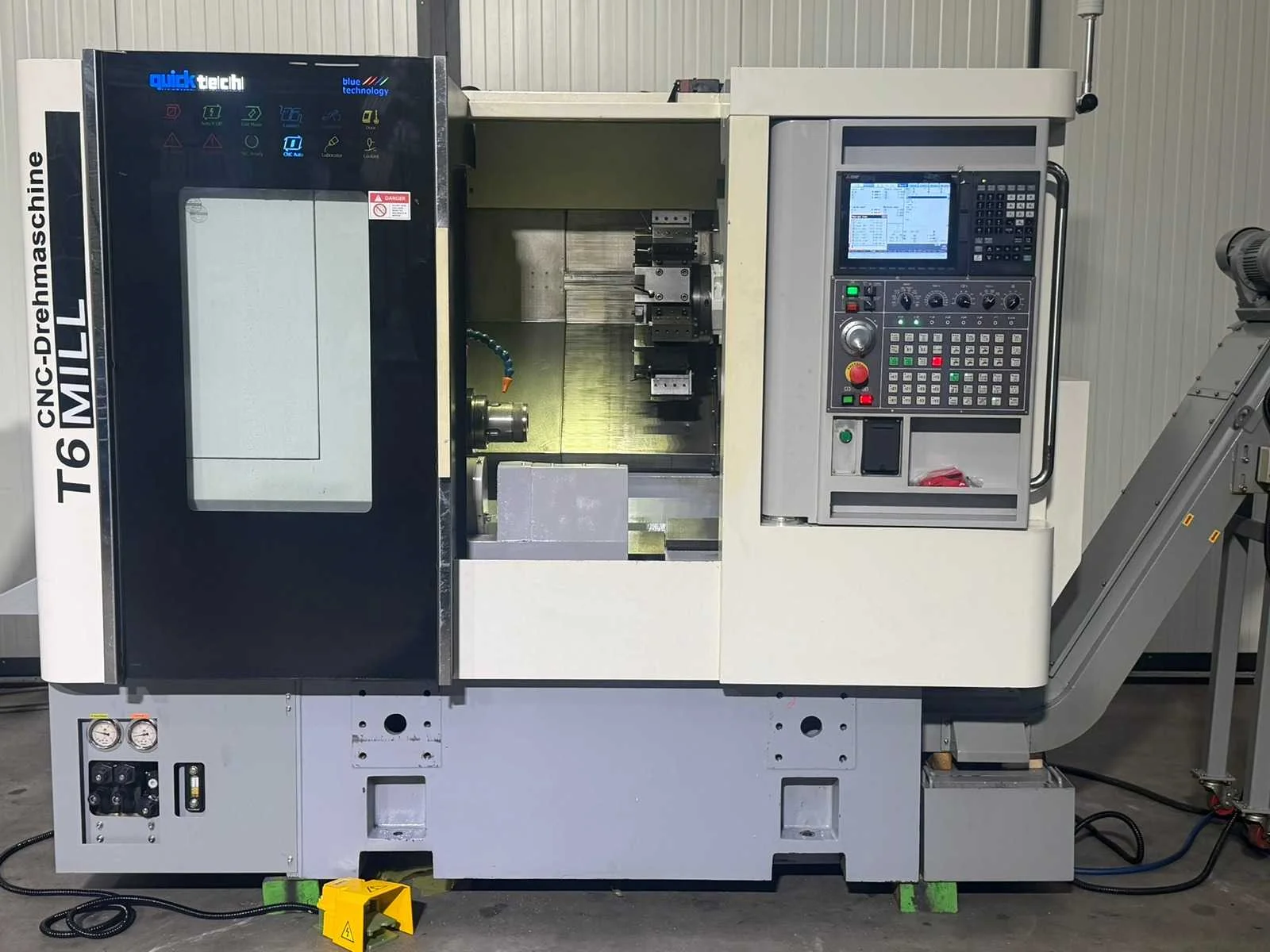

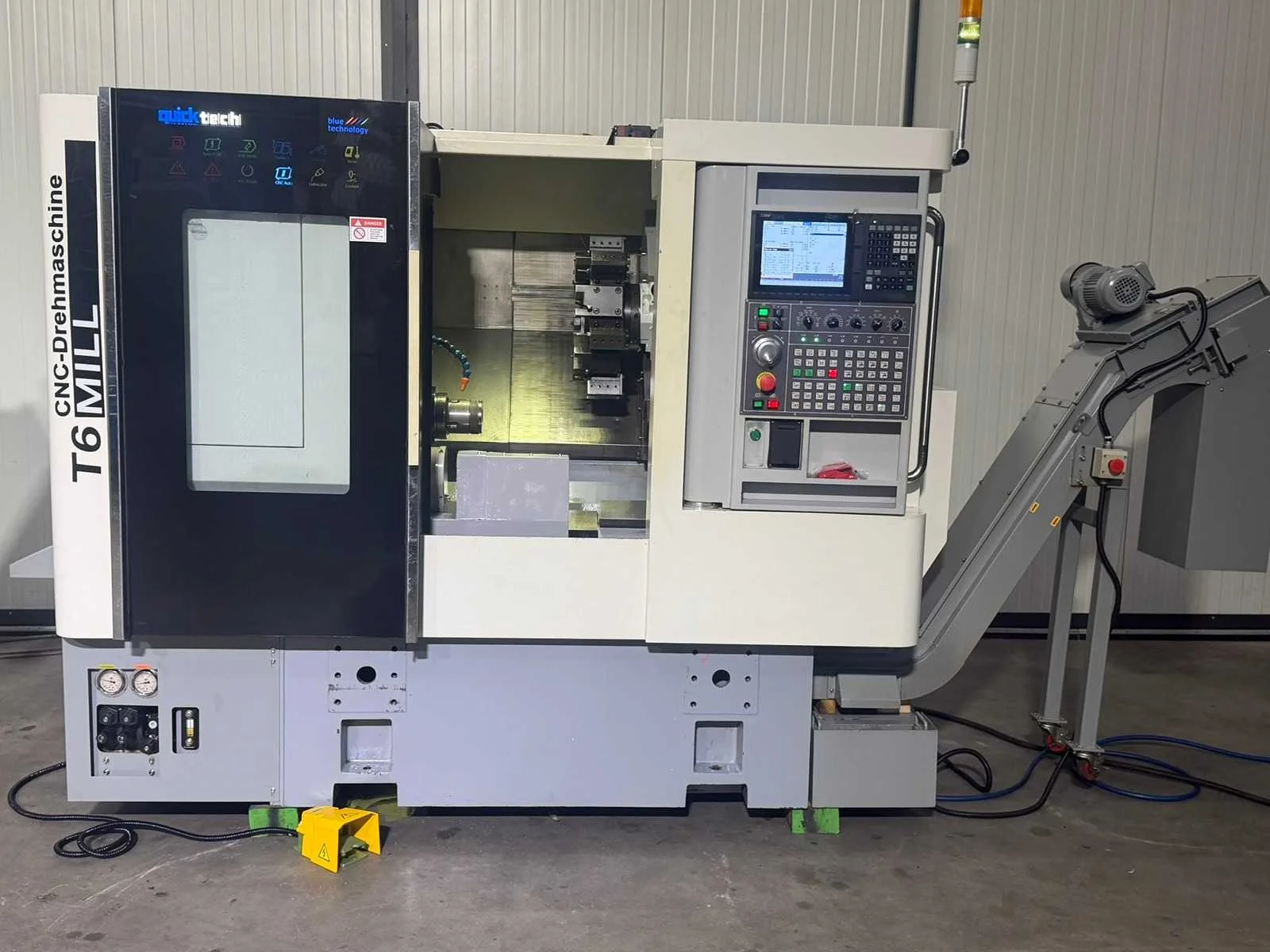

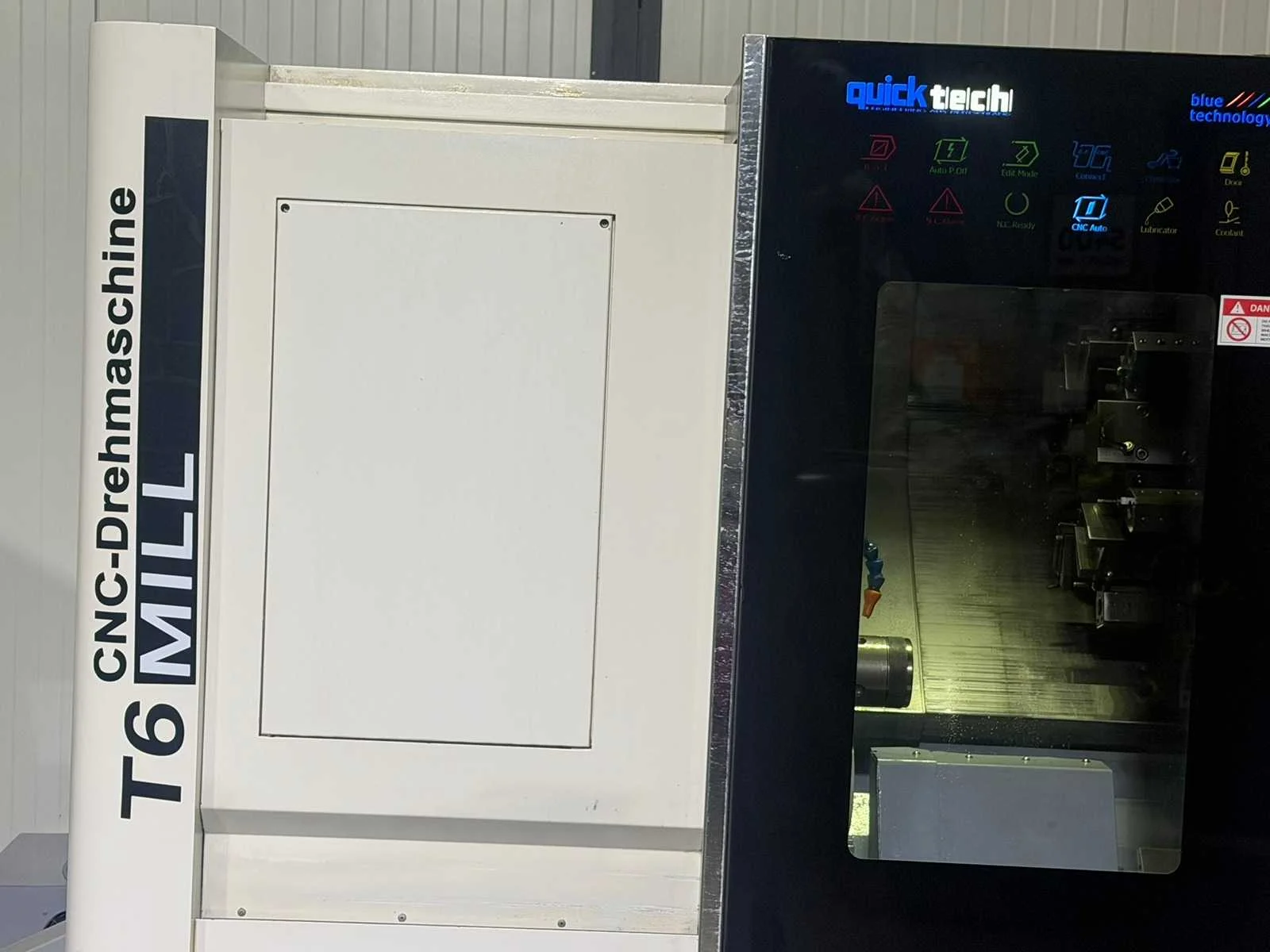

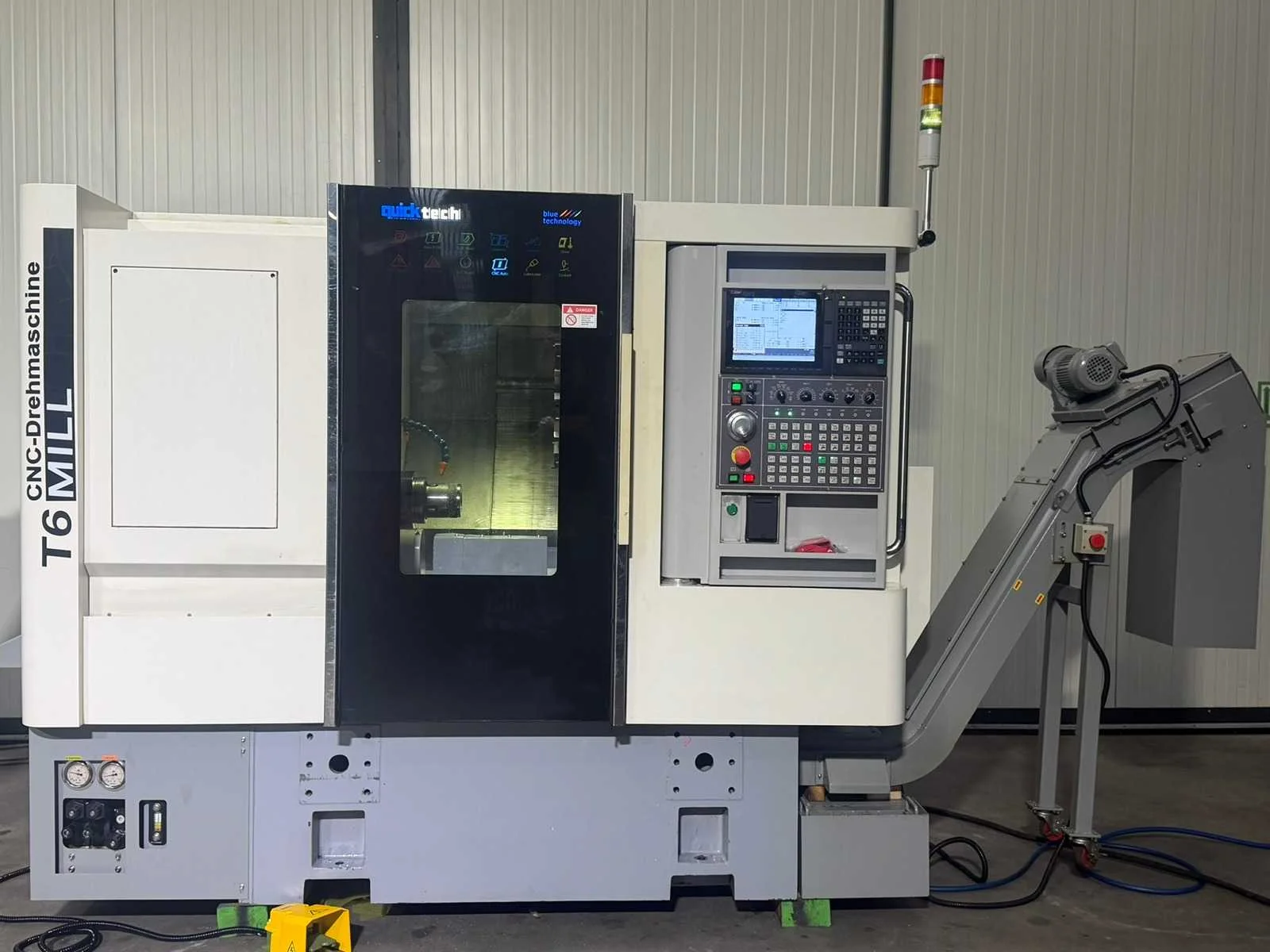

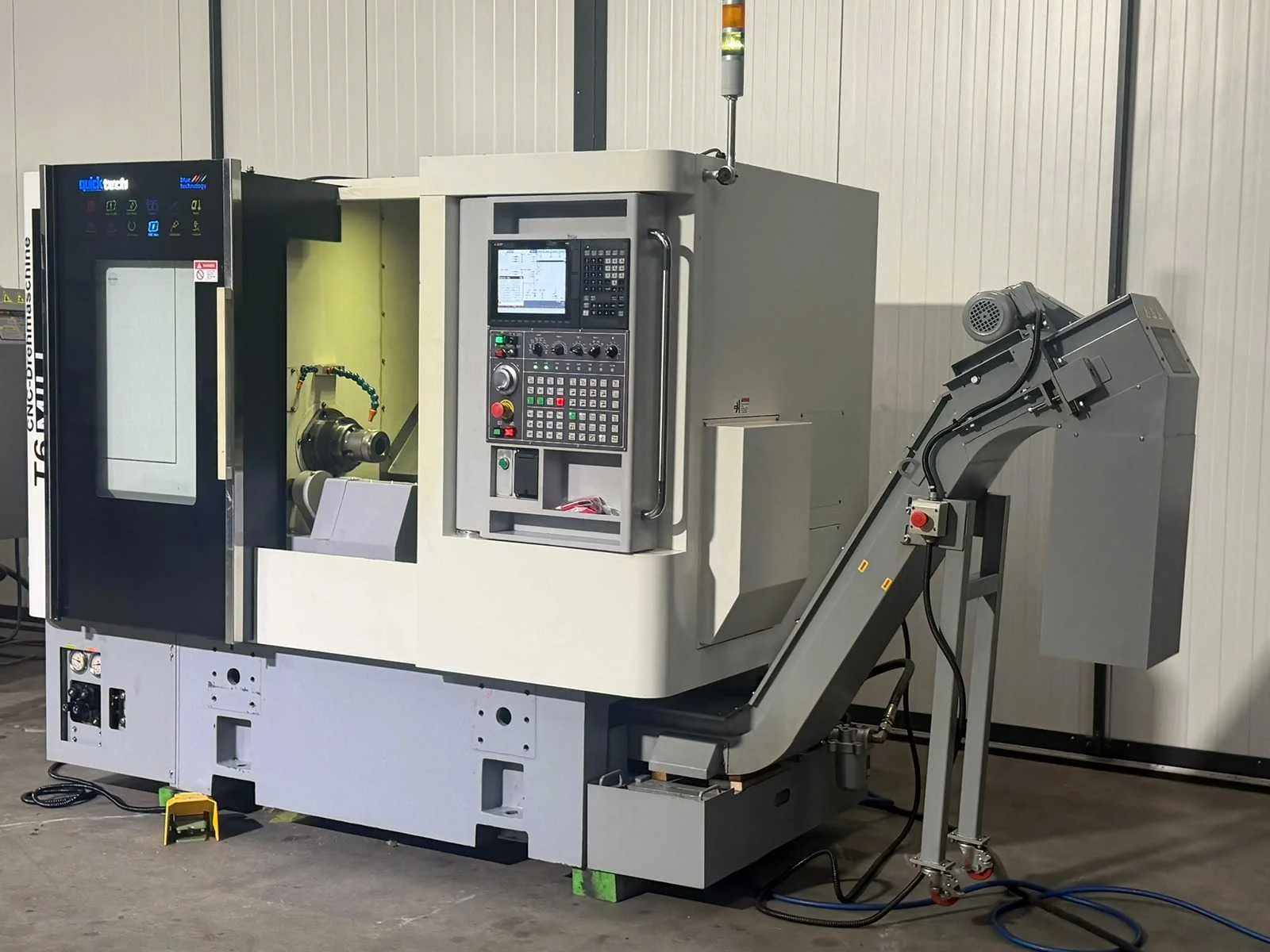

2025 quicktech t6-mill cnc draaibank met aangedreven gereedschap

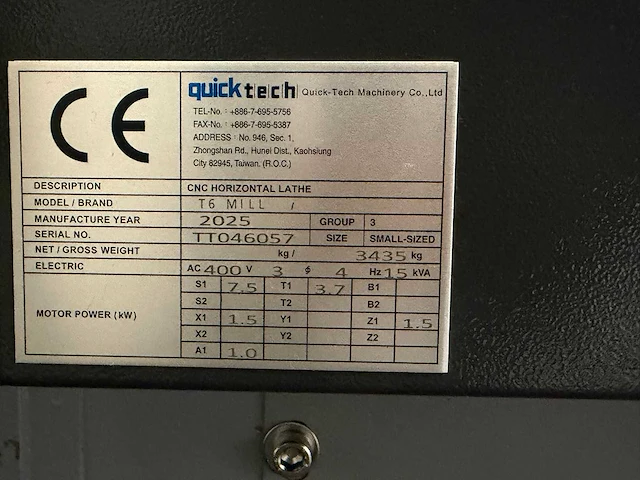

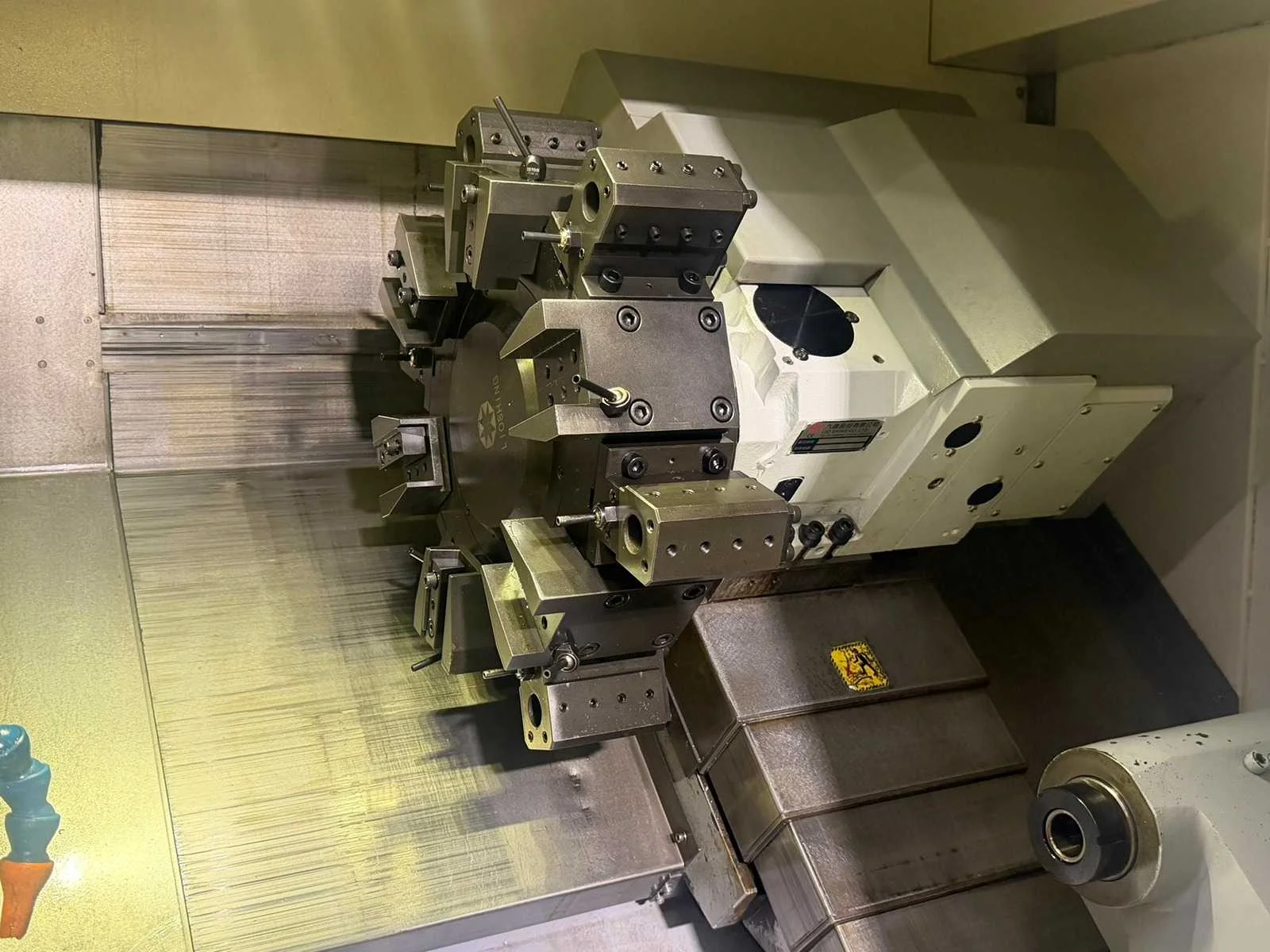

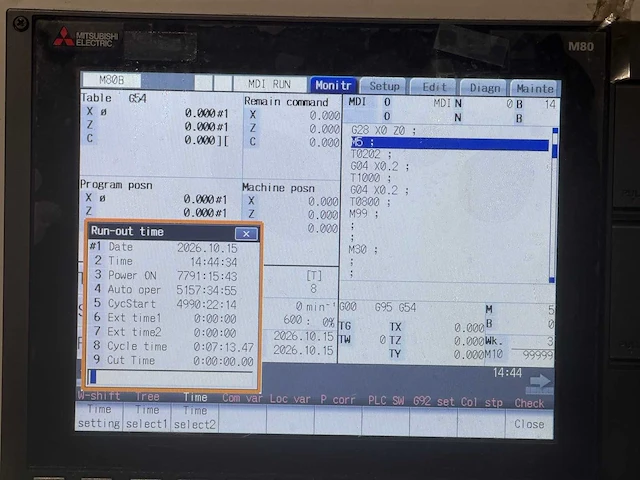

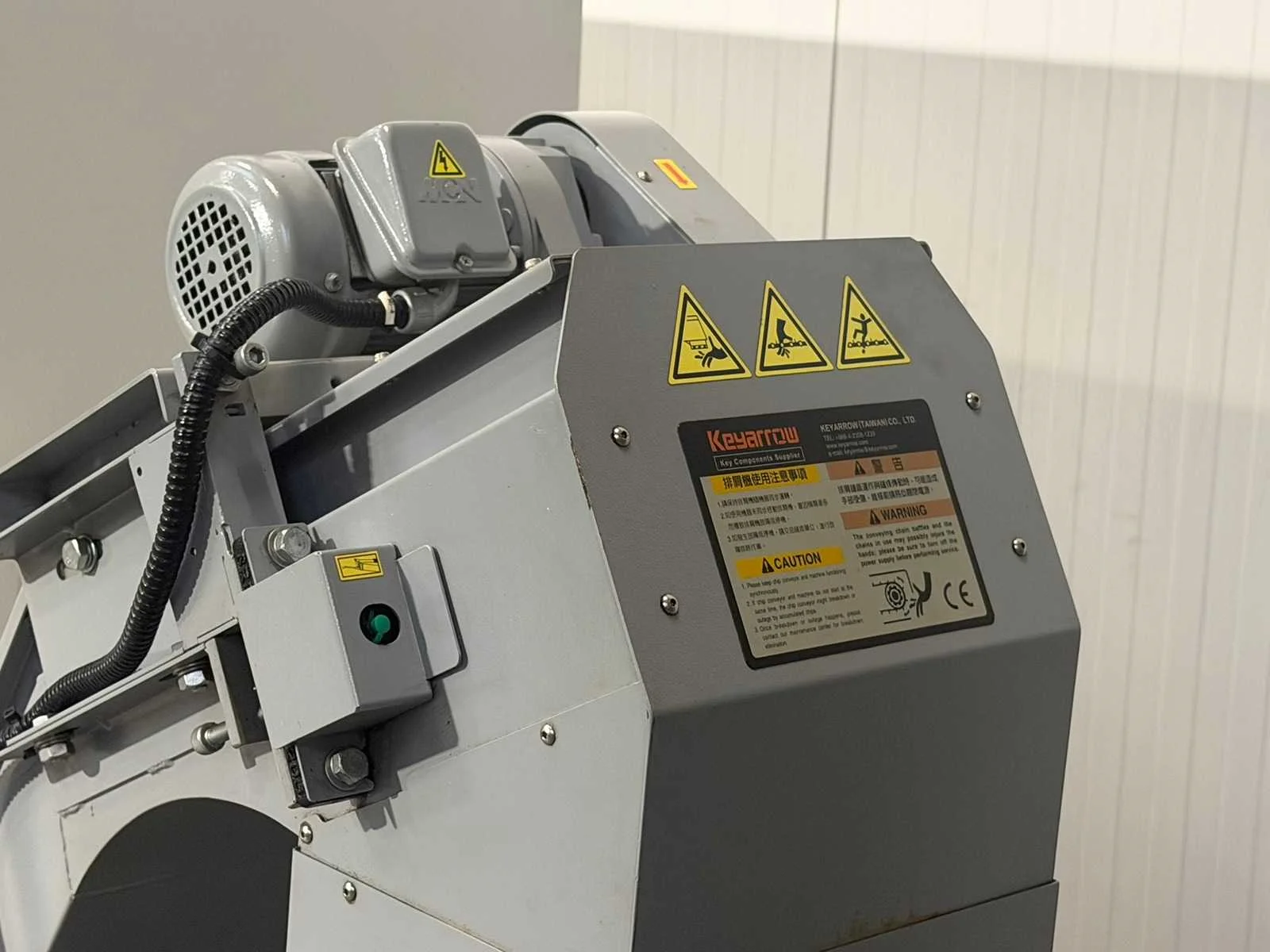

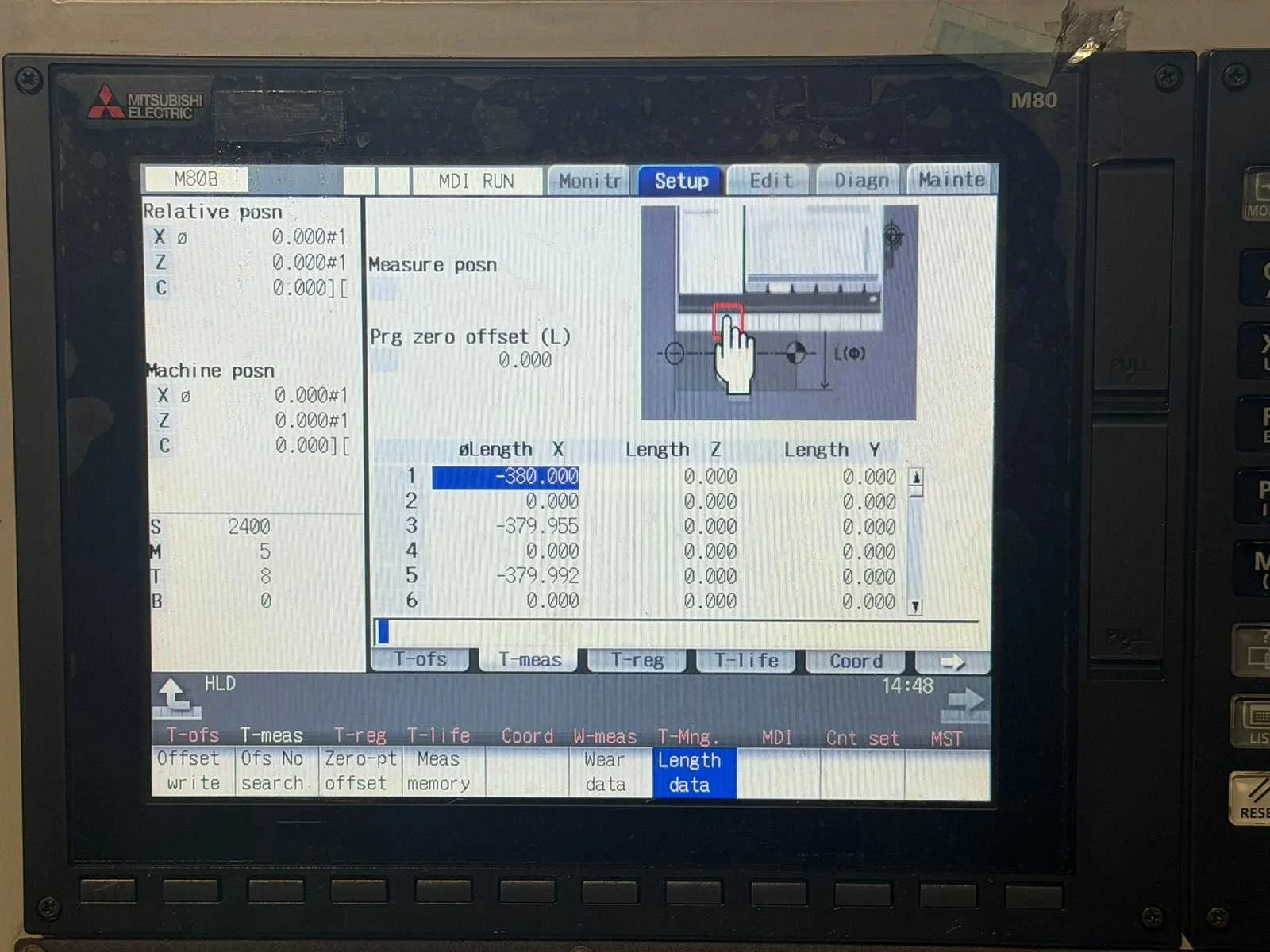

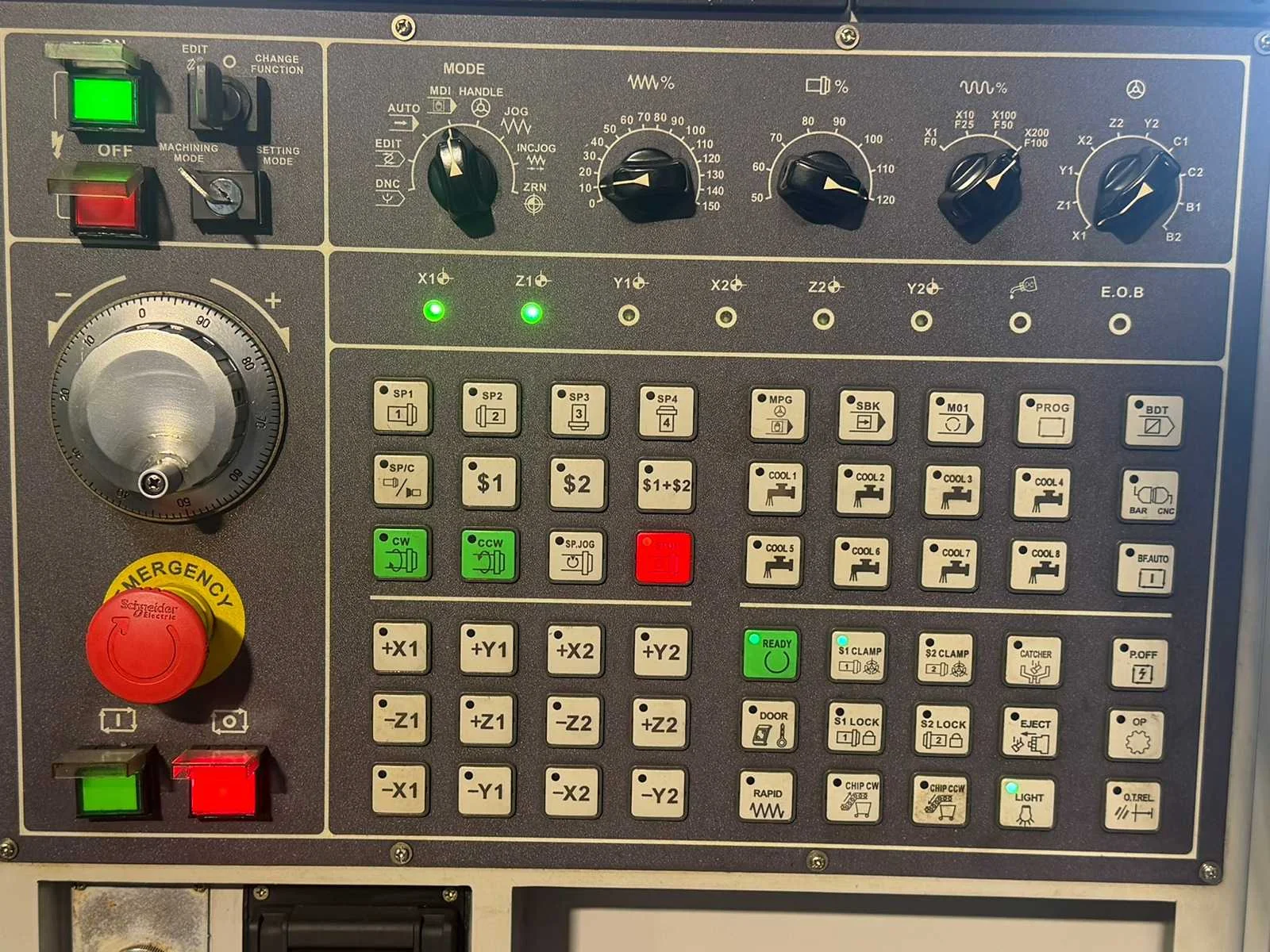

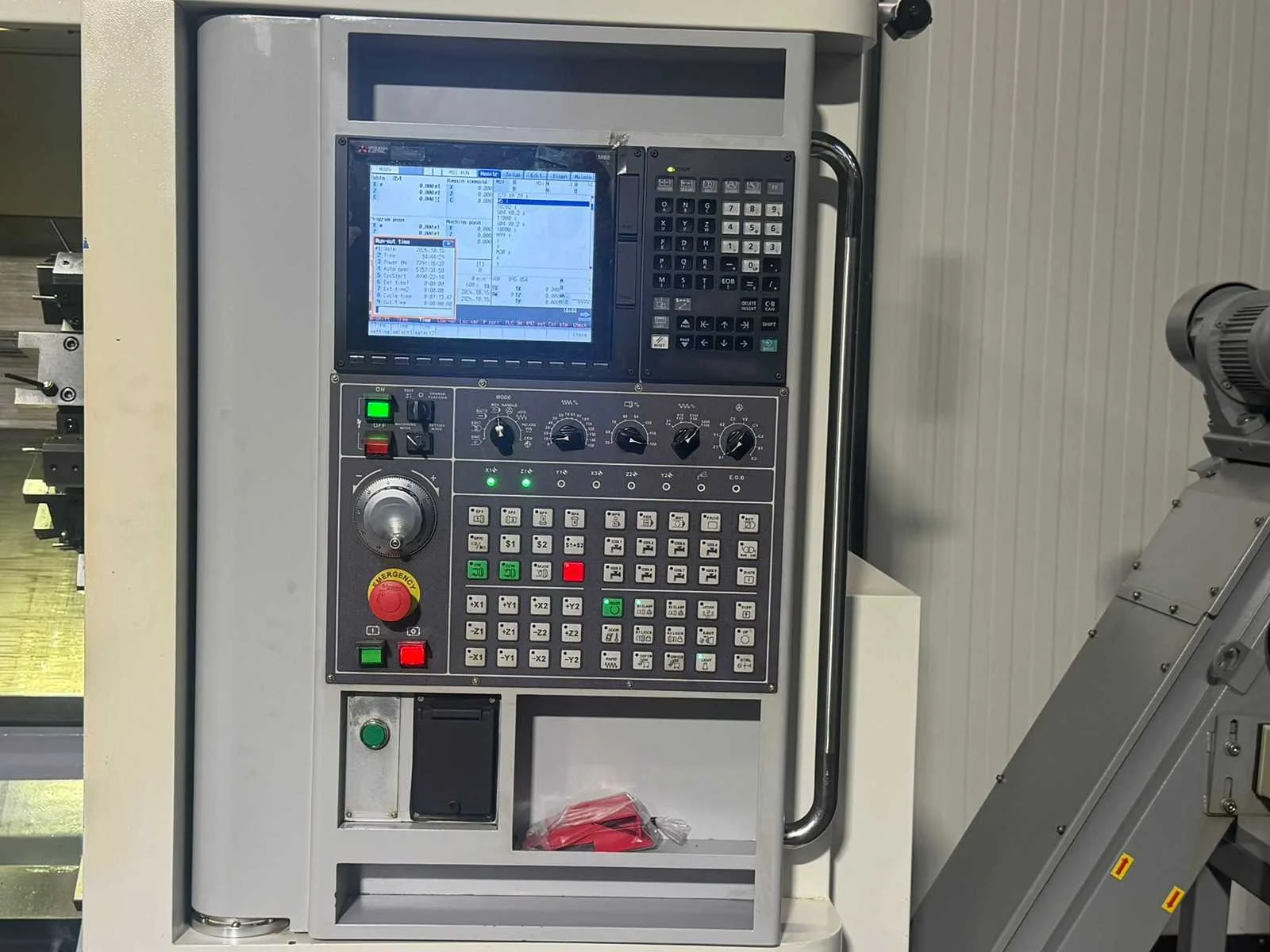

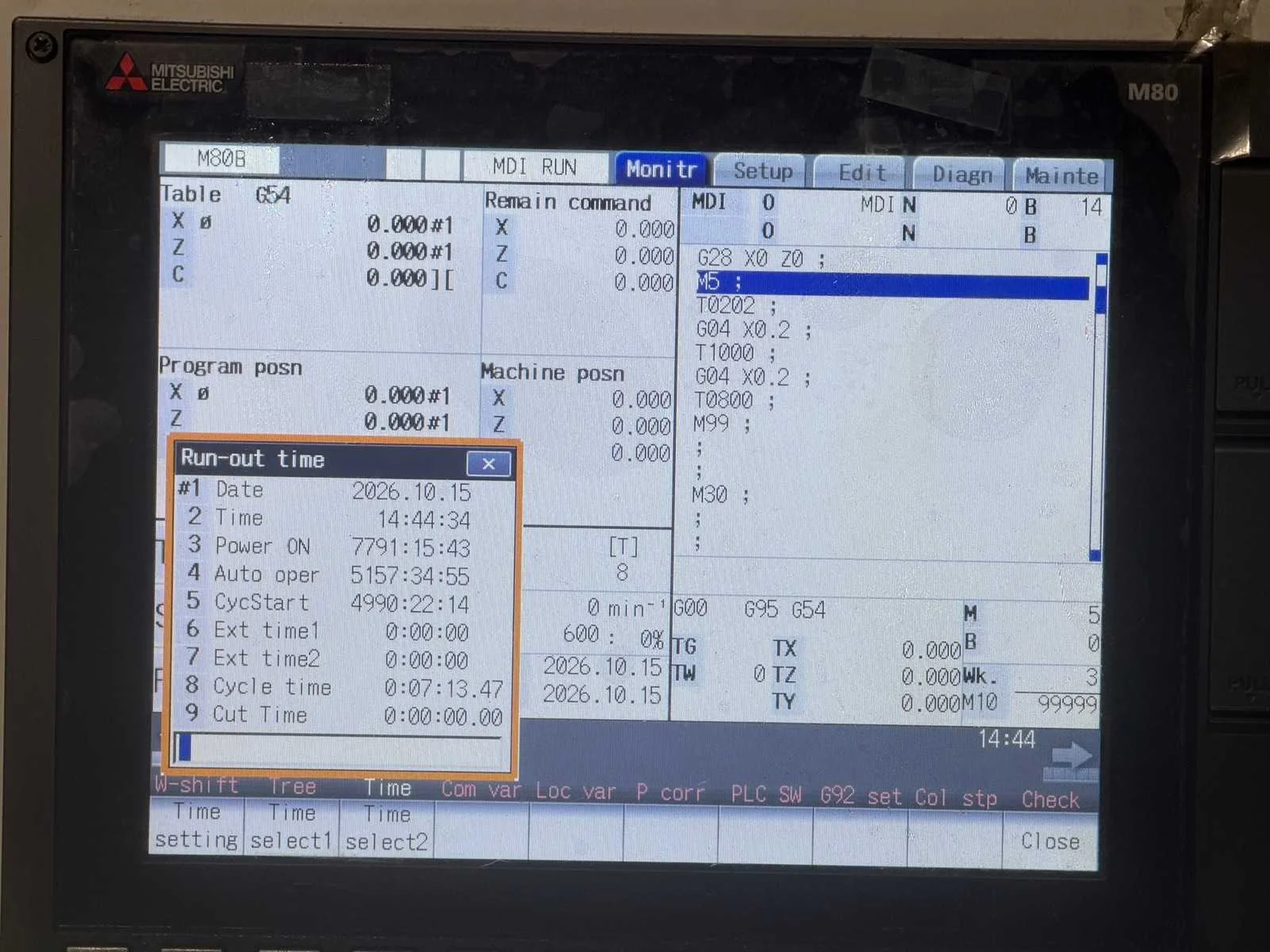

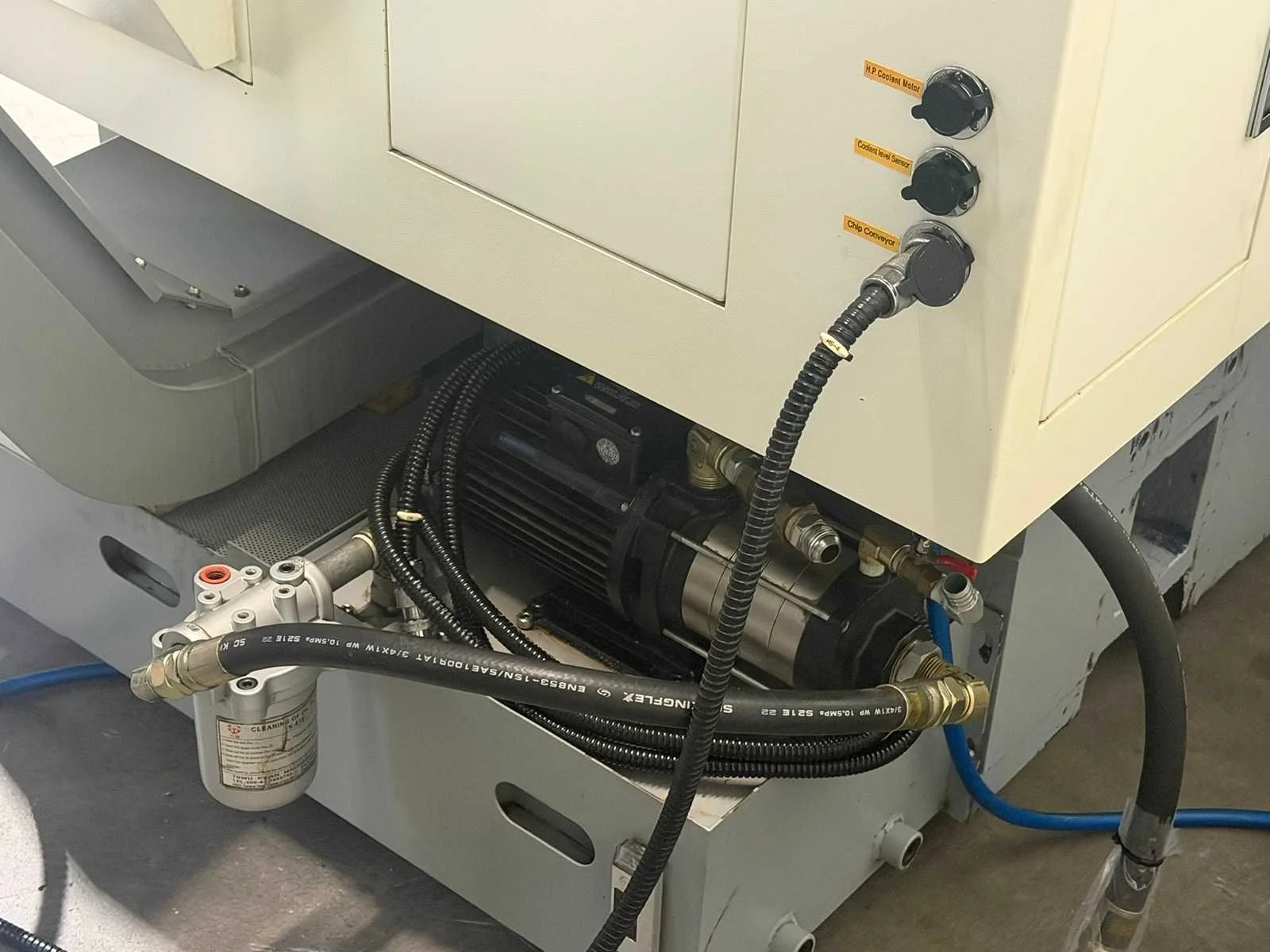

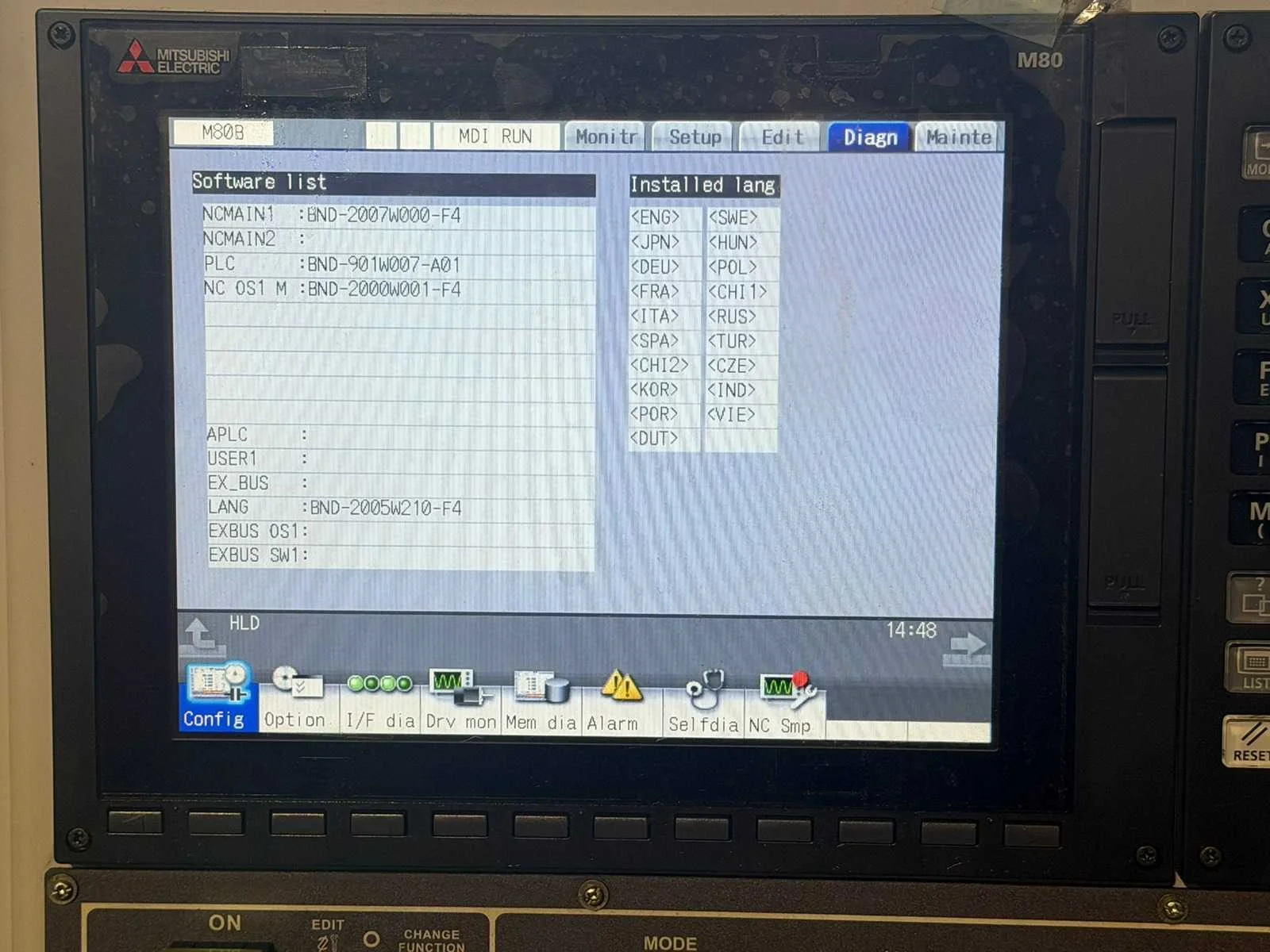

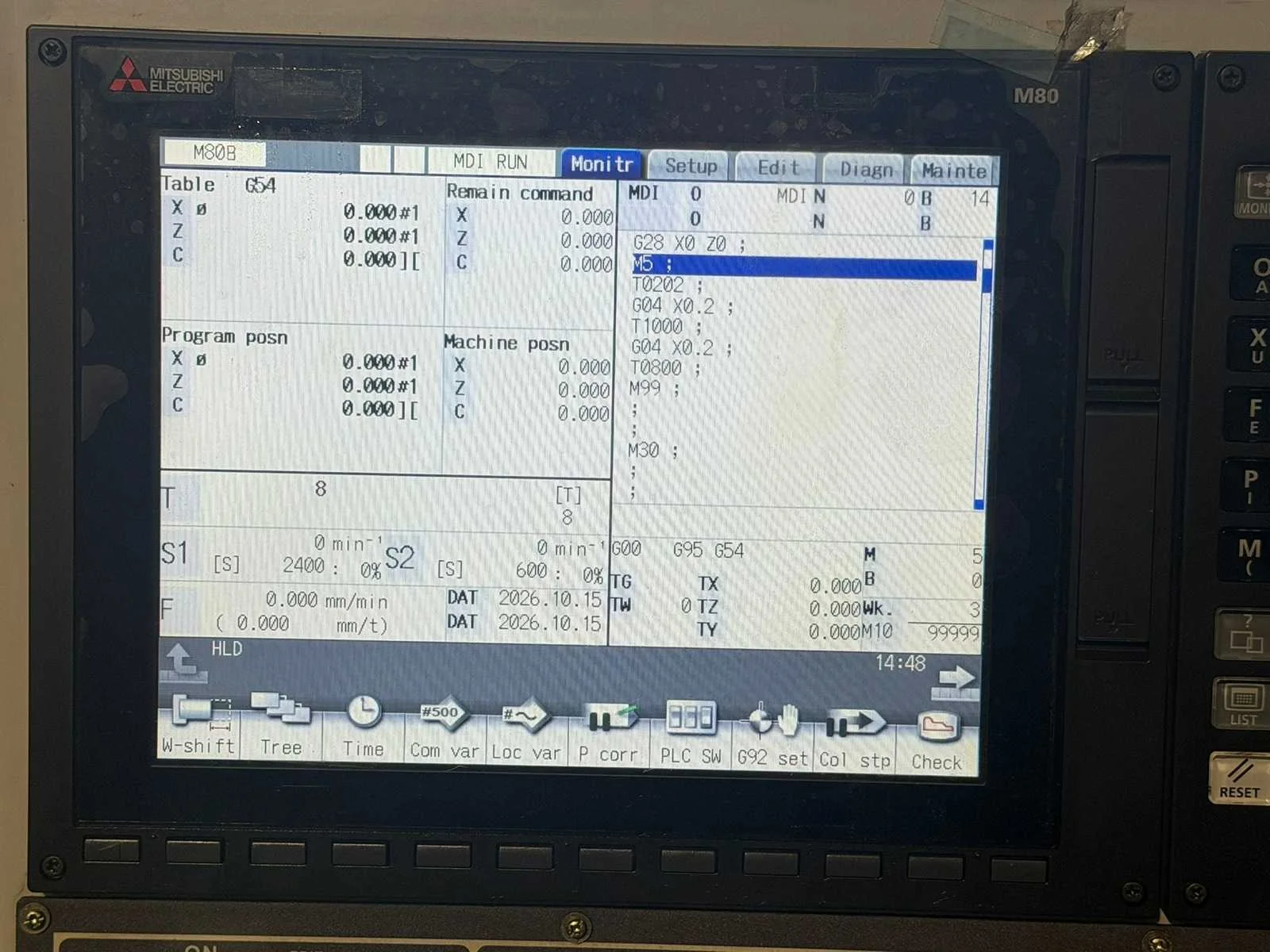

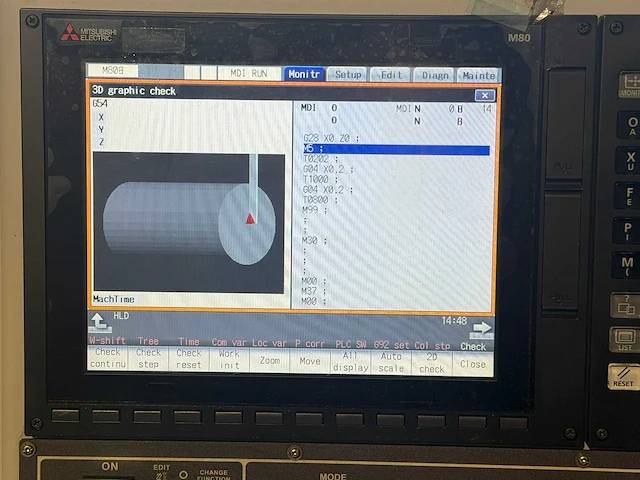

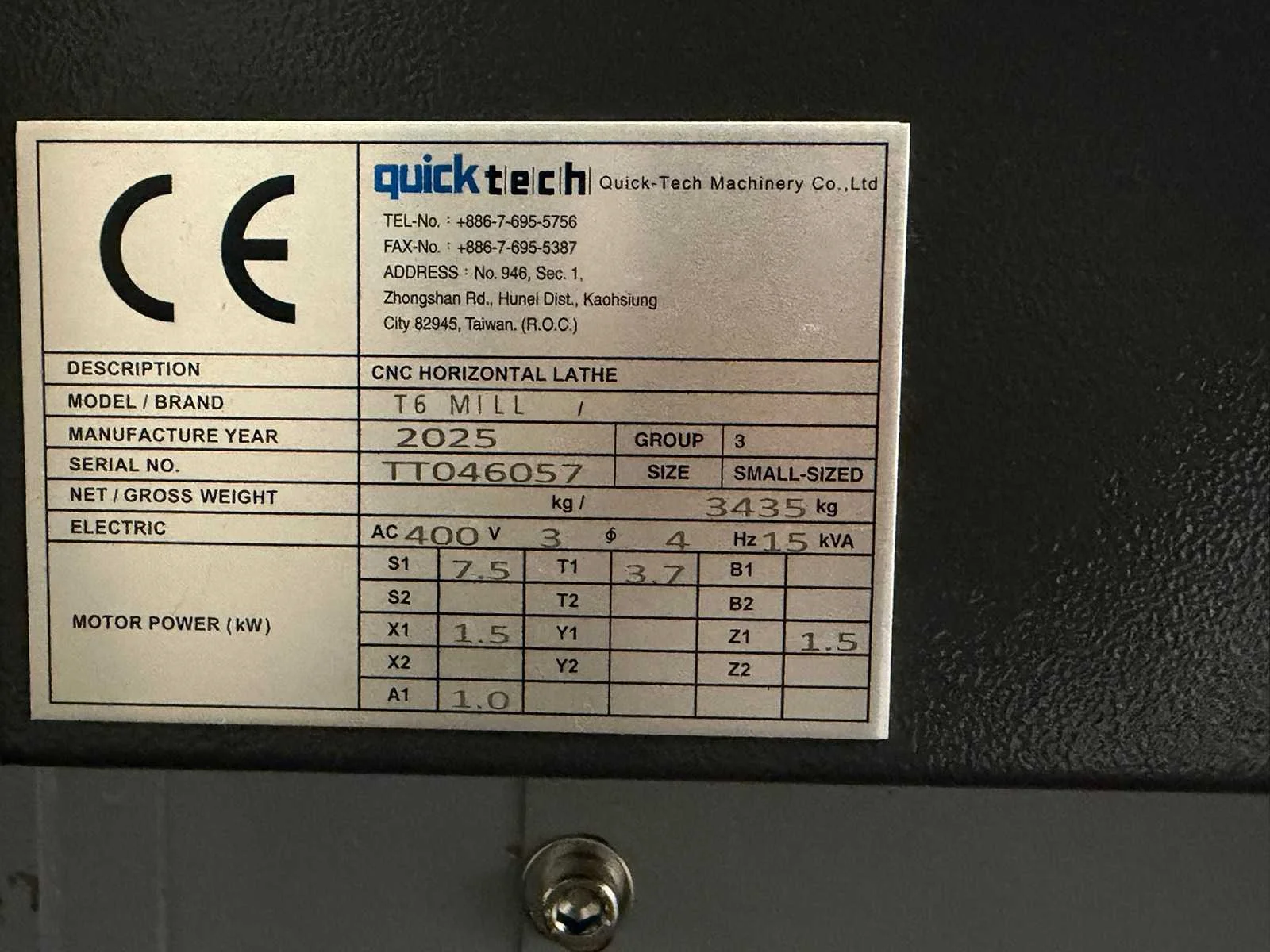

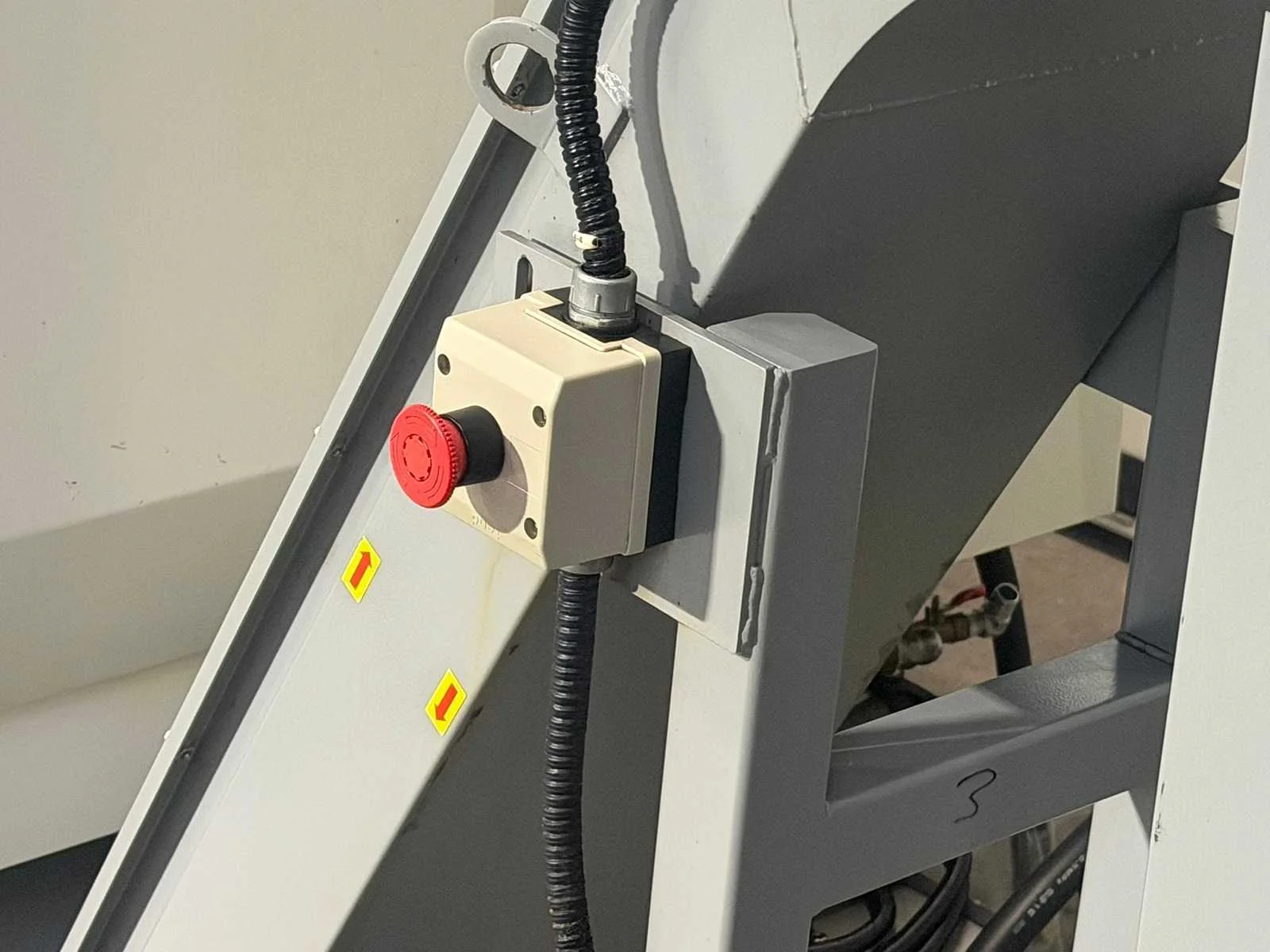

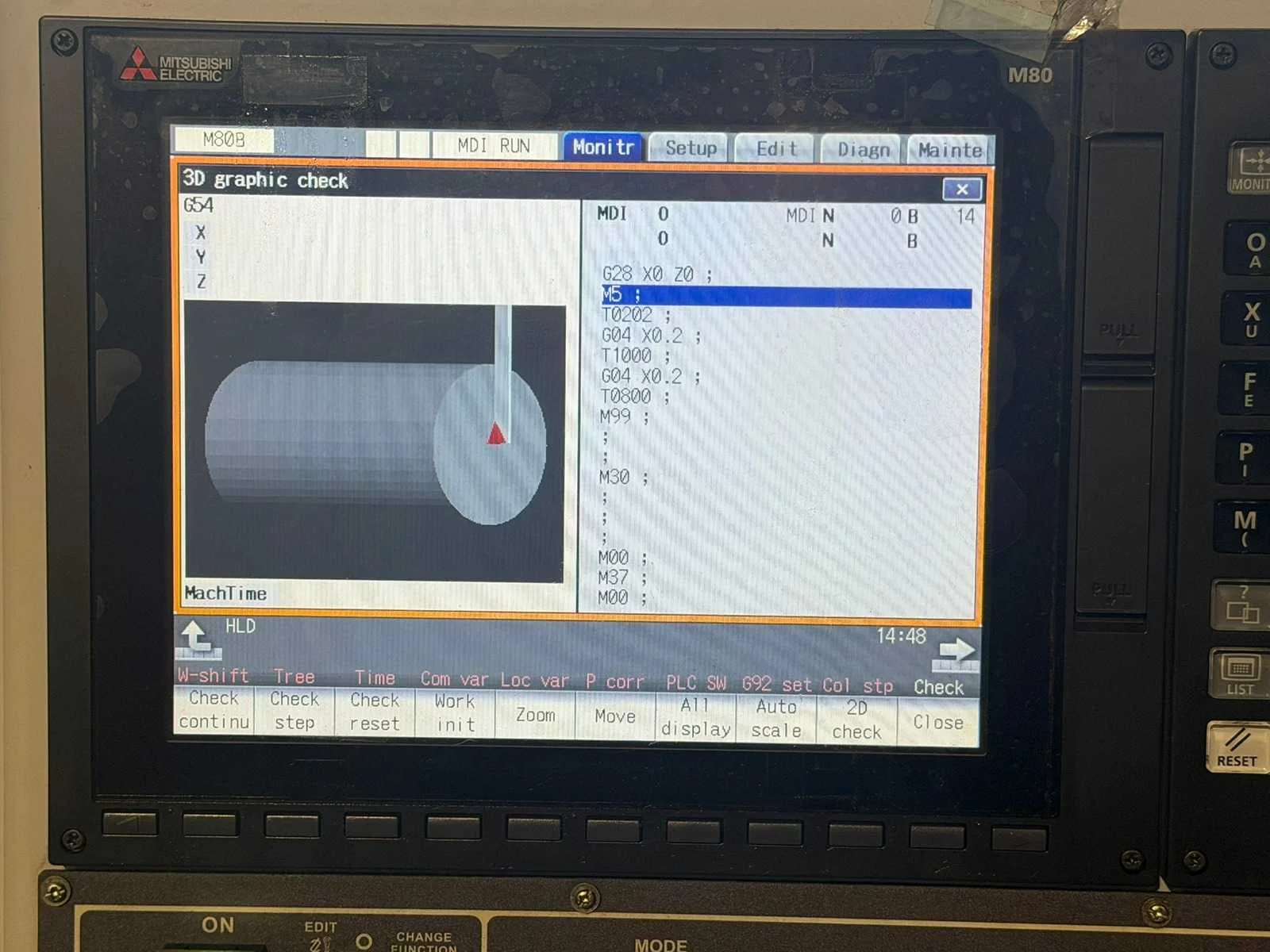

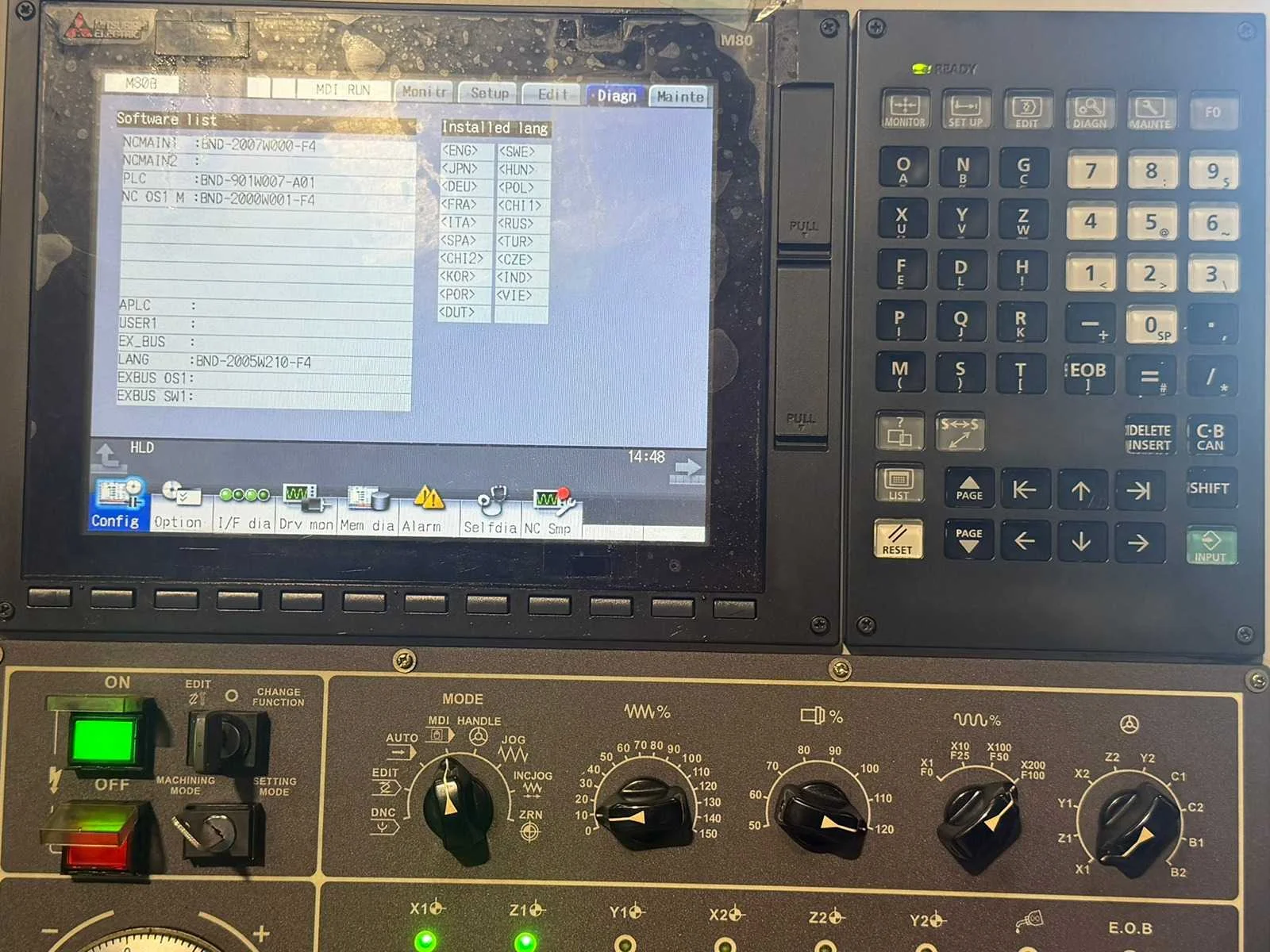

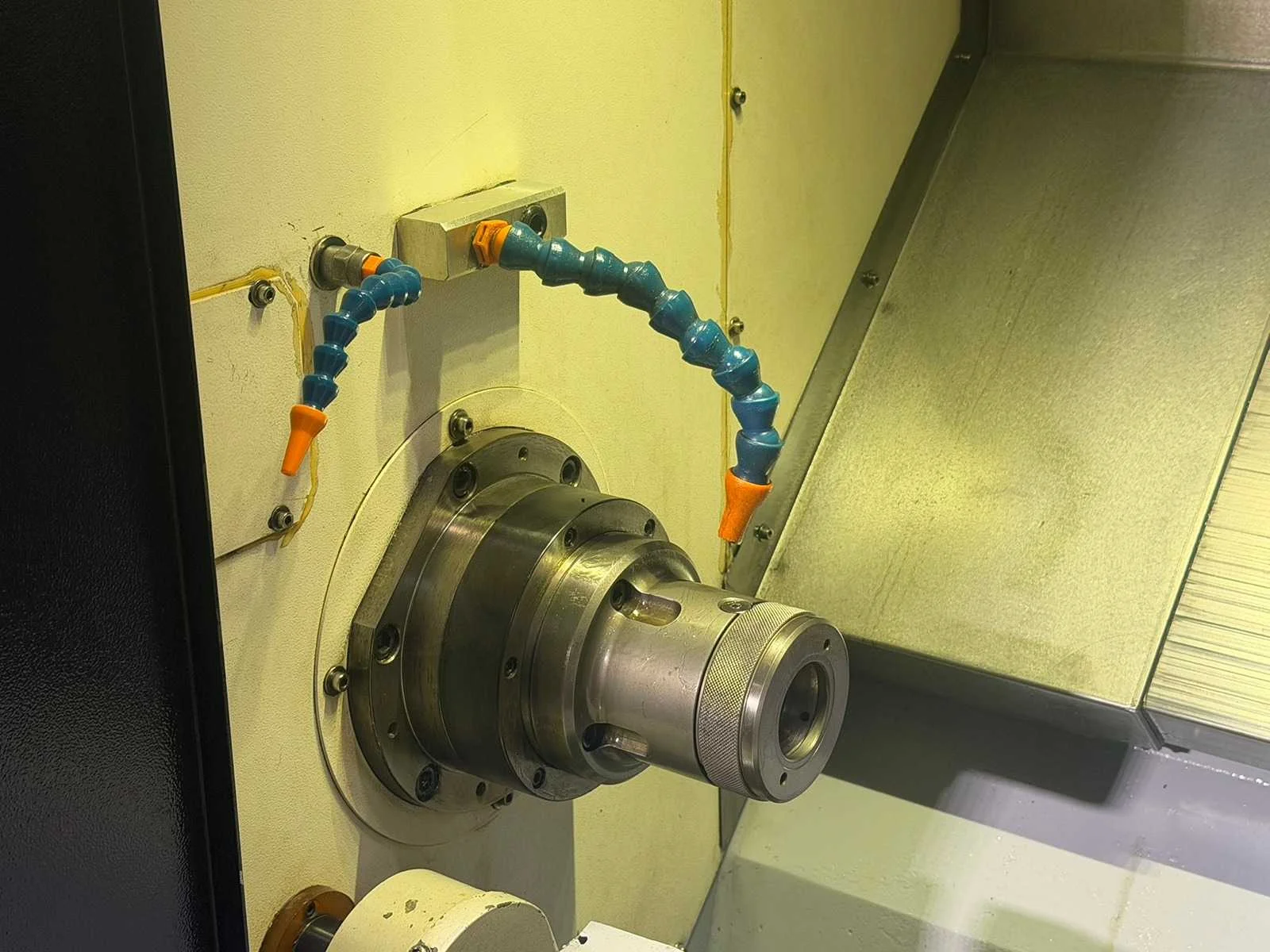

Technical Specification T6 MILL MAIN SPINDLE CAPACITY Swing over bed 399 mm Swing over cross slide 230 mm Maximum bar capacity 42 mm Maximum turning length 300 mm Maximum spindle speed 6,000 rpm Main spindle motor power 11.2 kW C-axis resolution 0.001° AXIS MOVEMENTS & FEED RATES Rapid traverse speed 30,000 mm/min TOOLING SYSTEM Turret type BMT-55 Servo Turret Number of tool stations 12 Number of driven tool stations 12 Square tool shank size 25.4 mm Boring bar capacity 31.8 mm* Turret indexing time per station 0.3 sec. Turret indexing time 180° 0.5 sec. Driven tool motor power 3.7 kW Maximum driven tool spindle speed 4,000 rpm TAILSTOCK Manual tailstock travel 399 mm Hydraulic quill travel 80 mm Quill diameter 75 mm Quill taper MT4 GENERAL MACHINE DATA CNC control system Mitsubishi M80A Machine length incl. chip conveyor 3,200 mm Machine width 1,321 mm Machine height 1,854 mm Machine weight 4,490 kg Merk: QUICKTECH Type: T6 MILL Bouwjaar: 2025 Serienummer: TT046057 Draai: 399mm Draailengte: 300mm Holle spil Ø: 42mm Snelheid tot n =: 6000rpm Aantal gereedschapwisselstations: 12 Koelmiddelpomp: true Spanentransporteur: true CNC-besturing, merk, type: MITSUBISHI TOUCH Aansluiting: 400V Machinegewicht: 4490kg Afmeting l: 3200mm Afmeting b: 1321mm Afmeting h: 1854mm Leveringsvoorwaarden: Niet gefundeerd - onverpakt
