Dohmeyer/ces

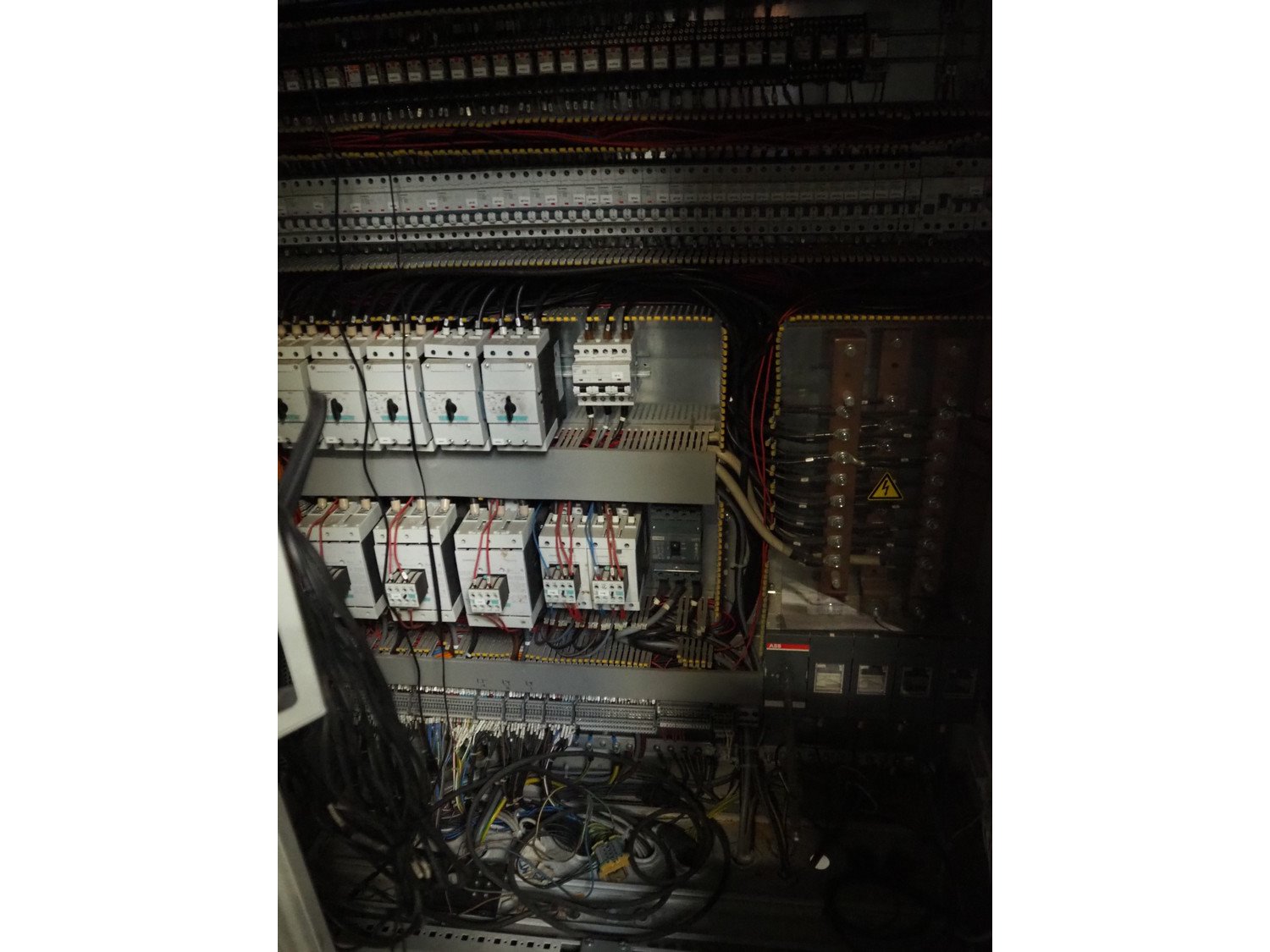

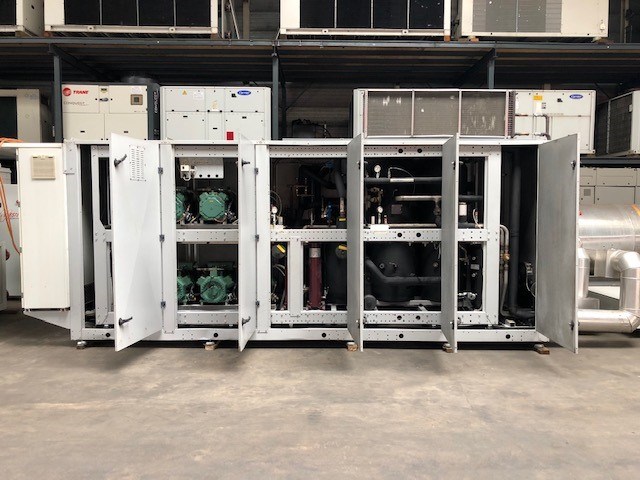

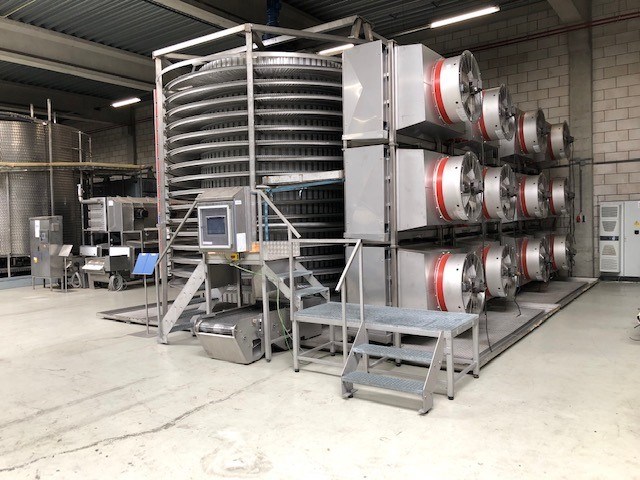

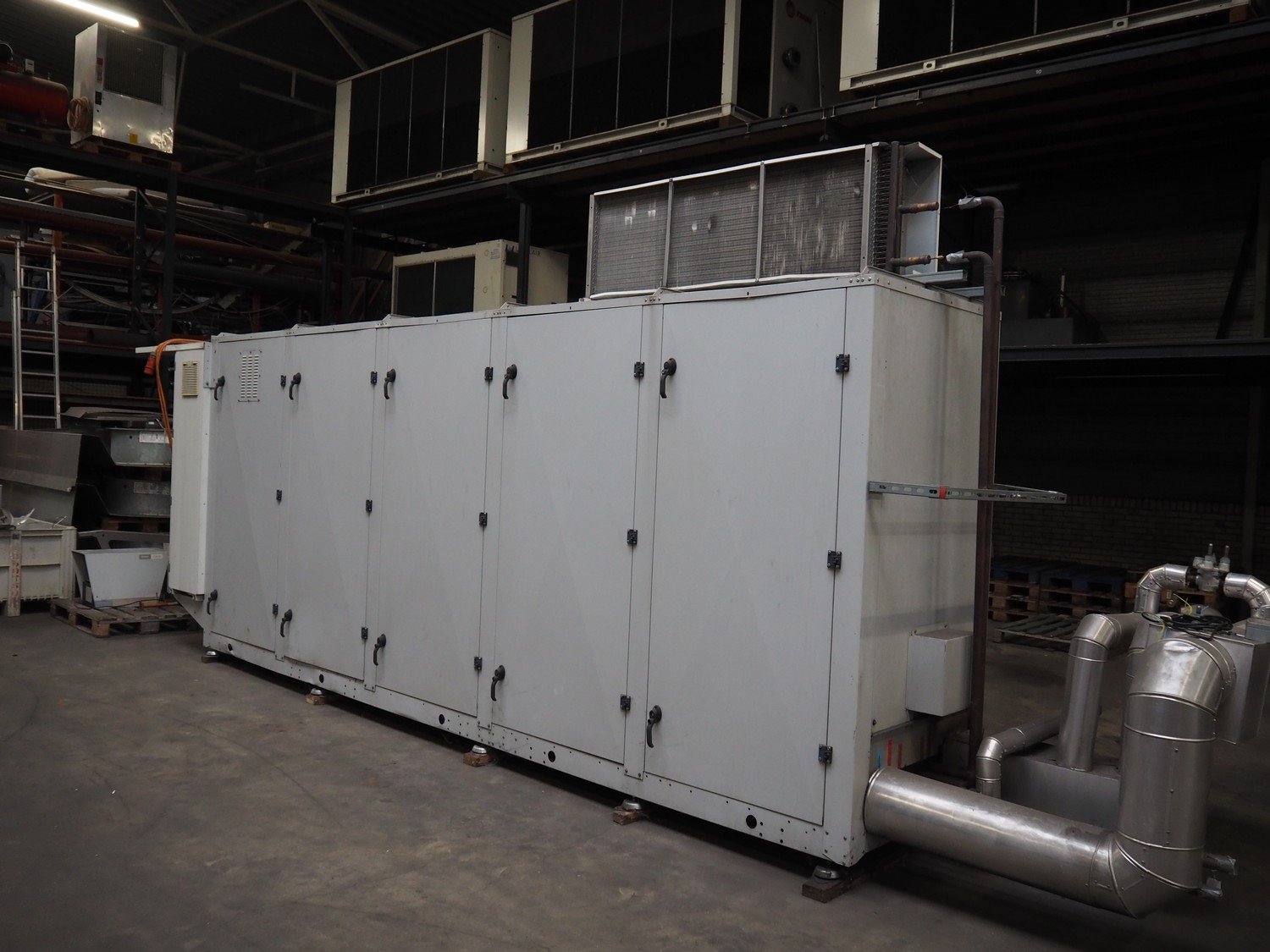

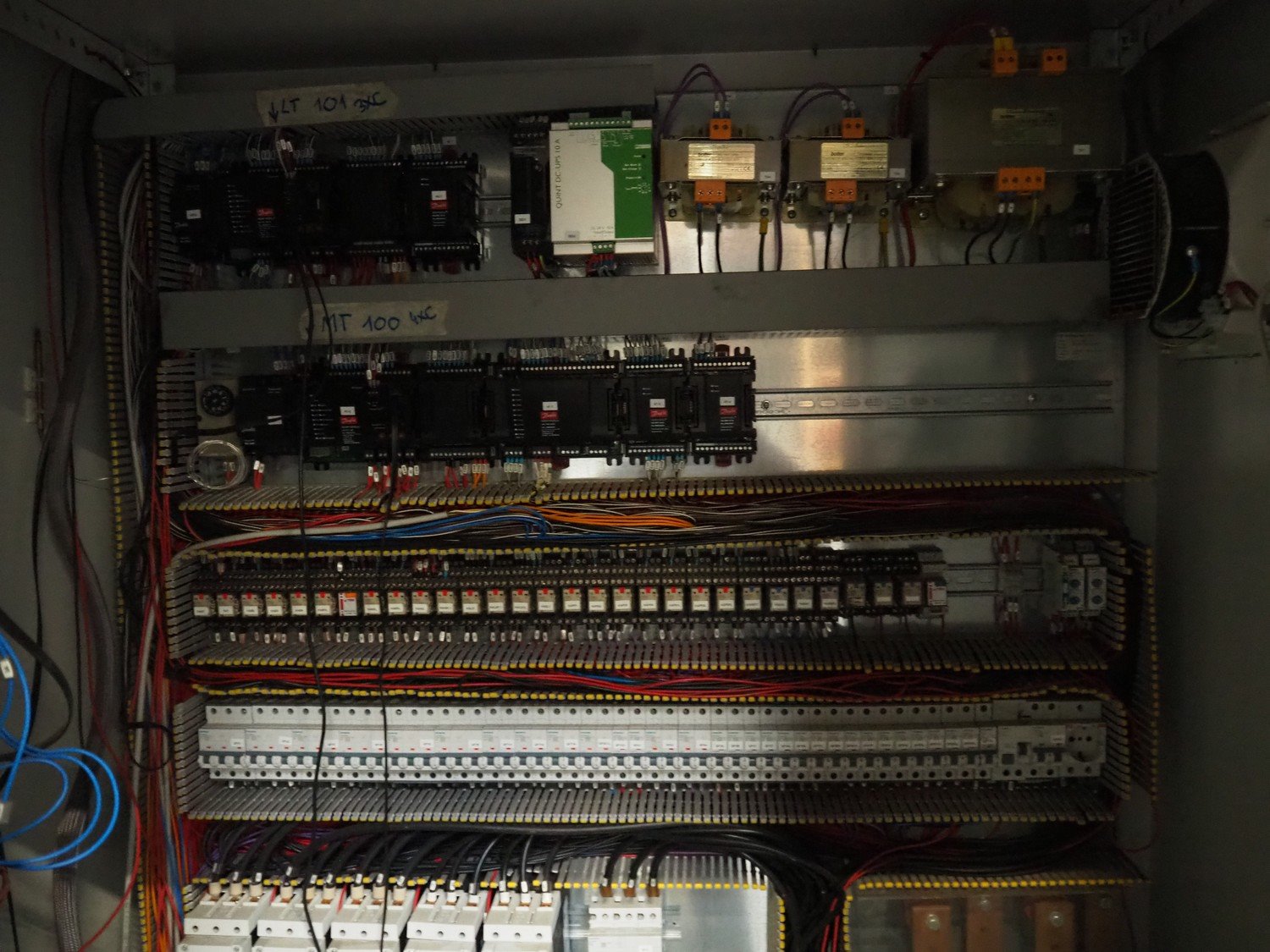

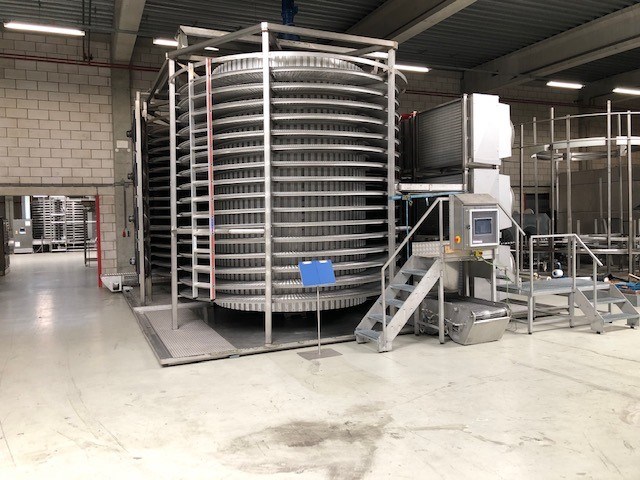

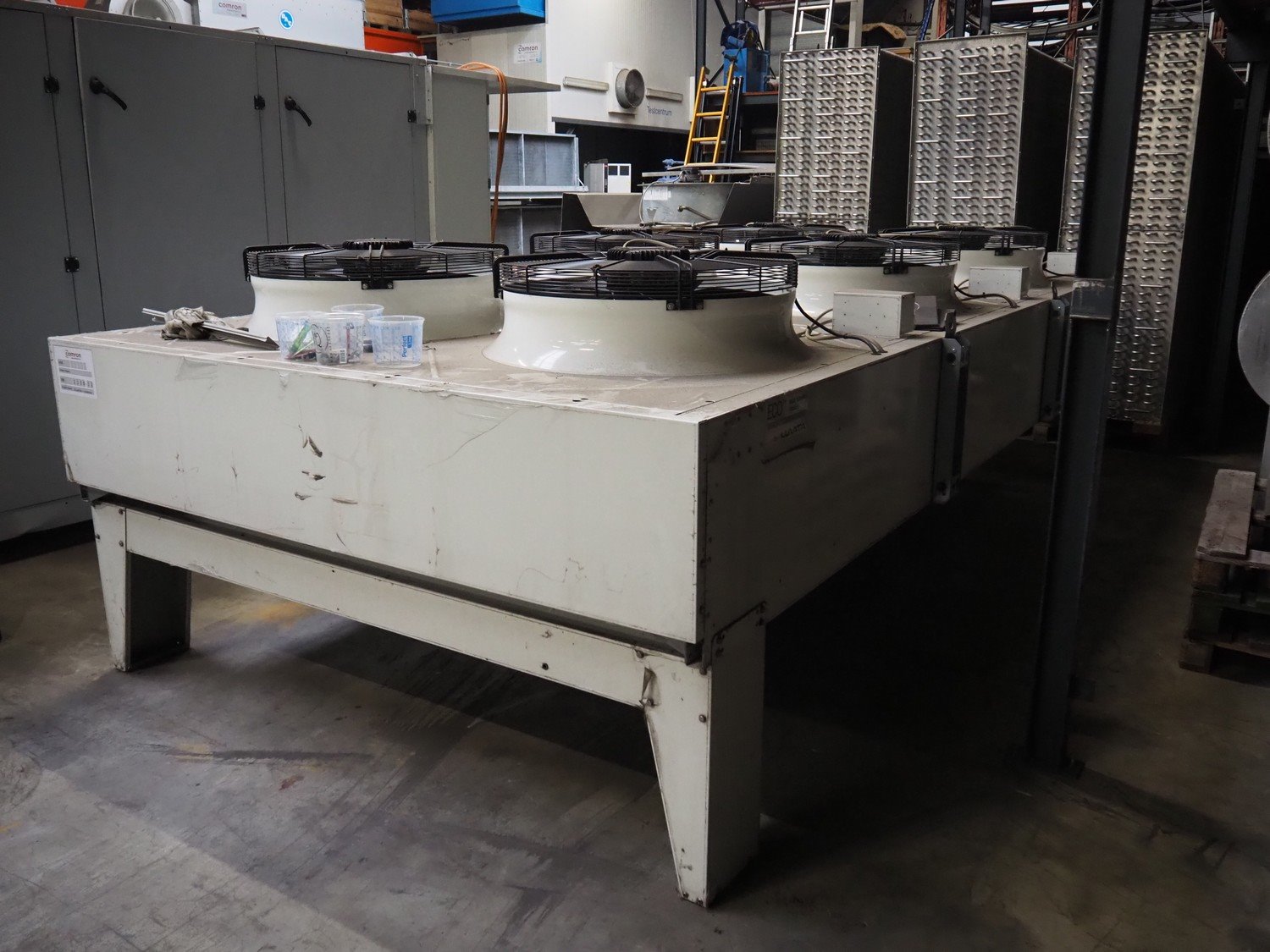

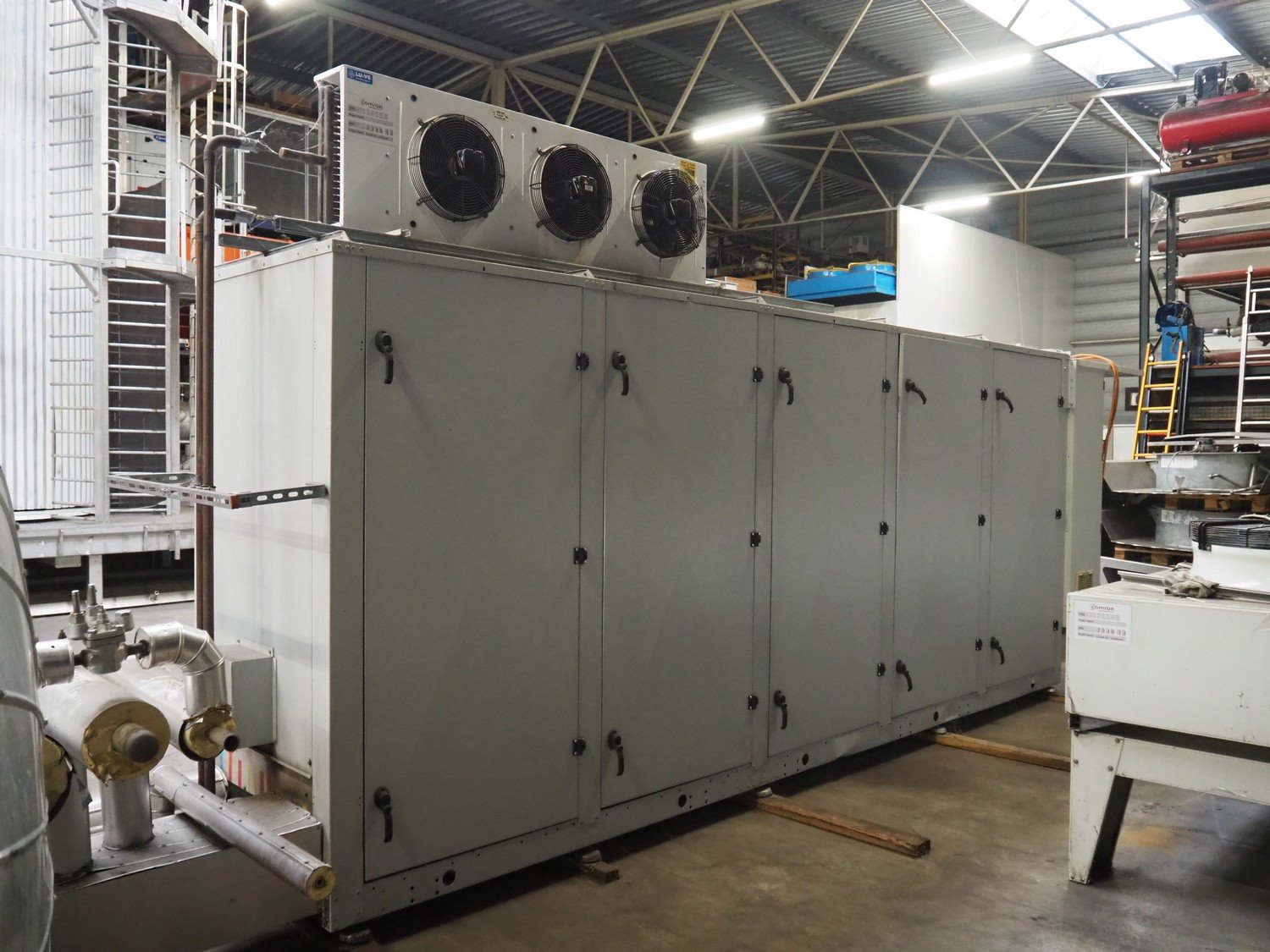

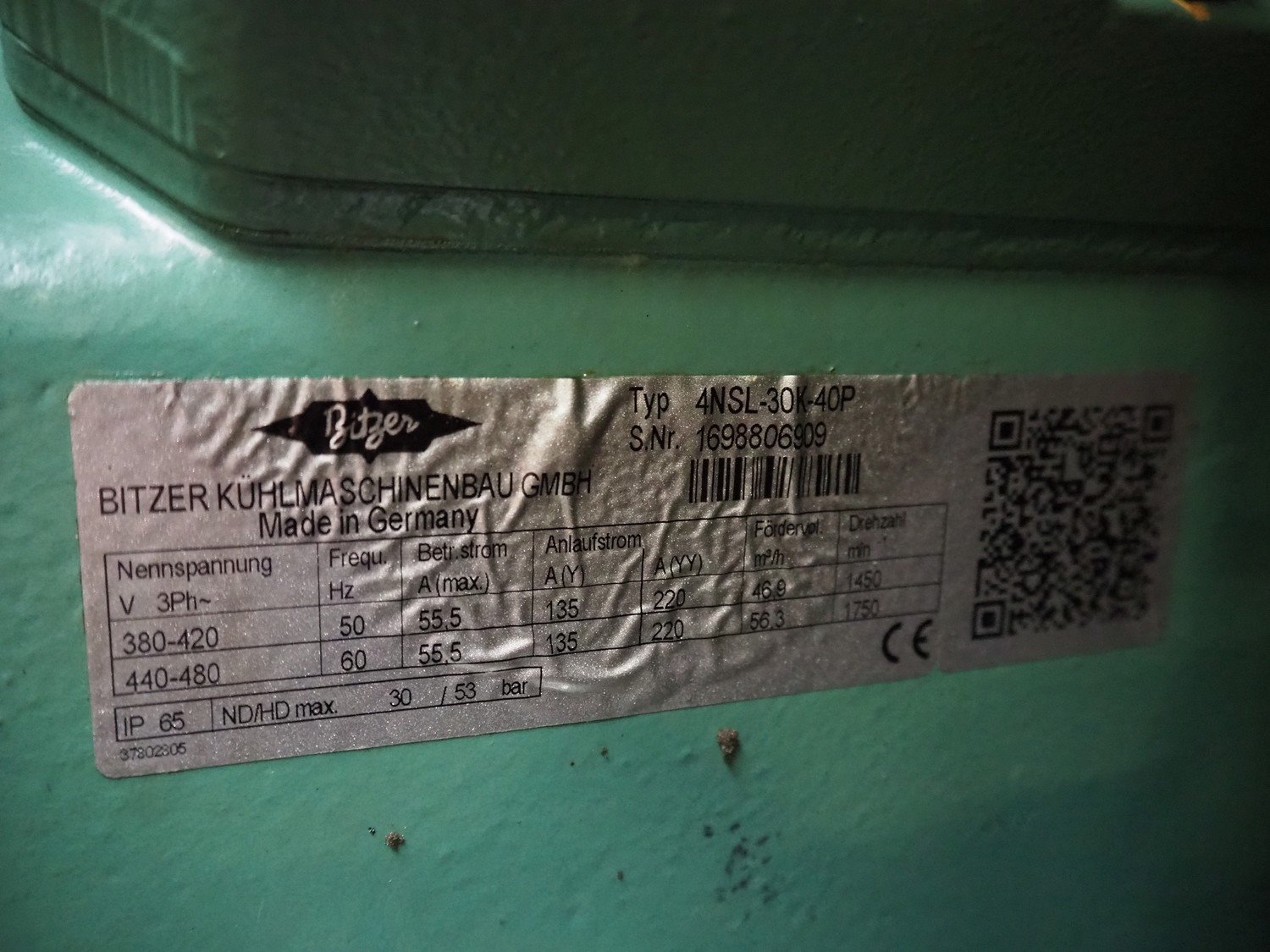

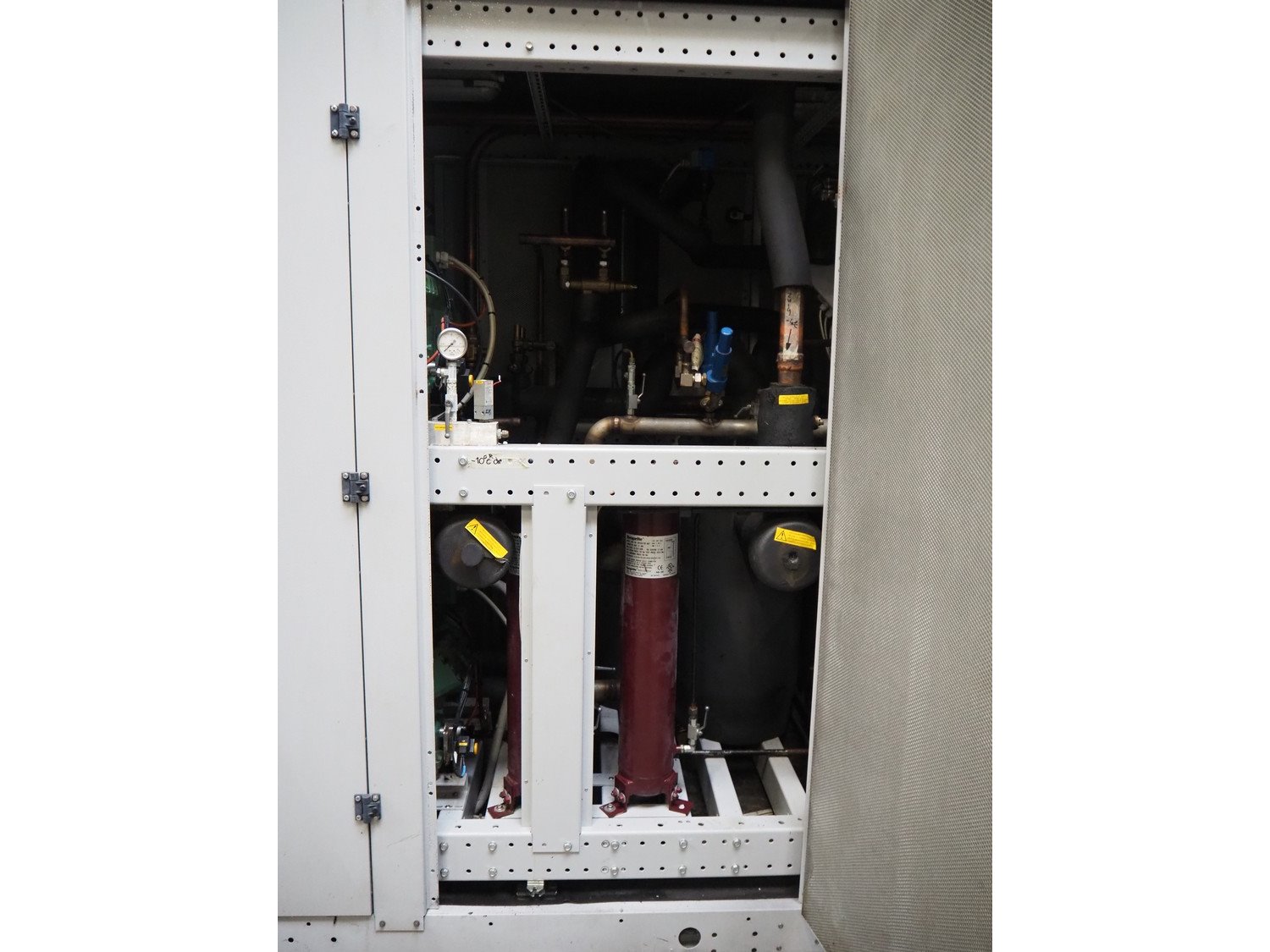

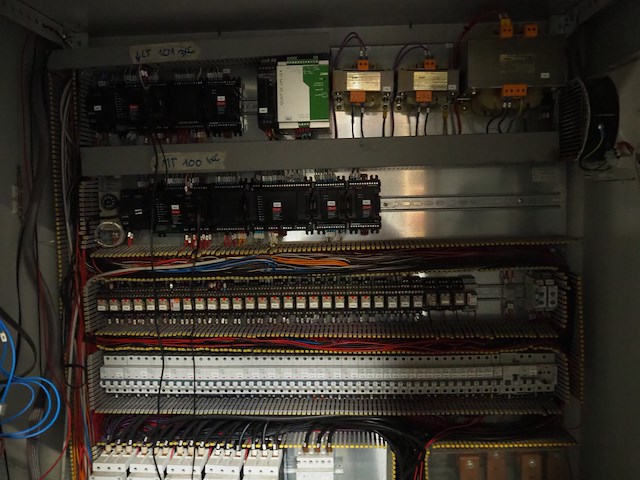

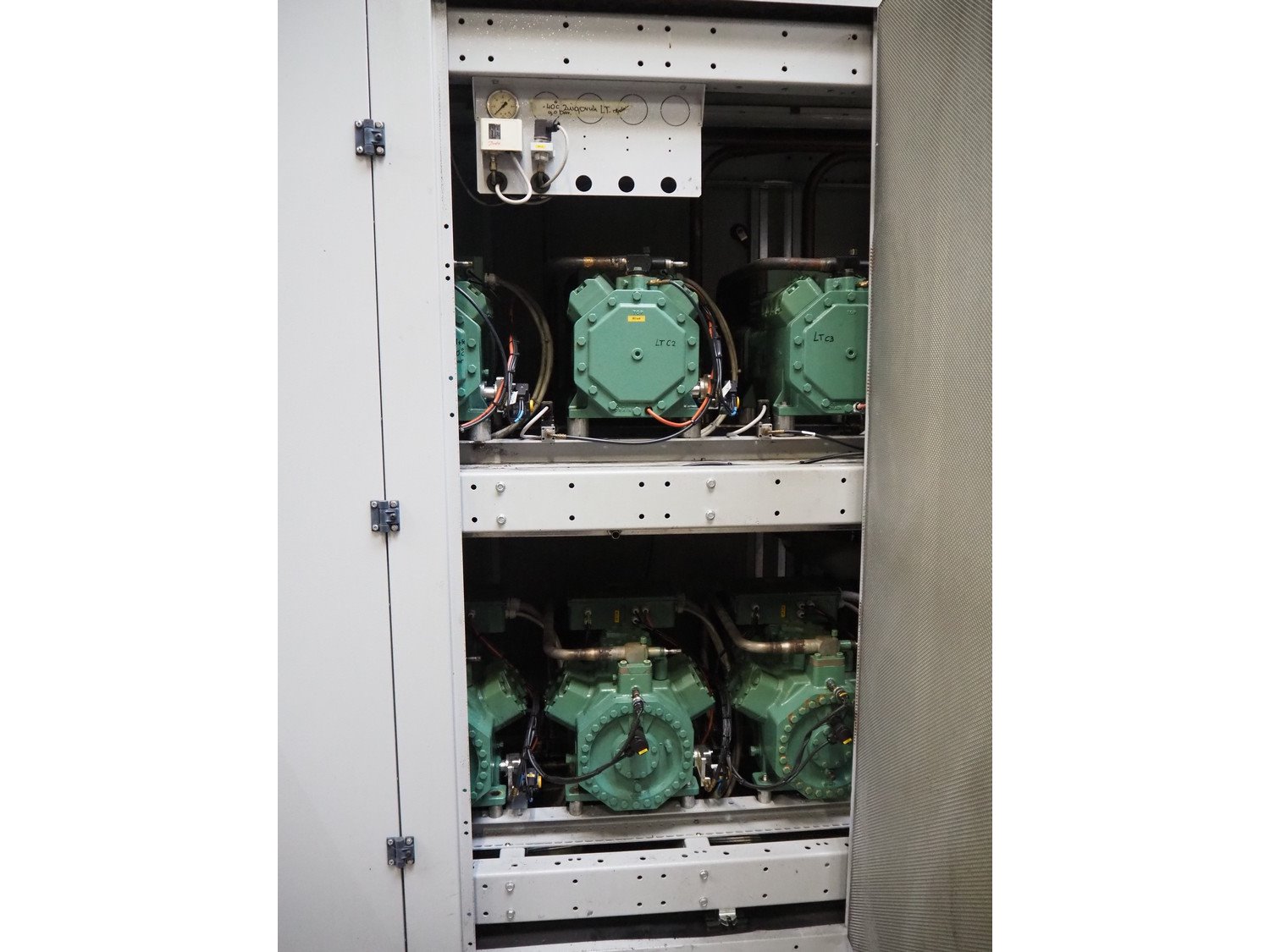

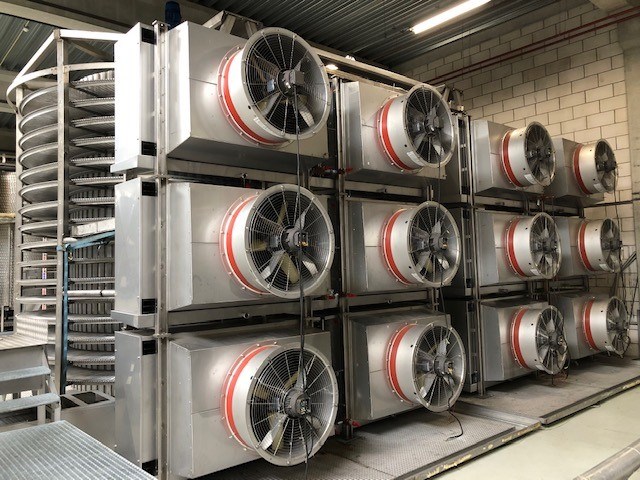

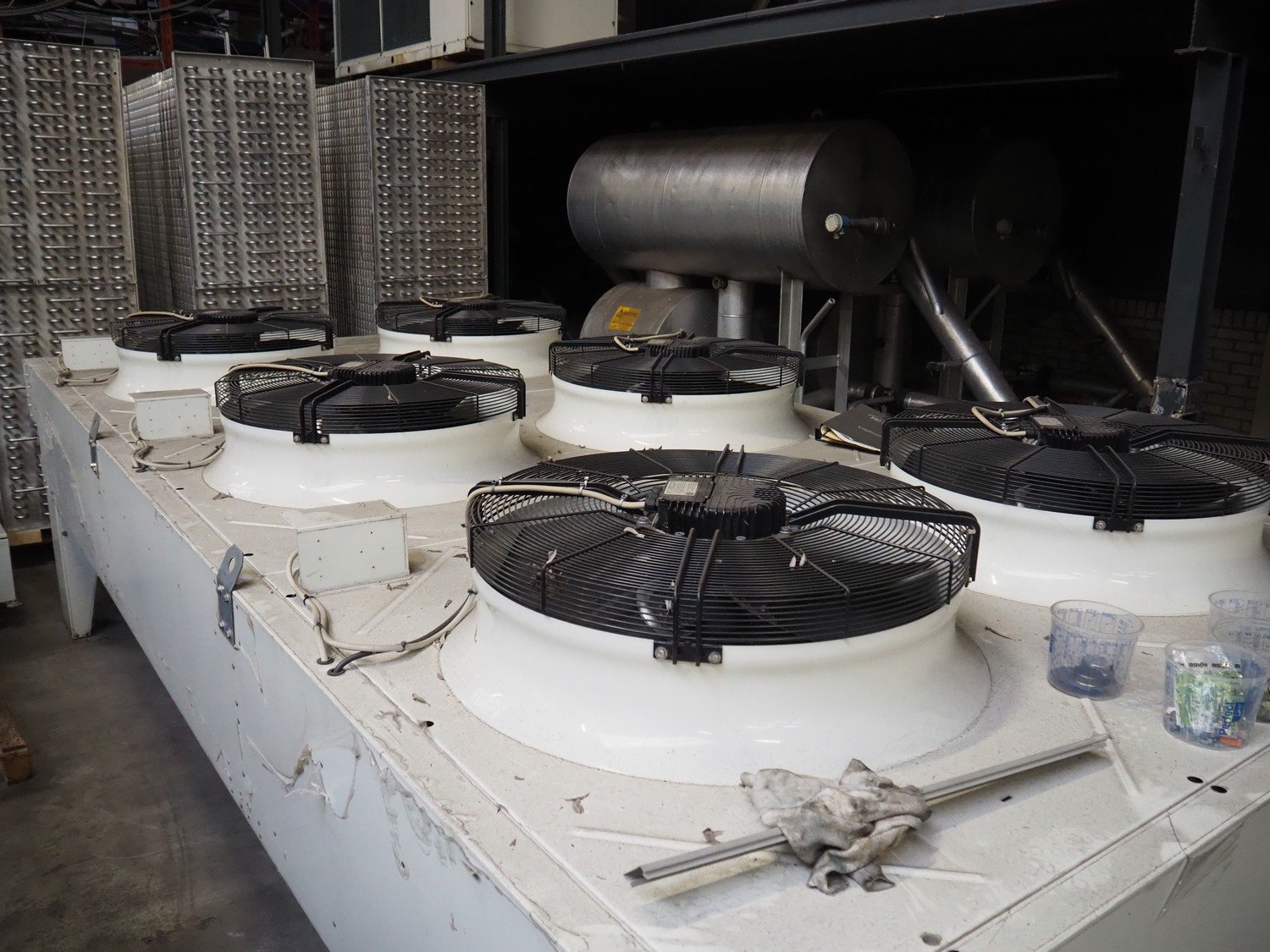

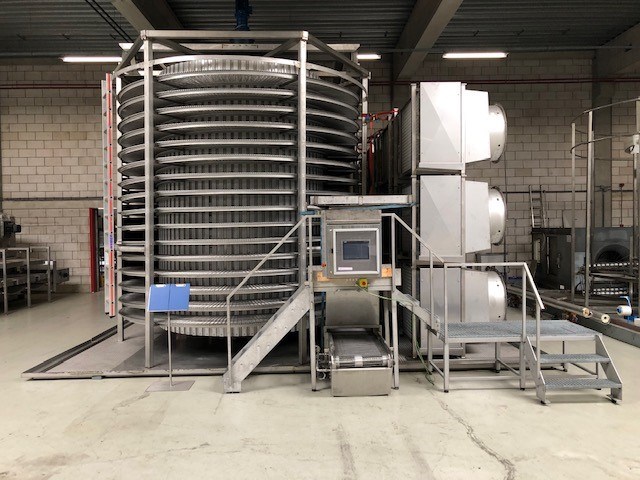

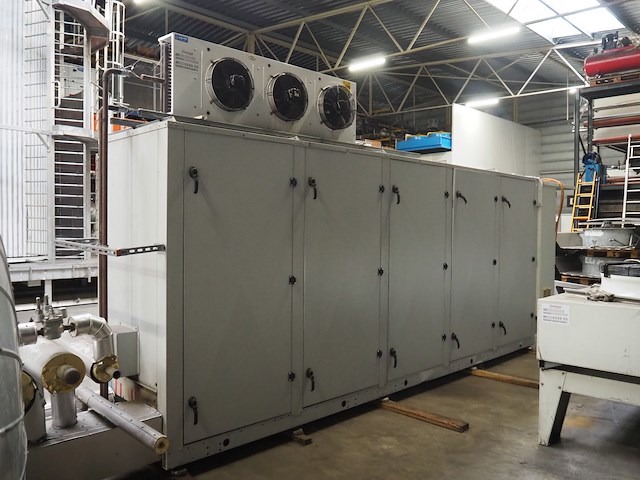

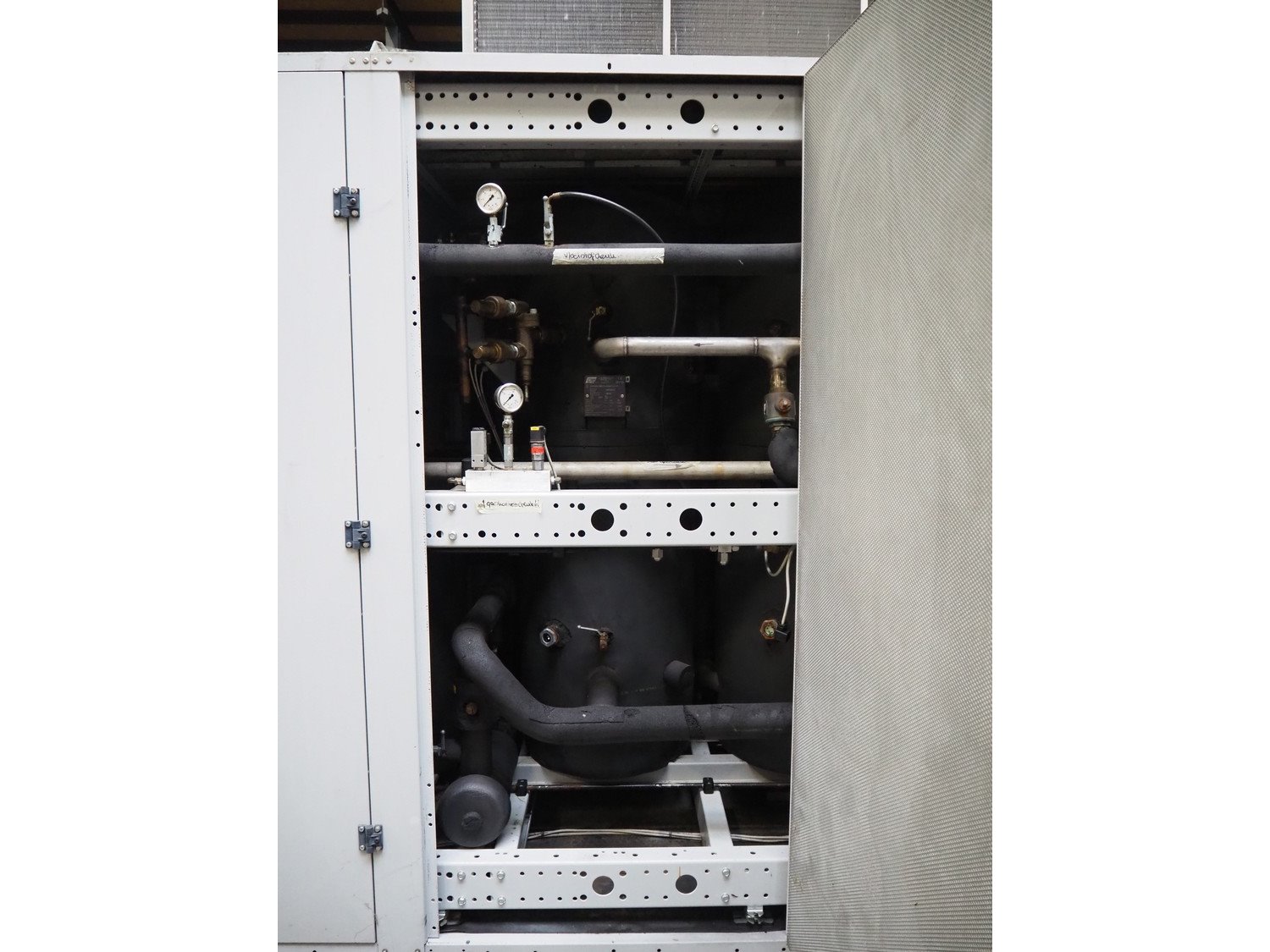

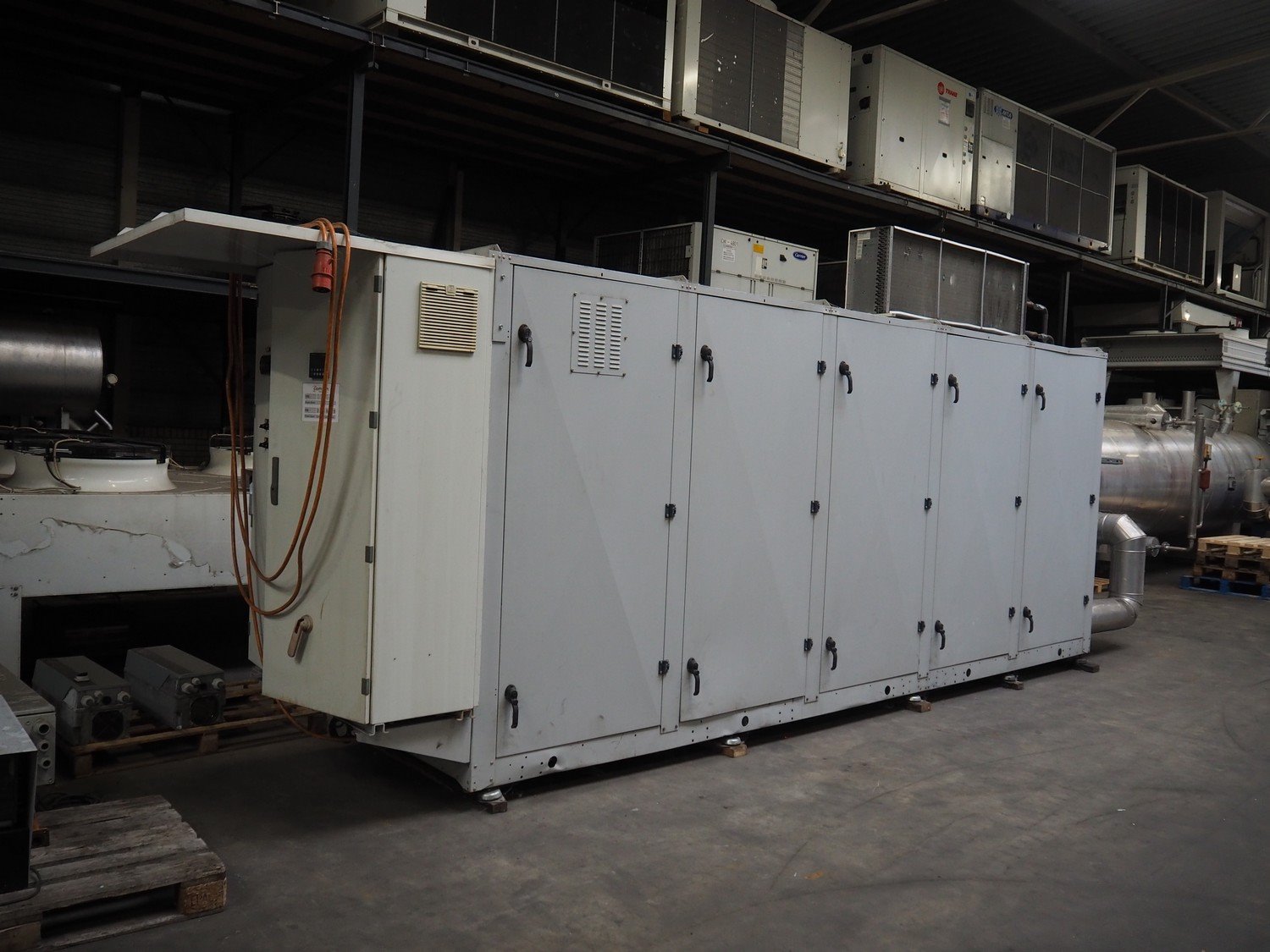

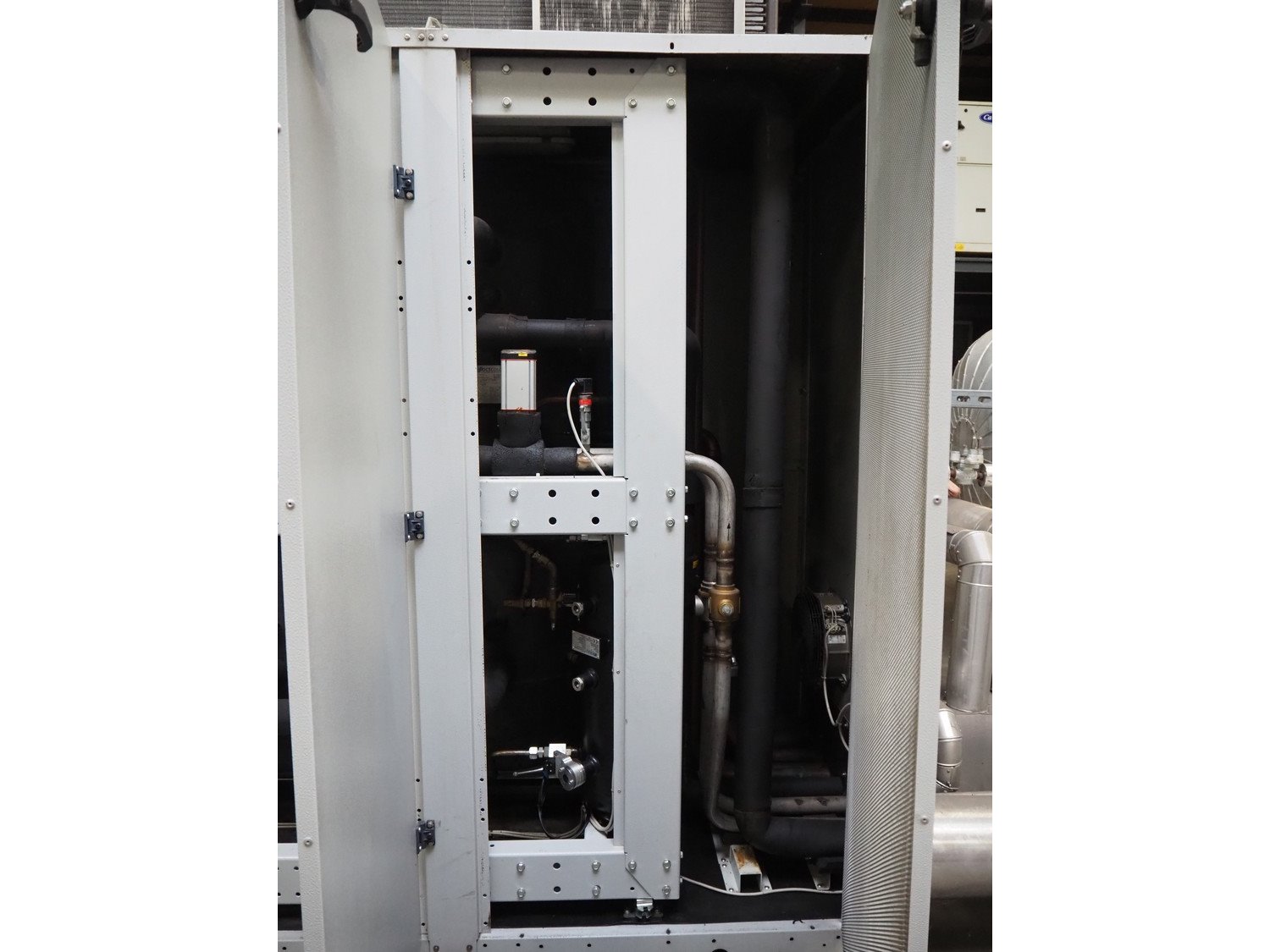

Dohmeyer/CES spiral cooler/freezer, year of construction: 2011 (completely overhauled by the company CES in 2017), 400 V, 36 kW, refrigerant: CO2, cooling capacity: 208 kW/61.17 tons, maximum production capacity: approximately 1.500 kg/h (depending on the product data), North-South configuration, counter clockwise rotation, infeed height: 920 mm, outfeed height: 920 mm, type of belt: s/s Ashworth belt type Omni-Grid 100 B24-12-17, bruto belt width: 600 mm, effective belt width: 550 mm, maximum product height: 120 mm, 16 tiers per drum, total 32 pieces, effective belt length: 374 m, drum diameter outside: 2720 per drum, adjustable band speed: between minimum 3m/min and maximum 7m/min, (6x) Kelvion s/s and aluminium cooling evaporators, (6x) Kelvion s/s and aluminium blast freeze evaporators, s/s switch cabinet with Siemens S7/Simatic touchscreen, belt cleaning unit, Bitzer Kühlmaschinenbau GmbH CO2 – transcritical DX cooling/freezing system built in a low noise container, total dimensions: 8750 mm x 7250 mm x 5100 mm. Located on another location, pick-up in consultation with Industrial Auctions BV.
