Gea wiegand

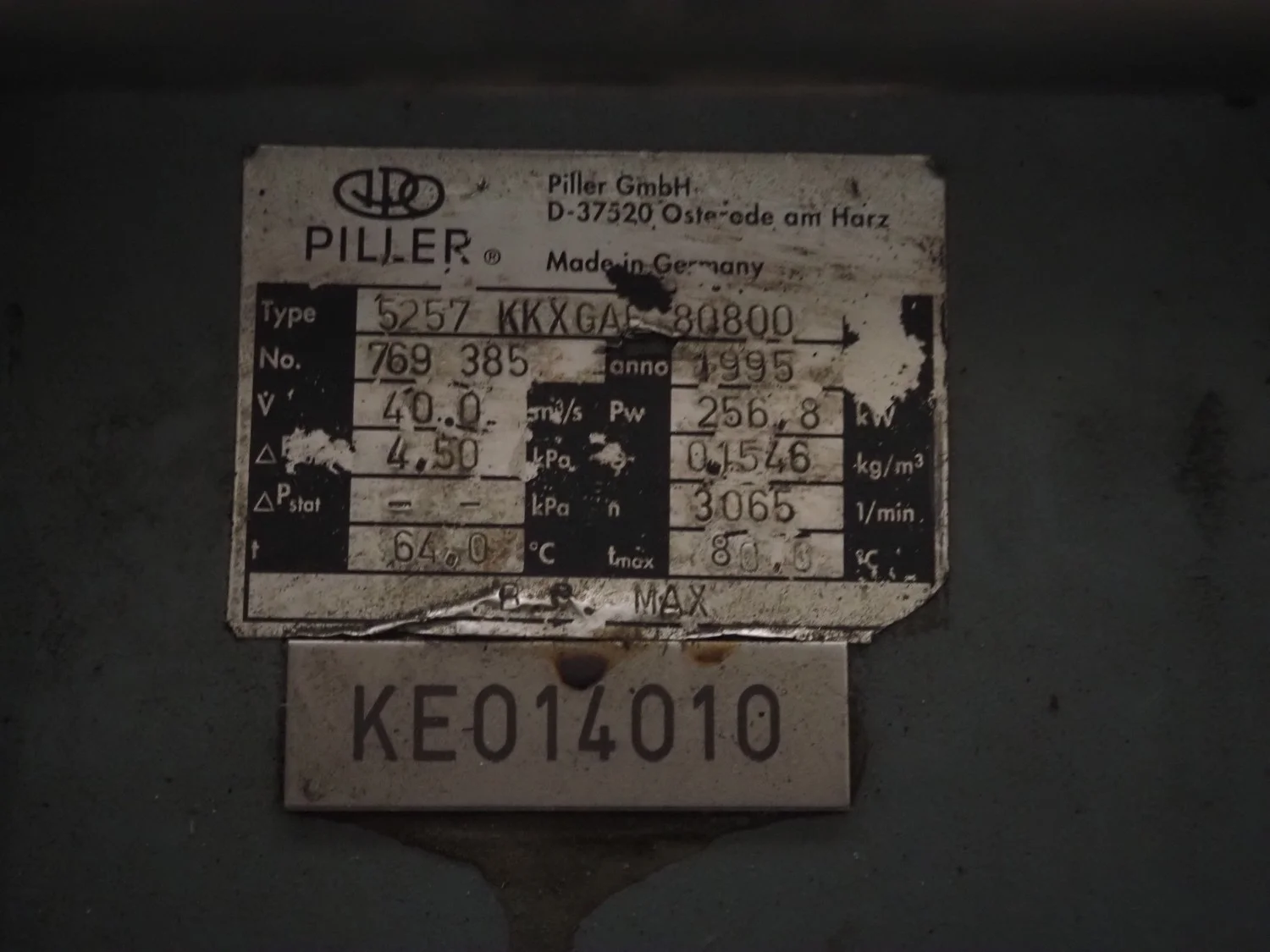

GEA Wiegand mechanical vapor recompression evaporator with Piller GmbH ventilator, manufacturer: WERK BECKUM, fabrication number evaporator: 9158, year of construction: 1995, type ventilator: 5257 KKXGAE 80800, 256.8 kW, total dimensions: ø 3200 mm x 21000 mm, 400 mm x 2800 mm x 3250 mm.Data based on lot 228 and 230 operating together:Product: WheyFeed capacity (kg/h): 650Feed concentration (%TS): 5.7Supply temperature (°C): 30.0-34.0Pasteurization temperature (°C): 67.0 (72.0)Water evaporation MVR evaporator (kg/h): 26.500 (a)Water evaporation TVR evaporator (kg/h): 24.250Total water evaporation (kg/h): 50.750Concentrate discharge capacity (kg/h): 14.250Discharge concentration (%TS): 26.0Suction temperature MVR: 64.0 (b)Cooking temperature step-1/E01 (°C): 66.0 (max.)Available steam pressure (ata): 11.7 (c)Cooling water supply temperature (°C): 27.0Cooling water outlet temperature (°C): 36.0kW consumption MVR: 320 kWSteam consumption TVR: 2.125 (kg/h)
