D&w process technology / veenbrink rvs

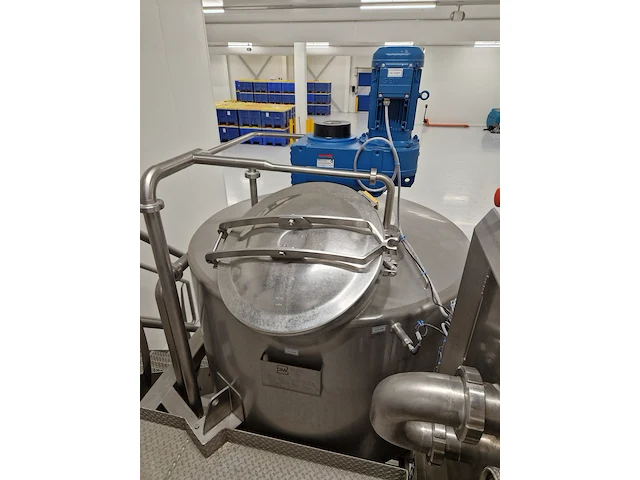

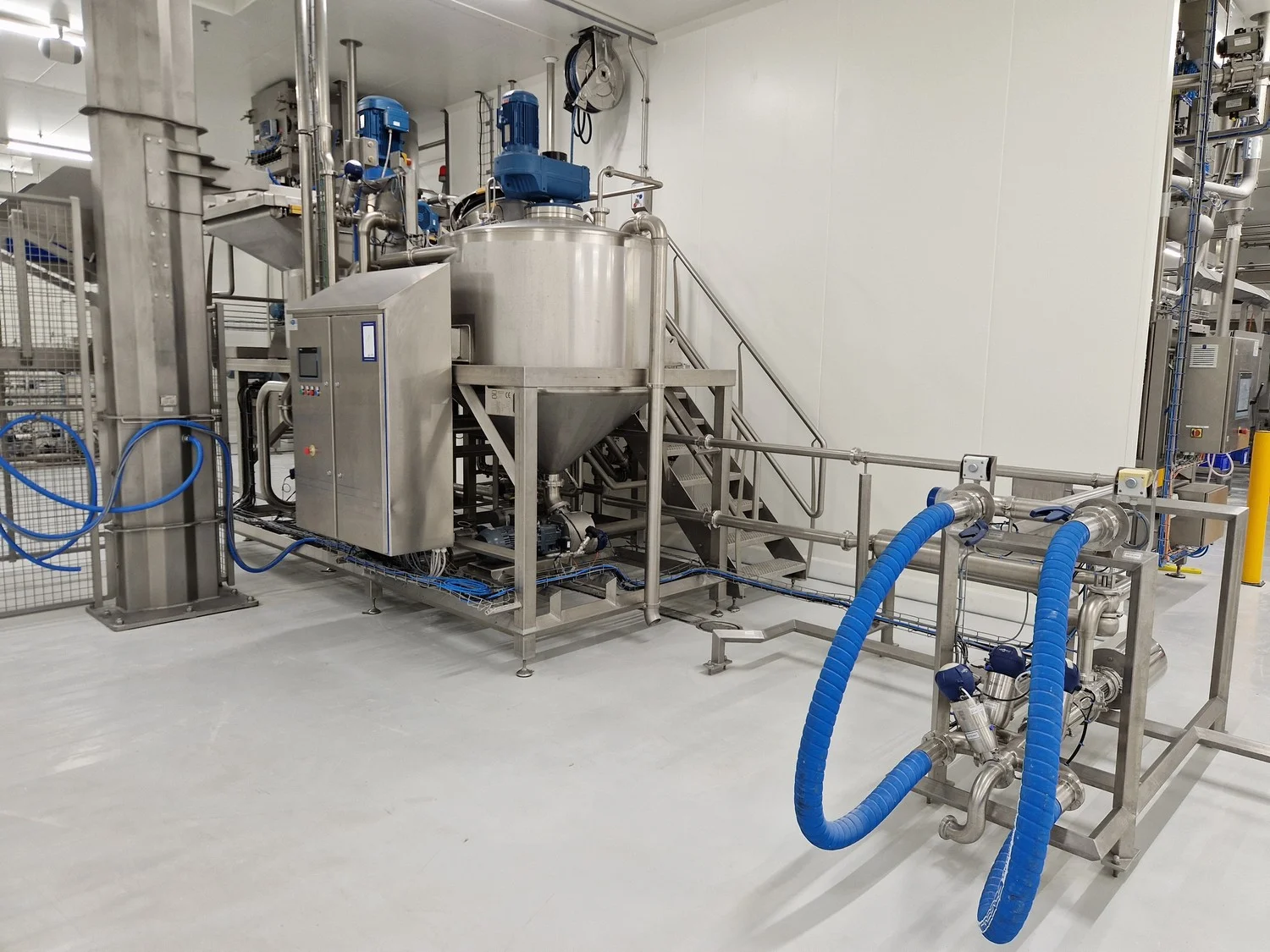

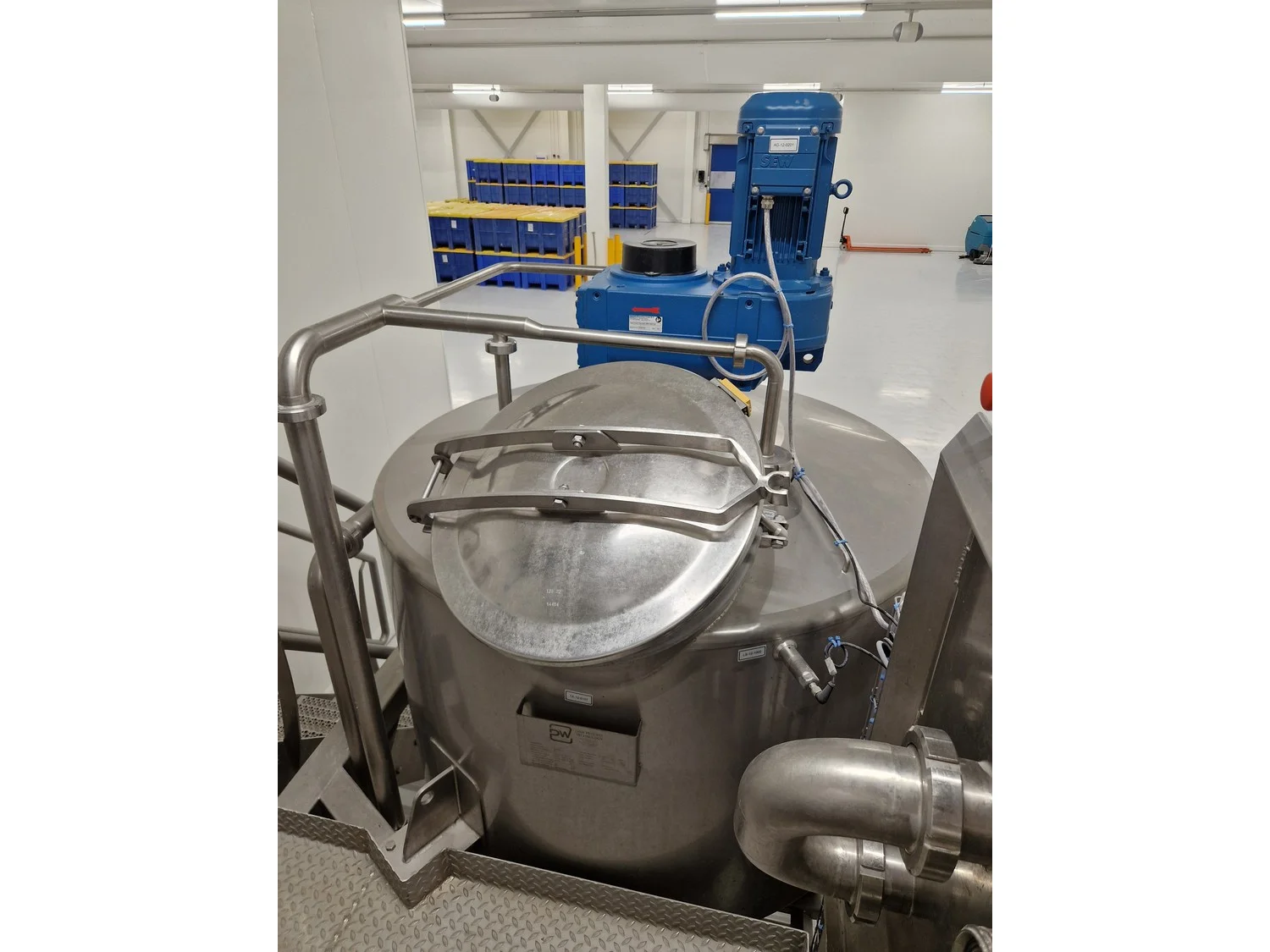

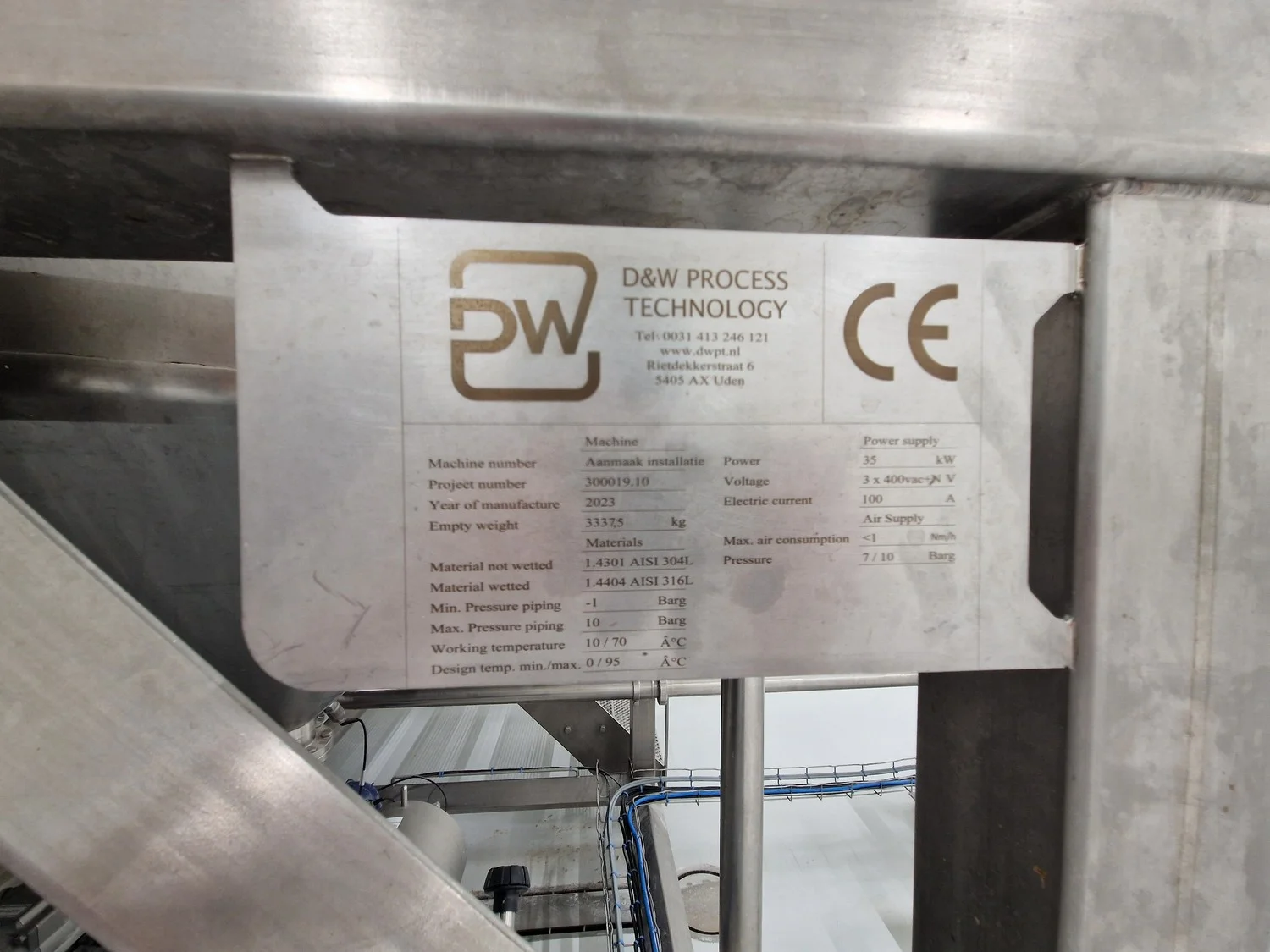

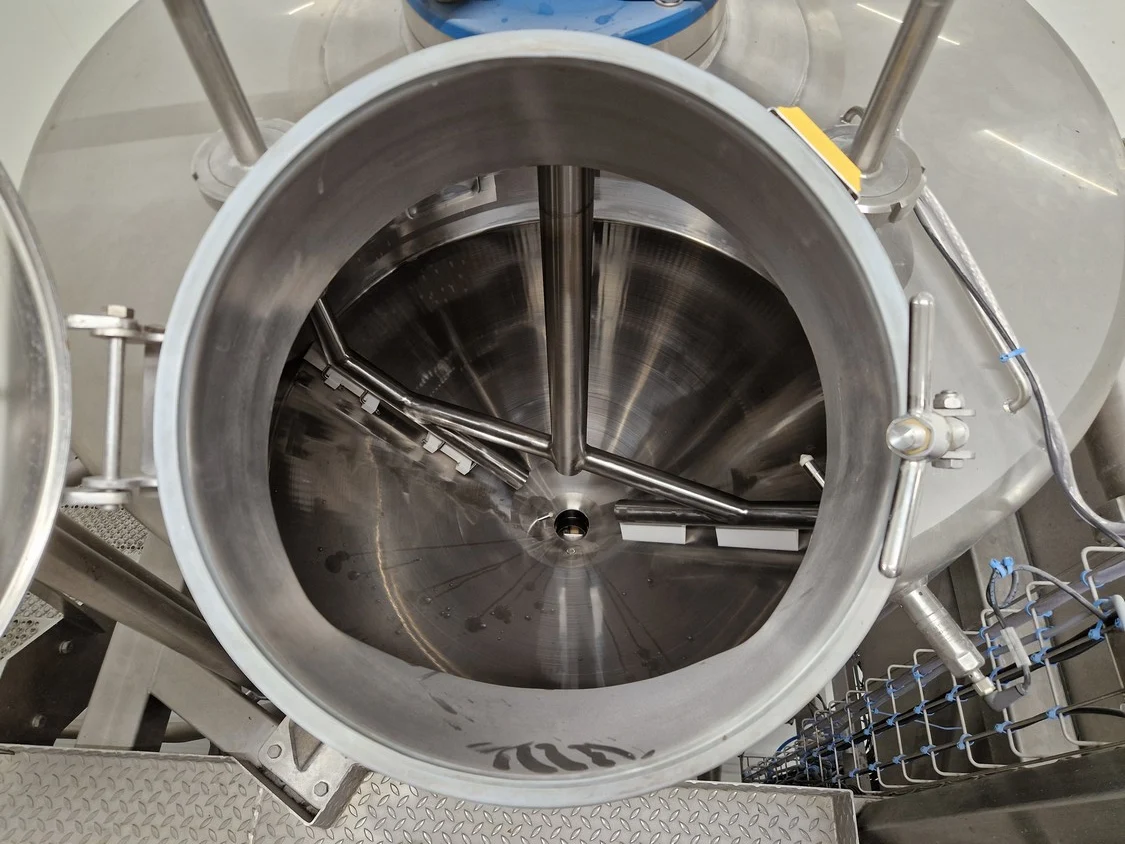

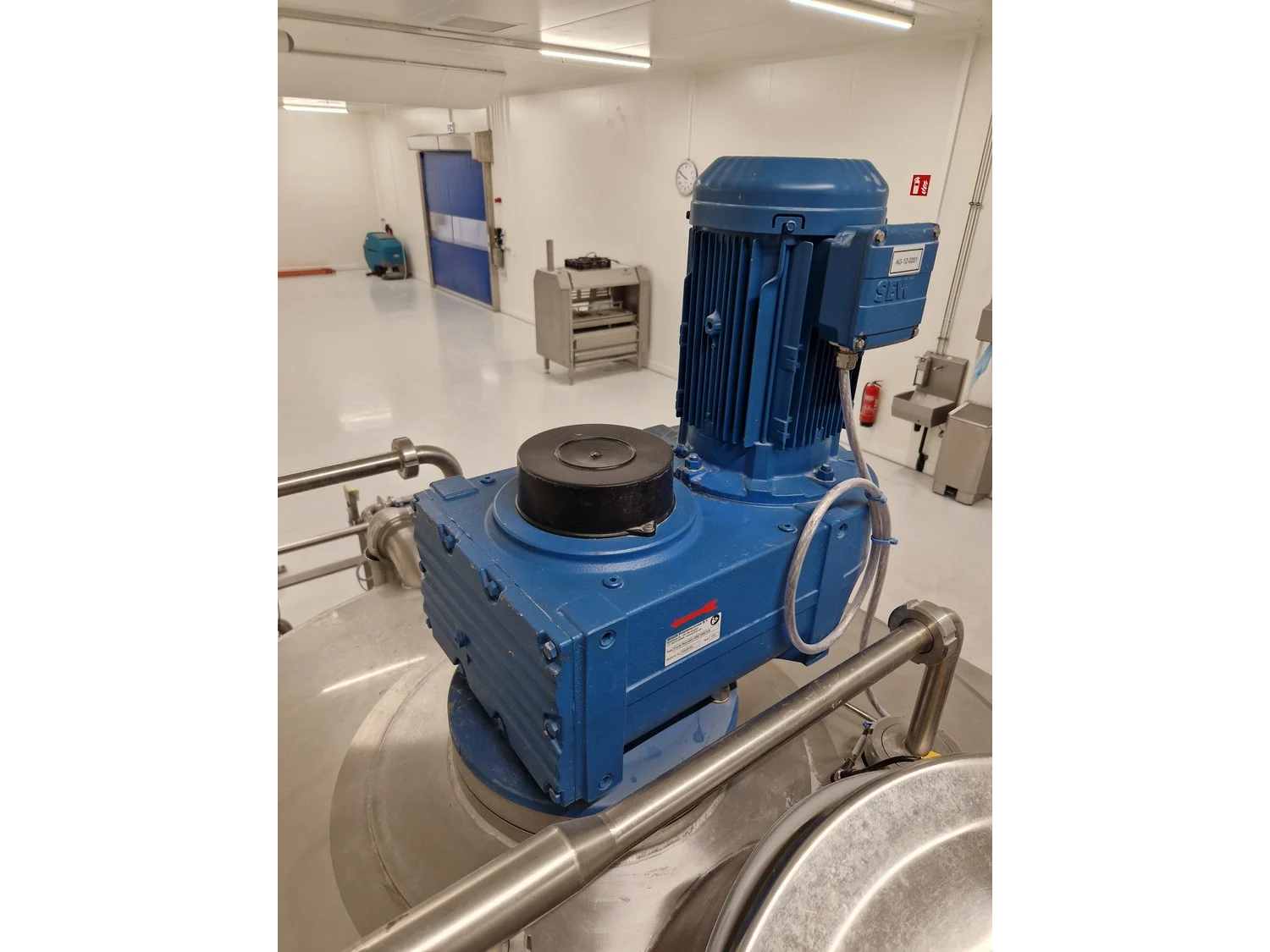

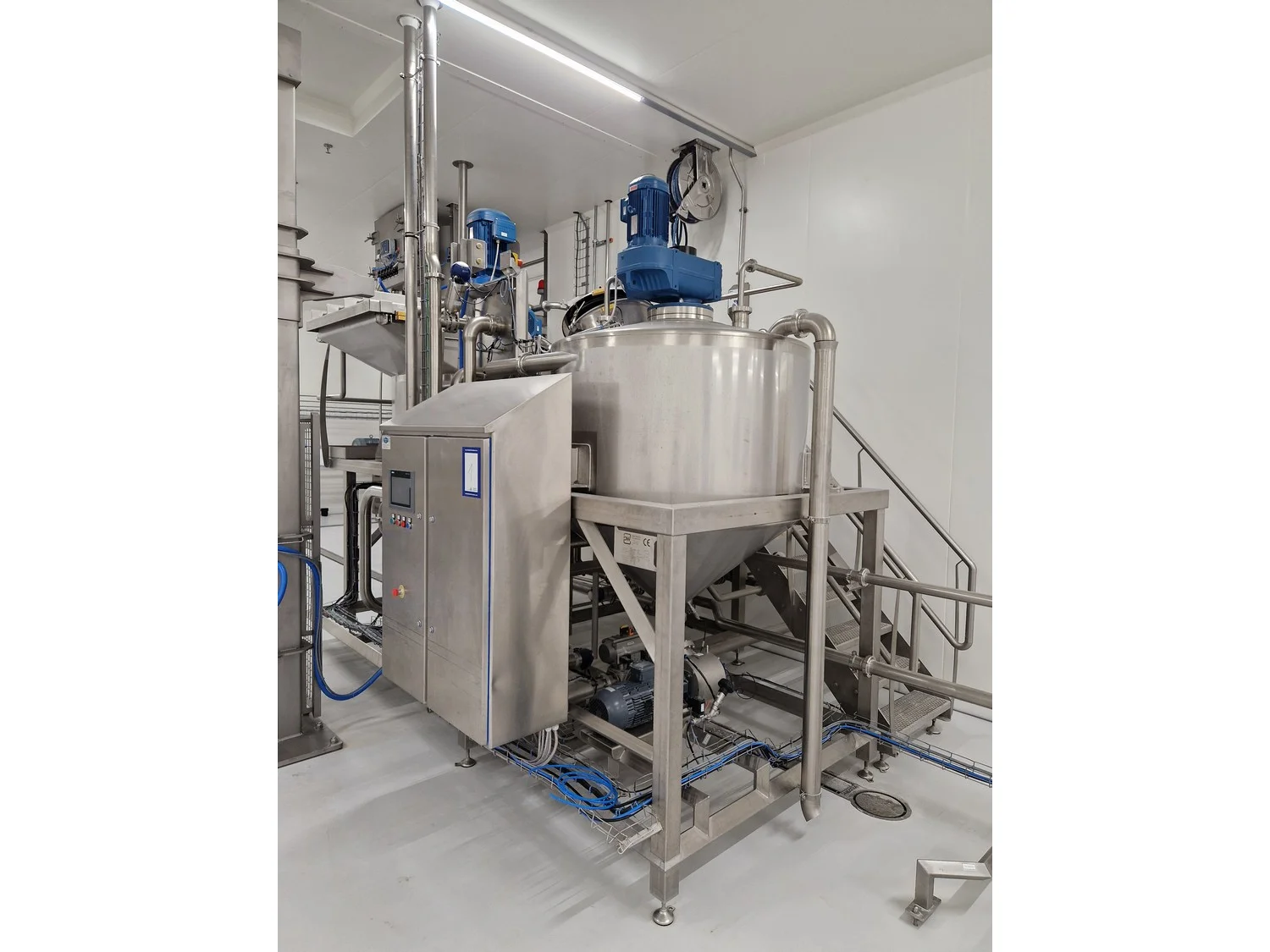

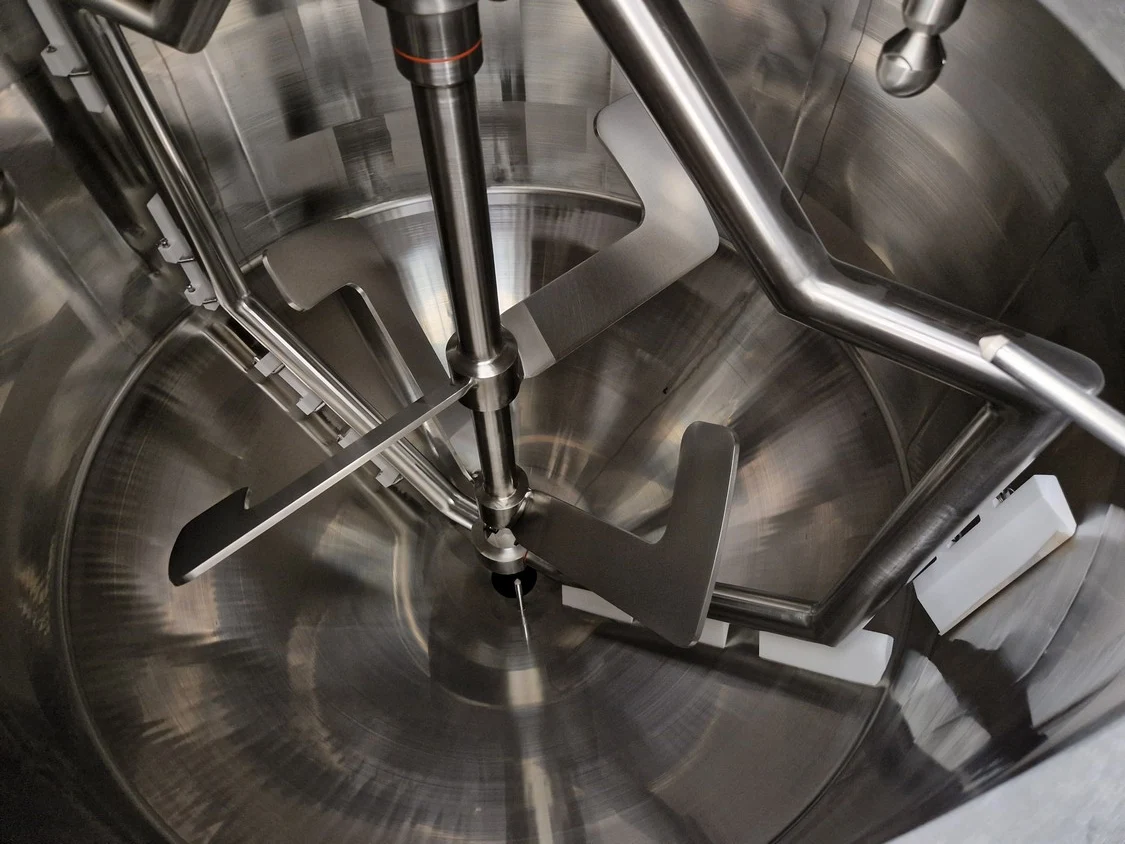

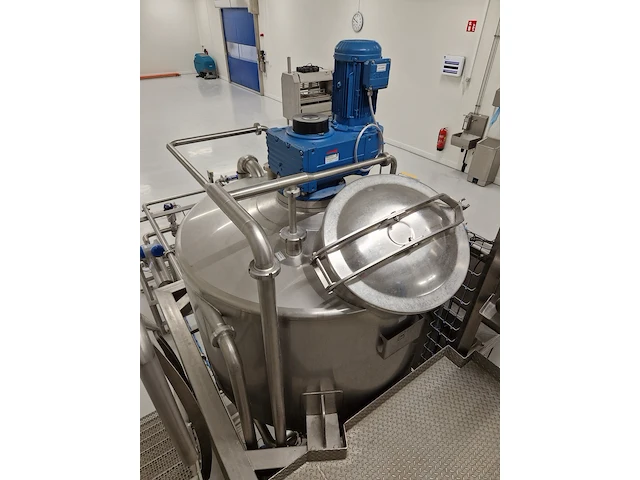

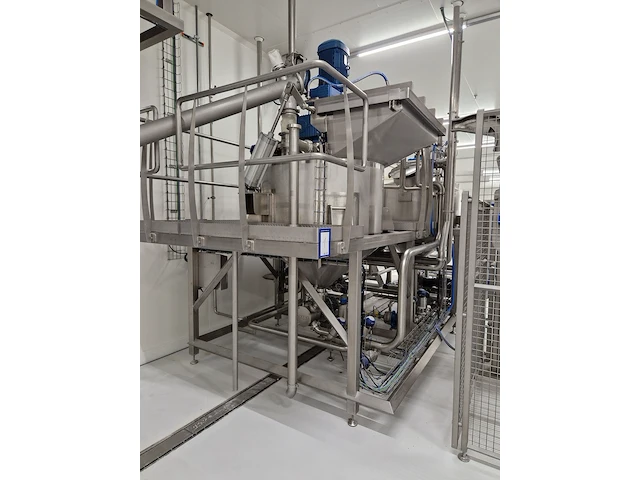

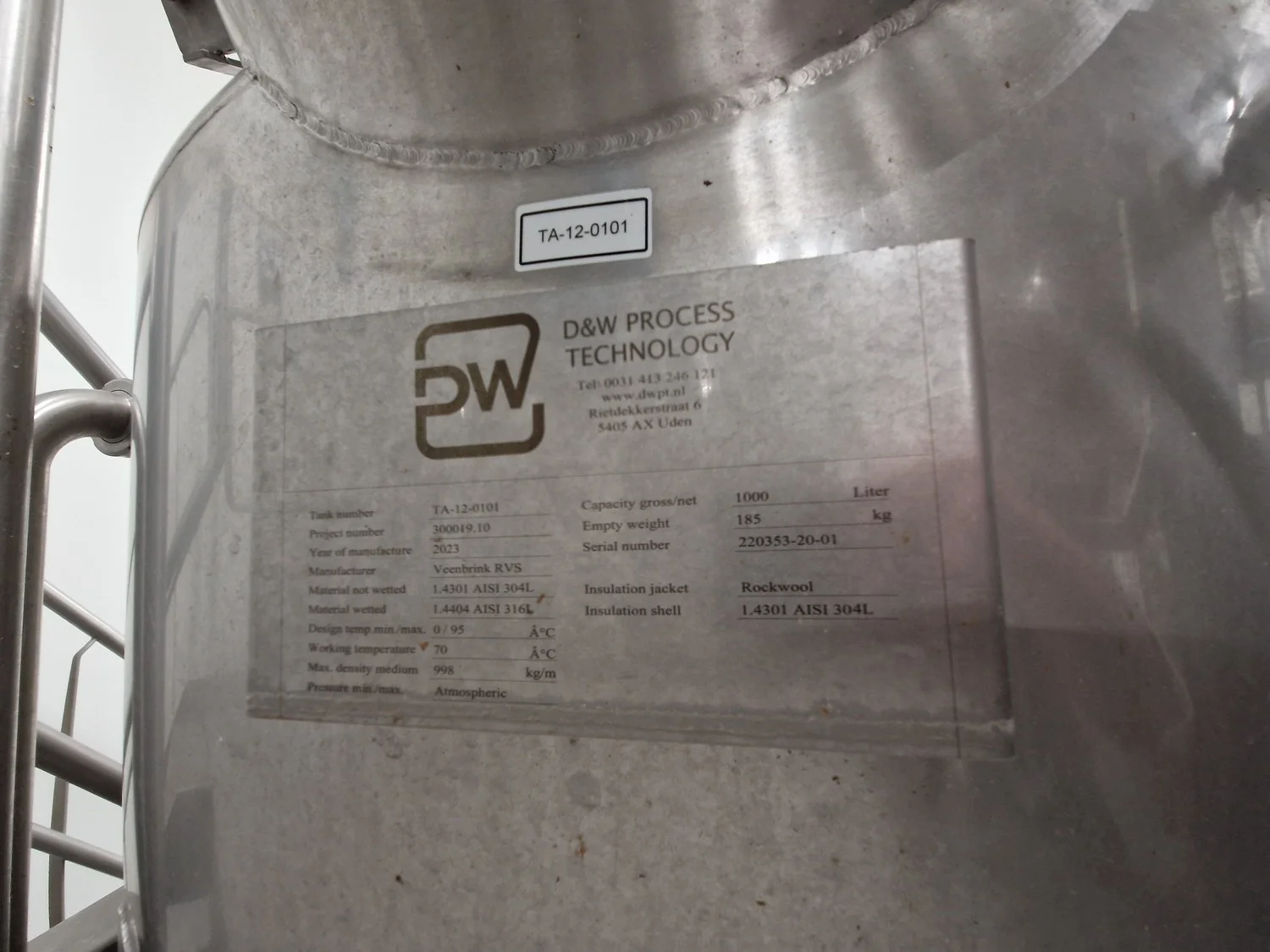

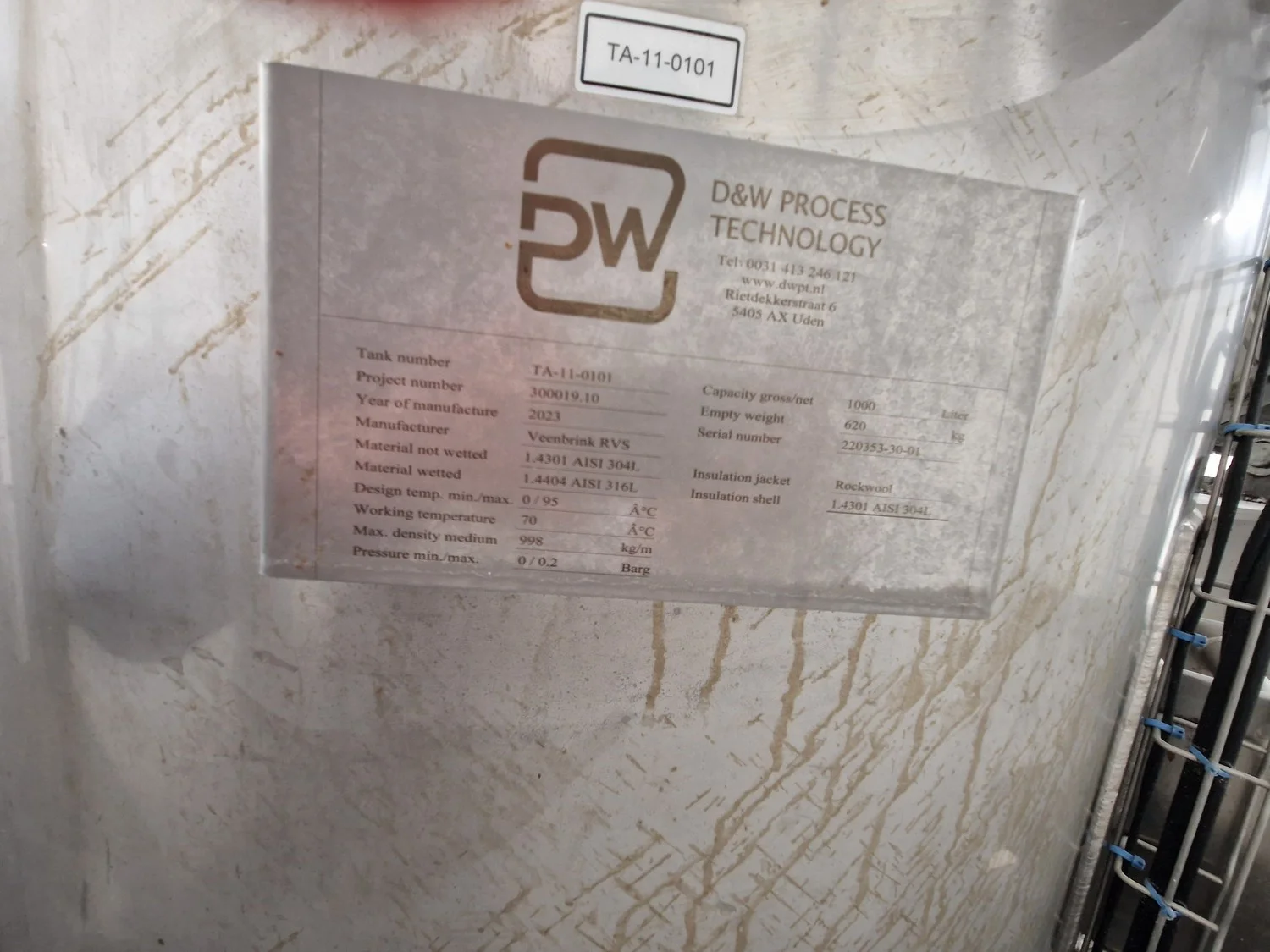

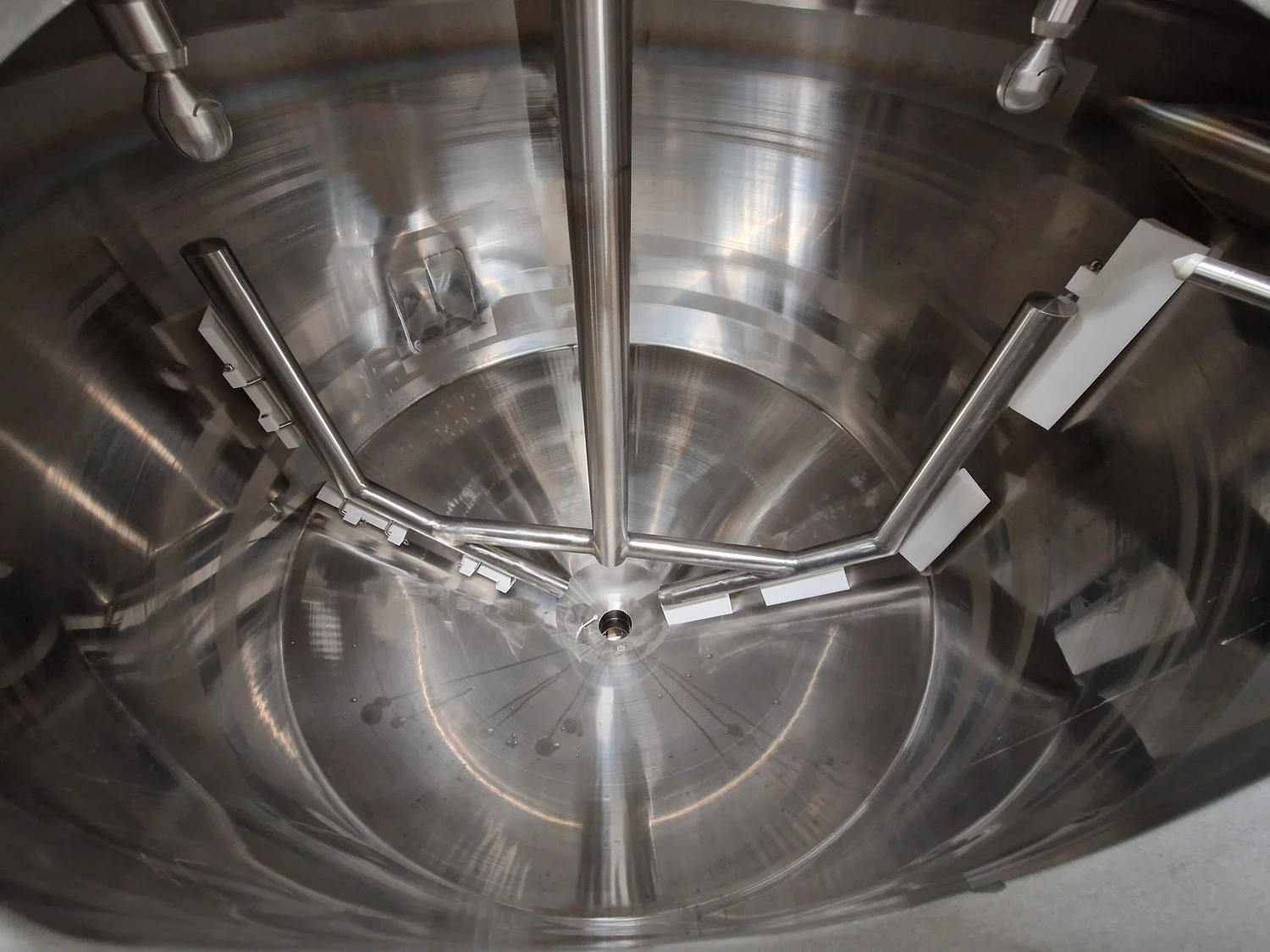

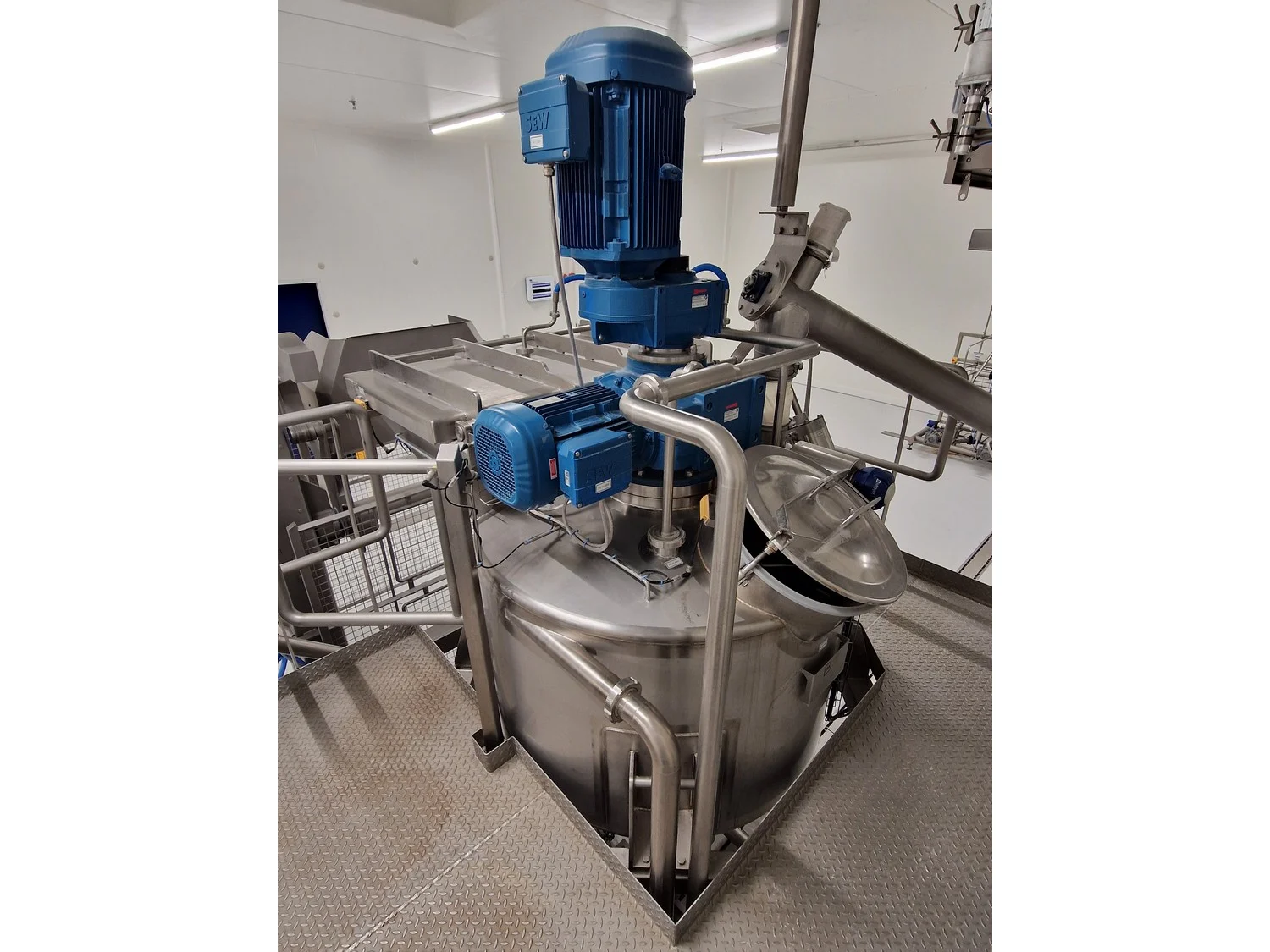

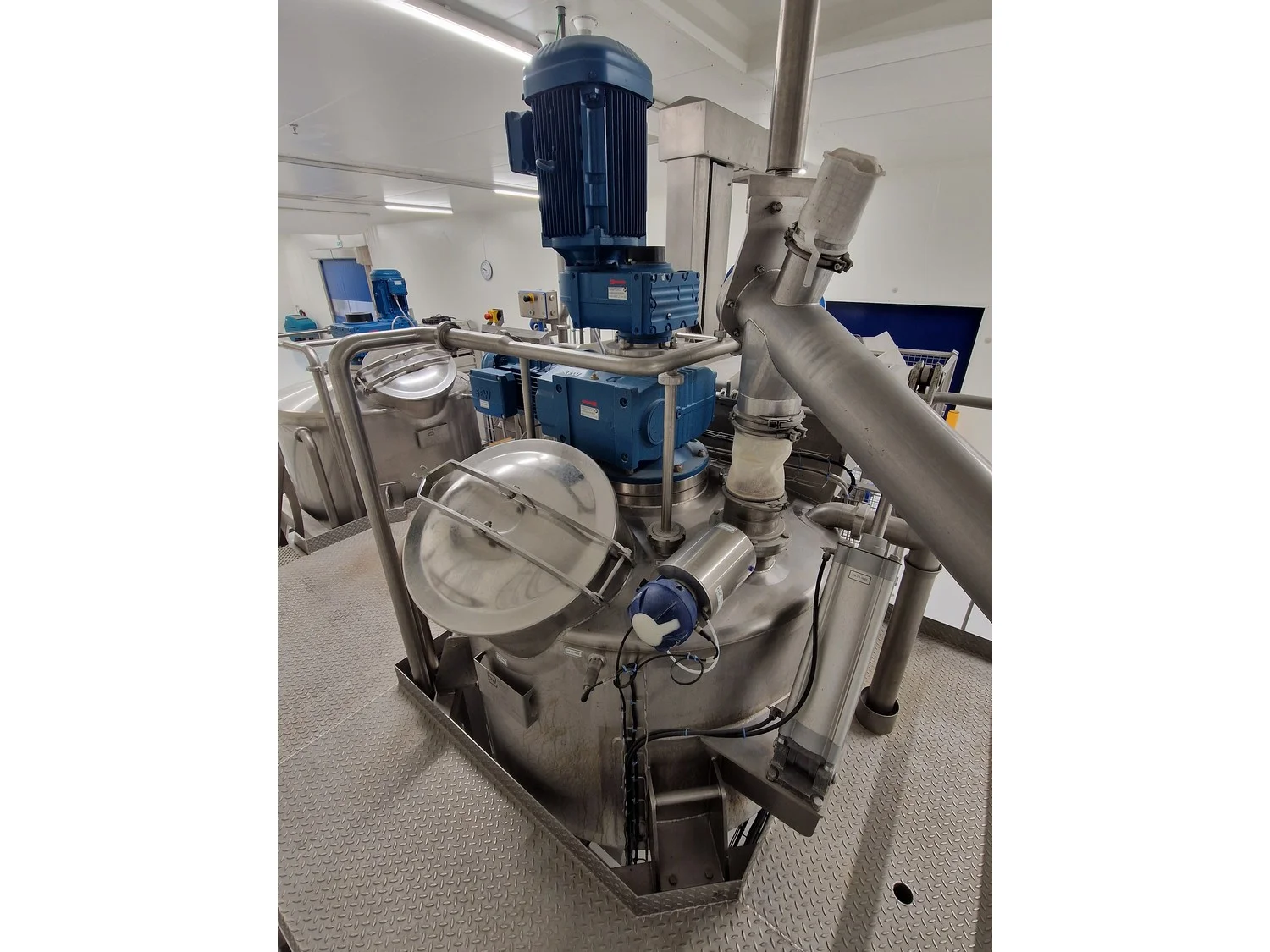

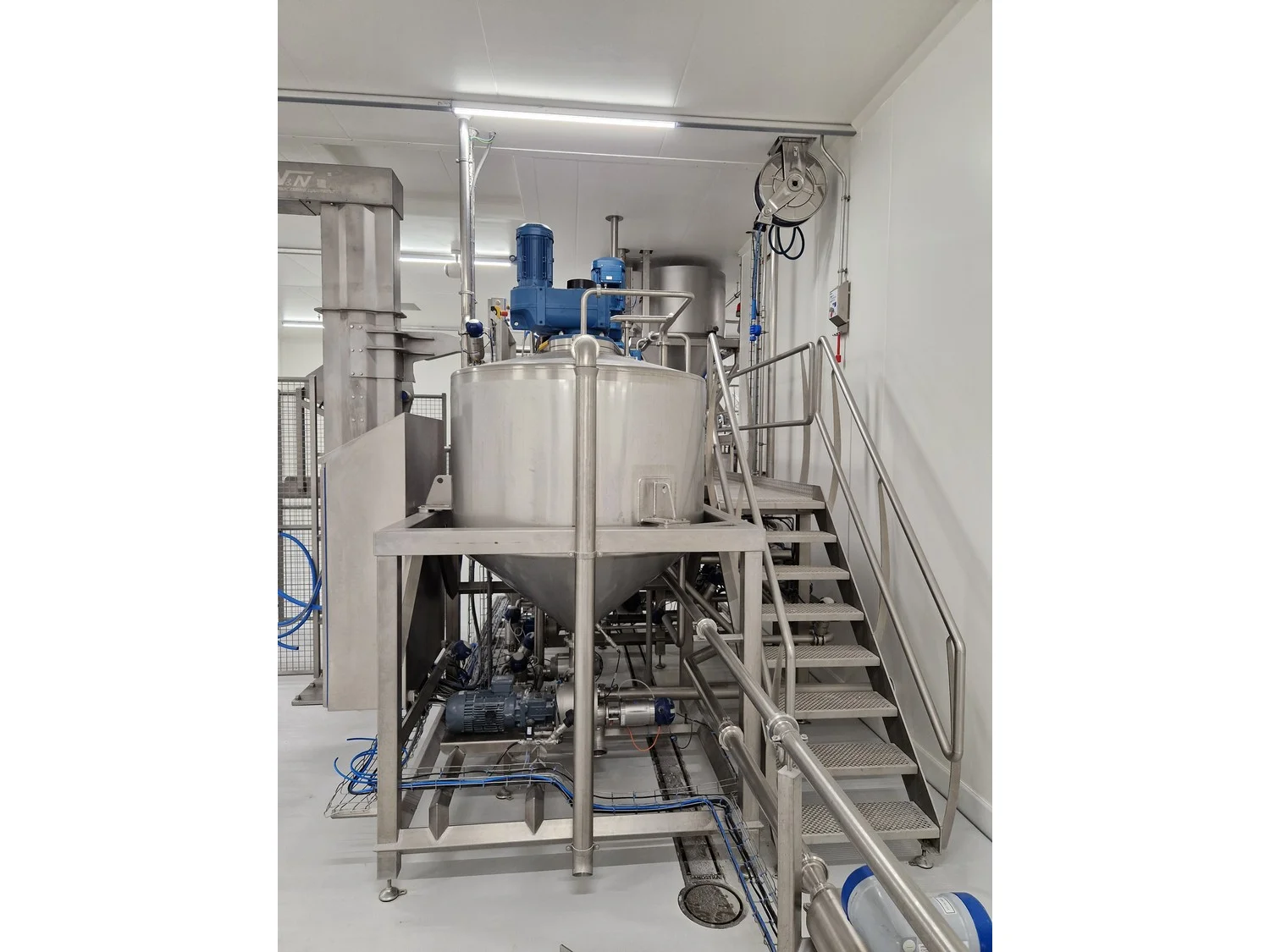

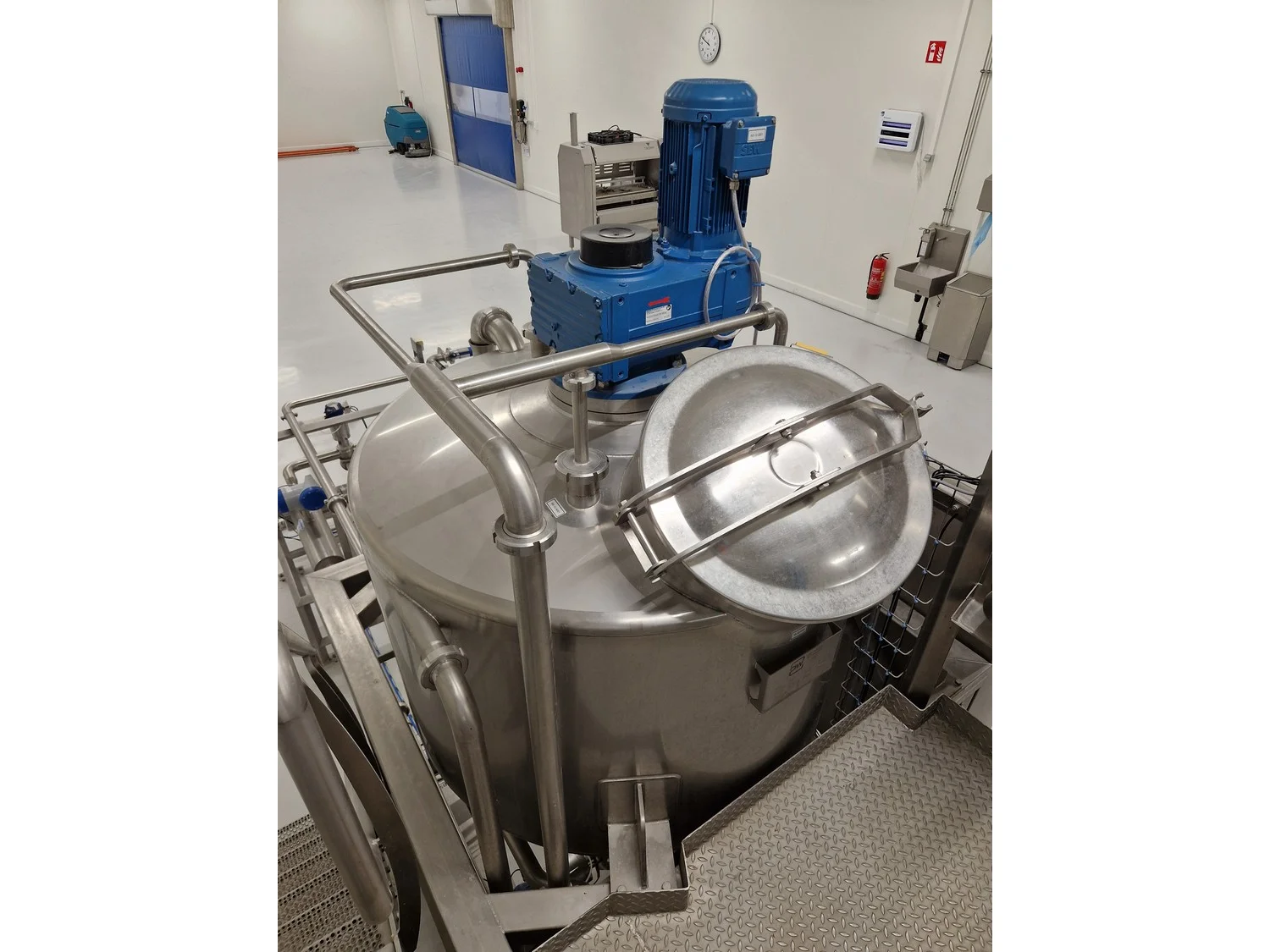

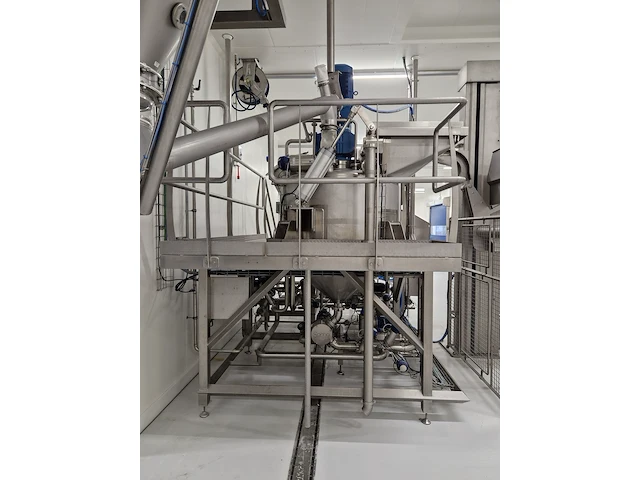

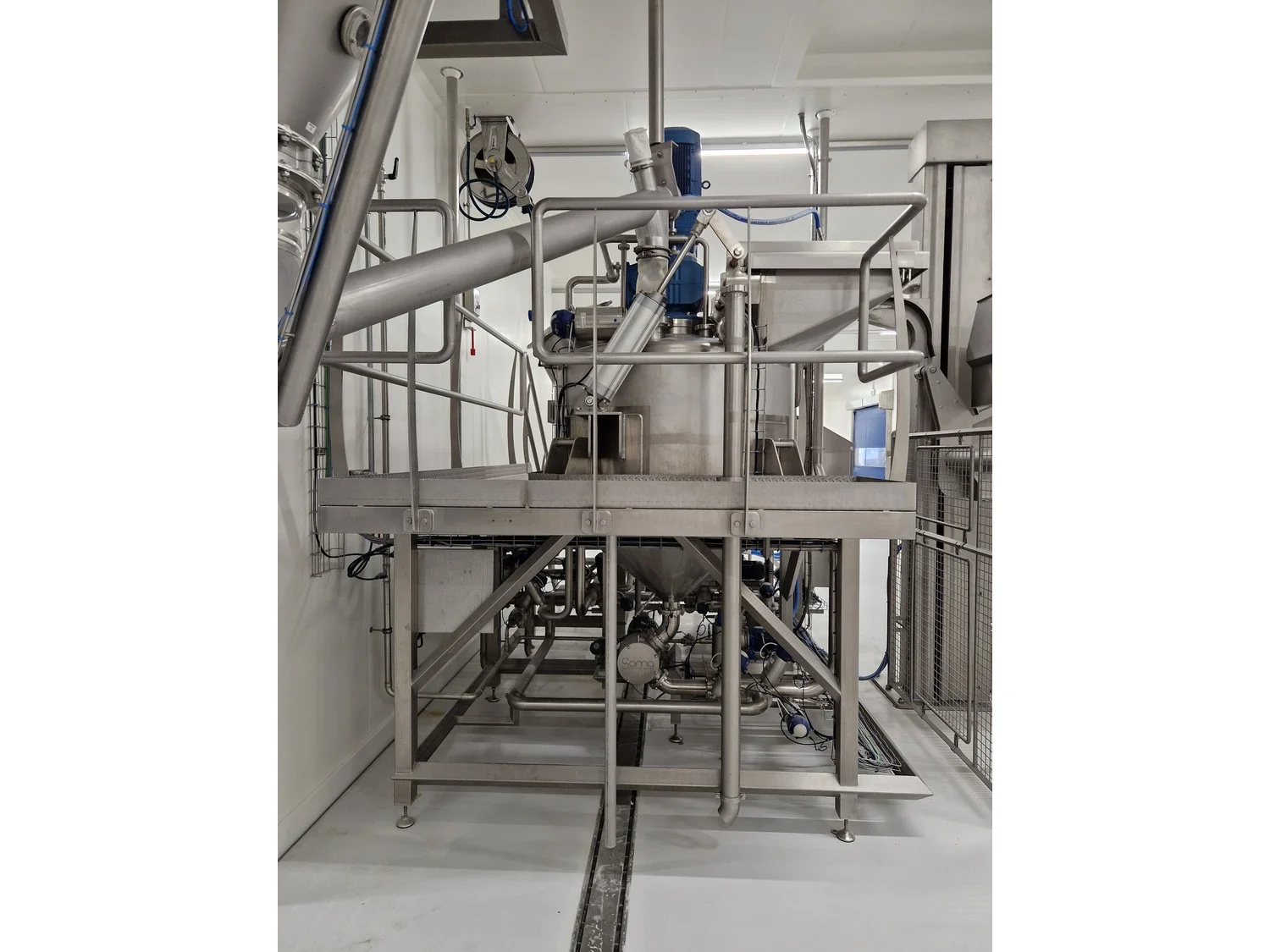

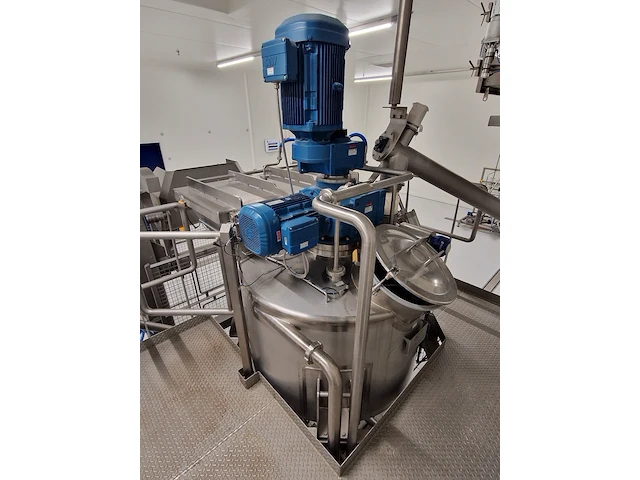

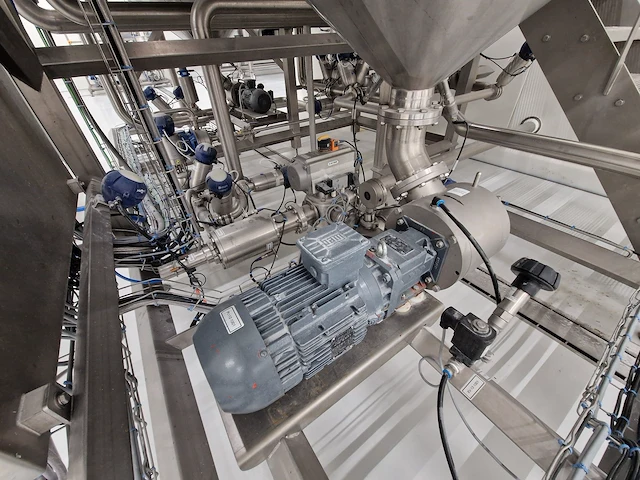

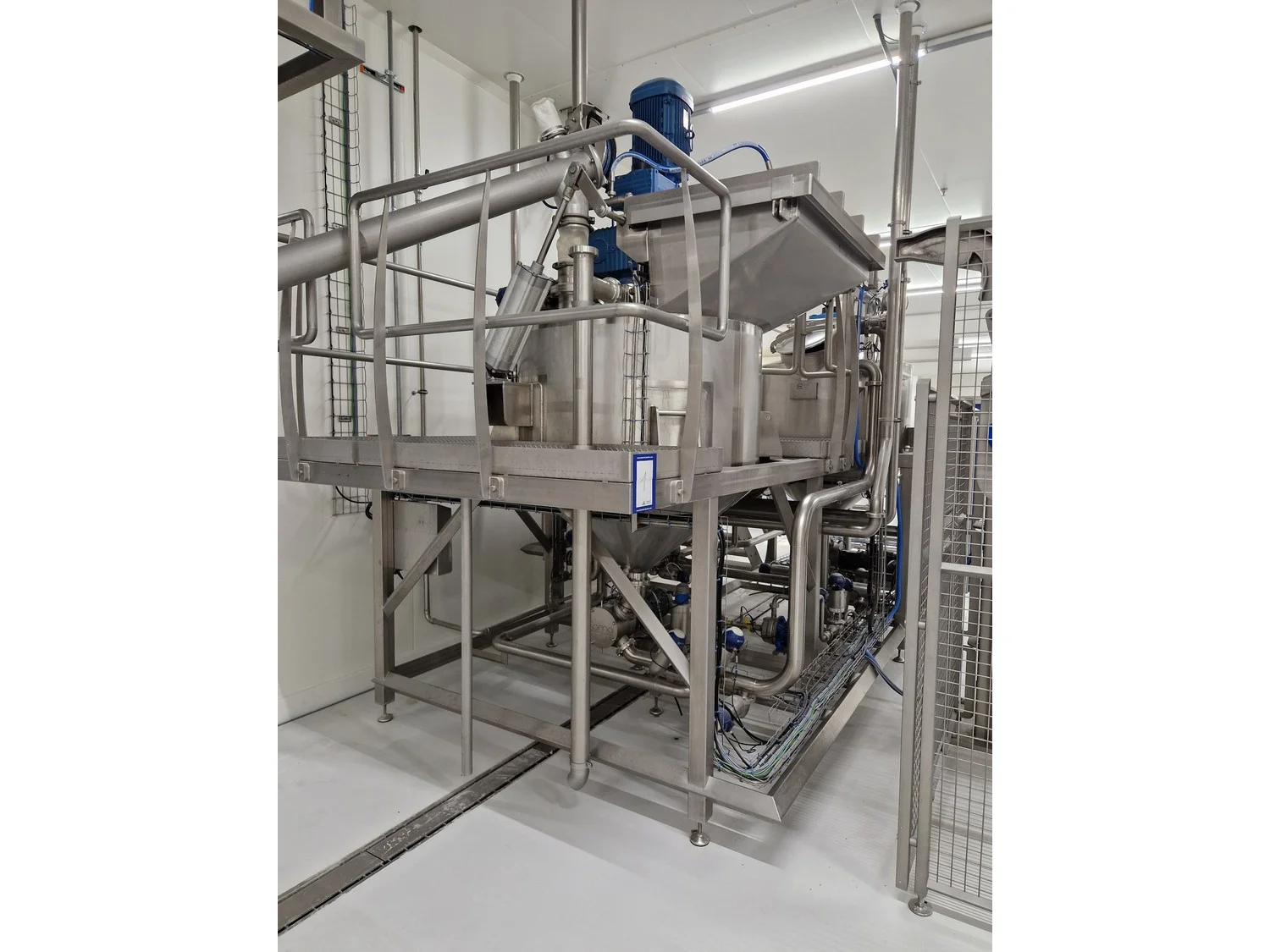

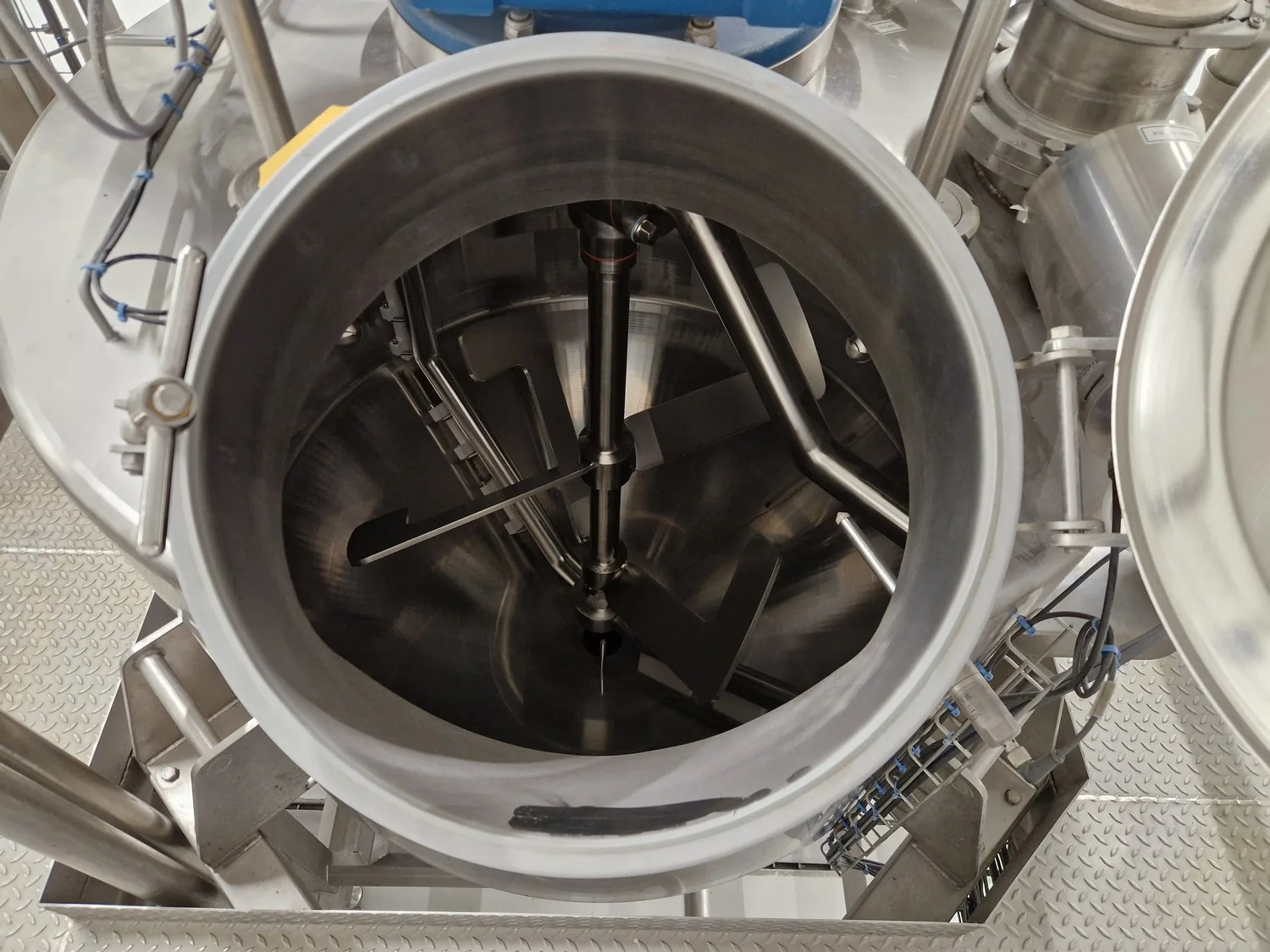

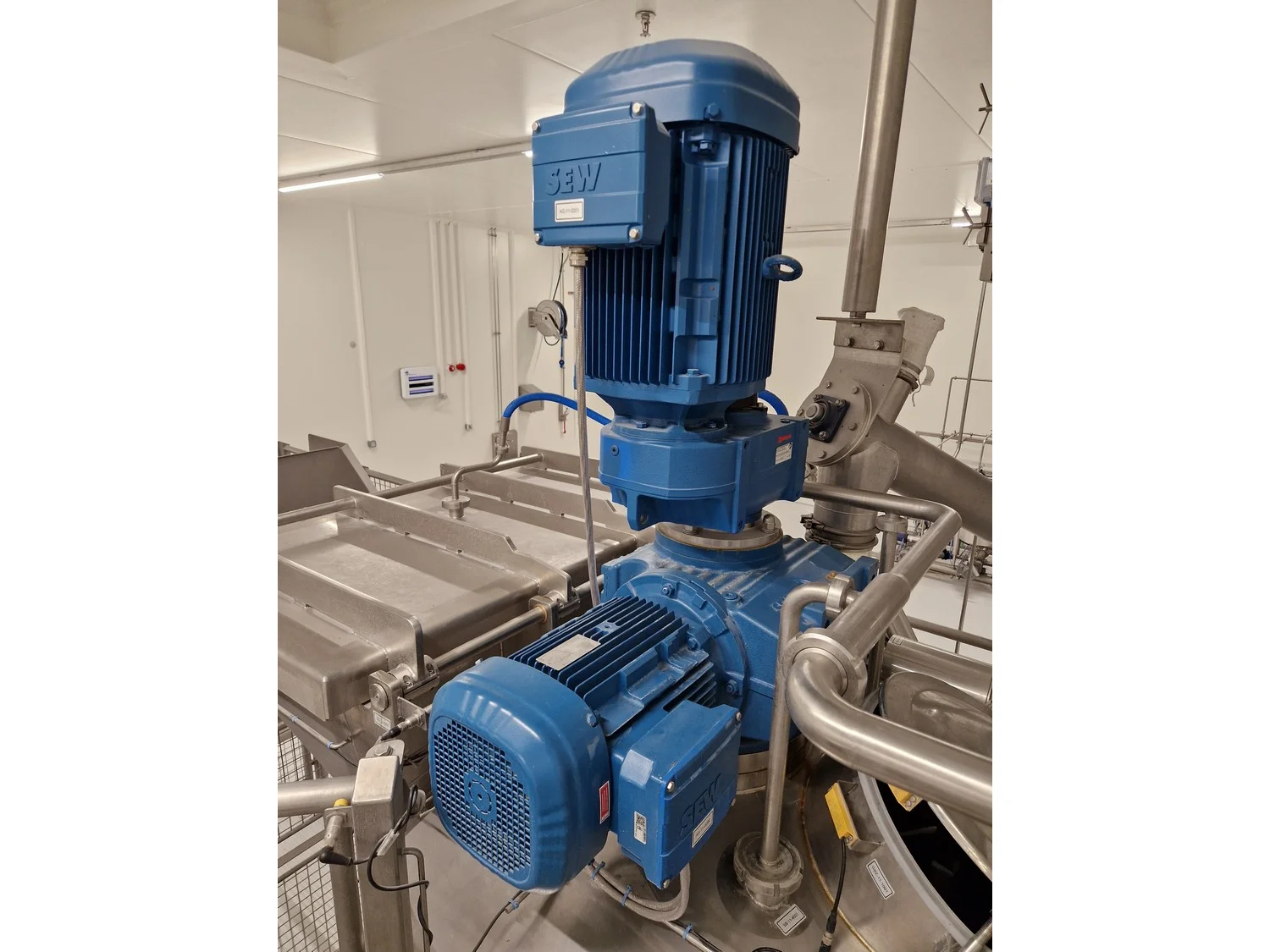

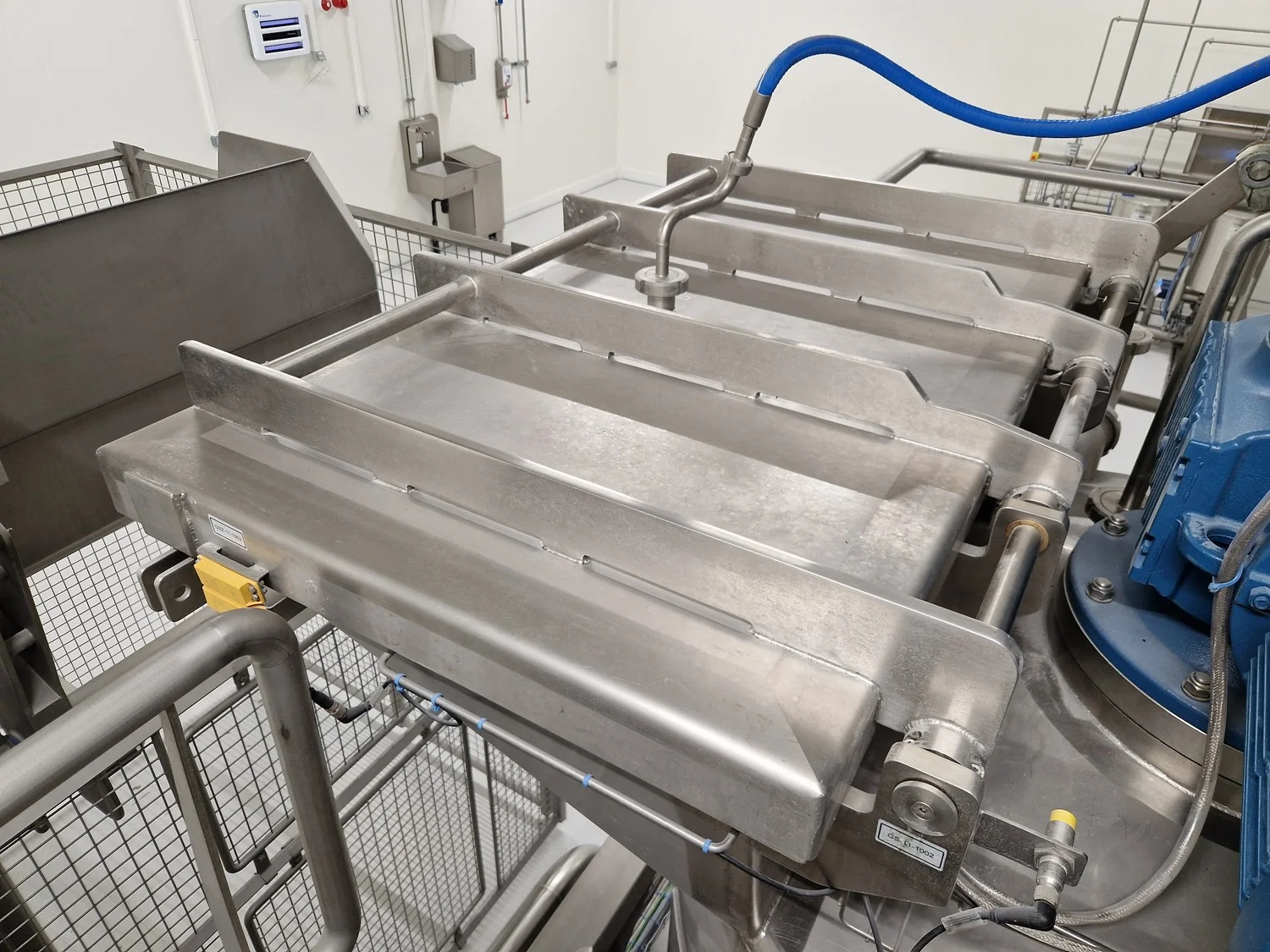

D&W Process Technology filling preparation installation used for dosing and mixing of ingredients to create a filling for bake-off products. Machine number: Aanmaak installatie, project number: 300019, year of construction: 2023, working temperature: 10 / 70° Celsius, design temperature: 0 / 95° Celsius, 35 kW, 3x 400 V, 100 A, maximum air consumption: 1 Nn per hour, pressure: 7 / 10 Barg, consisting of: D&W Process Technology / Veenbrink RVS s/s insulated tank with agitator, scraper and infeed hopper, tank number: TA-11-0101, serial number: 220353-30-01, project number: 300019.10, year of construction: 2023, capacity: 1000 liter, working temperature: 70° Celsius, design temperature: 0 / 95° Celsius, maximum density medium: 998 kg/m, pressure: 0 / 0.2 Barg, empty weight: 620 kg, dimensions: 2000 mm x 1600 mm x 3700 mm; D&W Process Technology / Veenbrink RVS s/s insulated tank with agitator and scraper, tank number: TA-12-0101, serial number: 220353-20-01, project number: 300019.10, year of construction: 2023, capacity: 1000 liter, working temperature: 70° Celsius, design temperature: 0 / 95° Celsius, maximum density medium: 998 kg/m, pressure: Atmospheric, empty weight: 185 kg, dimensions: 1400 mm x 1400 mm x 3000 mm; Pump system to add ingredients, with Krone flowmeter, type: OPTIMASS 7400C S40, serial number: G230000002503933, year of construction: 2023-03-17, dimensions: 1500 mm x 700 mm x 1200 mm; S/s platform with stairs, working height: 1550 mm, dimensions: 5200 mm x 2200 mm x 2650 mm. Total dimensions installation: 7800 mm x 2650 mm x 3700 mm. Lifter for meat bins, infeed product screw and CIP installation are not included. Voor meer informatie klik op de volgende link: GA_Filling_preparation_skid.pdf
