Dohmeyer/ces

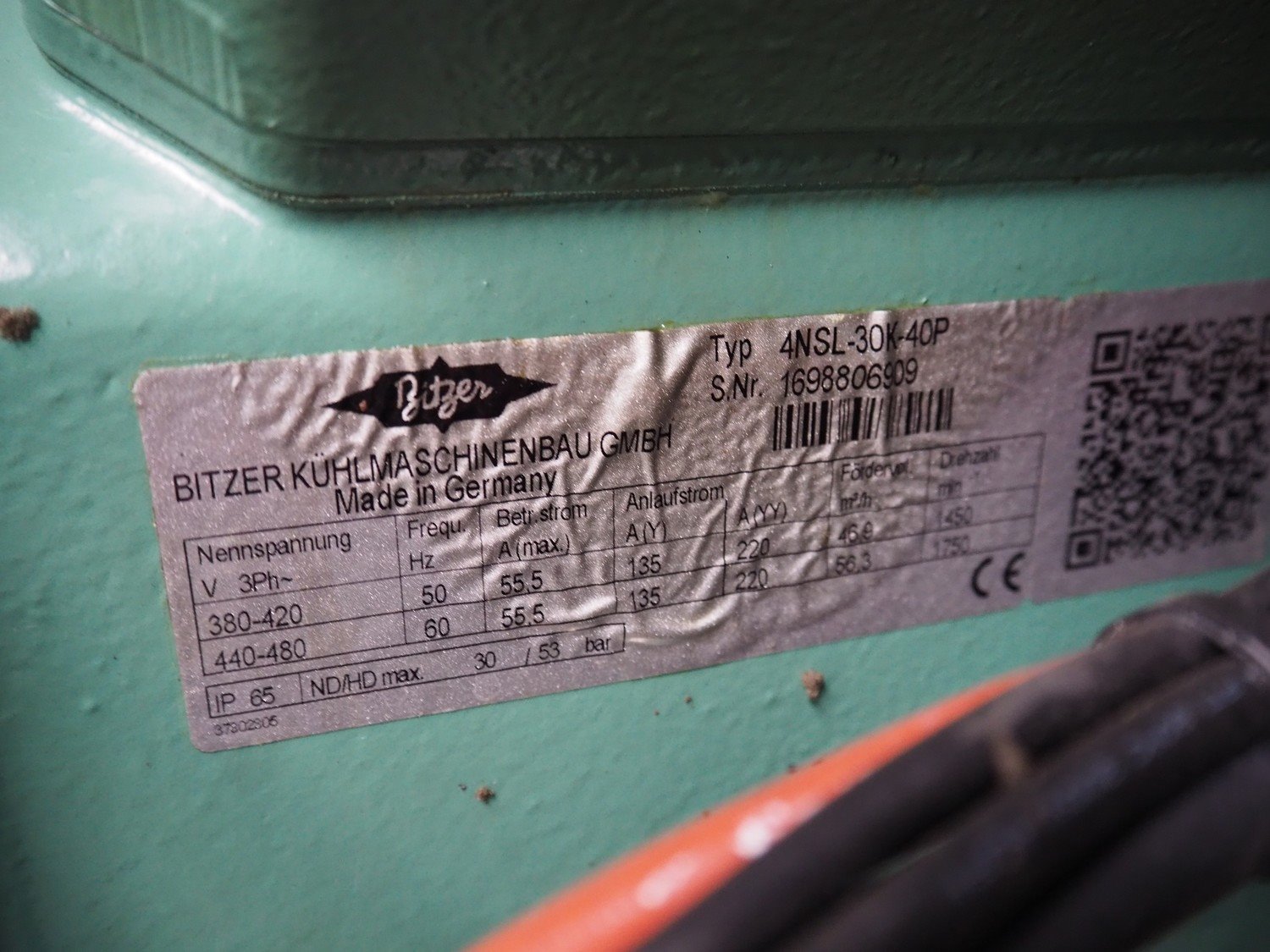

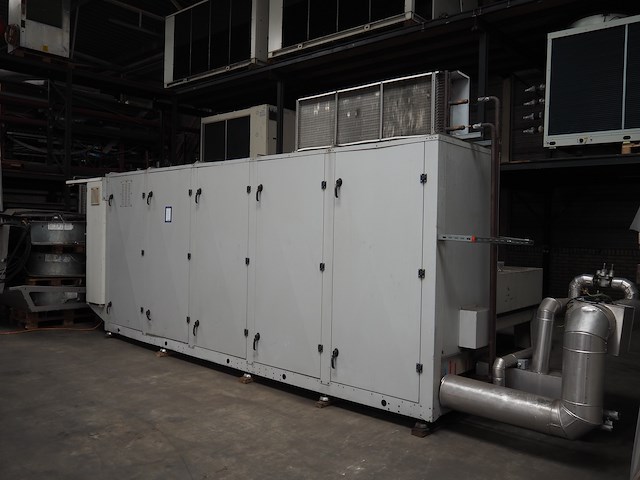

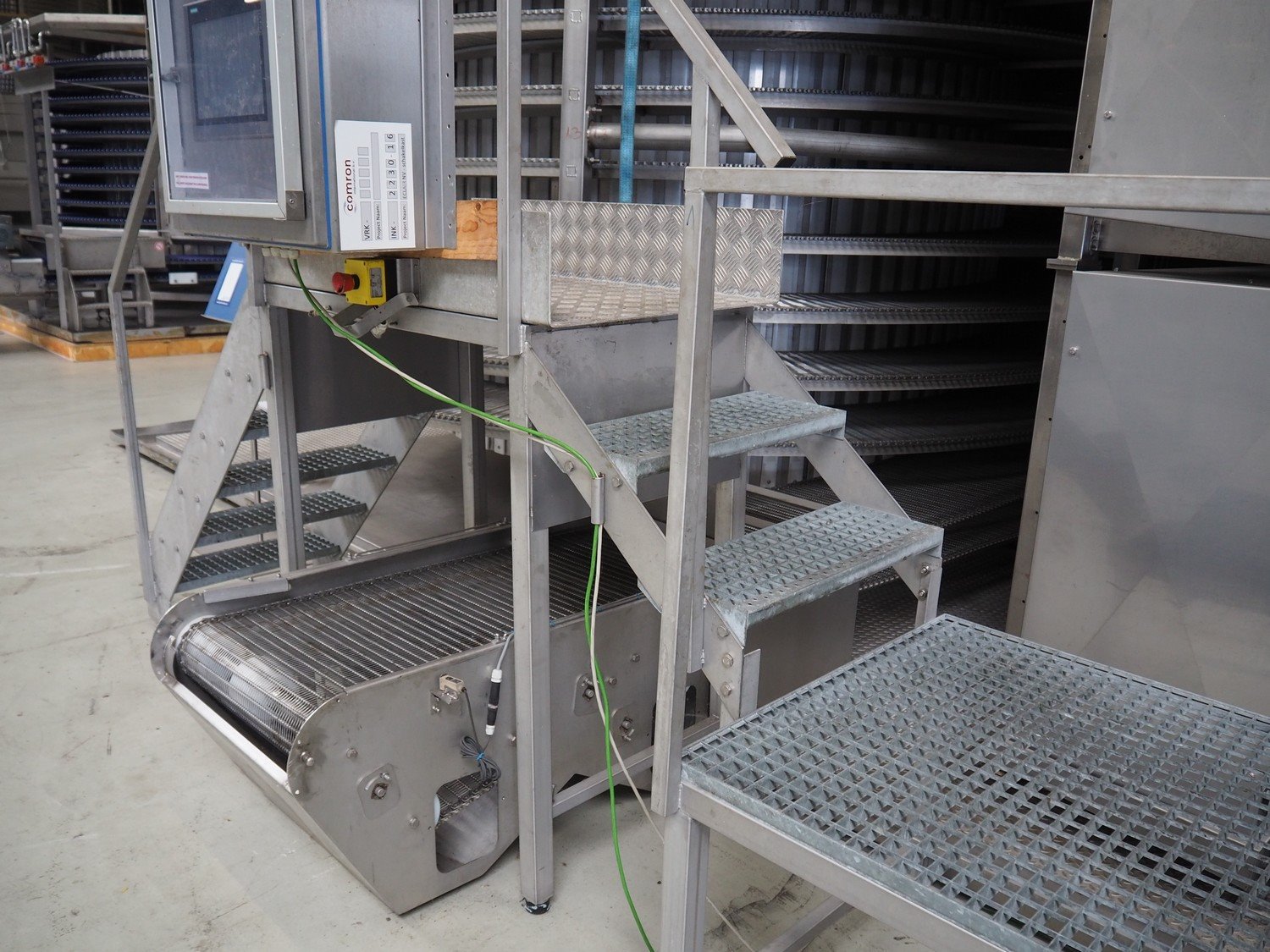

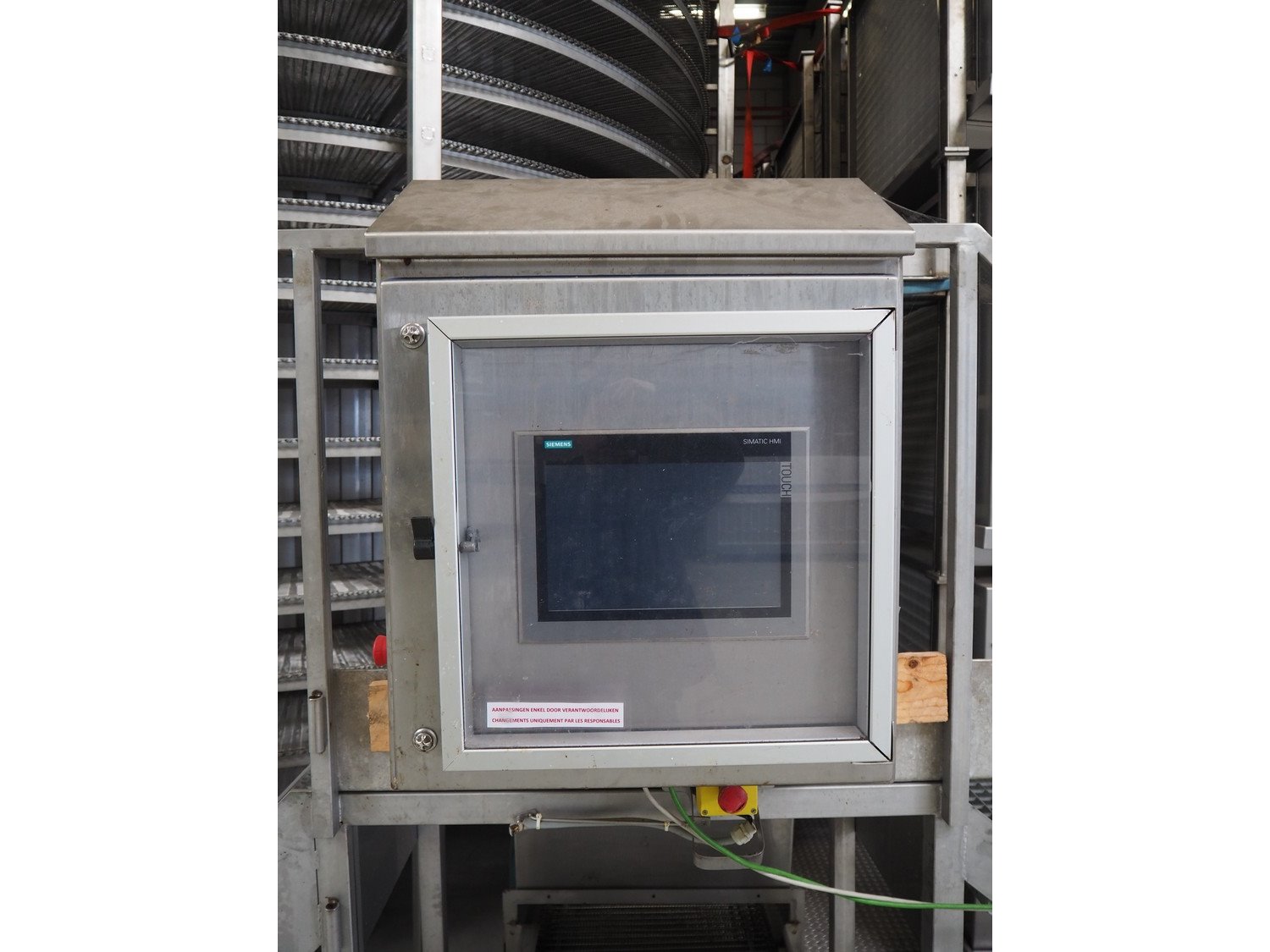

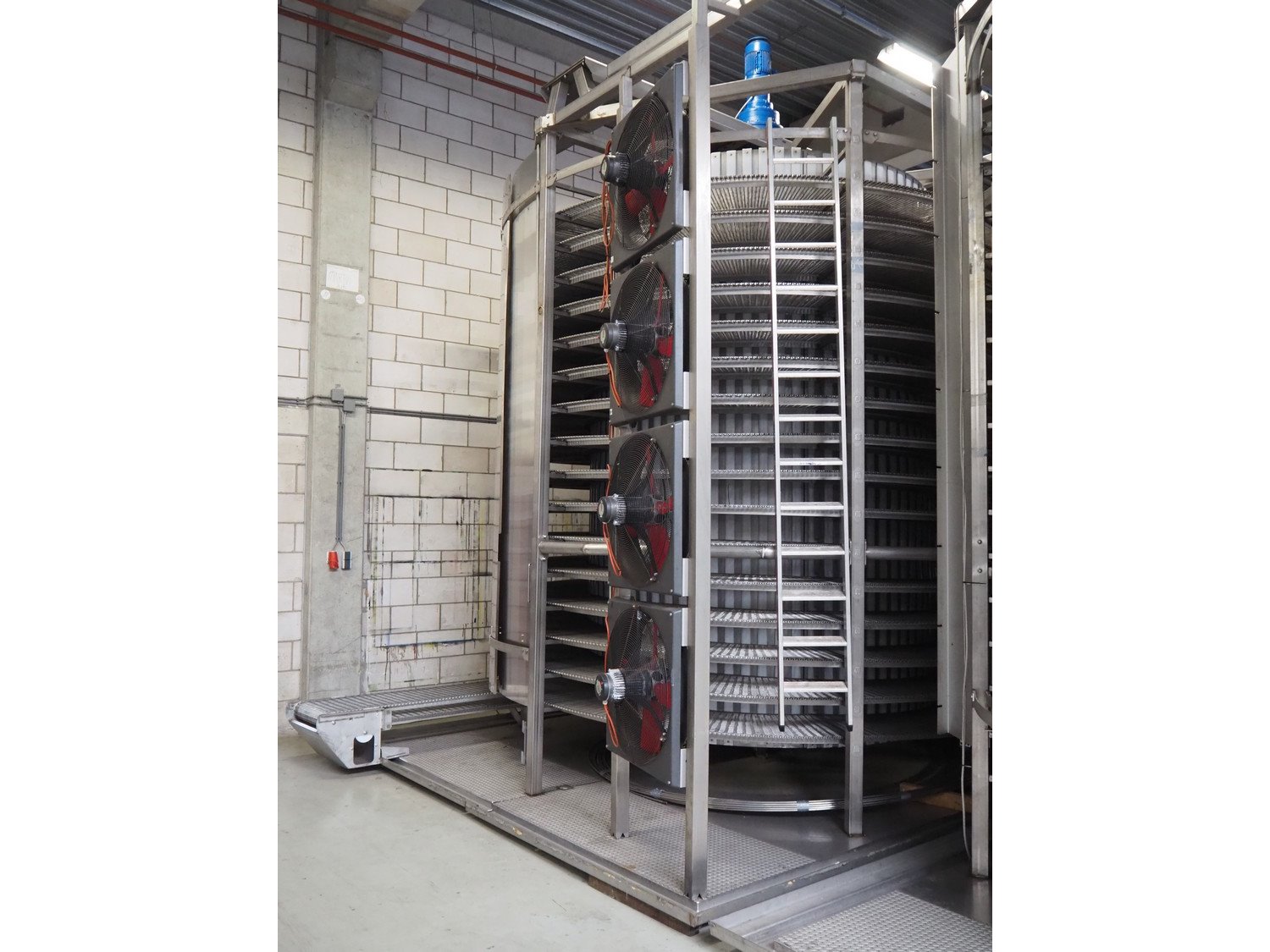

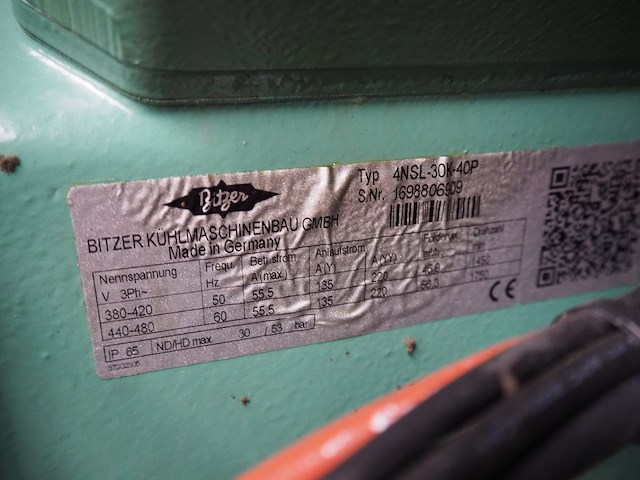

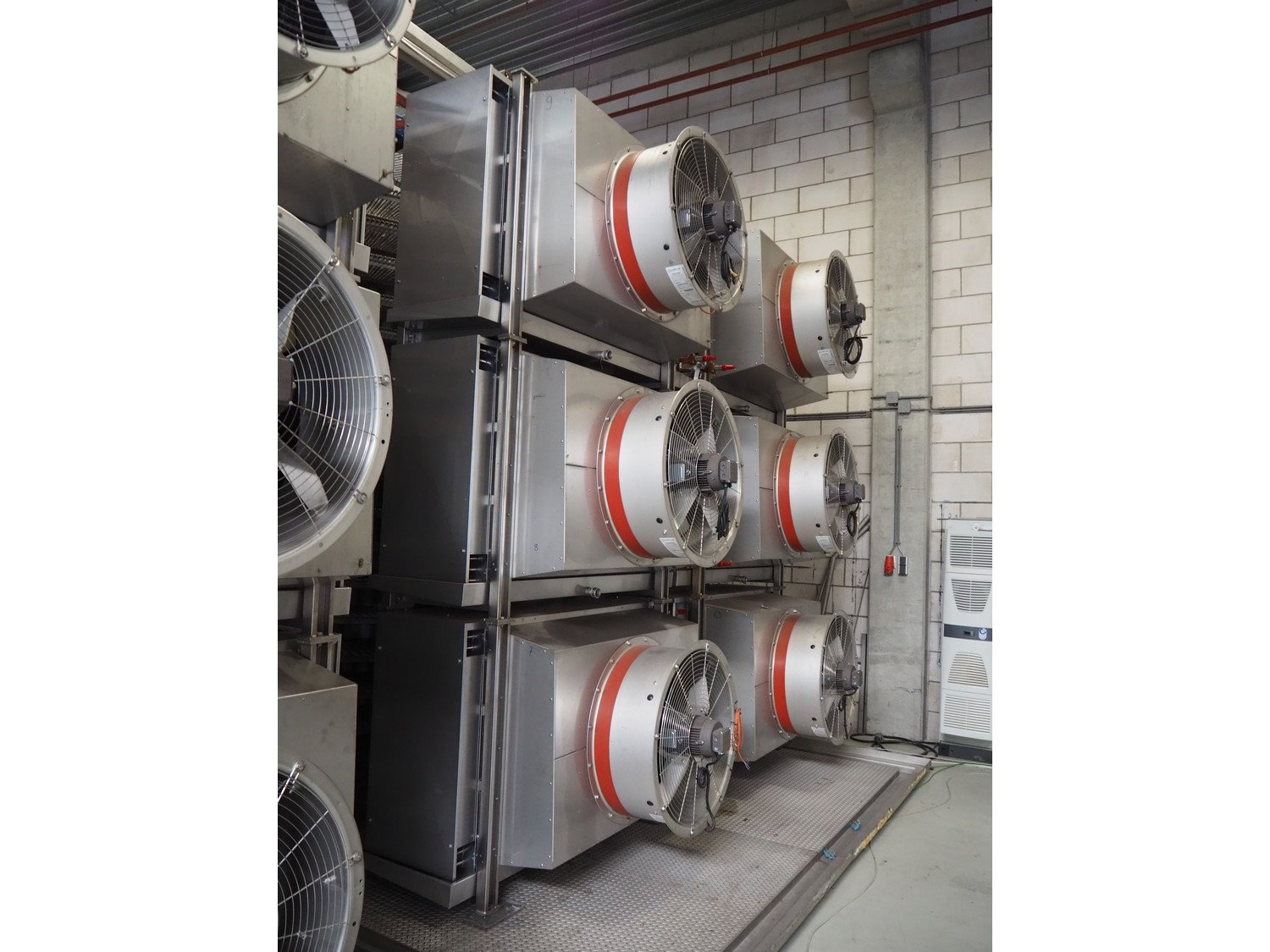

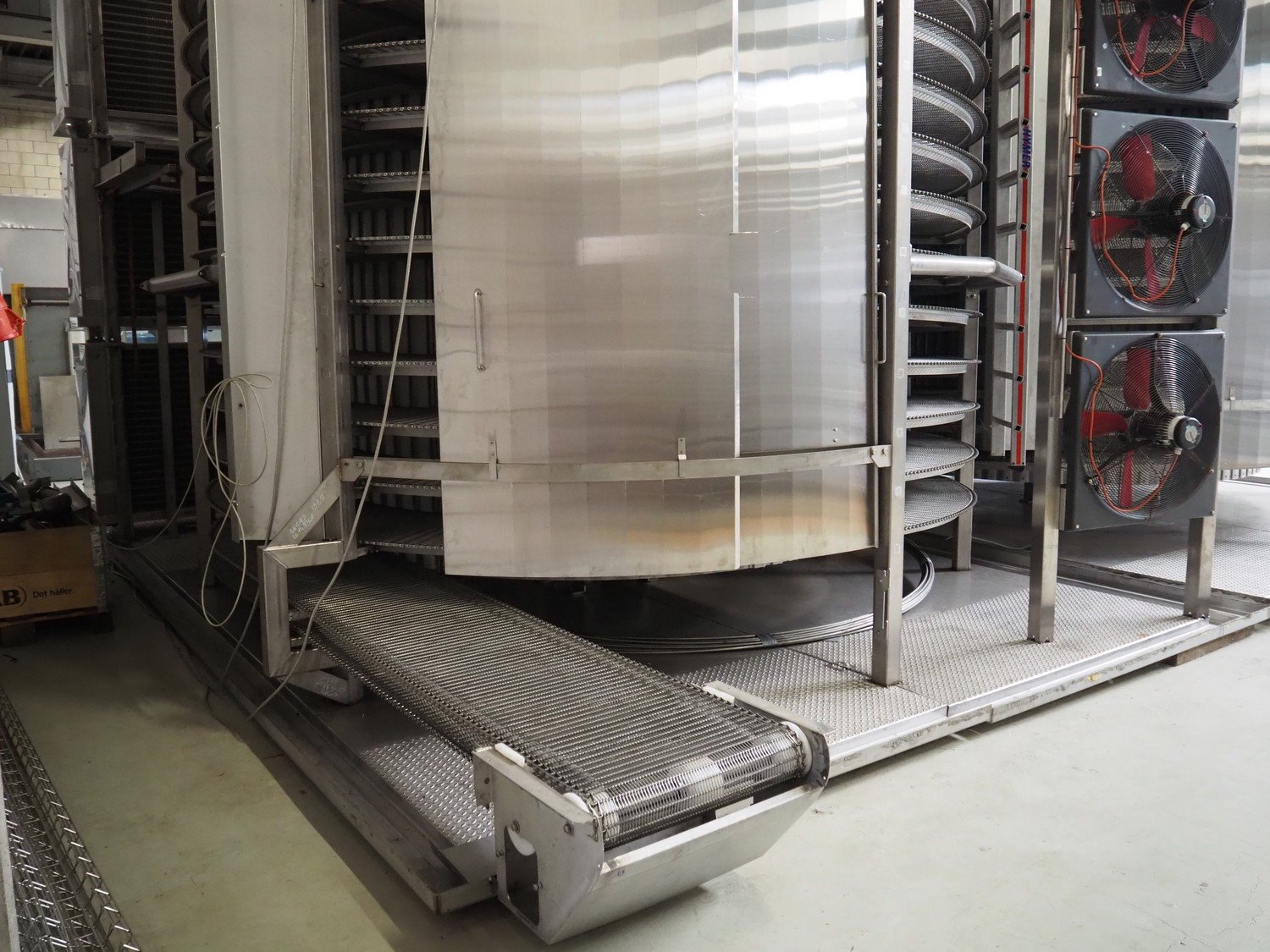

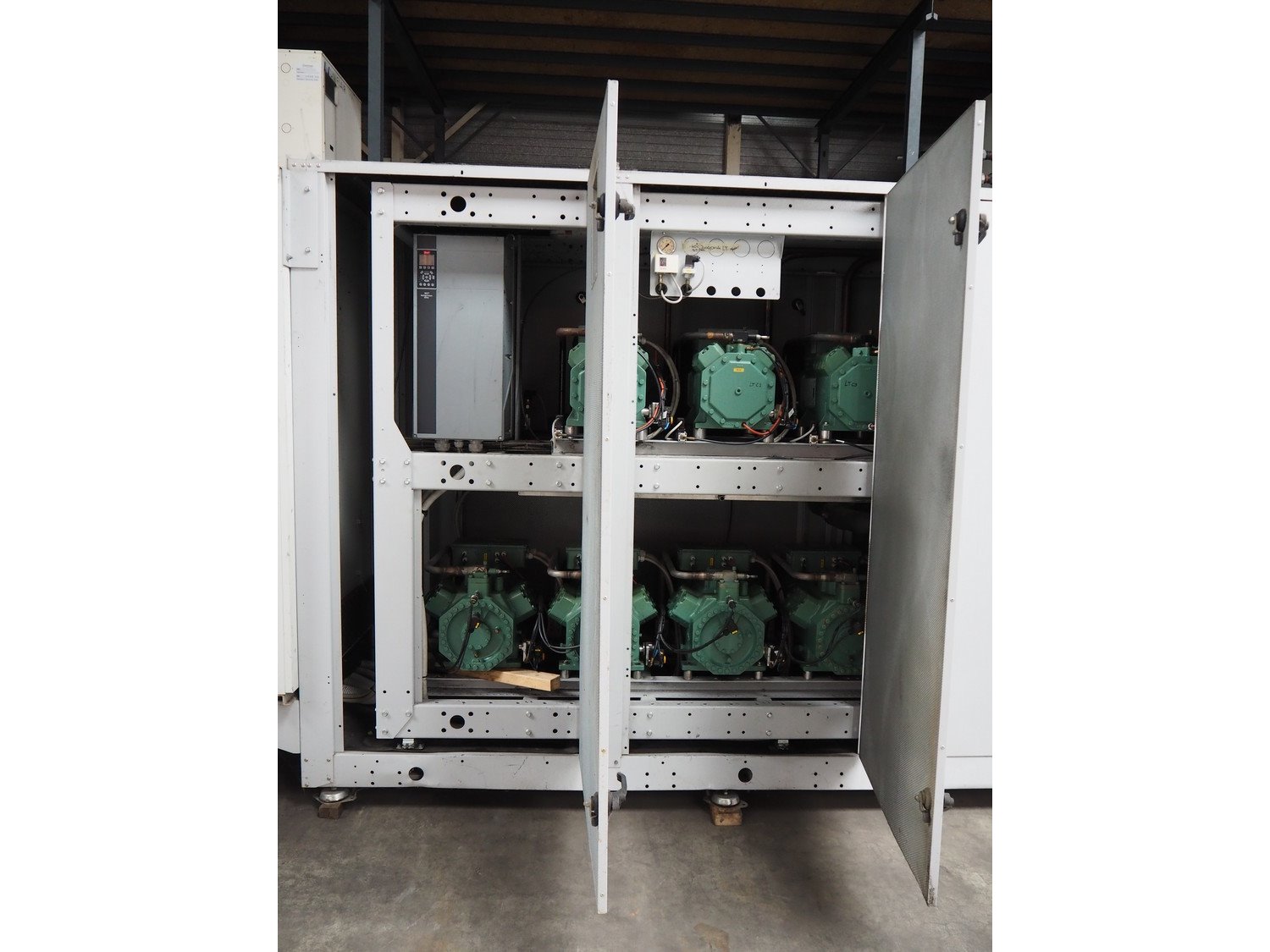

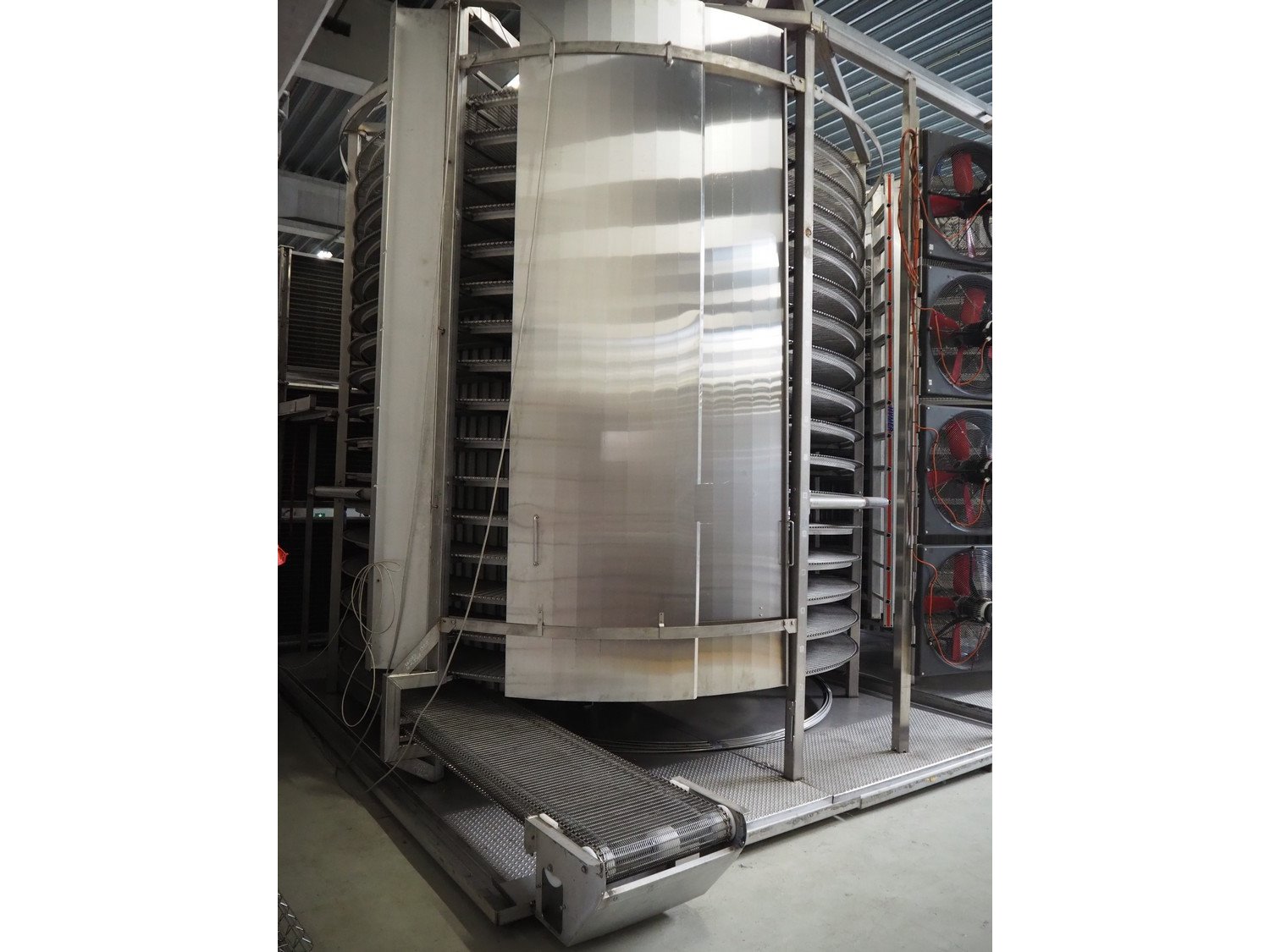

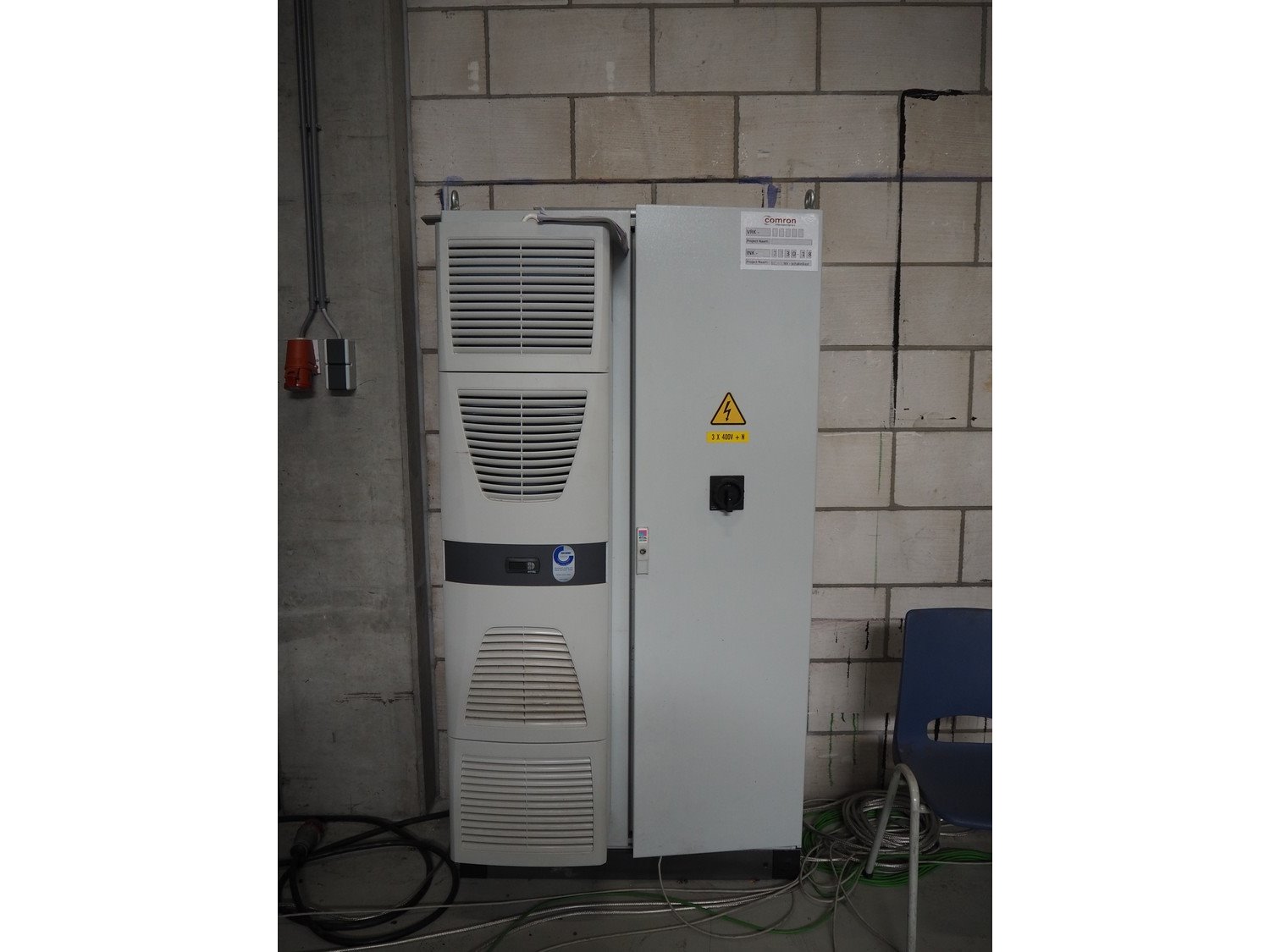

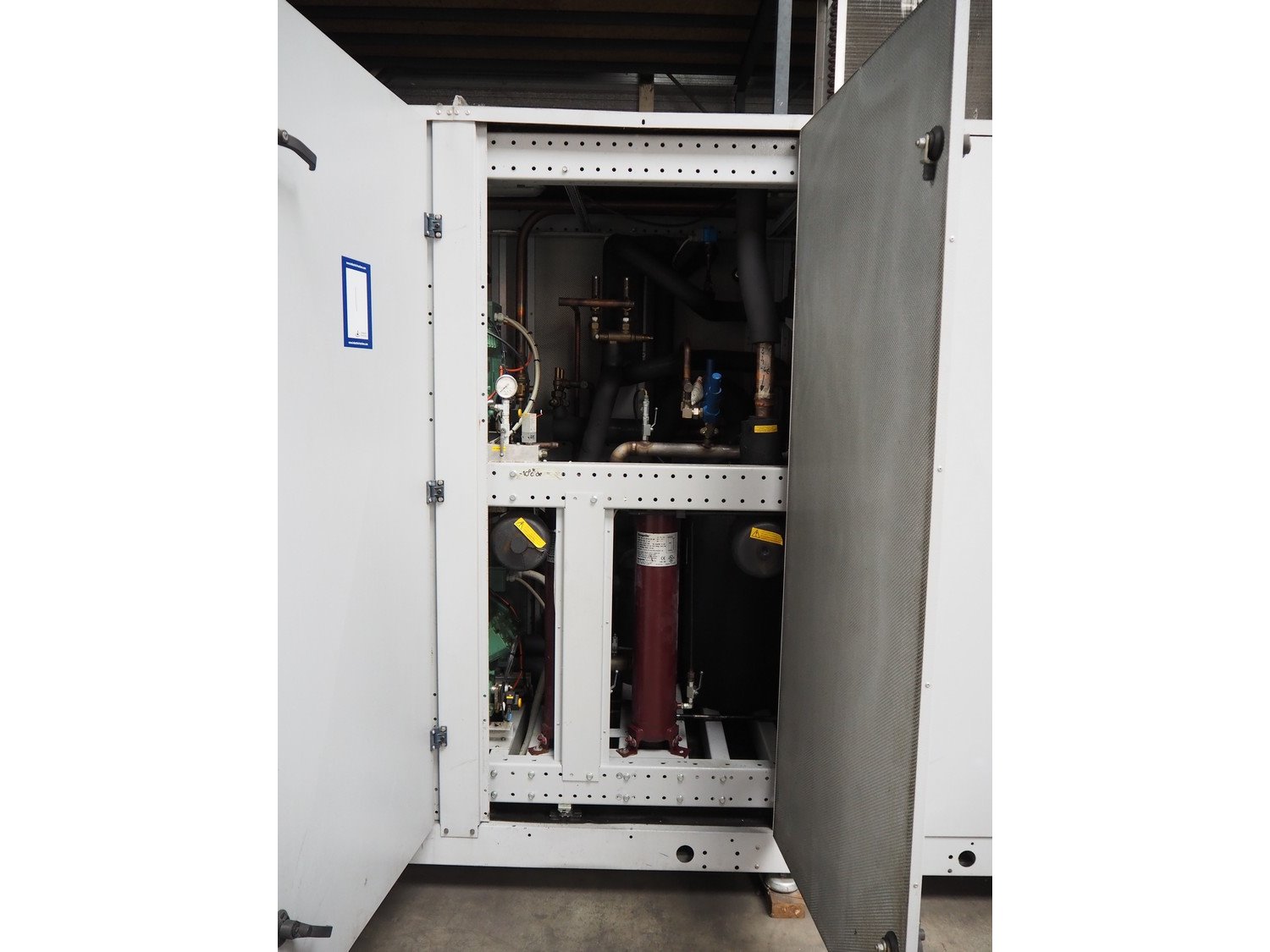

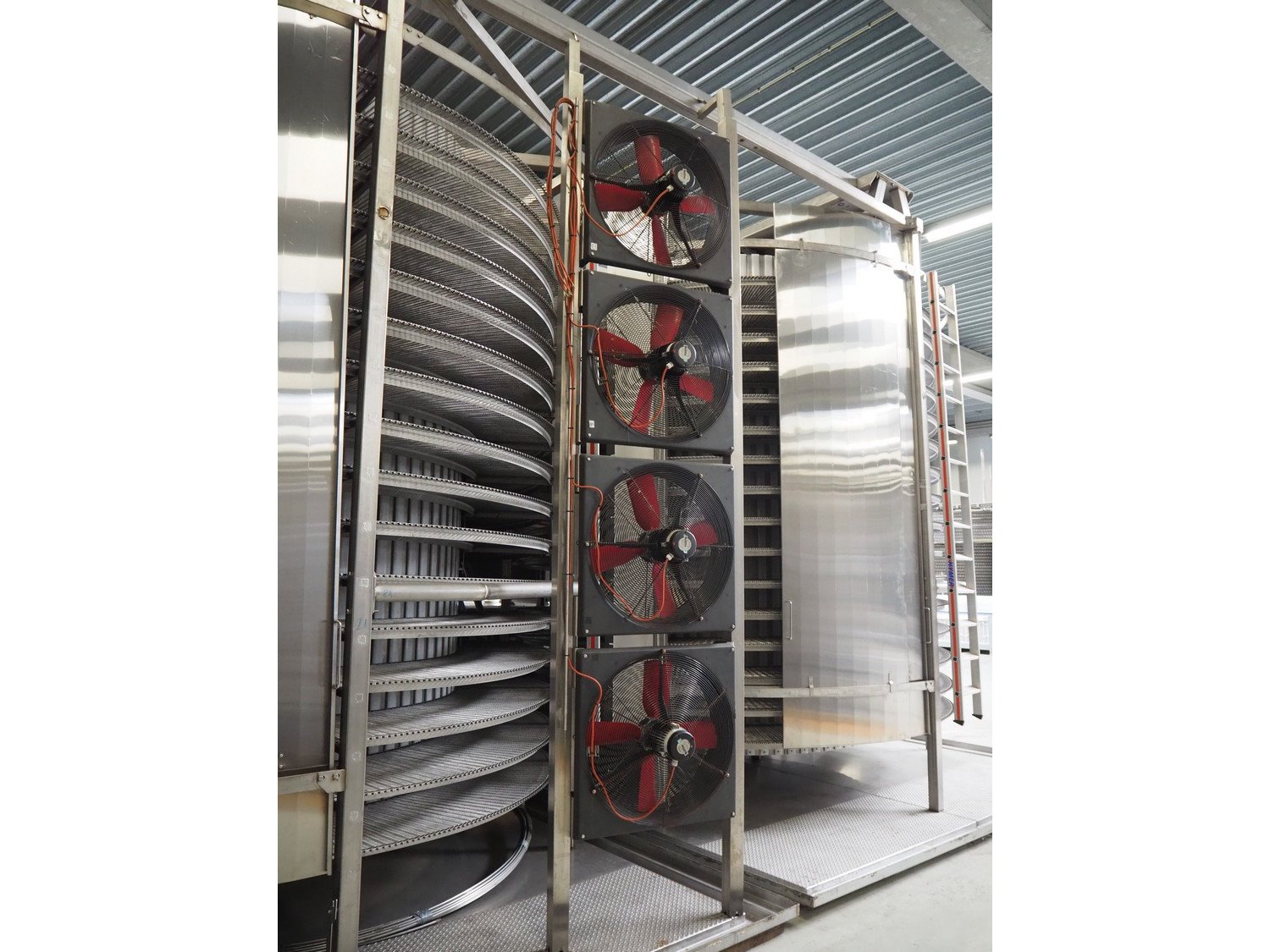

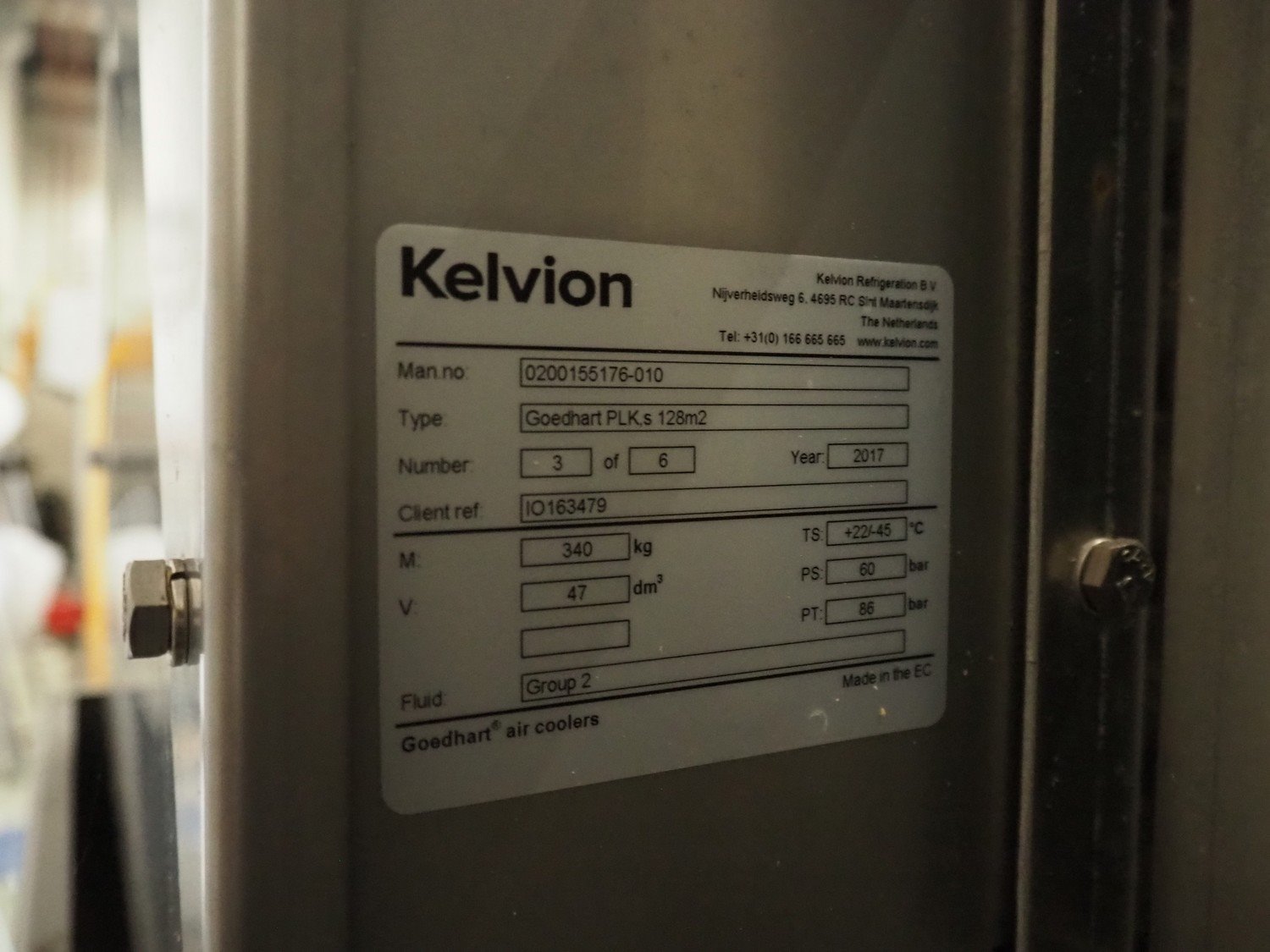

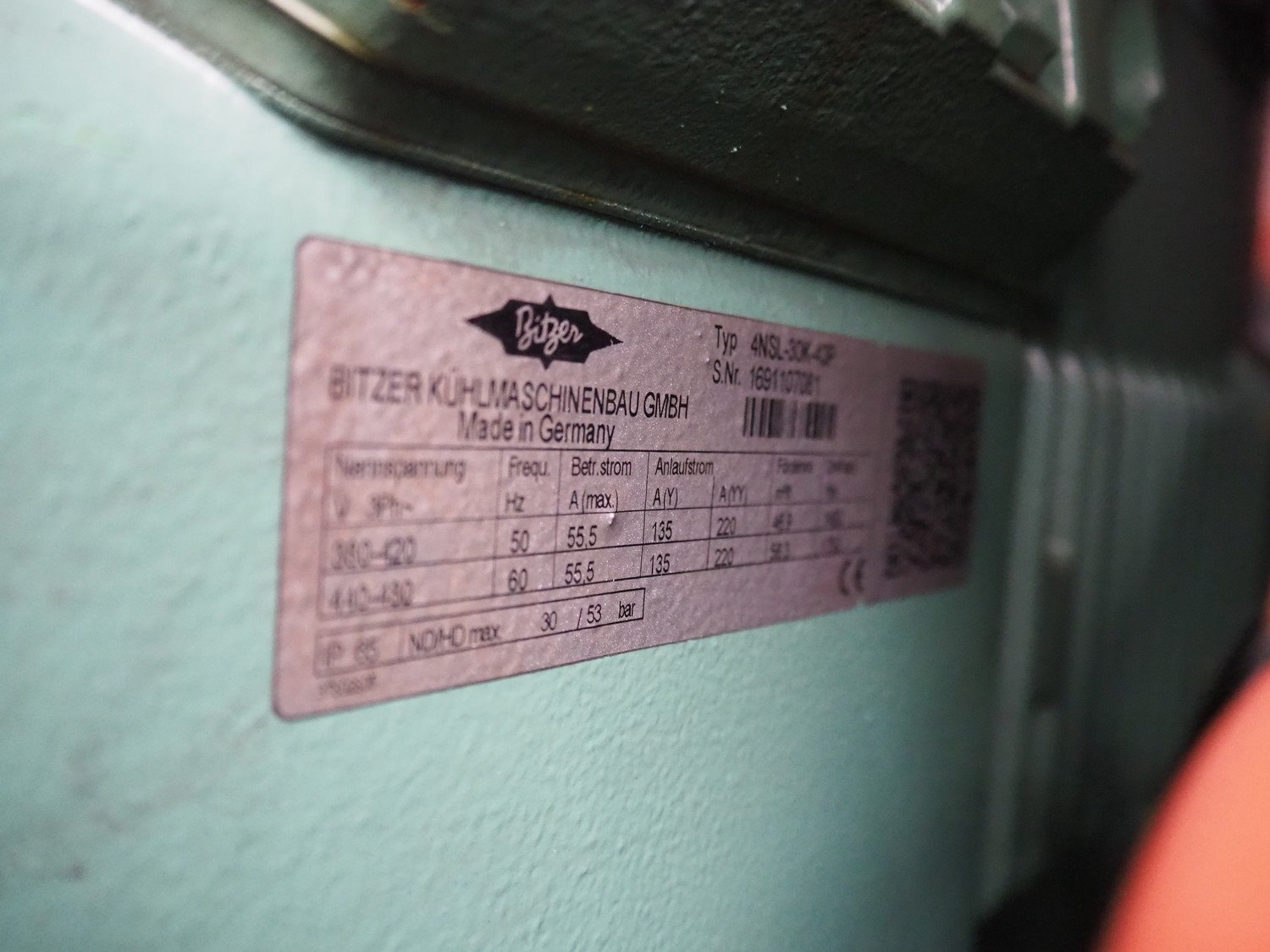

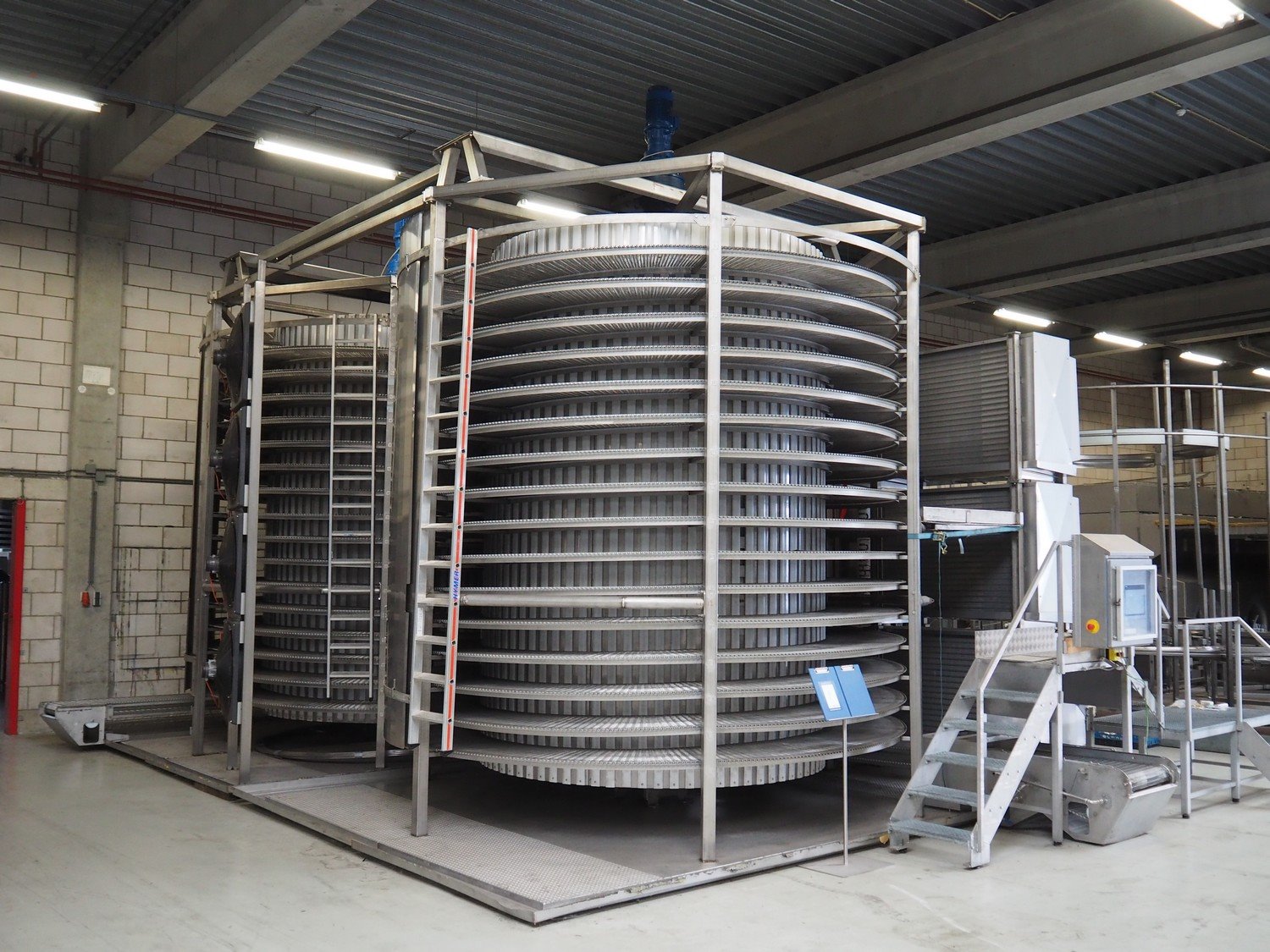

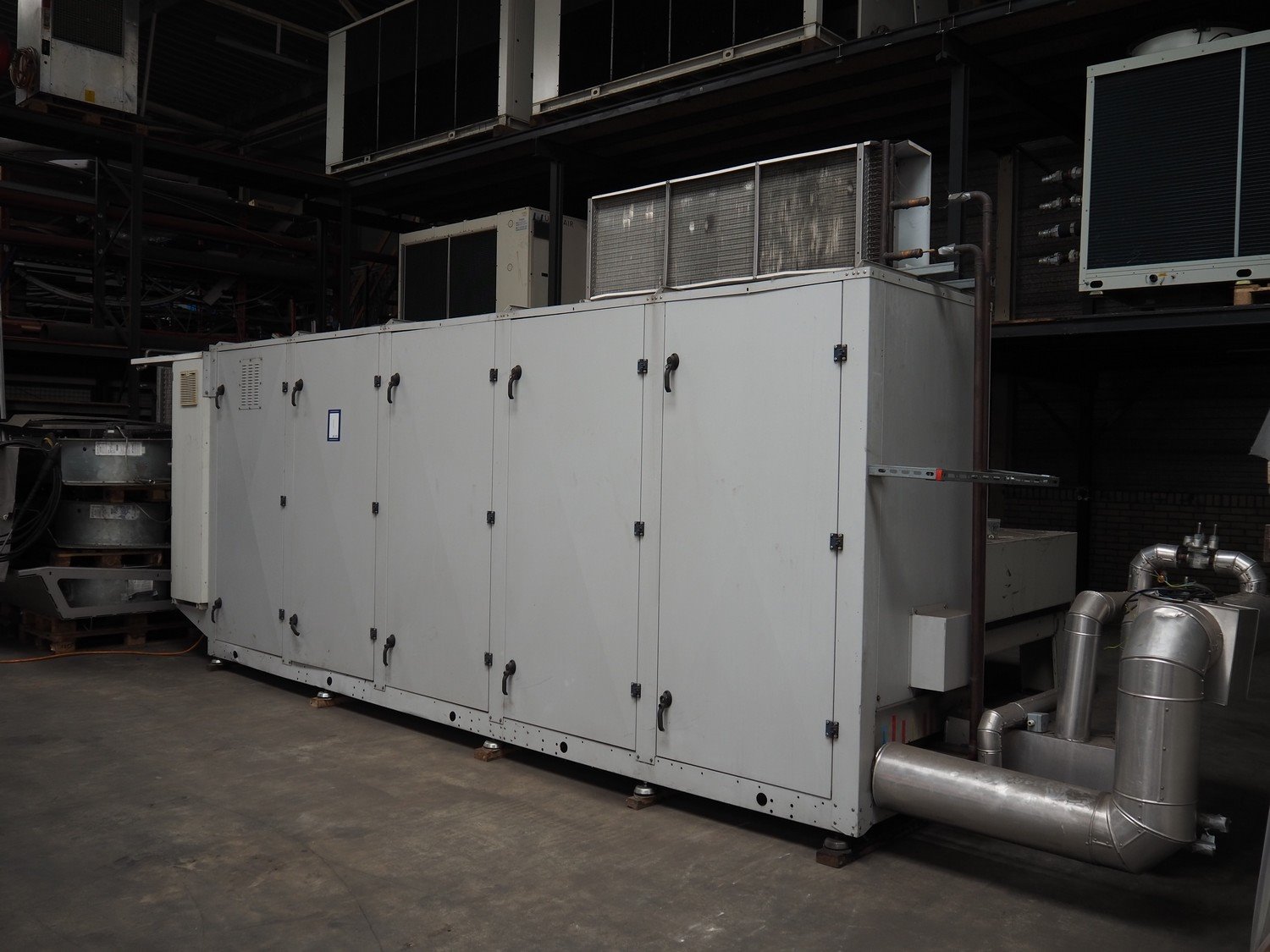

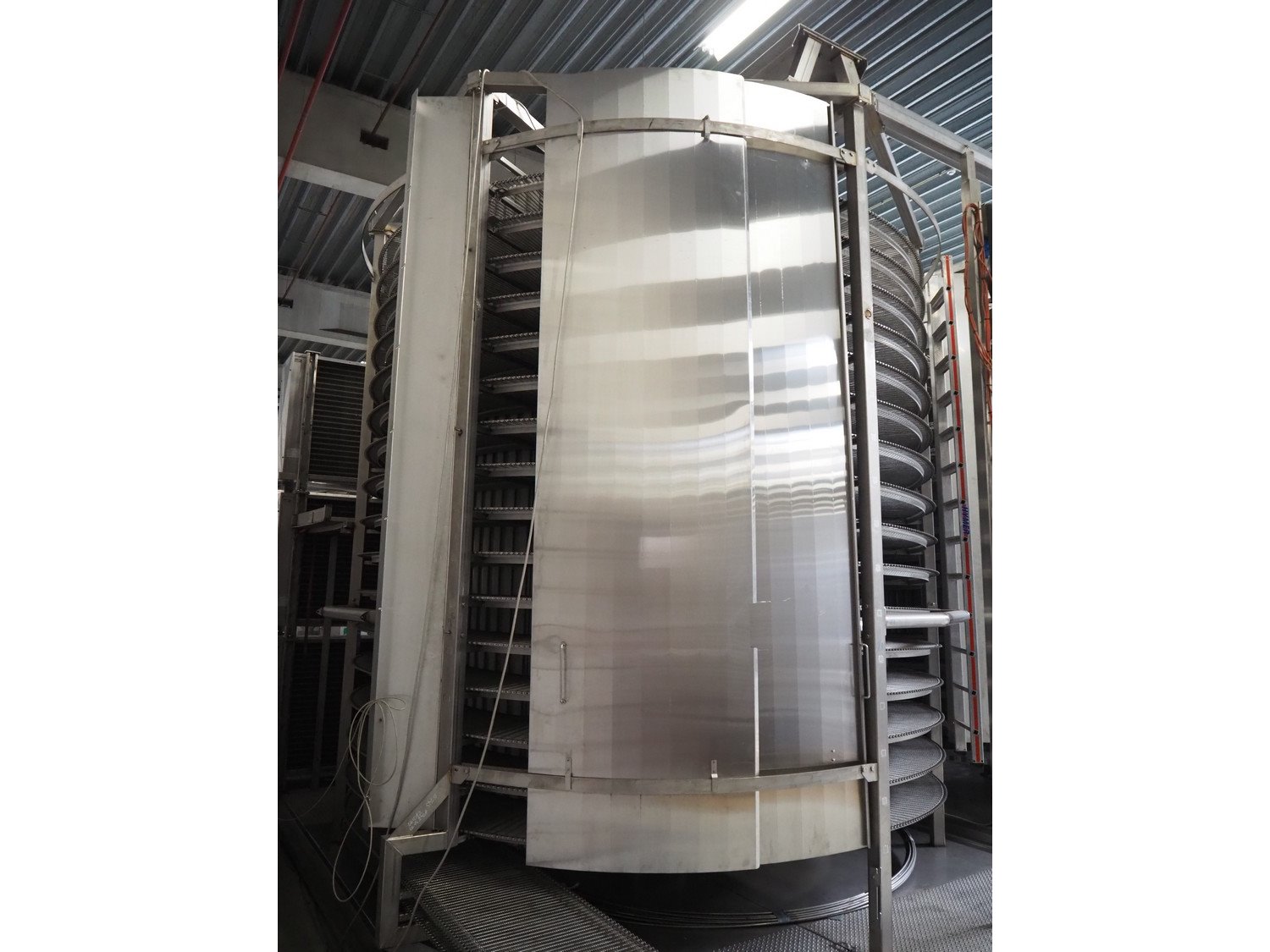

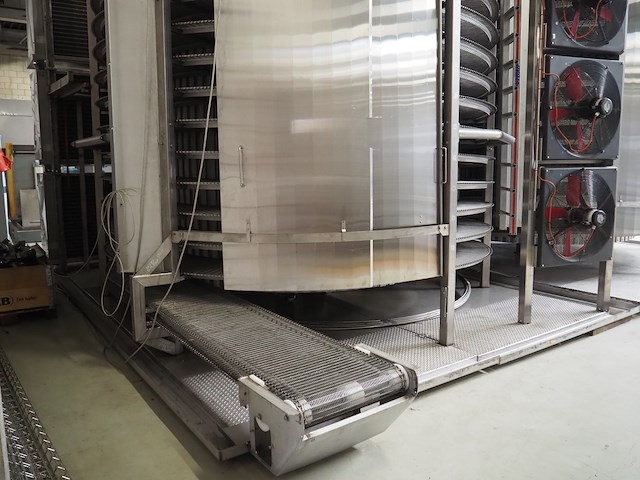

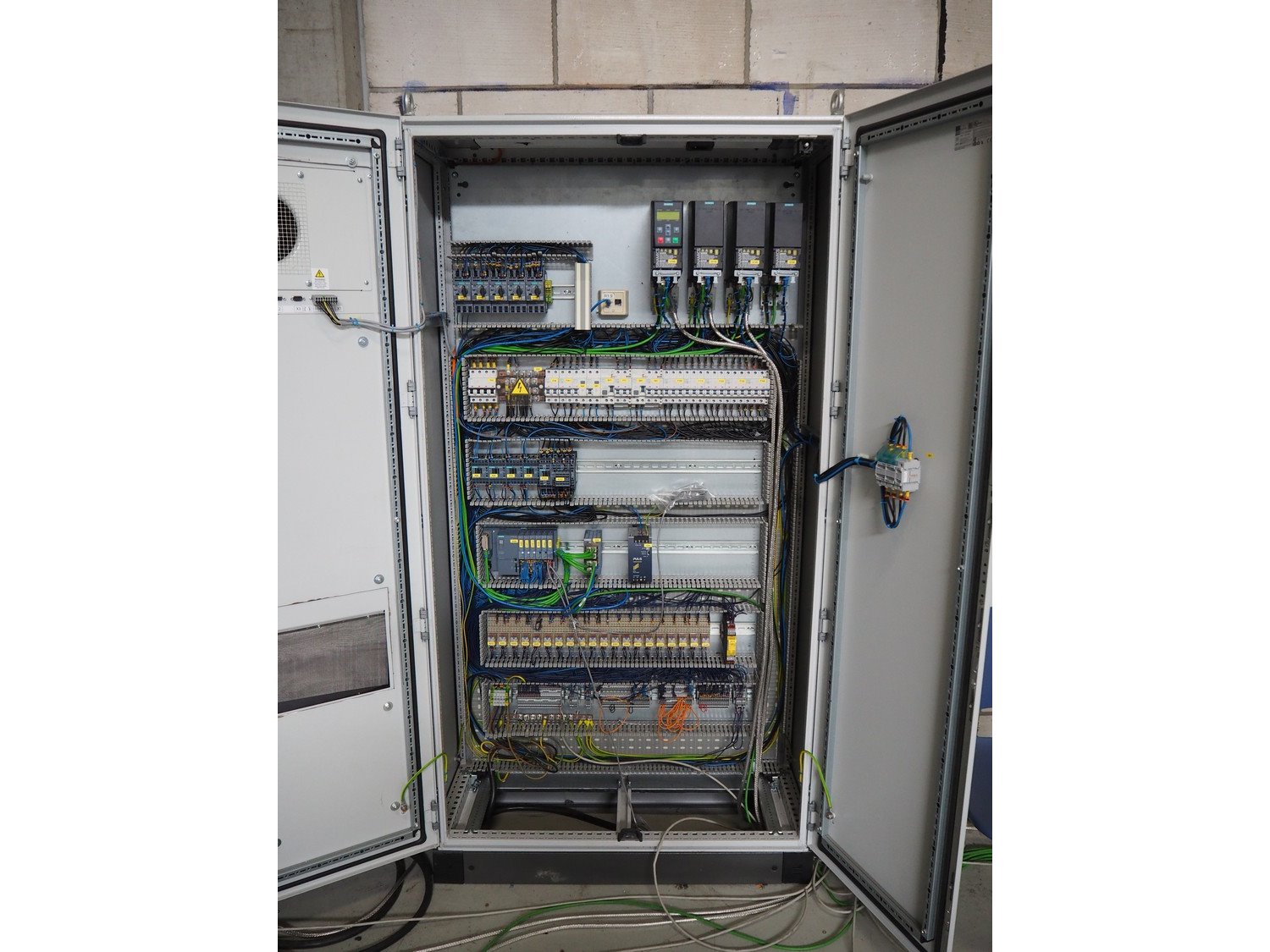

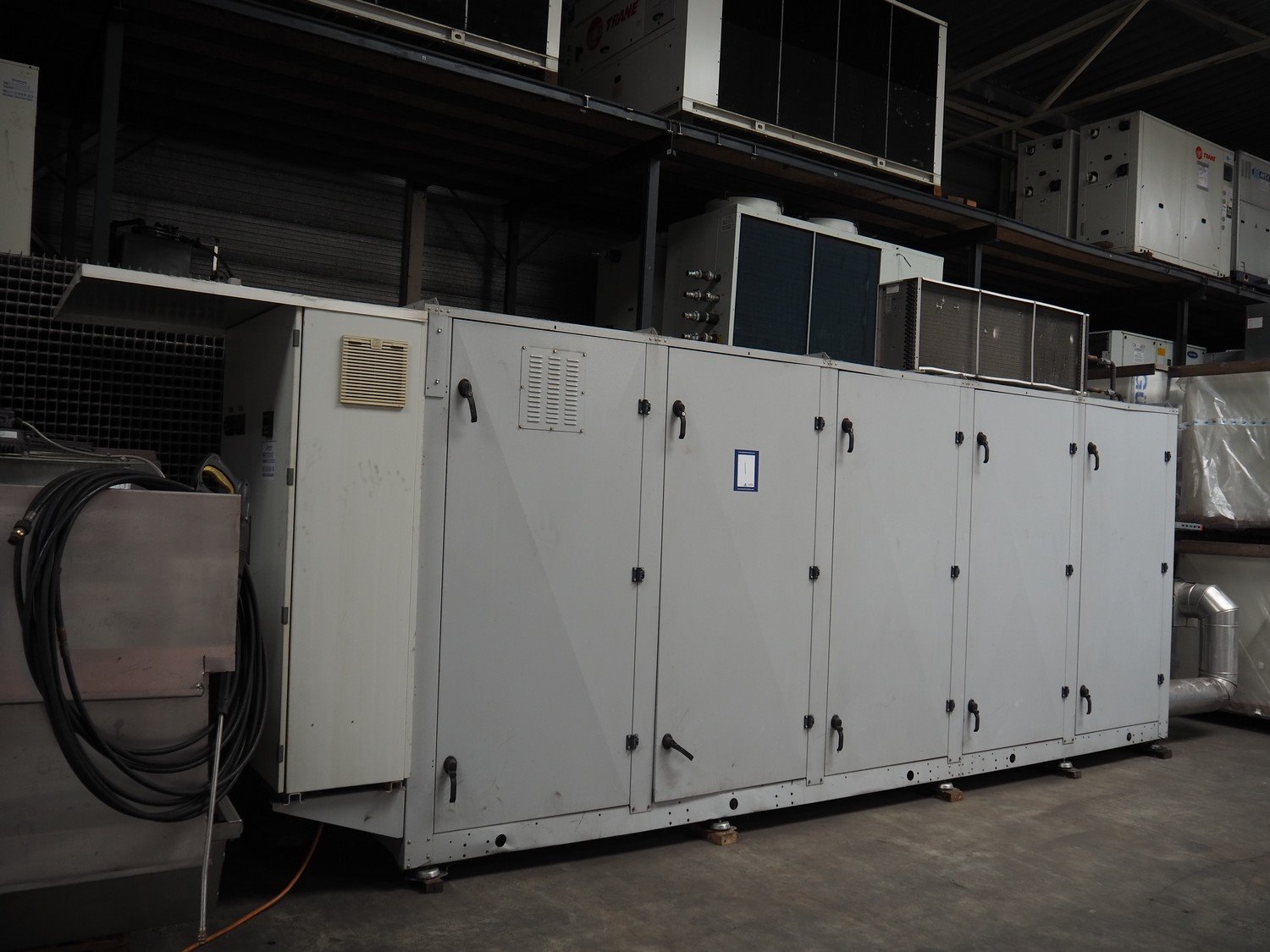

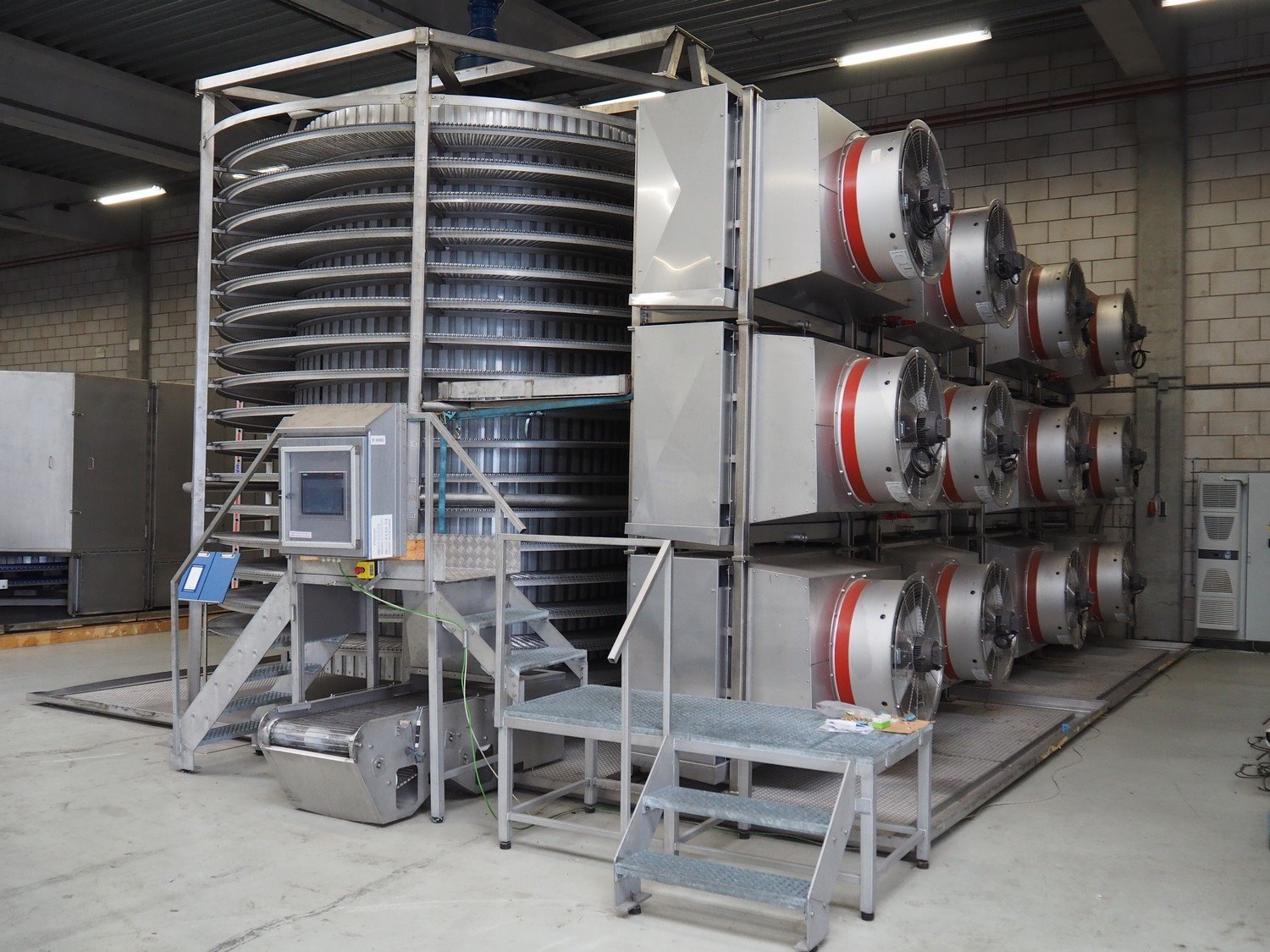

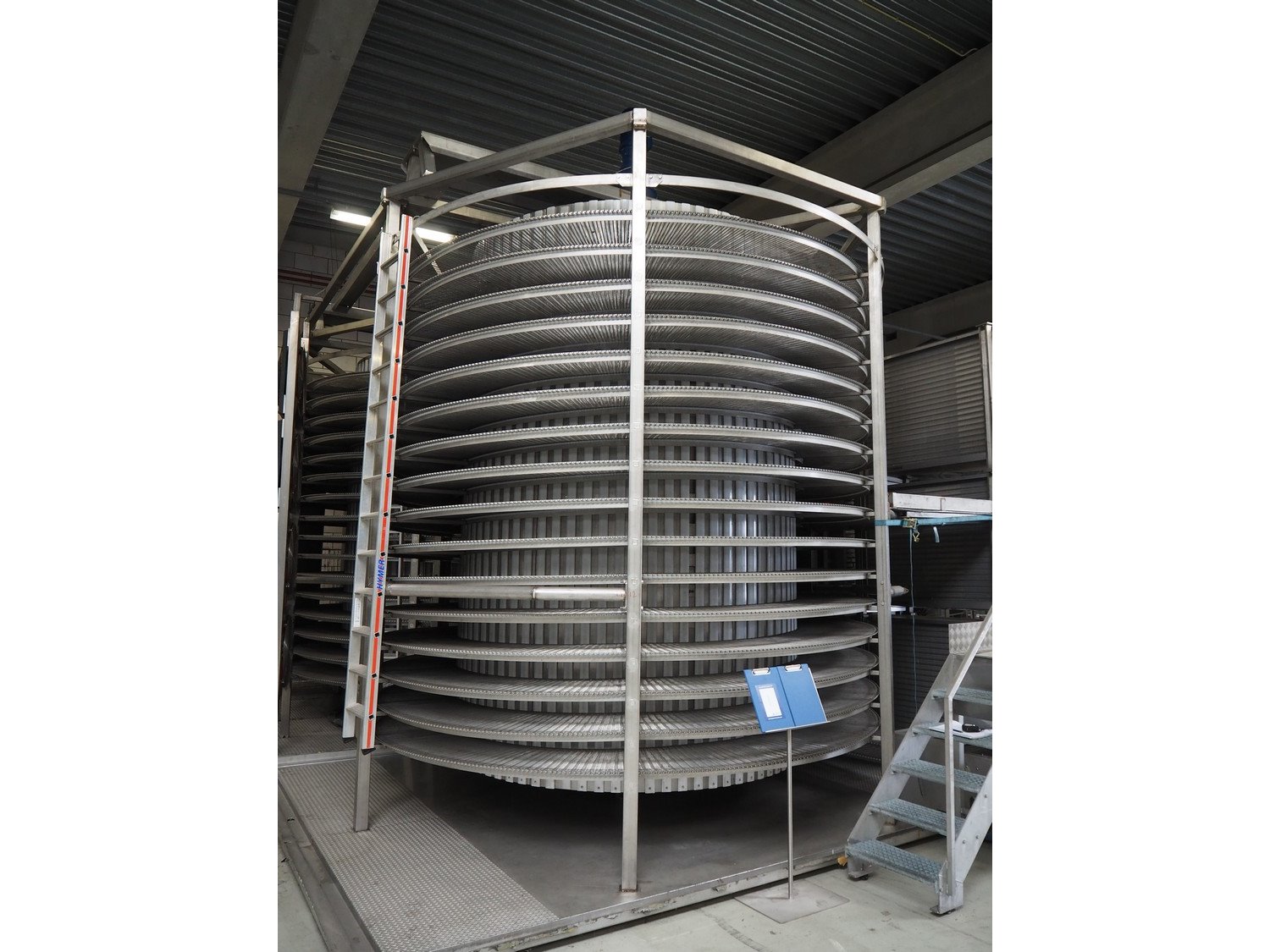

Dohmeyer/CES spiral cooler/freezer: Year of construction: 2011 (completely overhauled by the company CES in 2017) 400 V, 36 kW Refrigerant: CO2 Cooling capacity: 208 kW/61.17 tons Maximum production capacity: approximately 1.500 kg/h (depending on the product data) North-South configuration, counter clockwise rotation Infeed height: 920 mm, outfeed height: 920 mm Type of belt: s/s Ashworth belt, type: Omni-Grid 100 B24-12-17, bruto belt width: 600 mm, effective belt width: 550 mm Maximum product height: 120 mm 16 tiers per drum, total 32 pieces, effective belt length: 374 m Drum diameter outside: 2720 per drum Adjustable band speed: between minimum 3m/min and maximum 7m/min (6x) Kelvion s/s and aluminium cooling evaporators (6x) Kelvion s/s and aluminium blast freeze evaporators S/s switch cabinet with Siemens S7/Simatic touchscreen Belt cleaning unit Bitzer Kühlmaschinenbau GmbH CO2 – transcritical DX cooling/freezing system built in a low noise container Total dimensions: 8750 mm x 7250 mm x 5100 mm Kavel locatie: Amsterdamseweg 20, 1422 AD Uithoorn, Nederland
