Nn freeze dry system

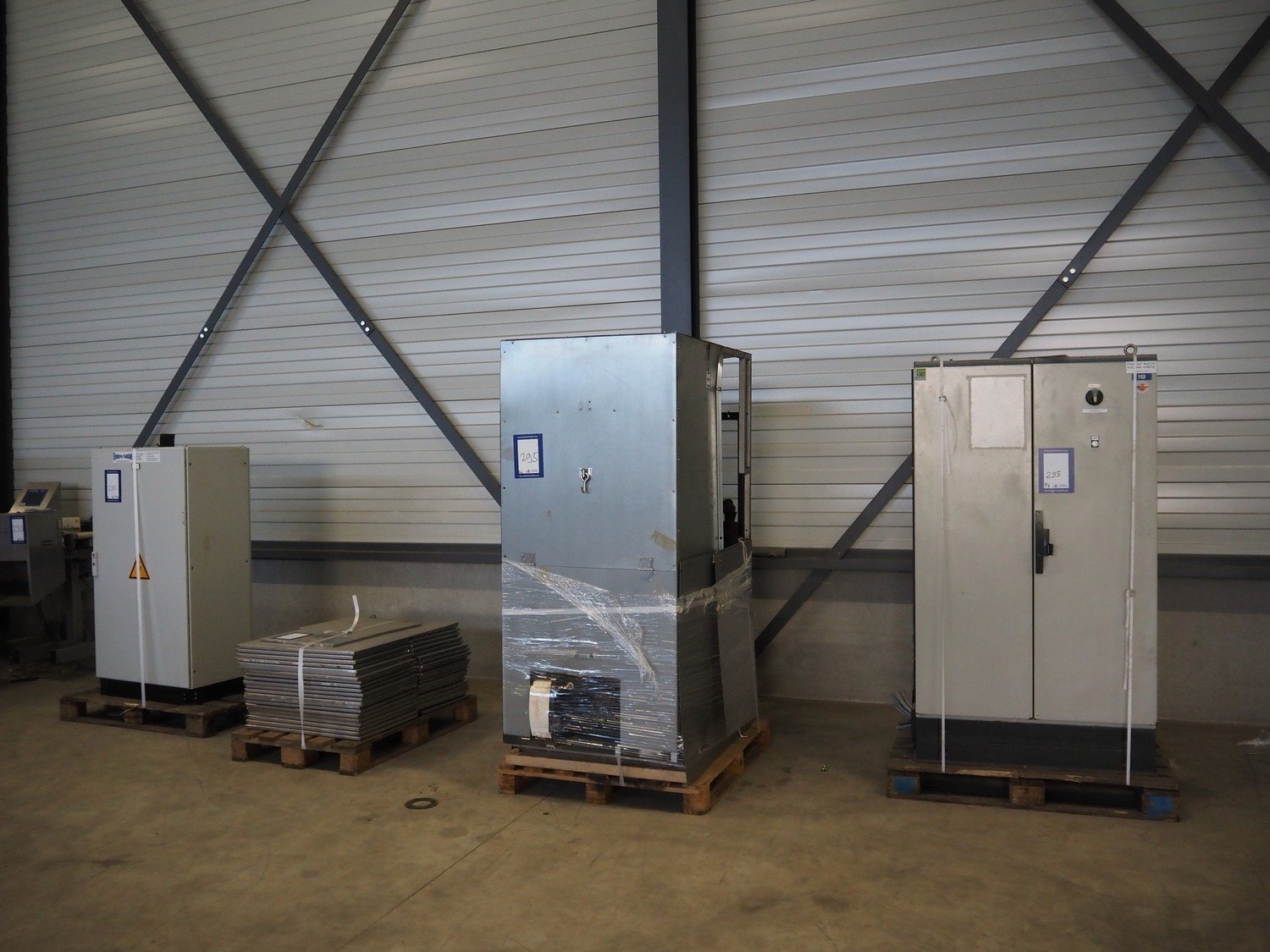

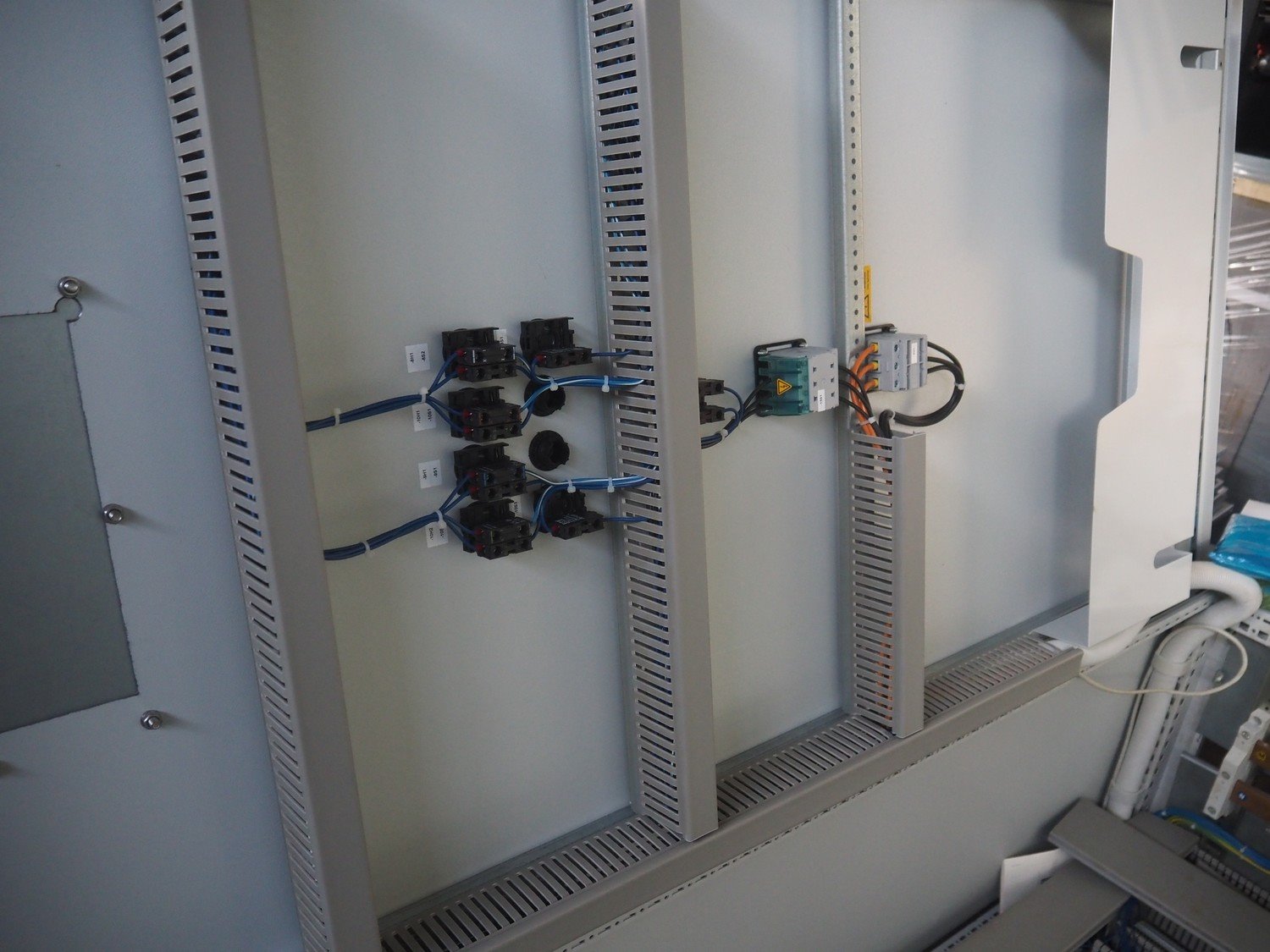

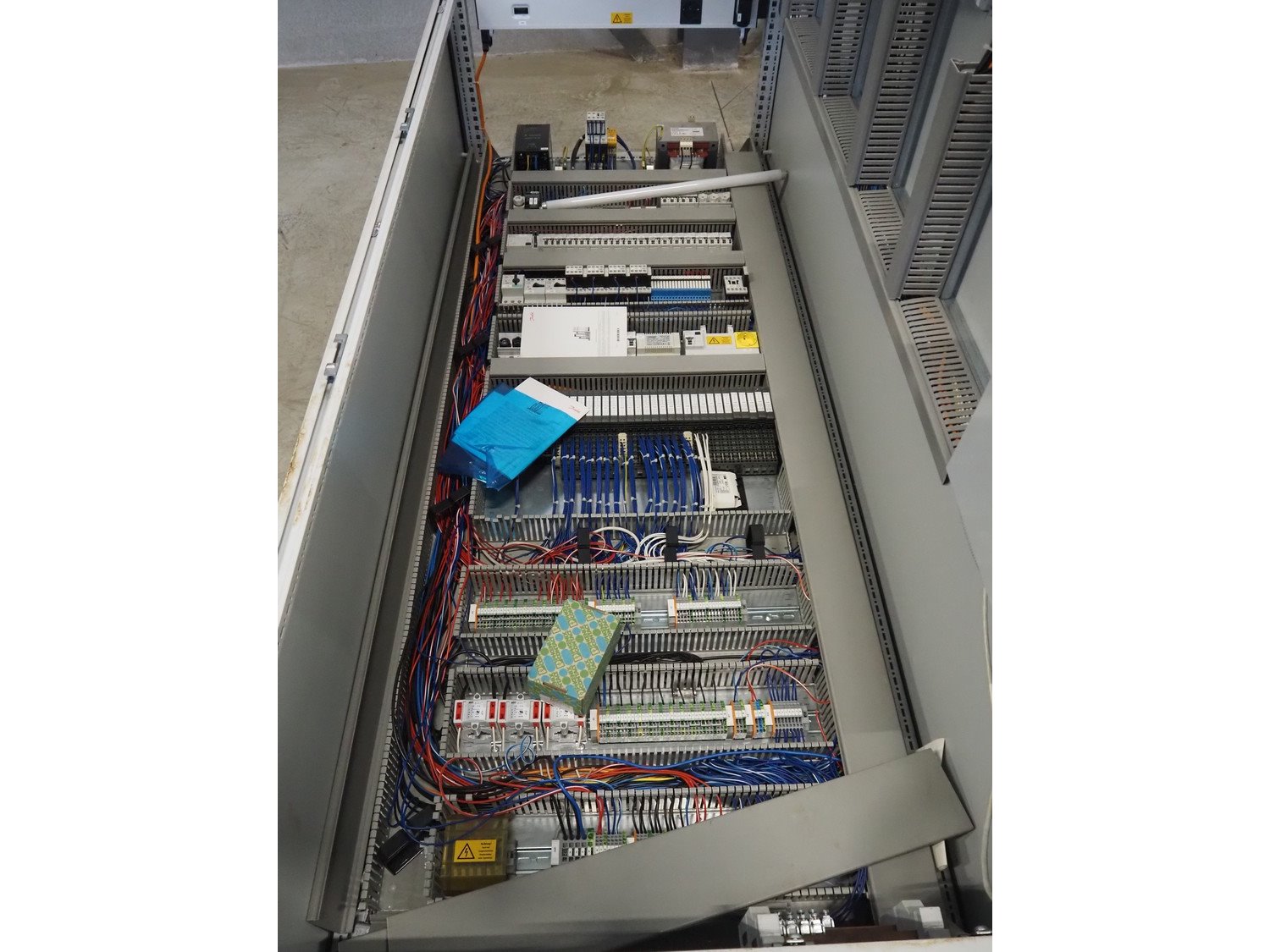

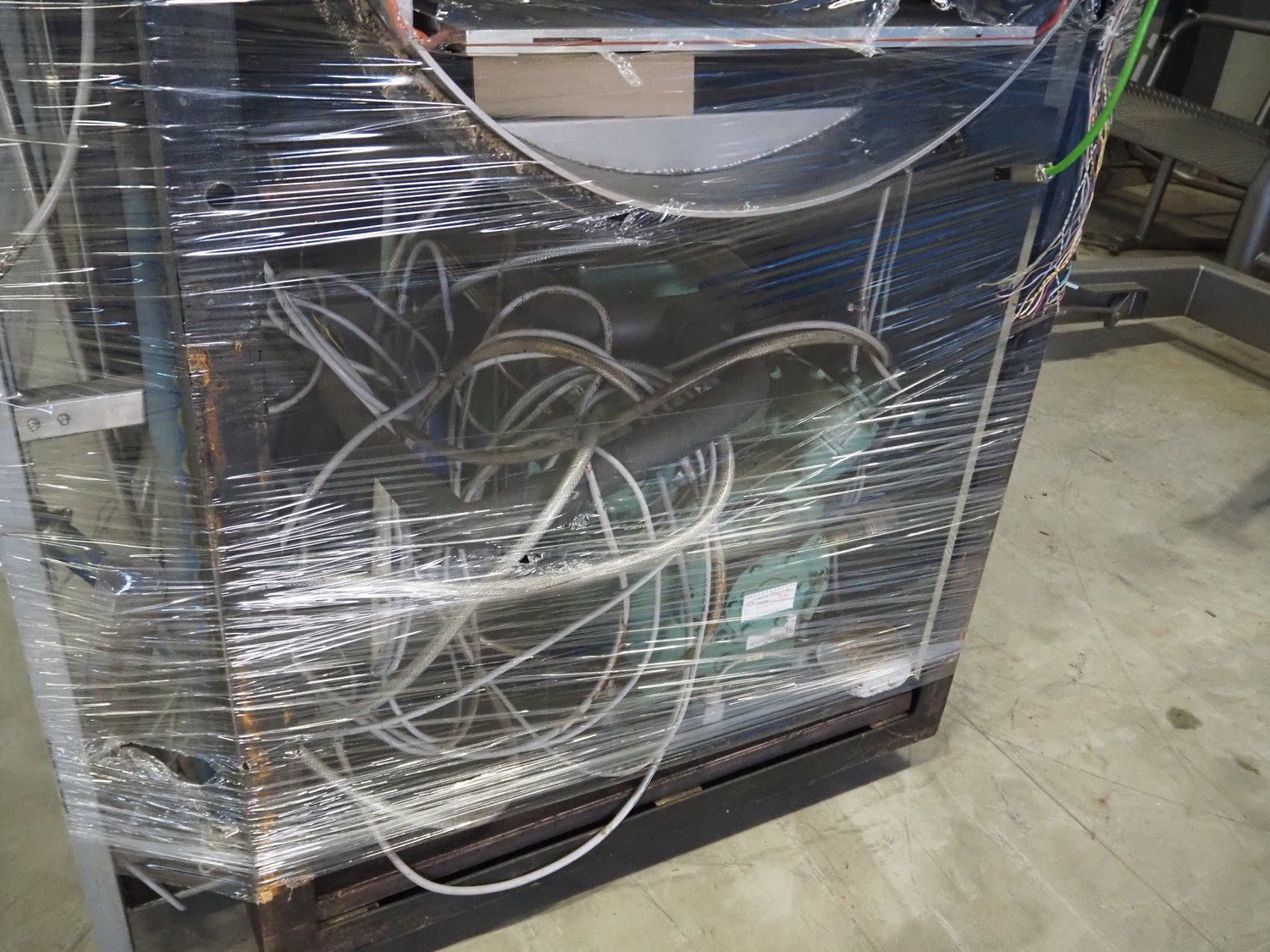

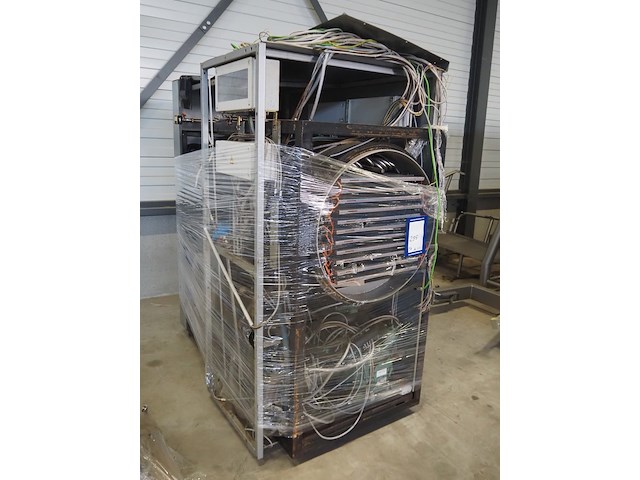

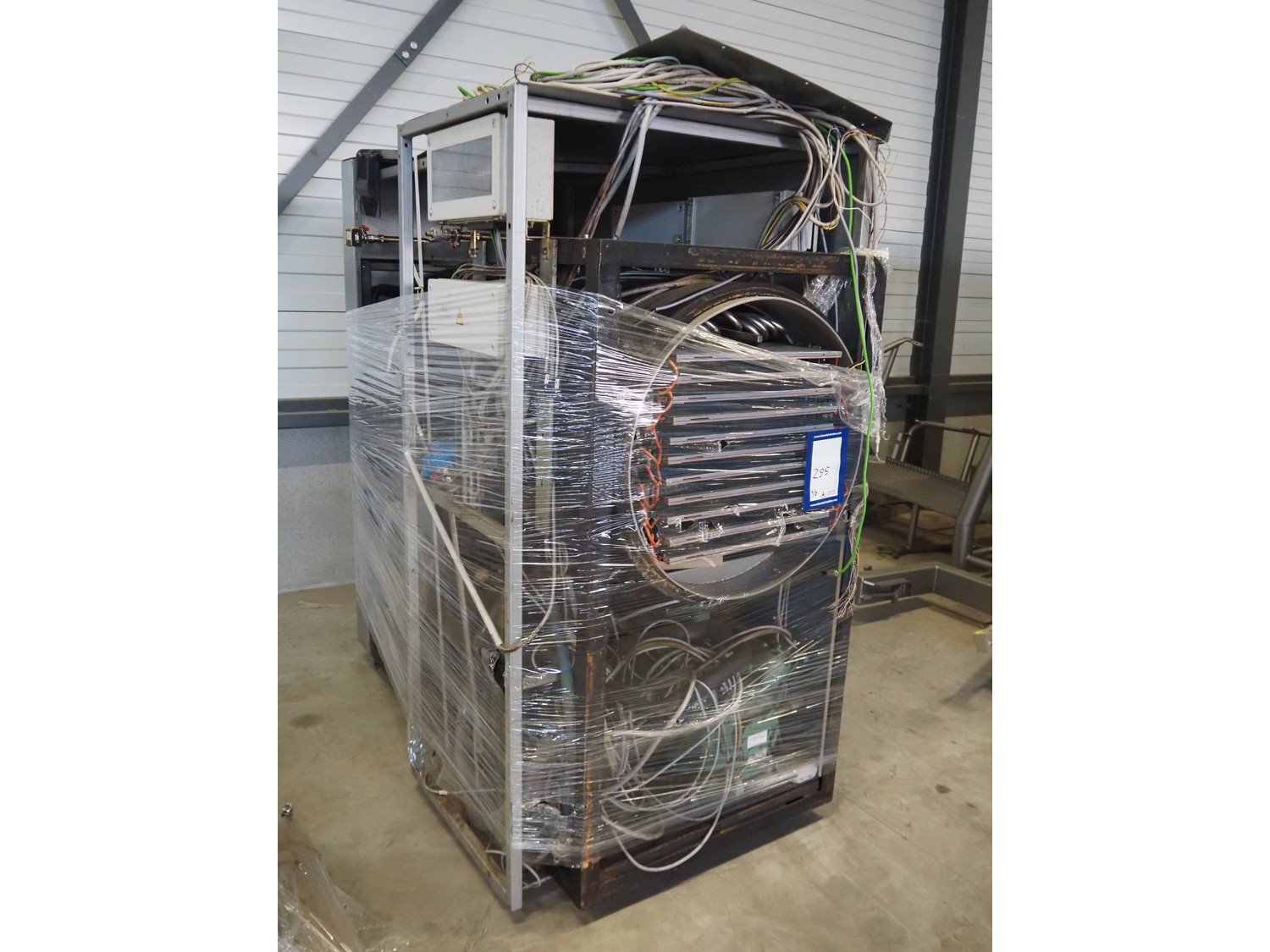

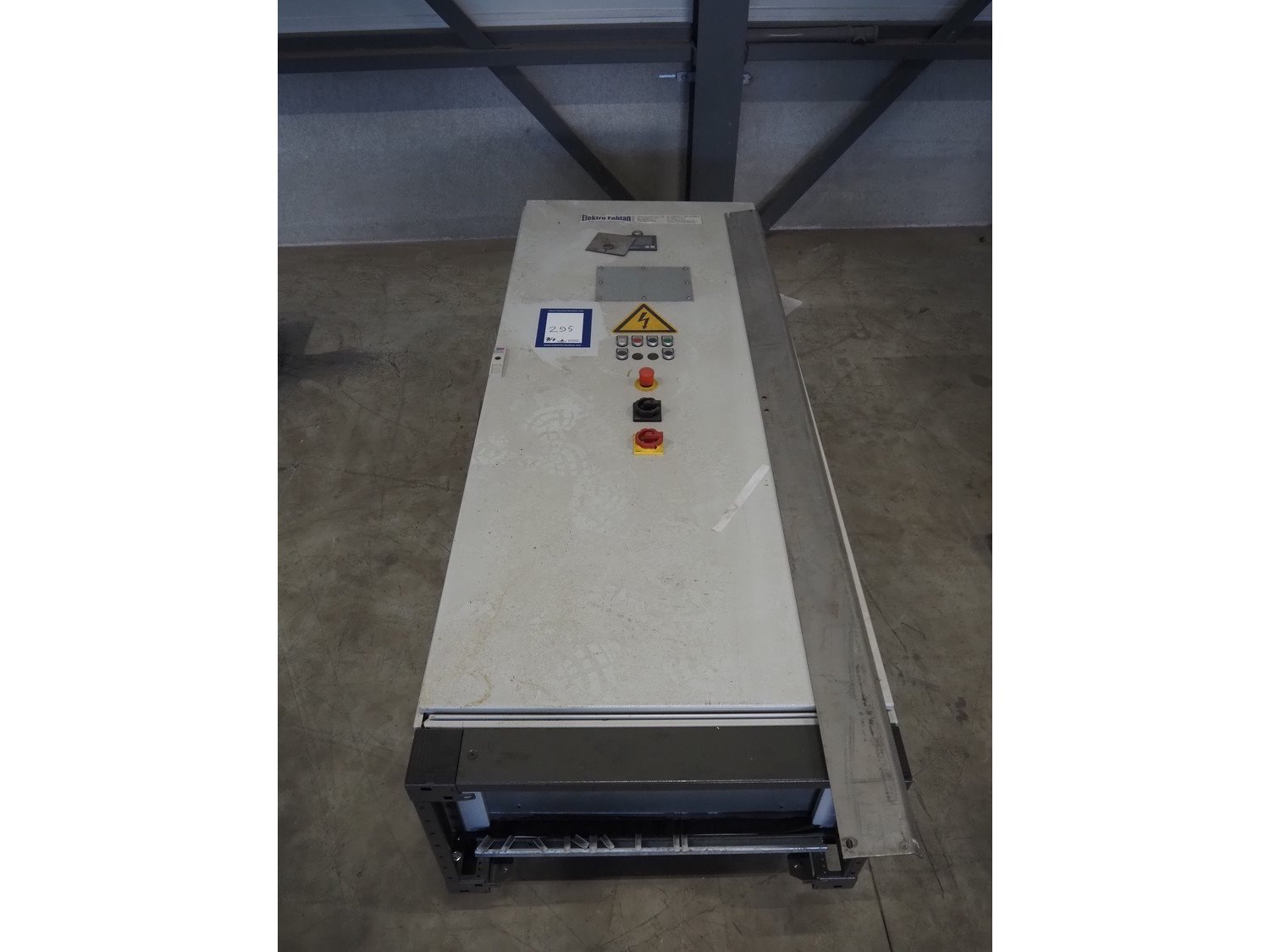

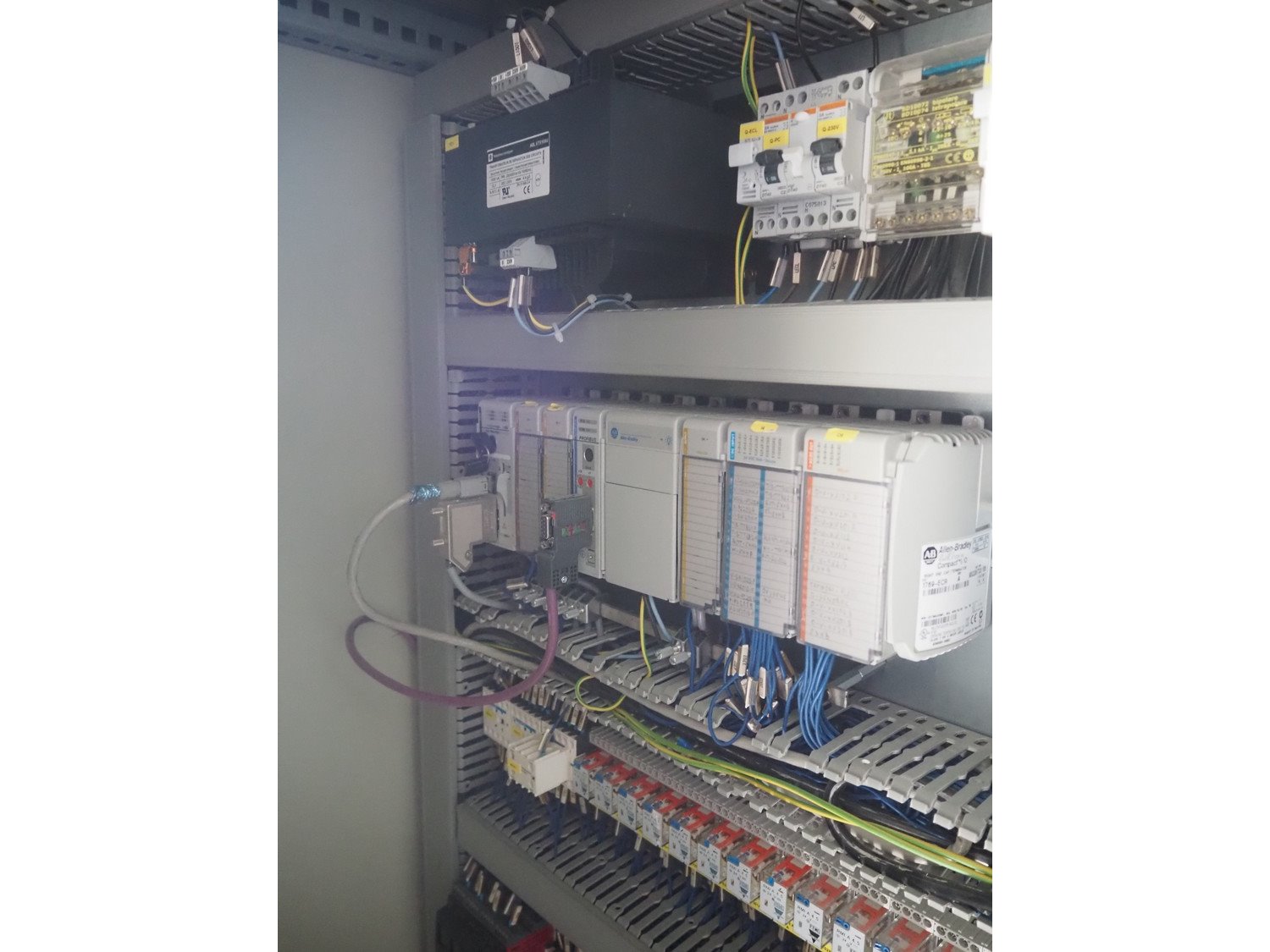

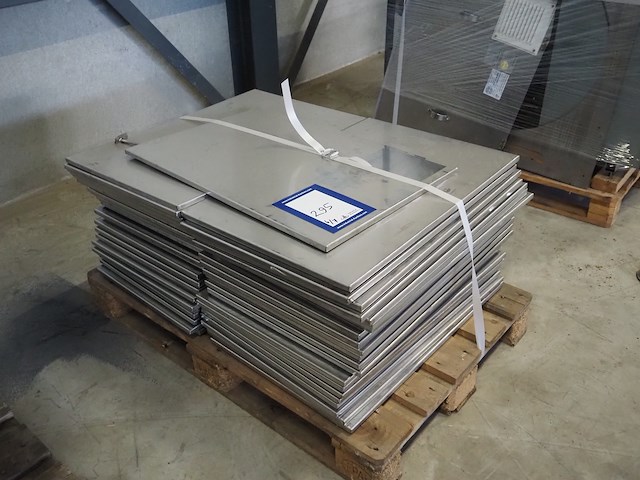

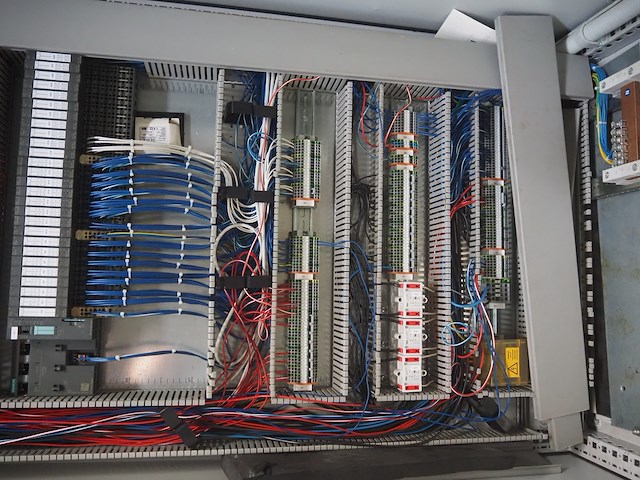

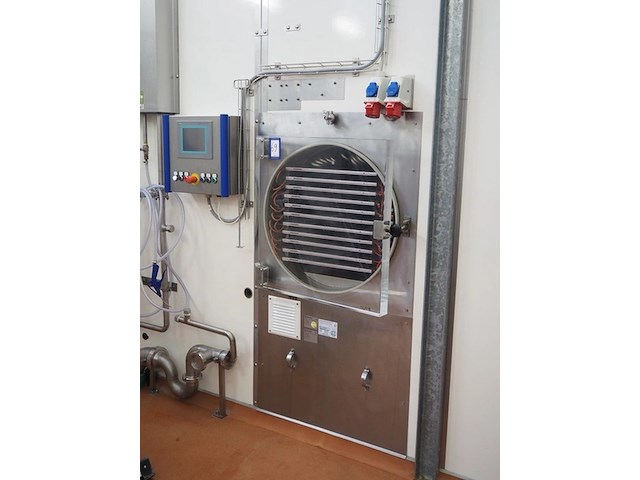

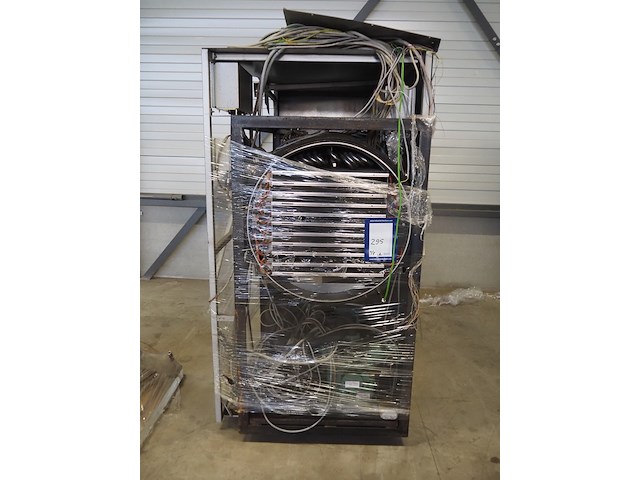

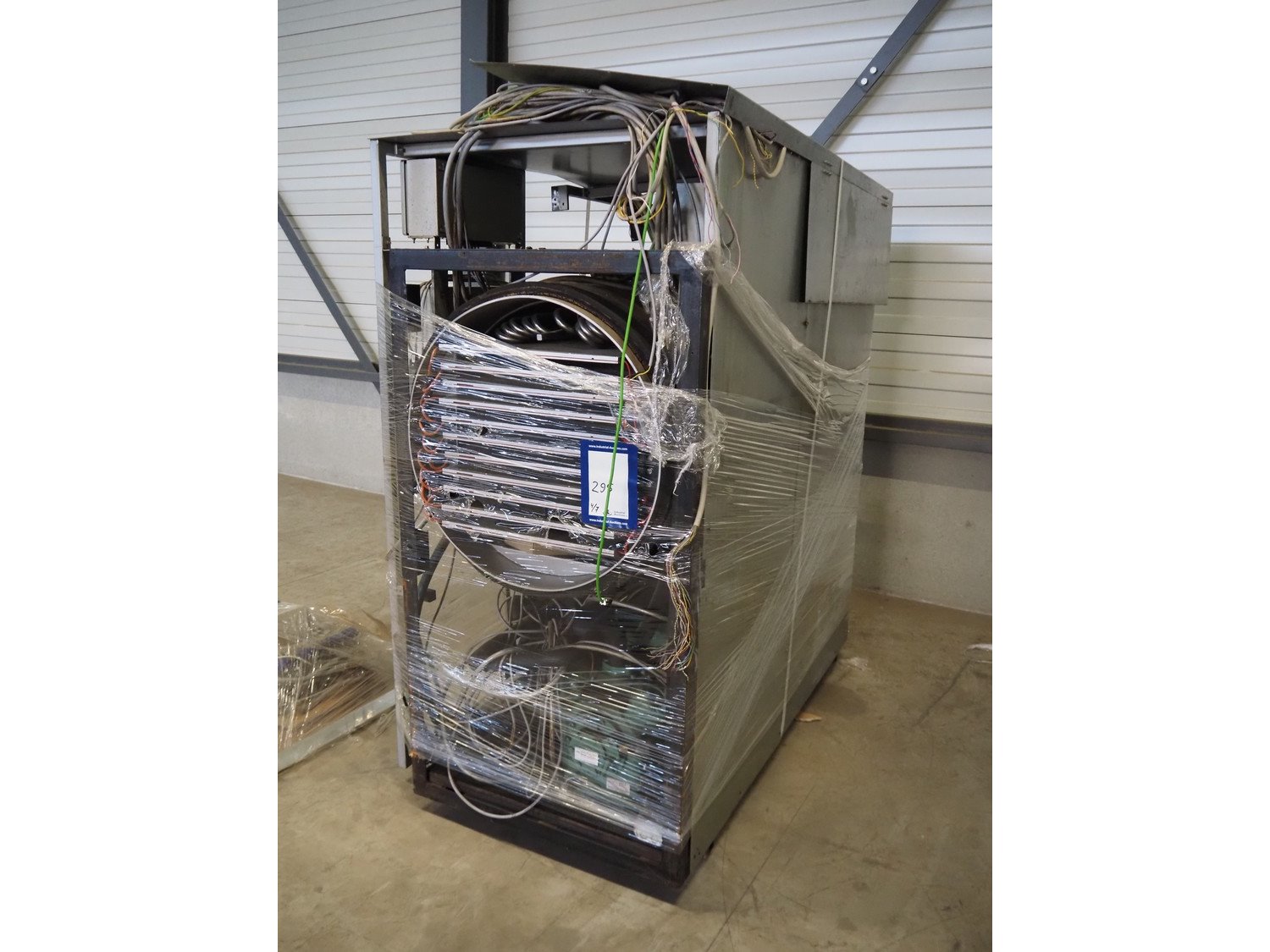

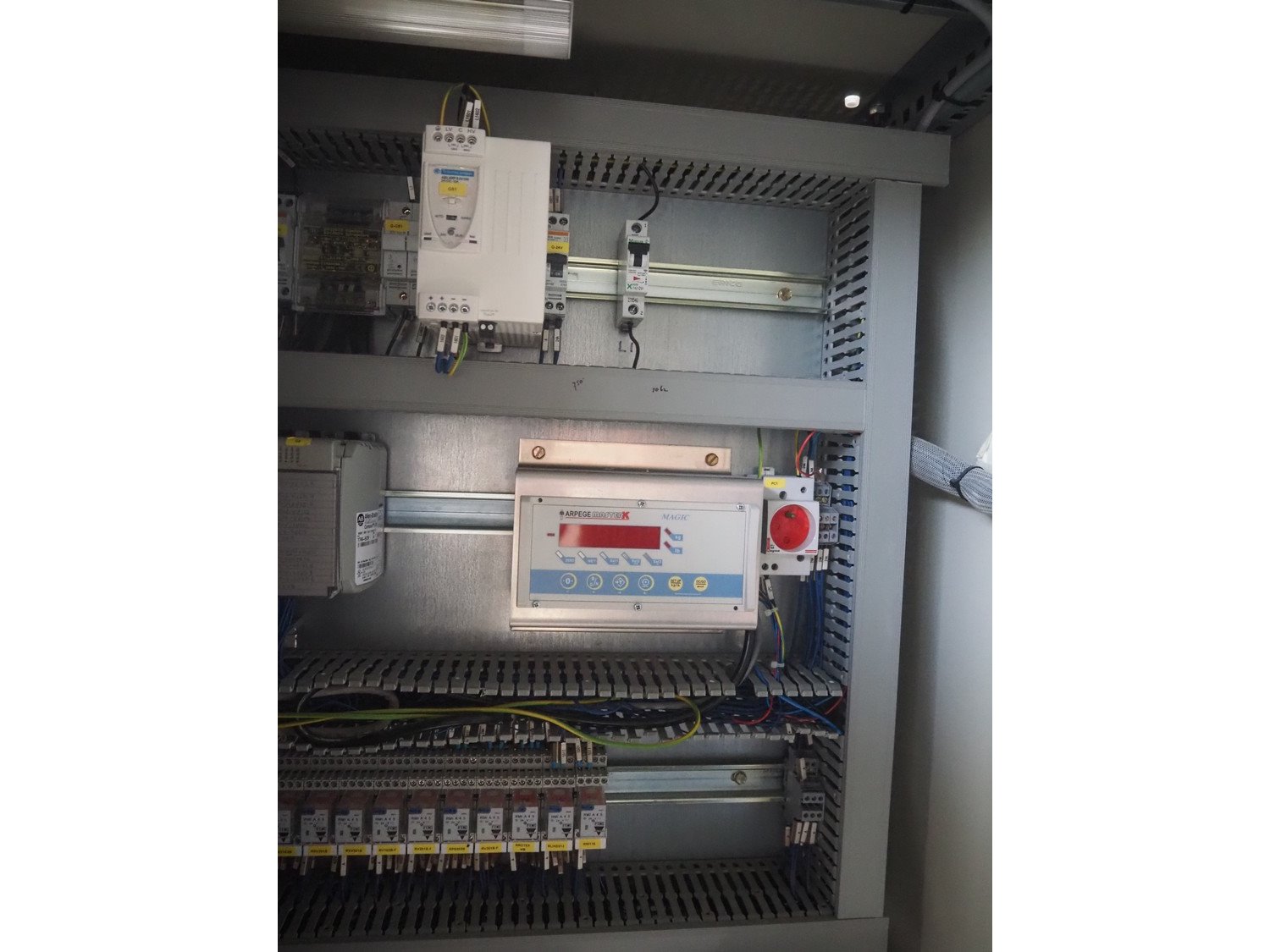

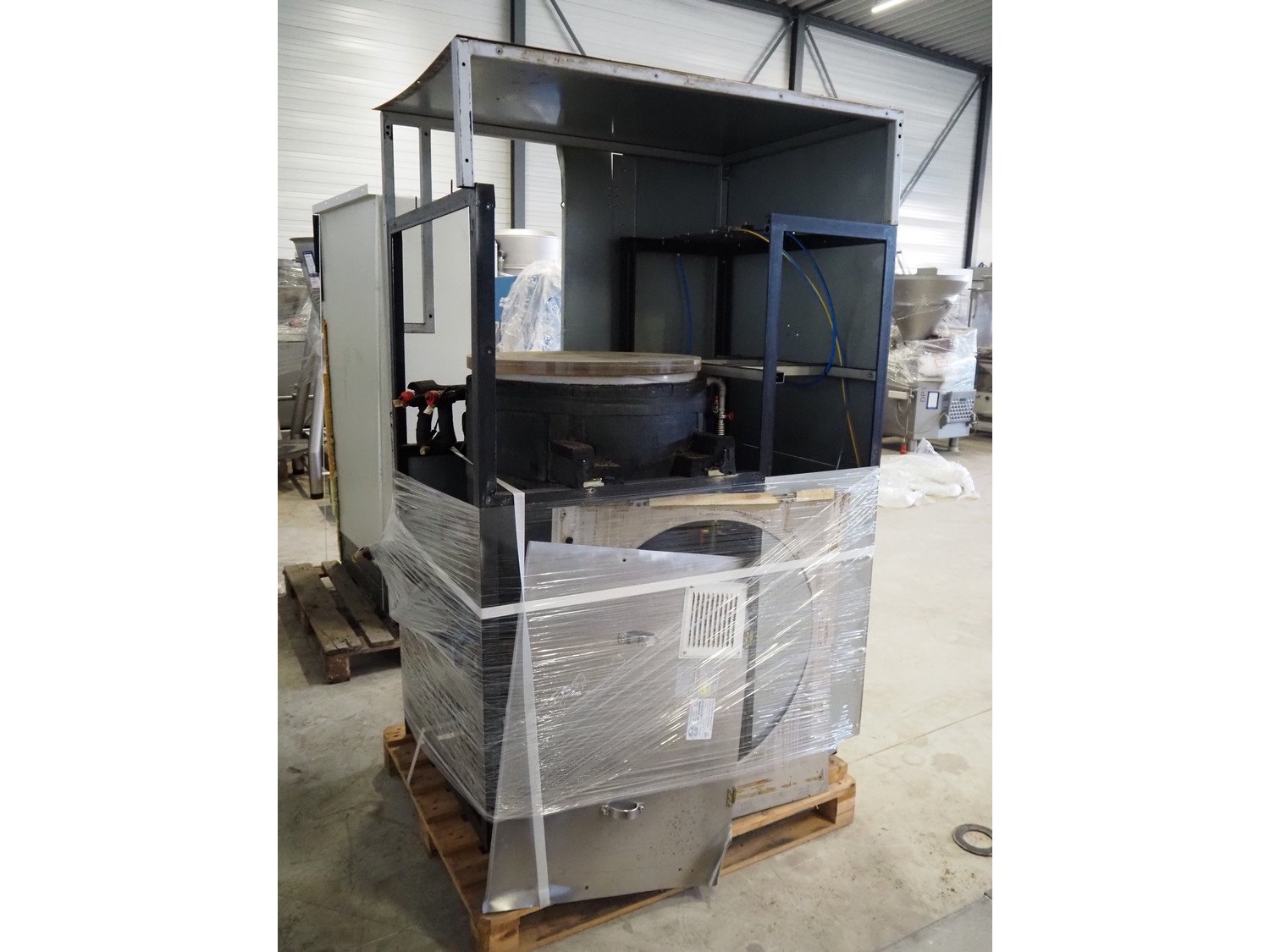

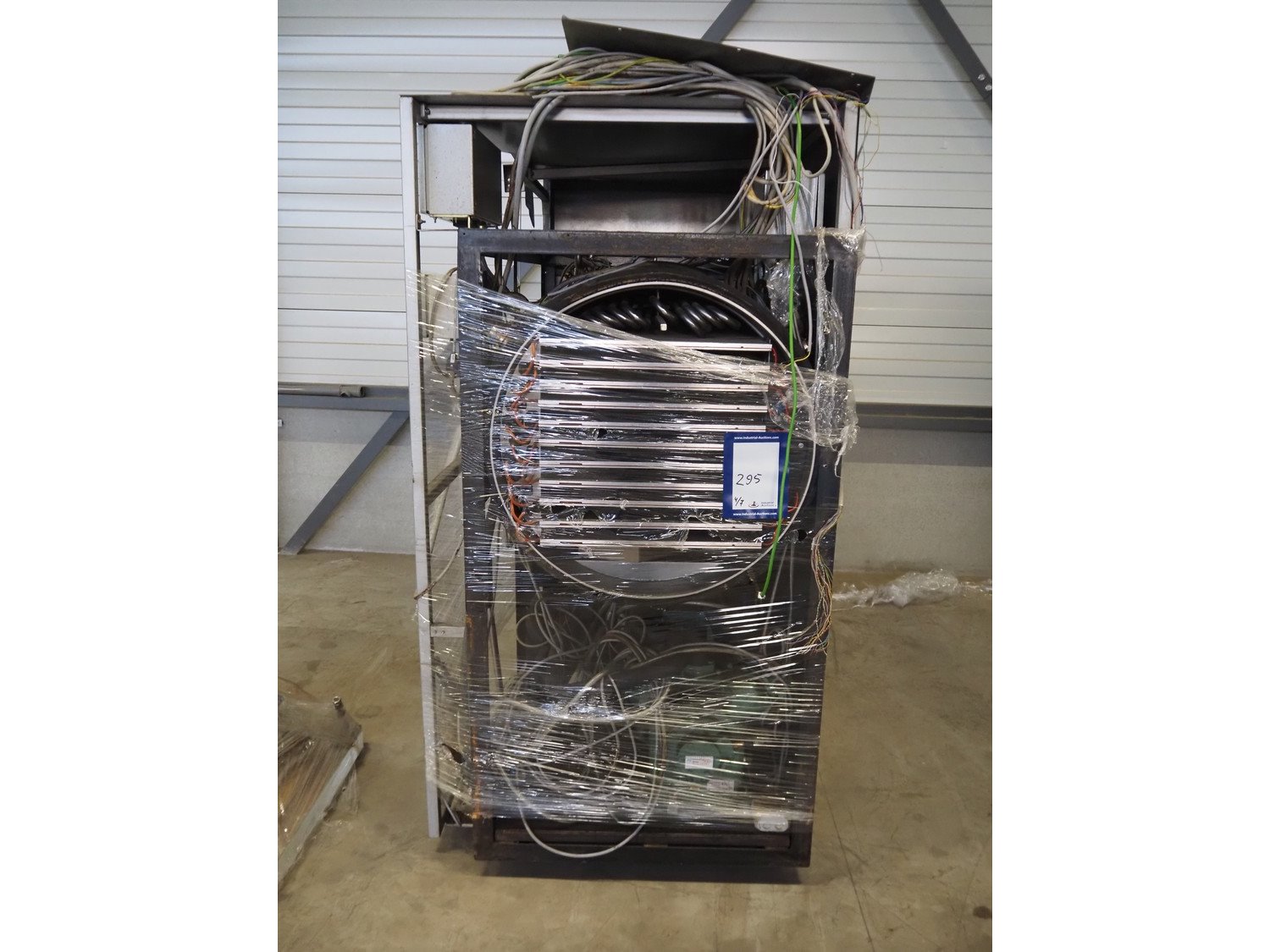

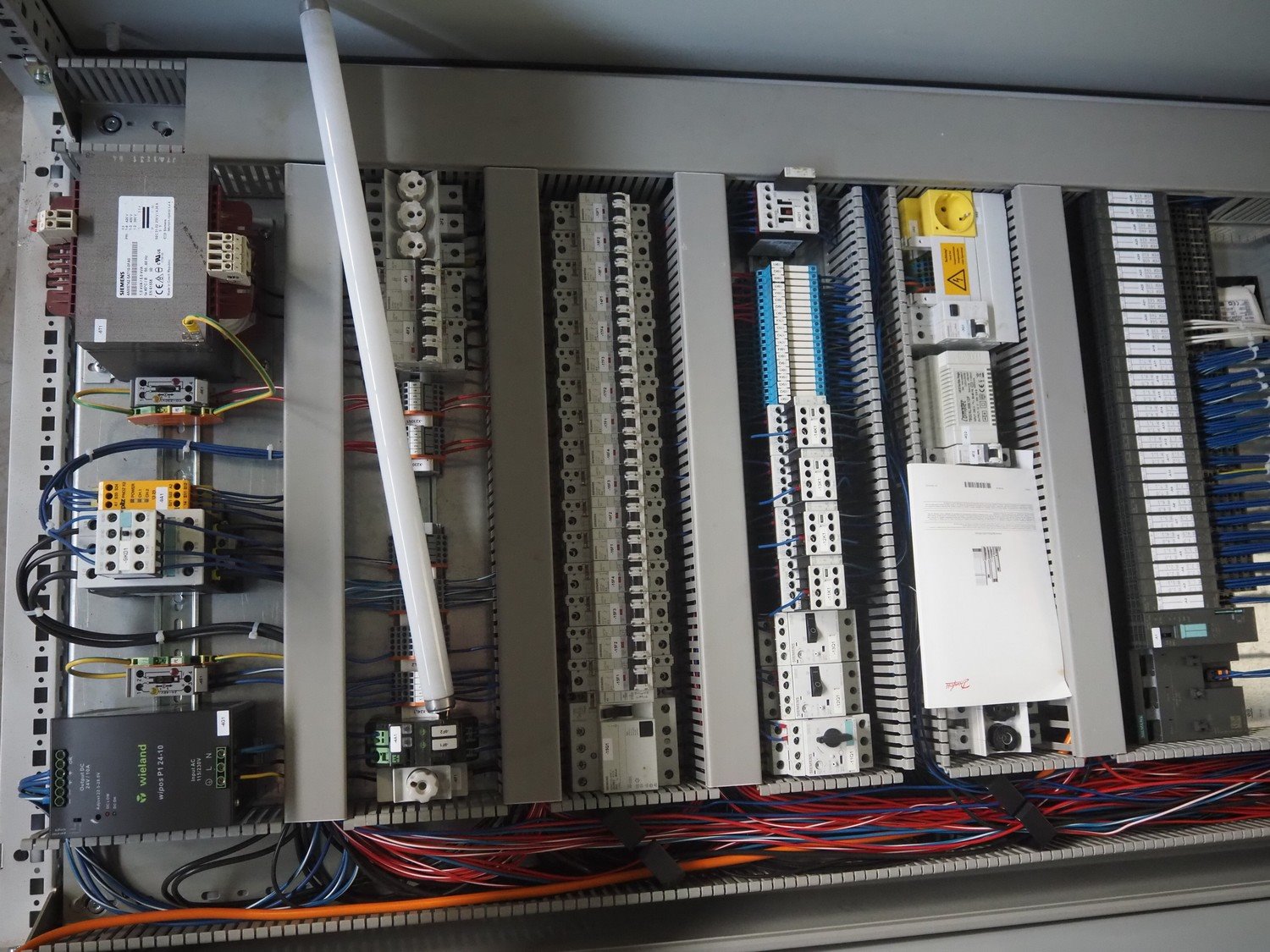

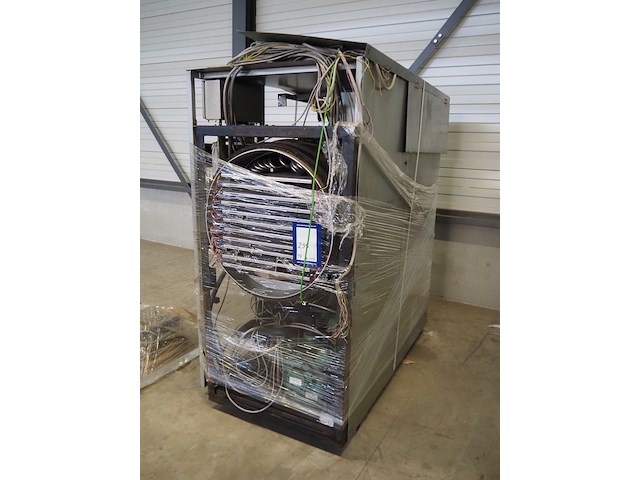

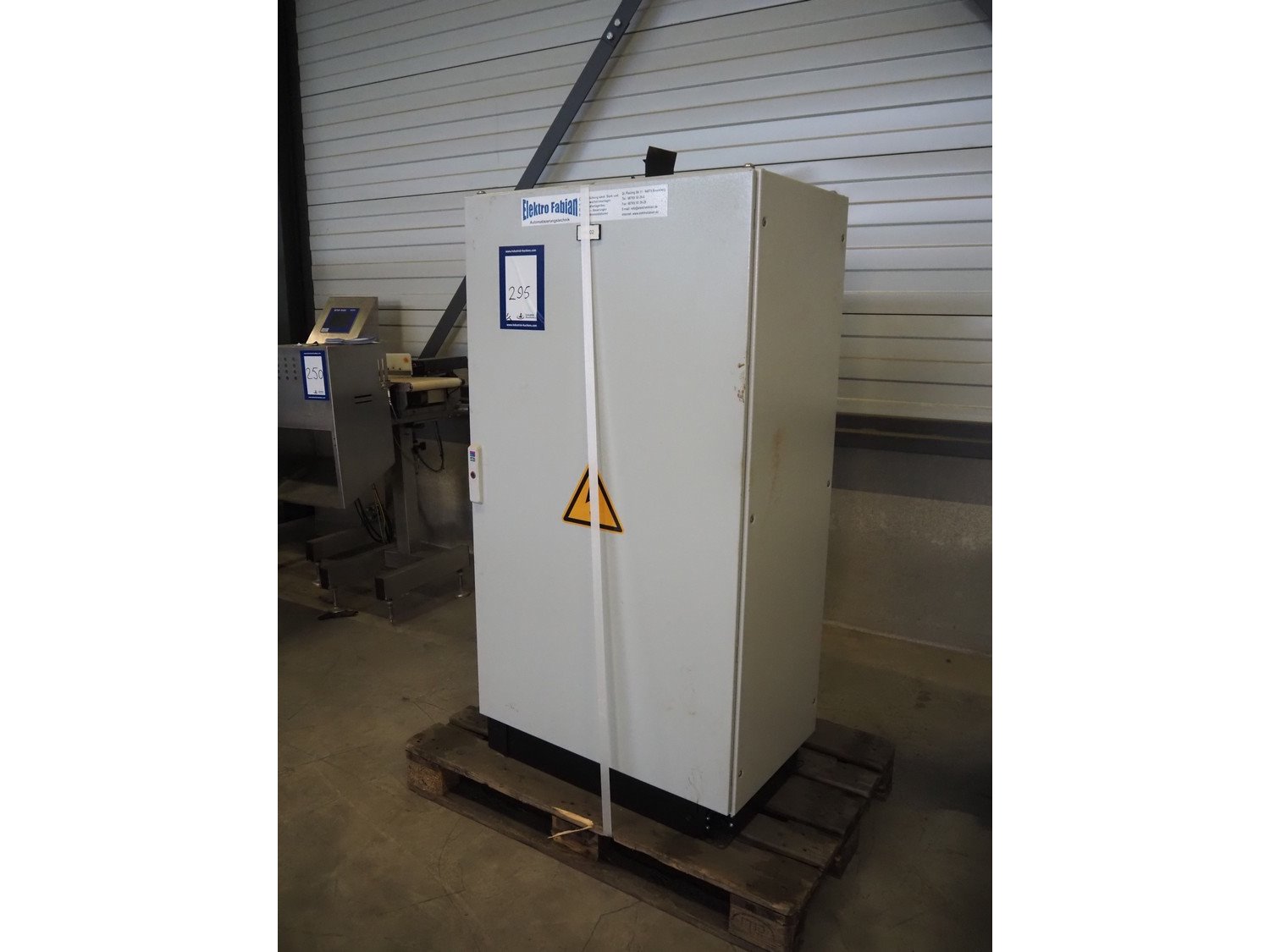

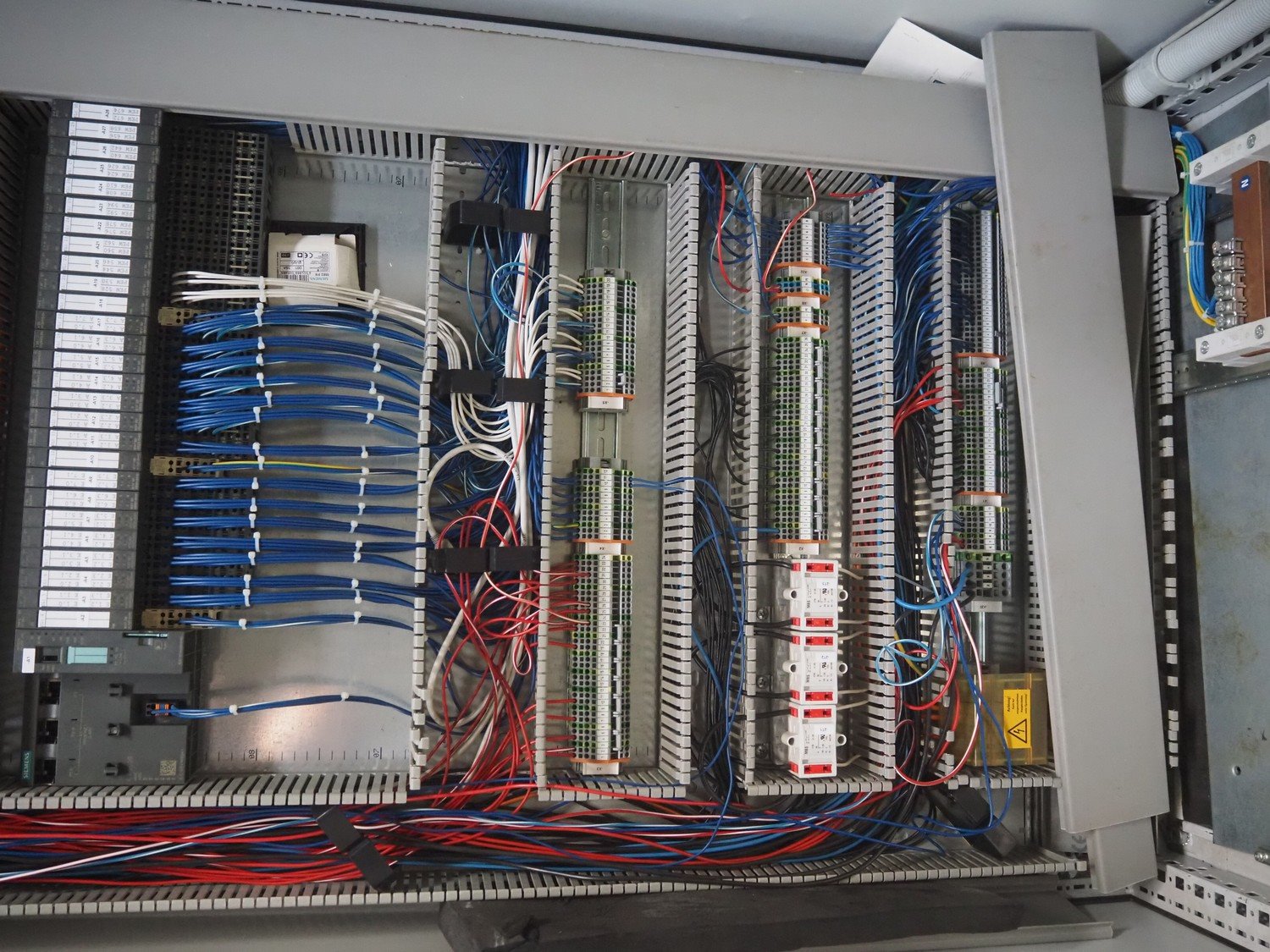

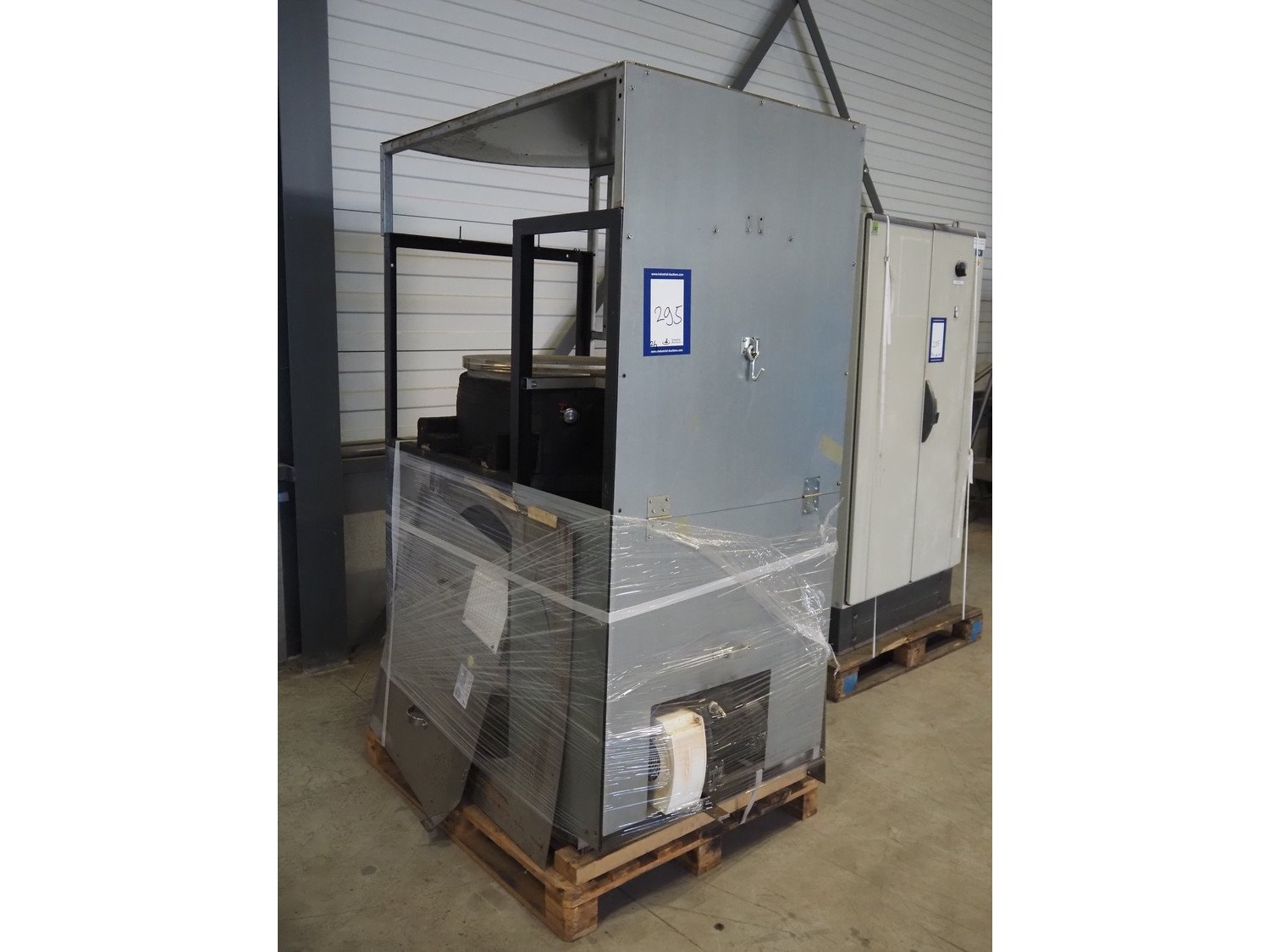

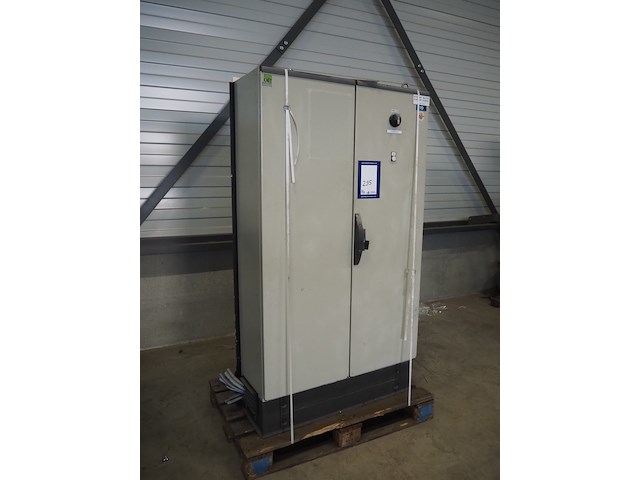

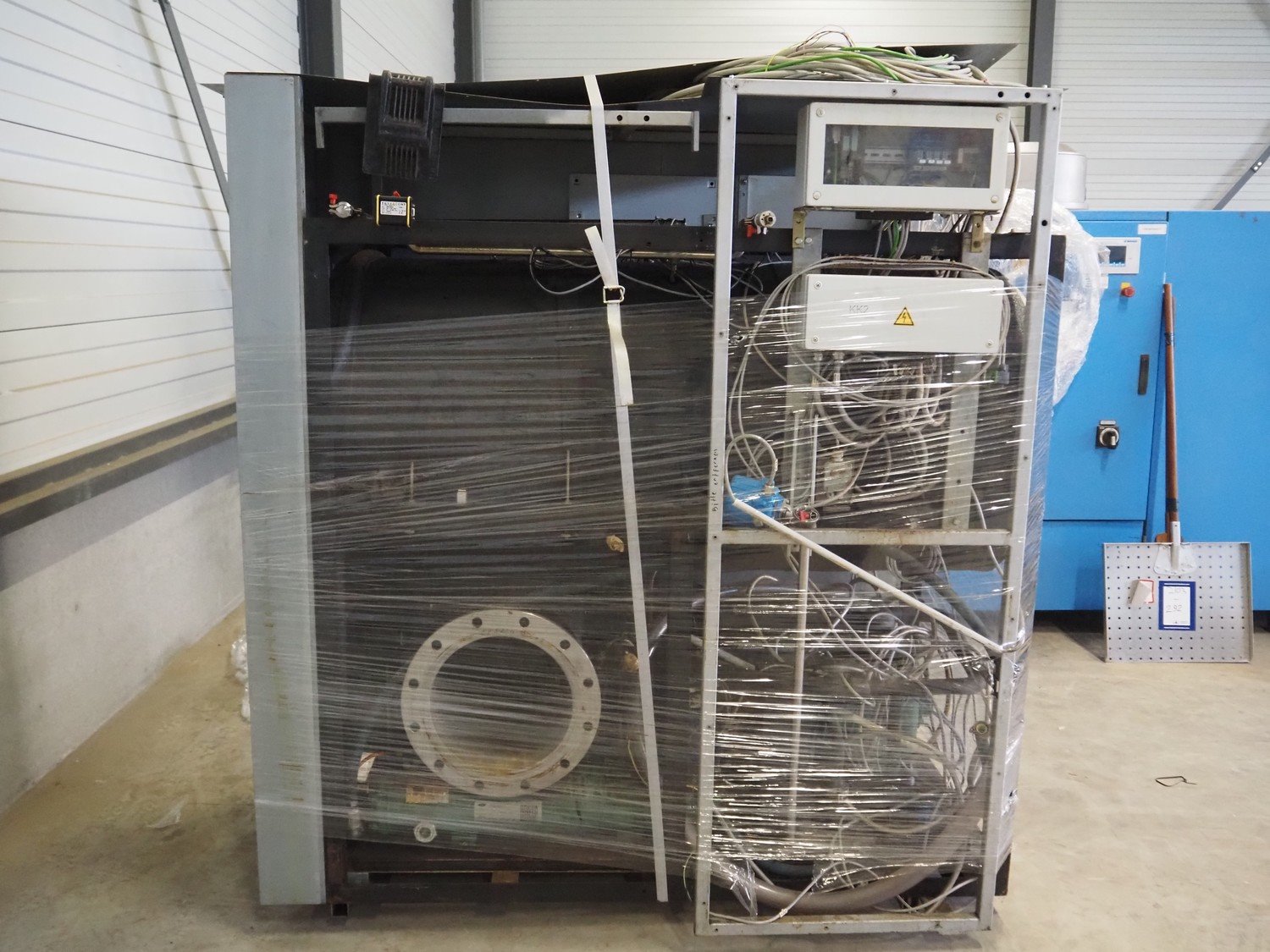

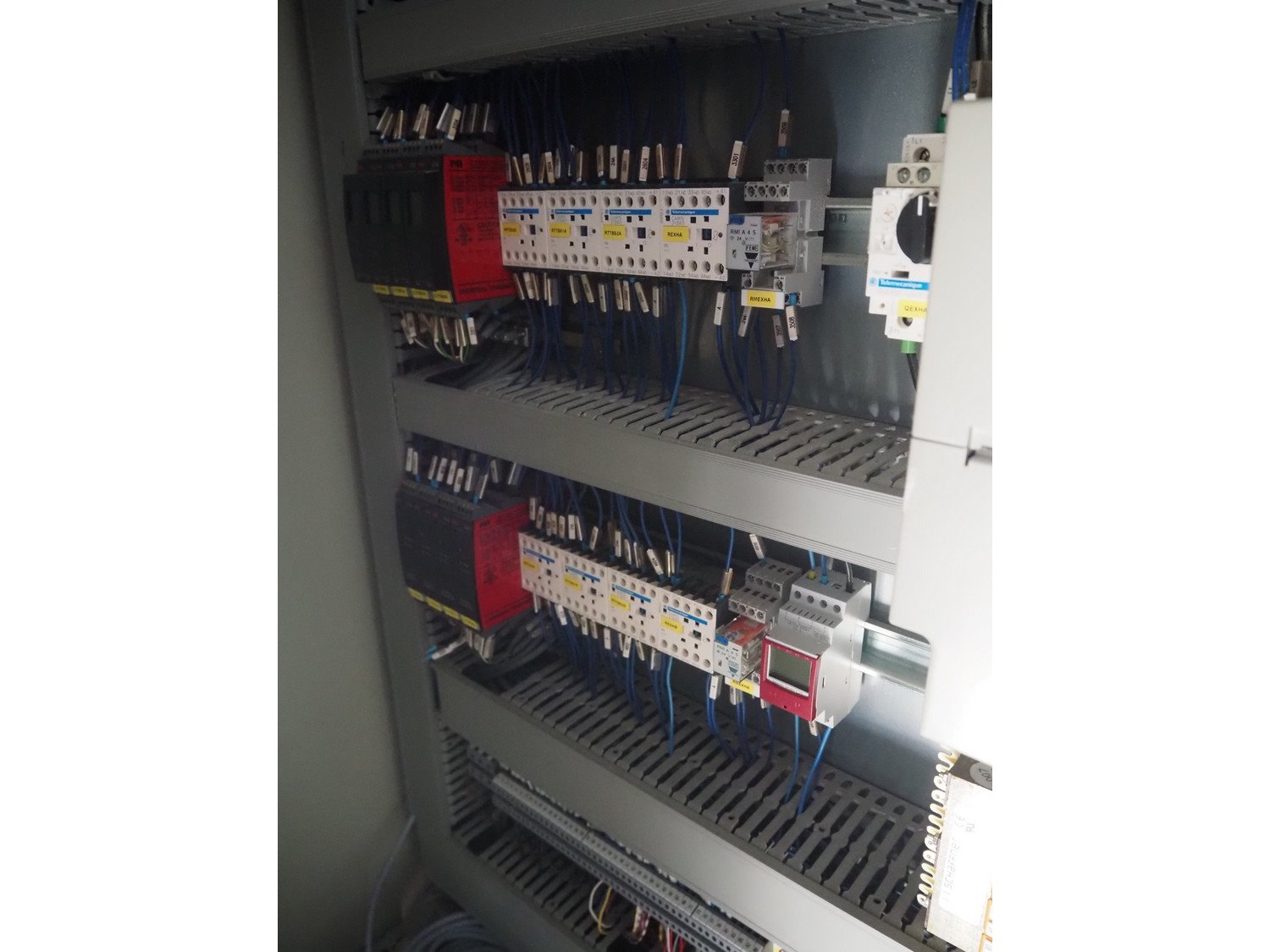

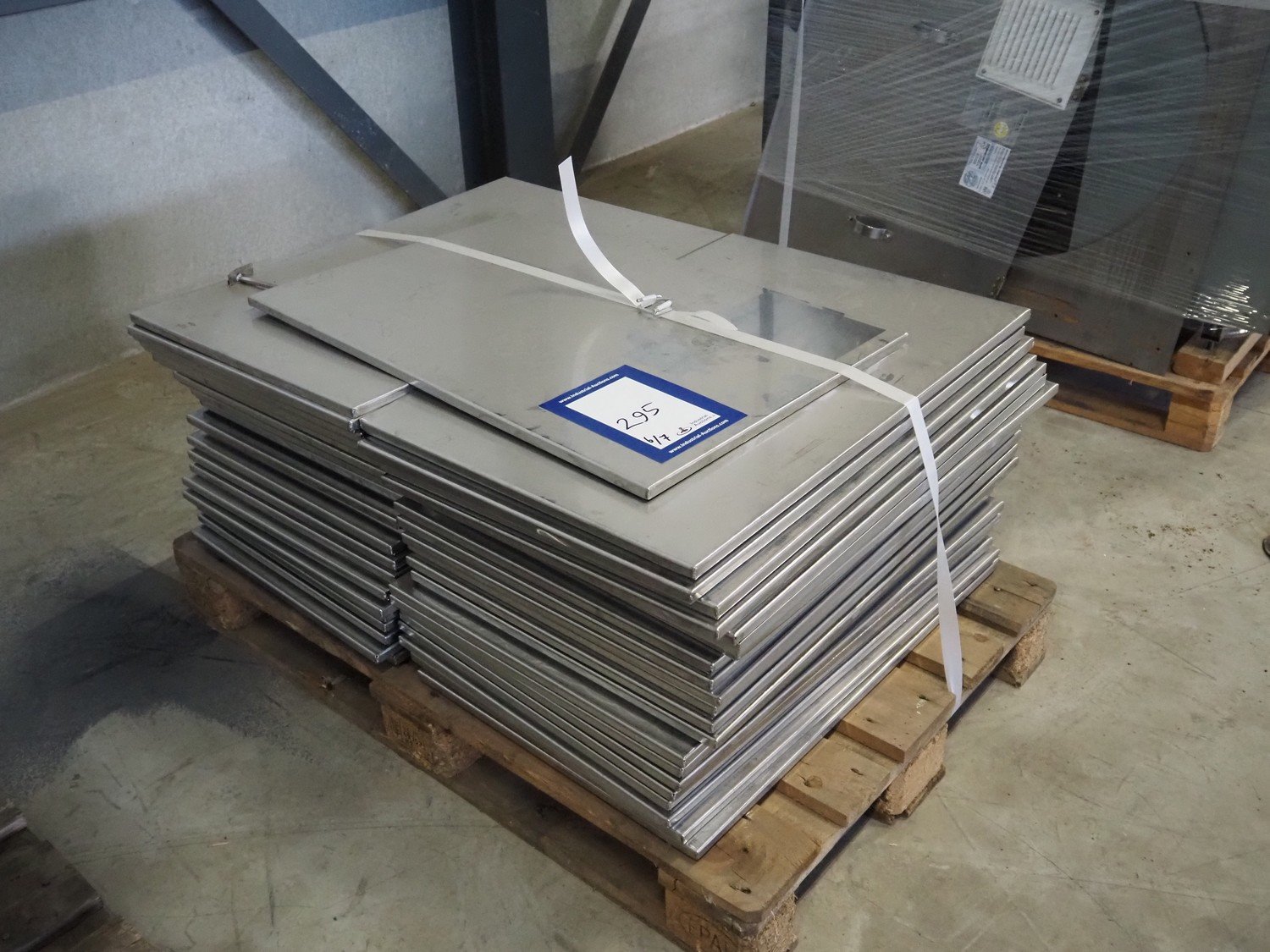

Freeze dry system,11 floors, dimensions floors: (11x) 495 mm x 1500 mm, distance between floors: 30 mm, total dimensions: 1800 mm x 2060 mm x 1930 mm. Lot has already been professionally dismantled. Extra technical information: The system essentially consists of the following components: - Drying chamber - Vapour line with shut-off valve - Ice condenser - Vacuum system - Refrigeration system The system is controlled via Siemens PLC. Visualisation takes place via Simatic Panel. Freeze dryer design: Shelf temperature: - 30°C / + 60°C Condensation temperature: - 50°C, re-sublimation temperature Vacuum at the end of drying 0.1 mbar absolute Usable floor space: 7.4 m² Number of shelves: 10 (product trays) + 1 cover plate Ice condenser design: Condenser type: Evaporator tubes in two coils Condenser capacity: approx. 50 kg Condenser temperature: = -50 °C (unloaded) Vacuum system design: Type: Dry compressing screw pump Suction capacity: 65 m³/h Final pressure at end of drying: 0.1 mbar absolute Refrigeration system design: Type: two-stage compressor Technical data: Compressor type: Bitzer S4N8.2Y Refrigerant: R449A Kavel locatie: Looyenbeemd 11, 5652 BH Eindhoven, Nederland
